SCP10R-AHMRK (1999)

Toyota Yaris/Echo (3d,5d)

Production Mar 1999 - Aug 2005
Engine 1SZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9903- )

diagram 67751 67751A 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-52010C0

NCP10,SCP10..GEN

BLACK,TRIM97,98

 1
67751-52010C0

NCP10,SCP10

BLACK,TRIM1#,7#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-05165C0

NCP10,SCP10

BLACK,TRIM1#,7#

 8
90467-0509622

NCP10,SCP10

BLACK,TRIM1#,7#

 8
90467-05165B0

NCP10,SCP10..GEN

DK.GRAY,TRIM97,98

 8
74811D - HANDLE, DOOR PULL
74811-13010C0

SCP10

BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,580 ,6R4 ,764 ,8K8 ,8M4

 1
74811-13010C0

NCP10,SCP10

BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,3P0 ,580 ,6R4 ,764 ,8K8 ,8M4

 1
74811-13010C0

NCP10,SCP10..GEN

BLACK,TRIM97,98

 1
74811-13010C0

NCP10,SCP10

BLACK,TRIM1#,7#&199 ,209 ,3N7 ,3P0 ,580 ,6R4

 1

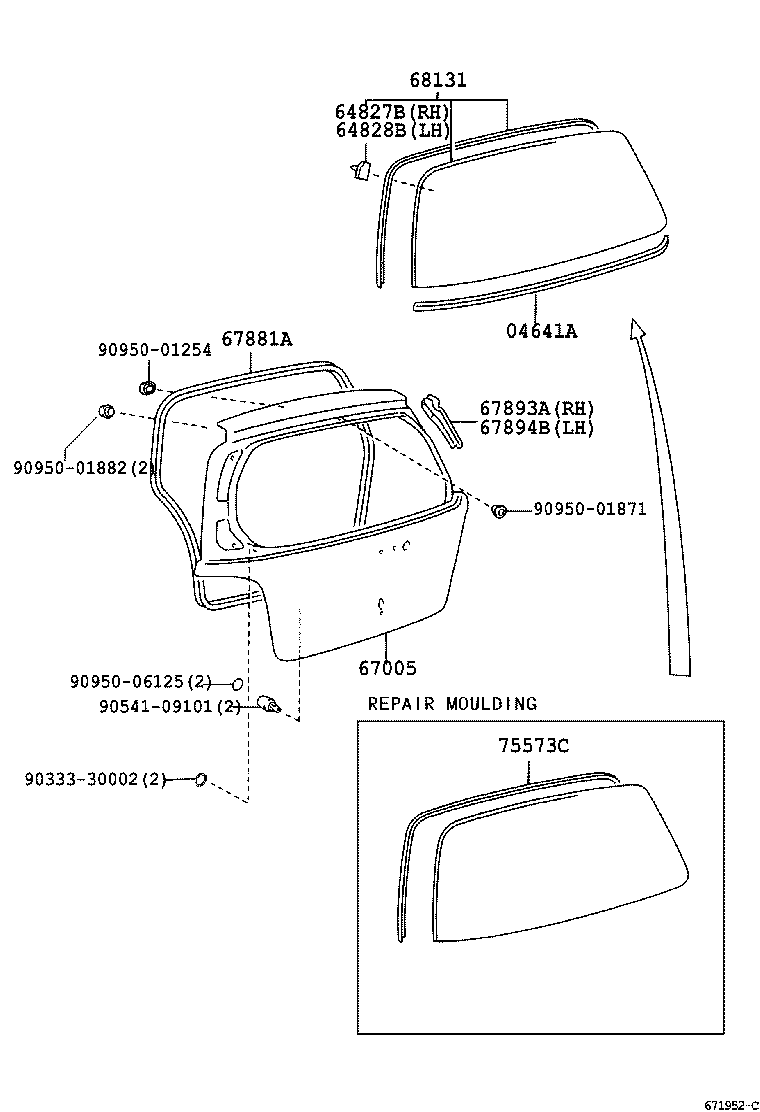

ILLUST NO. 2 OF 2(9903- )

diagram 04641A 64827B 64828B 67005 67881A 67893A 67894B 68131 75573C 9033330002 9054109101 9095001254 9095001871 9095001882 9095006125
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
64813-52010

NCP1#,SCP10

 1
64813-52010

NCP1#,SCP10

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52010

NCP1#,SCP10

 1
64827-52010

SCP10

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52010

SCP10

 1
64828-52010

NCP1#,SCP10

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52010

SCP10

W(REAR WIPER & HIGH MOUNT STOP LAMP)

 1
67005-52020

SCP10

W(REAR WIPER)

 1
67005-52021

NCP10,SCP10..GEN

W(REAR WIPER)

 1
67005-52012

NCP1#,SCP10

W(REAR WIPER & HIGH MOUNT STOP LAMP)

 1
67005-52022

NCP10,SCP10..GEN

W(REAR WIPER)

 1
67005-52011

NCP1#,SCP10

W(REAR WIPER & HIGH MOUNT STOP LAMP)

 1
67005-52012

NCP1#,SCP10

W(REAR WIPER & HIGH MOUNT STOP LAMP)

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-52010

NCP1#,SCP10

 1
67881-52010

NCP1#,SCP10

 1
67881-52011

NCP1#,SCP10

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52010

NCP1#,SCP10

 1
67893-52010

NCP1#,SCP10

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52010

NCP1#,SCP10

 1
67894-52010

NCP1#,SCP10

 1
68131 - GLASS, BACK DOOR
68105-52010

NCP10,SCP10..GEN

*EHTT,T=3.1,GREEN

 1
68105-52010

NCP10,SCP10..GEN

*EHTT,T=3.1,GREEN

 1
68105-52011

NCP10,SCP10..GEN

*EHTT,T=3.1,GREEN

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-52110

NCP10,SCP10

 1
75573-52111

NCP1#,SCP10

 1
75573-52111

NCP1#,SCP10

 1
Common parts
90333-30002 None epc.PartDetail.None
90541-09101 None epc.PartDetail.None
90950-01254 None epc.PartDetail.None
90950-01871 None epc.PartDetail.None
90950-01882 None epc.PartDetail.None
90950-06125 None epc.PartDetail.None
