SCP10R-AHMRK (1999)
Toyota Yaris/Echo (3d,5d)
(9903- )SCP10

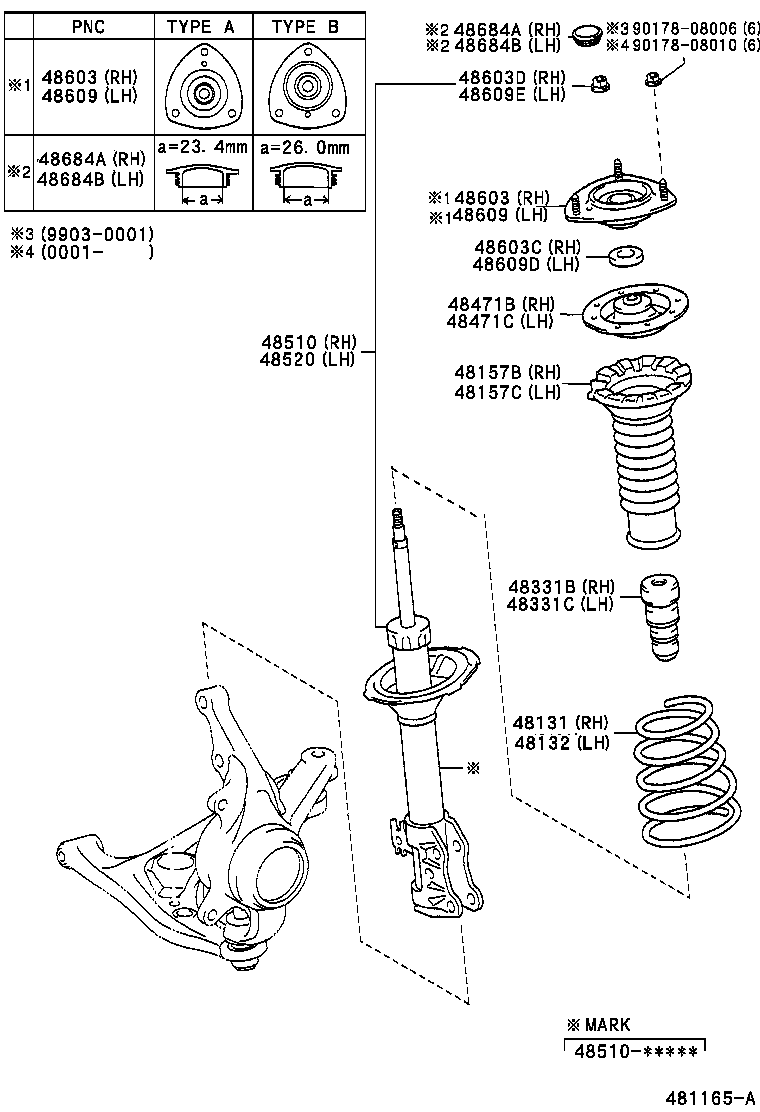

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52010 |
SCP10 |
1 | ||
| 48131-52580 |
SCP10..MTM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52010 |
SCP10 |
1 | ||
| 48131-52580 |
SCP10..MTM |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52010 |
NCP1#,SCP10 |
1 | ||
| 48157-52010 |
NCP1#,SCP10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52010 |
NCP1#,SCP10 |
1 | ||
| 48157-52010 |
NCP1#,SCP10 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-52010 |
NCP1#,SCP10 |
1 | ||
| 48331-52010 |
NCP1#,SCP10 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-52010 |
NCP1#,SCP10 |
1 | ||
| 48331-52010 |
NCP1#,SCP10 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-52010 |
NCP1#,SCP10 |
1 | ||
| 48044-52010 |
NCP1#,SCP10 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-52010 |
NCP1#,SCP10 |
1 | ||
| 48044-52010 |
NCP1#,SCP10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-59175 |
NCP10,SCP10..GEN MARK 48510-52060 |
1 | ||
| 48510-59176 |
NCP10,SCP10..GEN MARK 48510-52061 |
1 | ||
| 48510-59177 |
NCP10,SCP10..GEN MARK 48510-52062 |
1 | ||
| 48510-59178 |
NCP10,SCP10..GEN MARK 48510-52063 |
1 | ||
| 48510-59725 |
NCP10,SCP10..GEN MARK 48510-52670 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-59178 |
NCP10,SCP10..GEN MARK 48510-52063 |
1 | ||
| 48510-59176 |
NCP10,SCP10..GEN MARK 48510-52061 |
1 | ||
| 48510-59175 |
NCP10,SCP10..GEN MARK 48510-52060 |
1 | ||
| 48510-59177 |
NCP10,SCP10..GEN MARK 48510-52062 |
1 | ||
| 48510-59725 |
NCP10,SCP10..GEN MARK 48510-52670 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52020 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52012 |
NCP10,SCP10..GEN |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52011 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52020 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52012 |
NCP10,SCP10..GEN |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52011 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
NCP10,SCP10 |
1 | ||
| 90303-22002 |
NCP1#,SCP10 |
1 | ||
| 90303-22002 |
NCP1#,SCP10 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NCP1#,SCP10 |
1 | ||
| 90179-12145 |
NCP1#,SCP10 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52020 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52011 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52012 |
NCP10,SCP10..GEN |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52020 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52011 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52021 |
NCP1#,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48609-52010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48609-52012 |
NCP10,SCP10..GEN |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
NCP10,SCP10 |
1 | ||
| 90303-22002 |
NCP1#,SCP10 |
1 | ||
| 90303-22002 |
NCP1#,SCP10 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NCP1#,SCP10 |
1 | ||
| 90179-12145 |
NCP1#,SCP10 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-12070 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-12070 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 48684-10010 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 48684-52010 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90178-08006 | ||||
| 90178-08010 | ||||
