SCP10R-AHMRK (1999)
Toyota Yaris/Echo (3d,5d)
Production
Mar 1999
-
Aug 2005
Engine
1SZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9903- )1SZFE

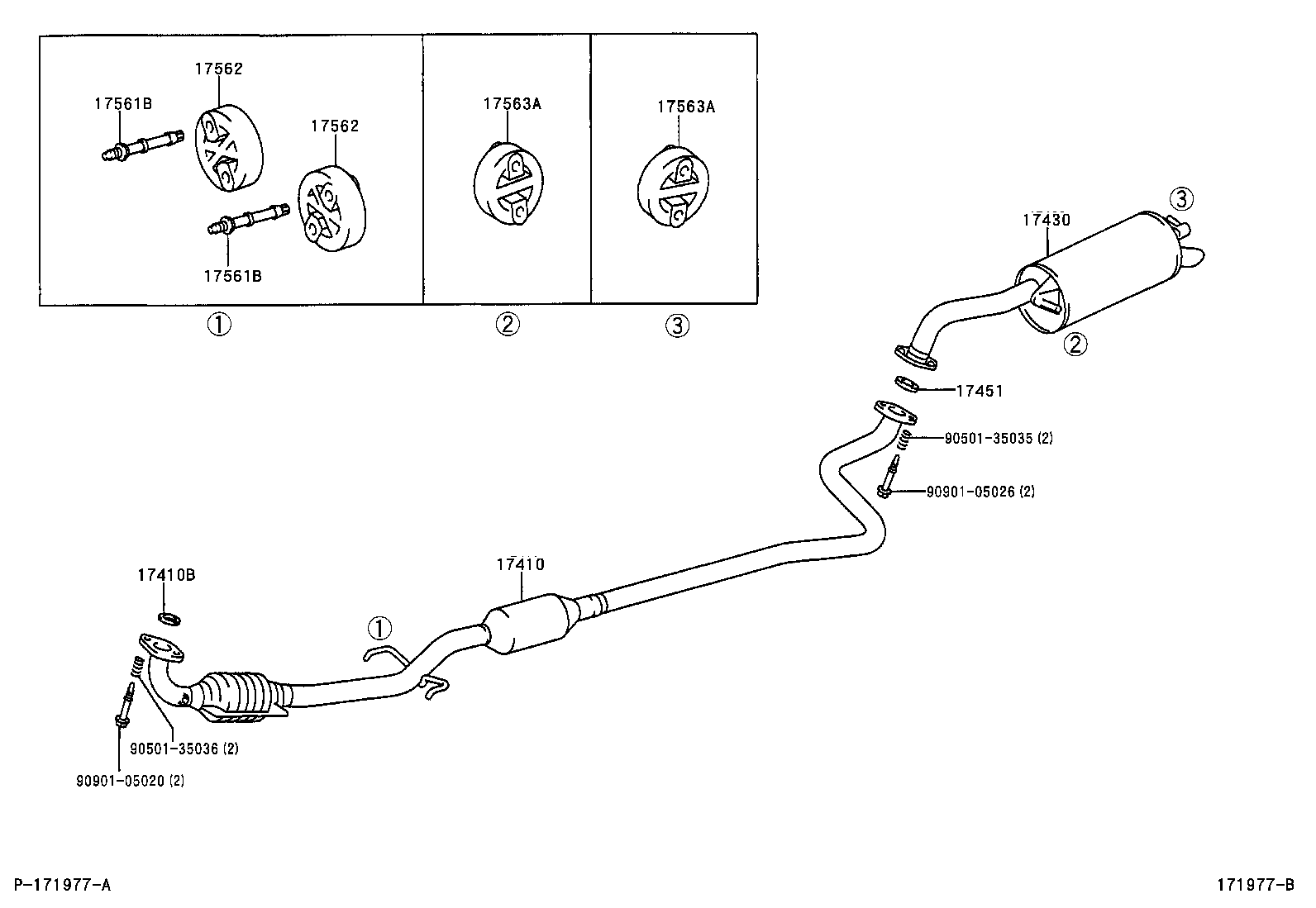

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-23070 |
1SZFE..SCP10 |
1 | ||
| 17410-23070 |
1SZFE..SCP10 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-23030 |
1SZFE..SCP10 |
1 | ||
| 90917-06080 |
1SZFE..SCP10 |
1 | ||
| 17451-23030 |
1SZFE..SCP10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-23030 |
1SZFE..SCP10 |
1 | ||
| 17430-23031 |
1SZFE..SCP10 |
1 | ||
| 17430-23031 |
1SZFE..SCP10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-23010 |
1SZFE..SCP10 |
1 | ||
| 17451-23010 |
1SZFE..SCP10 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17584-23020 |
1SZFE..SCP10 |
2 | ||
| 17584-23020 |
1SZFE..SCP10 |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17584-23020 |
1SZFE..SCP10 |
2 | ||
| 17584-23020 |
1SZFE..SCP10 |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-23040 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 17562-23040 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-23040 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 17562-23040 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-46040 |
1SZFE..SCP10 |
2 | ||
| 17565-46040 |
1SZFE..SCP10 |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-46040 |
1SZFE..SCP10 |
2 | ||
| 17565-46040 |
1SZFE..SCP10 |
2 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
