Toyota Yaris/echo (3d,5d) NCP10 WIRELESS DOOR LOCK

NCP10R-AHPRKQ (1999)

Toyota Yaris/Echo (3d,5d)

Production Aug 1999 - Aug 2005

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

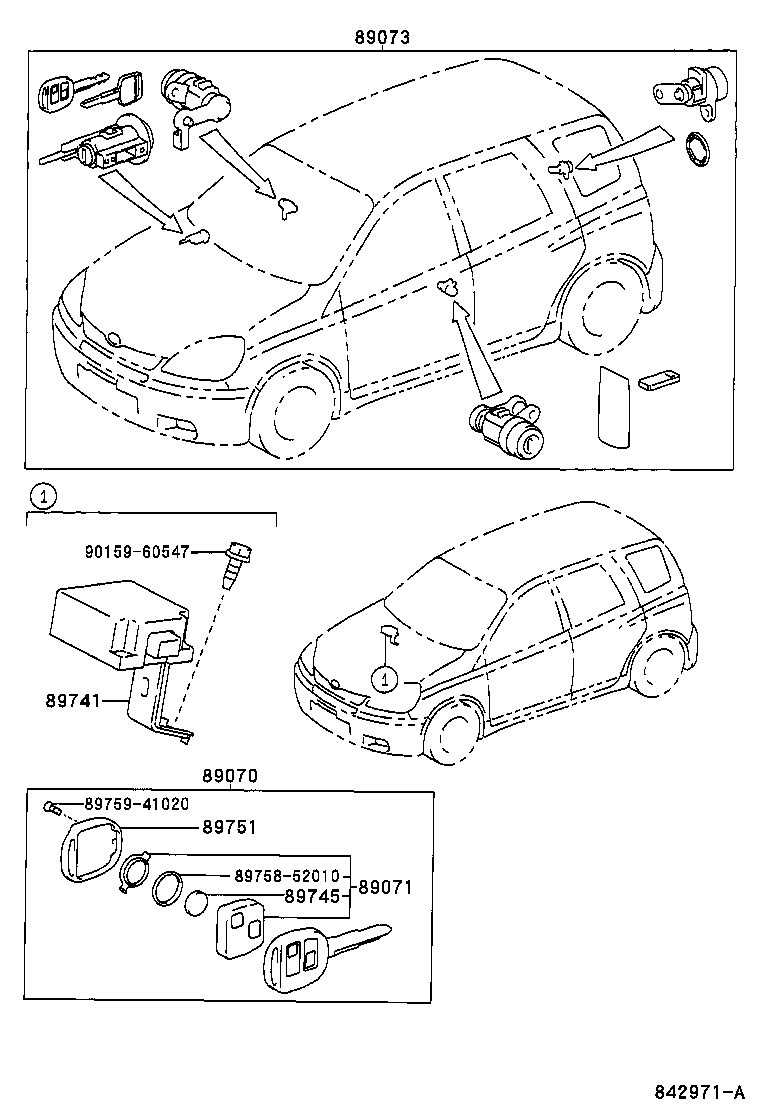

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52080	NCP10..ARL	08/1999 - 12/2000	1
89070-52081	NCP1#..ARL	12/2000 - 04/2002	1
89070-47101	NCP1#..ARL	04/2002 - 12/2002	1
89070-47101	NCP1#..ARL	12/2002 - 08/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52020	NCP10..ARL	08/1999 - 01/2001	1
89071-52021	NCP1#..ARL	12/2002 - 08/2005	1
89071-52021	NCP1#..ARL	01/2001 - 12/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-52060	NCP10..ARL	08/1999 - 01/2000	1
89073-52460	NCP1#..ARL	04/2002 - 12/2002	1
89073-52061	NCP10..ARL	01/2000 - 12/2000	1
89073-52062	NCP1#..ARL	12/2000 - 04/2002	1
69005-52880	NCP1# W(ENGINE IMMOBILIZER SYSTEM)	12/2002 - 12/2999	1
89741 - RECEIVER, DOOR CONTROL
89741-52020	NCP10..ARL	08/1999 - 01/2001	1
89741-52021	NCP1#..ARL	01/2001 - 12/2002	1
89741-52021	NCP1#..ARL	12/2002 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-52010	NCP1#	08/1999 - 12/2002	1
89745-52010	NCP1#	12/2002 - 12/2999	1
89751 - COVER, TRANSMITTER HOUSING
89751-20010	NCP1#..ARL	04/2002 - 12/2002	1
89751-20010	NCP1#..ARL	12/2002 - 08/2005	1
Common parts
89758-52010
89759-41020
90159-60547

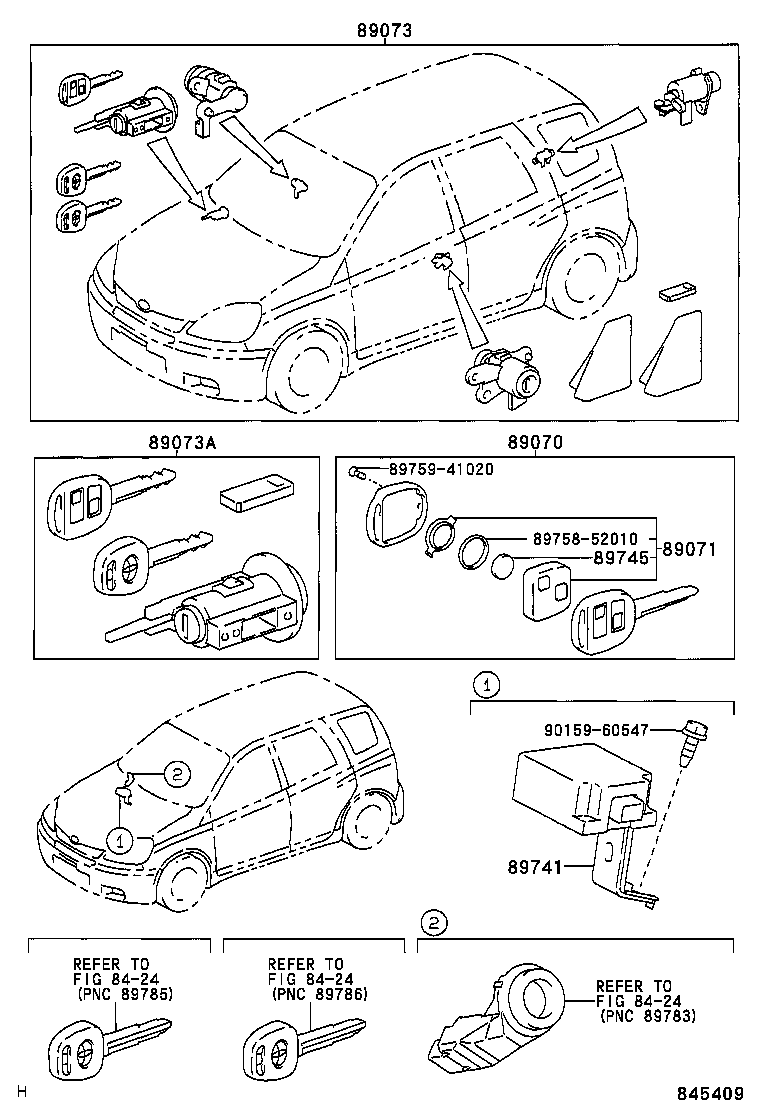

Click highlighted areas on diagram

W(ENGINE IMMOBILIZER SYSTEM)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52080	NCP10..ARL	08/1999 - 12/2000	1
89070-52081	NCP1#..ARL	12/2000 - 04/2002	1
89070-47101	NCP1#..ARL	04/2002 - 12/2002	1
89070-47101	NCP1#..ARL	12/2002 - 08/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52020	NCP10..ARL	08/1999 - 01/2001	1
89071-52021	NCP1#..ARL	12/2002 - 08/2005	1
89071-52021	NCP1#..ARL	01/2001 - 12/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-52060	NCP10..ARL	08/1999 - 01/2000	1
89073-52460	NCP1#..ARL	04/2002 - 12/2002	1
89073-52061	NCP10..ARL	01/2000 - 12/2000	1
89073-52062	NCP1#..ARL	12/2000 - 04/2002	1
69005-52880	NCP1# W(ENGINE IMMOBILIZER SYSTEM)	12/2002 - 12/2999	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-52430	NCP1#..ARL	04/2002 - 12/2002	1
89073-52011	NCP1#..ARL	12/2000 - 04/2002	1
89073-52010	NCP10..ARL	08/1999 - 12/2000	1
89741 - RECEIVER, DOOR CONTROL
89741-52020	NCP10..ARL	08/1999 - 01/2001	1
89741-52021	NCP1#..ARL	01/2001 - 12/2002	1
89741-52021	NCP1#..ARL	12/2002 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-52010	NCP1#	08/1999 - 12/2002	1
89745-52010	NCP1#	12/2002 - 12/2999	1
89751 - COVER, TRANSMITTER HOUSING
89751-20010	NCP1#..ARL	04/2002 - 12/2002	1
89751-20010	NCP1#..ARL	12/2002 - 08/2005	1
Common parts
89758-52010
89759-41020
90159-60547
Linked diagrams
8424

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52080	NCP10..ARL	08/1999 - 12/2000	1
89070-52081	NCP1#..ARL	12/2000 - 04/2002	1
89070-47101	NCP1#..ARL	04/2002 - 12/2002	1
89070-47101	NCP1#..ARL	12/2002 - 08/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52020	NCP10..ARL	08/1999 - 01/2001	1
89071-52021	NCP1#..ARL	12/2002 - 08/2005	1
89071-52021	NCP1#..ARL	01/2001 - 12/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-52060	NCP10..ARL	08/1999 - 01/2000	1
89073-52460	NCP1#..ARL	04/2002 - 12/2002	1
89073-52061	NCP10..ARL	01/2000 - 12/2000	1
89073-52062	NCP1#..ARL	12/2000 - 04/2002	1
69005-52880	NCP1# W(ENGINE IMMOBILIZER SYSTEM)	12/2002 - 12/2999	1
89741 - RECEIVER, DOOR CONTROL
89741-52020	NCP10..ARL	08/1999 - 01/2001	1
89741-52021	NCP1#..ARL	01/2001 - 12/2002	1
89741-52021	NCP1#..ARL	12/2002 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-52010	NCP1#	08/1999 - 12/2002	1
89745-52010	NCP1#	12/2002 - 12/2999	1
Common parts
89758-52010
89759-41020
90159-60547

Click highlighted areas on diagram

W(ENGINE IMMOBILIZER SYSTEM)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-52080	NCP10..ARL	08/1999 - 12/2000	1
89070-52081	NCP1#..ARL	12/2000 - 04/2002	1
89070-47101	NCP1#..ARL	04/2002 - 12/2002	1
89070-47101	NCP1#..ARL	12/2002 - 08/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52020	NCP10..ARL	08/1999 - 01/2001	1
89071-52021	NCP1#..ARL	12/2002 - 08/2005	1
89071-52021	NCP1#..ARL	01/2001 - 12/2002	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-52060	NCP10..ARL	08/1999 - 01/2000	1
89073-52460	NCP1#..ARL	04/2002 - 12/2002	1
89073-52061	NCP10..ARL	01/2000 - 12/2000	1
89073-52062	NCP1#..ARL	12/2000 - 04/2002	1
69005-52880	NCP1# W(ENGINE IMMOBILIZER SYSTEM)	12/2002 - 12/2999	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-52430	NCP1#..ARL	04/2002 - 12/2002	1
89073-52011	NCP1#..ARL	12/2000 - 04/2002	1
89073-52010	NCP10..ARL	08/1999 - 12/2000	1
89741 - RECEIVER, DOOR CONTROL
89741-52020	NCP10..ARL	08/1999 - 01/2001	1
89741-52021	NCP1#..ARL	01/2001 - 12/2002	1
89741-52021	NCP1#..ARL	12/2002 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-52010	NCP1#	08/1999 - 12/2002	1
89745-52010	NCP1#	12/2002 - 12/2999	1
Common parts
89758-52010
89759-41020
90159-60547
Linked diagrams
8424
