NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
(9908- )NCP10..ATM

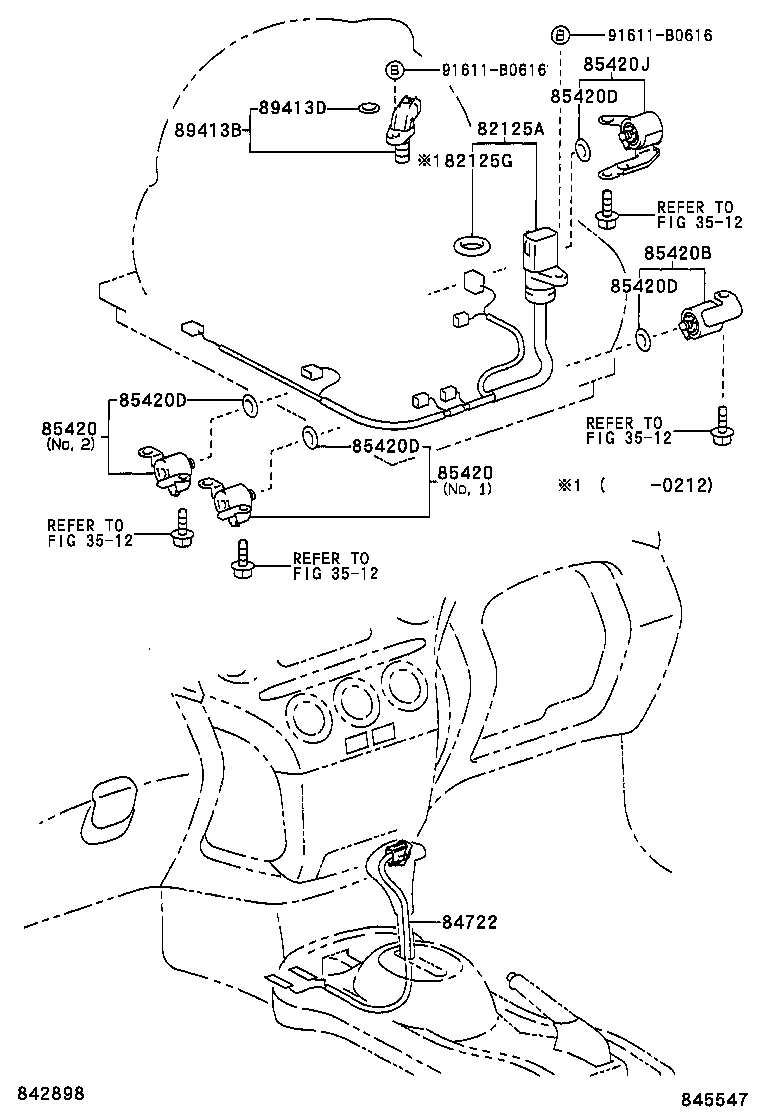

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-52020 |
NCP10..ATM |
1 | ||
| 82125-52020 |
NCP10..ATM |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
NCP10,SCP10..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-52010B0 |
NCP10,SCP10..RHD..ATM BLUE GLAY,TRIM1# |
1 | ||
| 84722-52010G0 |
NCP10,SCP10..RHD..ATM MIST GREEN,TRIM7# |
1 | ||
| 84722-52070B2 |
NCP10..ATM..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-52010 |
NCP10,SCP10..ATM NO.1 & NO.2 DENSO |
2 | ||
| 35250-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 |
2 | ||
| 35250-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 |
2 | ||
| 85420-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 AISIN |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-52010 |
NCP10,SCP10..ATM NO.1 & NO.2 DENSO |
2 | ||
| 35250-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 |
2 | ||
| 35250-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 |
2 | ||
| 85420-52020 |
NCP10,SCP10..ATM NO.1 & NO.2 AISIN |
2 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-52040 |
NCP10,SCP10..ATM AISIN |
1 | ||
| 35250-52050 |
NCP10,SCP10..ATM |
1 | ||
| 85420-52030 |
NCP10,SCP10..ATM DENSO |
1 | ||
| 35250-52050 |
NCP10,SCP10..ATM |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 90301-06004 |
NCP10..ATM |
4 | ||
| 85420J - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-52050 |
NCP10..ATM TOYOTA |
1 | ||
| 35250-52060 |
NCP10..ATM DENSO |
1 | ||
| 85420-52060 |
NCP10..ATM AISIN |
1 | ||
| 35250-52070 |
NCP10..ATM AISIN |
1 | ||
| 35250-52070 |
NCP10..ATM AISIN |
1 | ||
| 35250-52060 |
NCP10..ATM DENSO |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
NCP10,SCP10..ATM |
1 | ||
| 89413-32010 |
NCP10,SCP10..ATM |
1 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
NCP10,SCP10..ATM |
1 | ||
| 90301-11008 |
NCP10,SCP10..ATM |
1 | ||
| Common parts | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 3512 | ||||
