NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
Production
Aug 1999
-
Aug 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )NCP1#..RHD

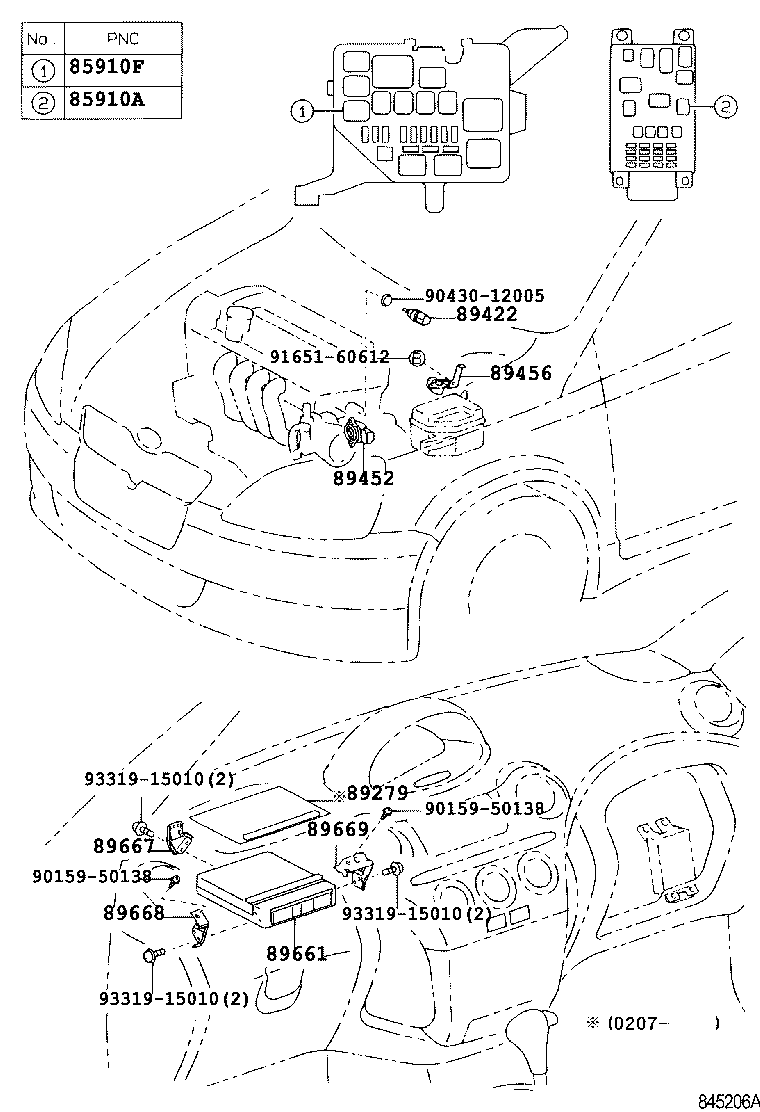

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02027 |
NCP1#,SCP10 |
1 | ||
| 90987-02012 |
NCP1#,SCP10 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02022 |
NCP1#,SCP10 |
1 | ||
| 90987-02027 |
NCP1#,SCP10 |
1 | ||
| 90987-02012 |
NCP1#,SCP10 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-52100 |
NCP1#..RHD |
1 | ||
| 89279-52040 |
NCP1#,SCP10 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-22030 |
NCP1#,SCP10 MARK 89422-22030*369 |
1 | ||
| 89422-22030 |
NCP1#,SCP10 MARK 89422-22030*369 |
1 | ||
| 89422-16010 |
NCP1#,SCP10 MARK 89422-16010*369 |
1 | ||
| 89422-16010 |
NCP1#,SCP10 MARK 89422-16010*369 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
NCP1# |
1 | ||
| 89452-20130 |
NCP1# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-52530 |
NCP10..ATM..ARL |
1 | ||
| 89661-52531 |
NCP10..ATM..ARL |
1 | ||
| 89661-5C220 |
NCP10..ATM PART NUMBER LABEL=89661-5C220 |
1 | ||
| 89661-52533 |
NCP10..ATM..ARL |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 89667-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 89668-52120 |
NCP1#..RHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 89669-52070 |
NCP1#..RHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90430-12005 | ||||
| 91651-60612 | ||||
| 93319-15010 | ||||
