NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
ILLUST NO. 2 OF 2(9908- )NCP1#
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
NCP1# |
1 | ||
| 83910-20720 |
NCP1# |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-52010H0 |
NCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 83911-52040B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 83911-52010B0 |
NCP10 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93560-14014 | ||||

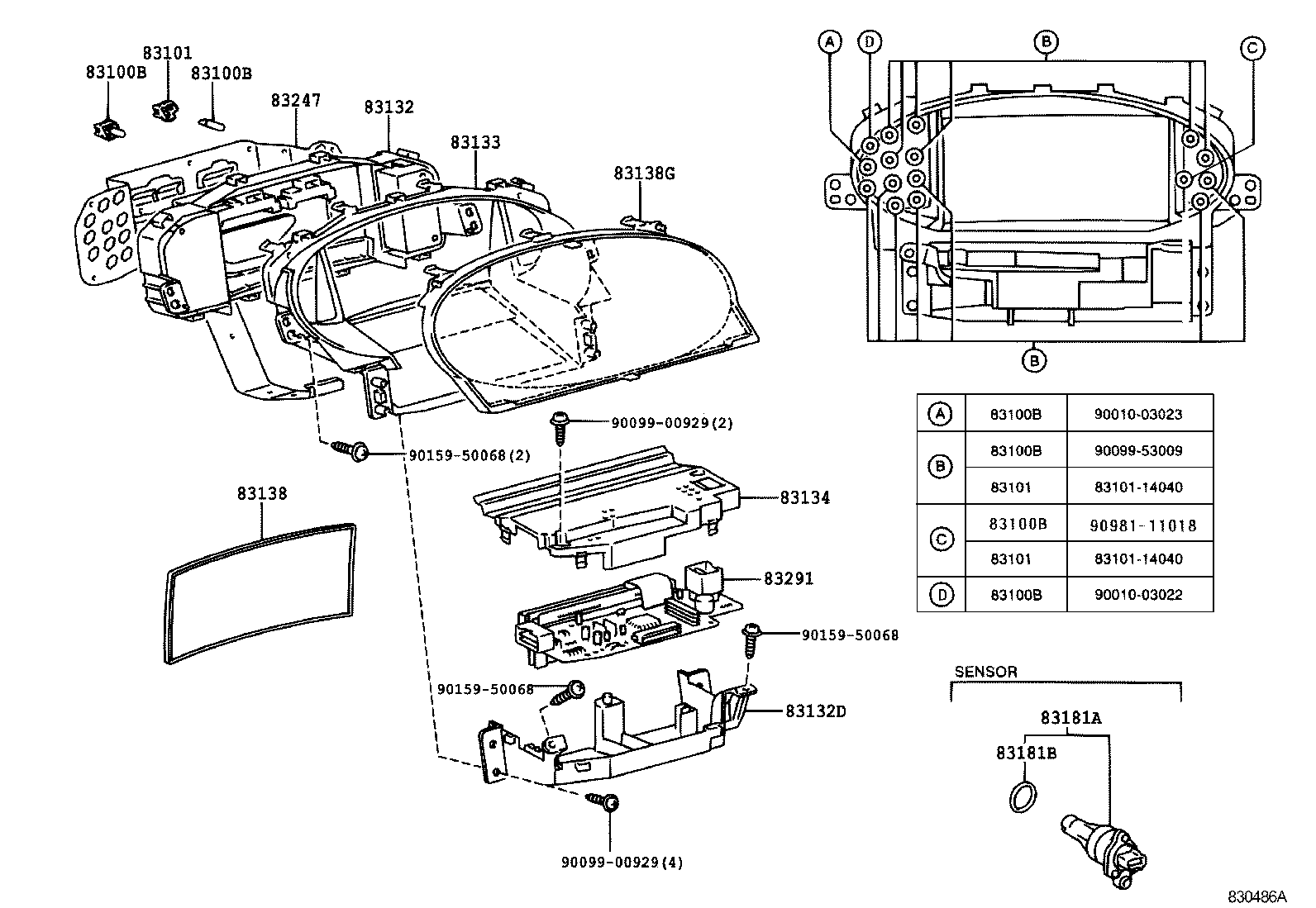

ILLUST NO. 1 OF 2(9903- )SCP10 ; (9908-0212)NCP1#..RHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C150 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-5C140 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83841-52200 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-52470 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP1#,SCP10..RHD |
1 | ||
| 83842-52100 |
NCP1#..RHD |
1 | ||
| 83842-52100 |
NCP1#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83811-52100 |
NCP1#,SCP10..RHD DIGITAL METER |
1 | ||
| 83811-5C060 |
NCP1#..RHD |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52100 |
NCP1#..RHD |
1 | ||
| 83821-52100 |
NCP1#..RHD |
1 | ||
| 83821-52100 |
NCP1#,SCP10..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
NCP1# |
1 | ||
| 83852-52110 |
NCP1#,SCP10 |
1 | ||
| 83852-52110 |
NCP1# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP10,SCP10 DIGITAL METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52200 |
NCP10..ARL DIGITAL METER,KM/H OR DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83861-52470 |
NCP10..ARL |
1 | ||
| 83861-5C140 |
NCP10..ARL |
1 | ||
| 83861-5C150 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52080 |
NCP1#..ARL |
1 | ||
| 83291-52490 |
NCP1#..ARL |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||
ILLUST NO. 1 OF 2(9908-0212)NCP1#
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-52030 |
NCP10..ARL |
1 | ||
| 83220-52030 |
NCP10..ARL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C150 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-5C140 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83841-52200 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-52470 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83811-52100 |
NCP1#,SCP10..RHD DIGITAL METER |
1 | ||
| 83811-5C060 |
NCP1#..RHD |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP10,SCP10 DIGITAL METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-1A710 |
NCP10,SCP10 |
1 | ||
| 83871-1A710 |
NCP10 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-52060 |
NCP10 |
1 | ||
| 83882-5C140 |
NCP10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52200 |
NCP10..ARL DIGITAL METER,KM/H OR DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83861-52470 |
NCP10..ARL |
1 | ||
| 83861-5C140 |
NCP10..ARL |
1 | ||
| 83861-5C150 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
NCP10 |
1 | ||
| 83248-20010 |
NCP10 |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-50068 | ||||
ILLUST NO. 1 OF 2(0212- )NCP1#
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-52030 |
NCP10..ARL |
1 | ||
| 83220-52030 |
NCP10..ARL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C150 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-5C140 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83841-52200 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-52470 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83811-52100 |
NCP1#,SCP10..RHD DIGITAL METER |
1 | ||
| 83811-5C060 |
NCP1#..RHD |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP10,SCP10 DIGITAL METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-1A710 |
NCP10,SCP10 |
1 | ||
| 83871-1A710 |
NCP10 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-52060 |
NCP10 |
1 | ||
| 83882-5C140 |
NCP10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52200 |
NCP10..ARL DIGITAL METER,KM/H OR DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83861-52470 |
NCP10..ARL |
1 | ||
| 83861-5C140 |
NCP10..ARL |
1 | ||
| 83861-5C150 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
NCP10 |
1 | ||
| 83248-20010 |
NCP10 |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-5C040 |
NCP10,SCP10 |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-5C040 |
NCP10,SCP10 |
1 | ||
| Common parts | ||||
| 83193-87203 | ||||
| 90099-00225 | ||||
| 90159-50068 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(0212- )NCP1#
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP1#,SCP10 14V 1.4W,W(RED CAP) |
1 | ||
| 90010-03023 |
NCP1#,SCP10 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
NCP10..ARL 14V 2.0W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W |
1 | ||
| 83119-32010 |
NCP10 14V 3.0W,TYPE F:REFER ILLUST. |
1 | ||
| 90010-03023 |
NCP1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET),TYPE B:REFER ILLUST. |
1 | ||
| 90010-03031 |
SCP10;NCP10..ARL 14V 2.0W,TYPE A:REFER ILLUST. |
1 | ||
| 83120-24010 |
NCP10..ARL 13.5V,W(SOCKET) |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET),T/P B,C:SEE ILLUST. |
1 | ||
| 90010-03067 |
NCP1# 14V 1.12W,TYPE A:REFER ILLUST. |
1 | ||
| 90099-53009 |
NCP1# 14V0.84W W/O(SOCKET) |
1 | ||
| 90981-11018 |
NCP10 12V 1.2W W/O SOCKET,T/P C,D:SEE ILLUST. |
1 | ||
| 99132-12034 |
NCP10 12V 3.4W,TYPE E:REFER ILLUST. |
1 | ||
| 90010-03022 |
NCP1# 14V 1.4W,W(RED CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NCP1#,SCP10 TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP1# TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
NCP10 TYPE E:REFER ILLUST. |
1 | ||
| 83101-14040 |
NCP1# T/P B,C,D:SEE ILLUST |
1 | ||
| 83101-32020 |
NCP10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C150 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-5C140 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83841-52200 |
NCP1#..ARL DIGITAL METER |
1 | ||
| 83841-52470 |
NCP10..ARL ANALOGUE METER |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP1#,SCP10..RHD |
1 | ||
| 83842-52100 |
NCP1#..RHD |
1 | ||
| 83842-52100 |
NCP1#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83811-52100 |
NCP1#,SCP10..RHD DIGITAL METER |
1 | ||
| 83811-5C060 |
NCP1#..RHD |
1 | ||
| 83811-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52100 |
NCP1#..RHD |
1 | ||
| 83821-52100 |
NCP1#..RHD |
1 | ||
| 83821-52100 |
NCP1#,SCP10..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
NCP1# |
1 | ||
| 83852-52110 |
NCP1#,SCP10 |
1 | ||
| 83852-52110 |
NCP1# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52100 |
NCP10,SCP10 DIGITAL METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52040 |
NCP10 ANALOGUE METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83852-52100 |
NCP10 DIGITAL METER |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181-12020 |
NCP1#,SCP10 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 96711-24030 |
NCP1#,SCP10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52200 |
NCP10..ARL DIGITAL METER,KM/H OR DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83861-52470 |
NCP10..ARL |
1 | ||
| 83861-5C140 |
NCP10..ARL |
1 | ||
| 83861-5C150 |
NCP1#..RHD DIGITAL METER |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-52490 |
NCP1#..ARL |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-52490 |
NCP1#..RHD |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52080 |
NCP1#..ARL |
1 | ||
| 83291-52490 |
NCP1#..ARL |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
