NCP10R-AHPRKQ (1999)

Toyota Yaris/Echo (3d,5d)

Production Aug 1999 - Aug 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )NCP10,SCP10

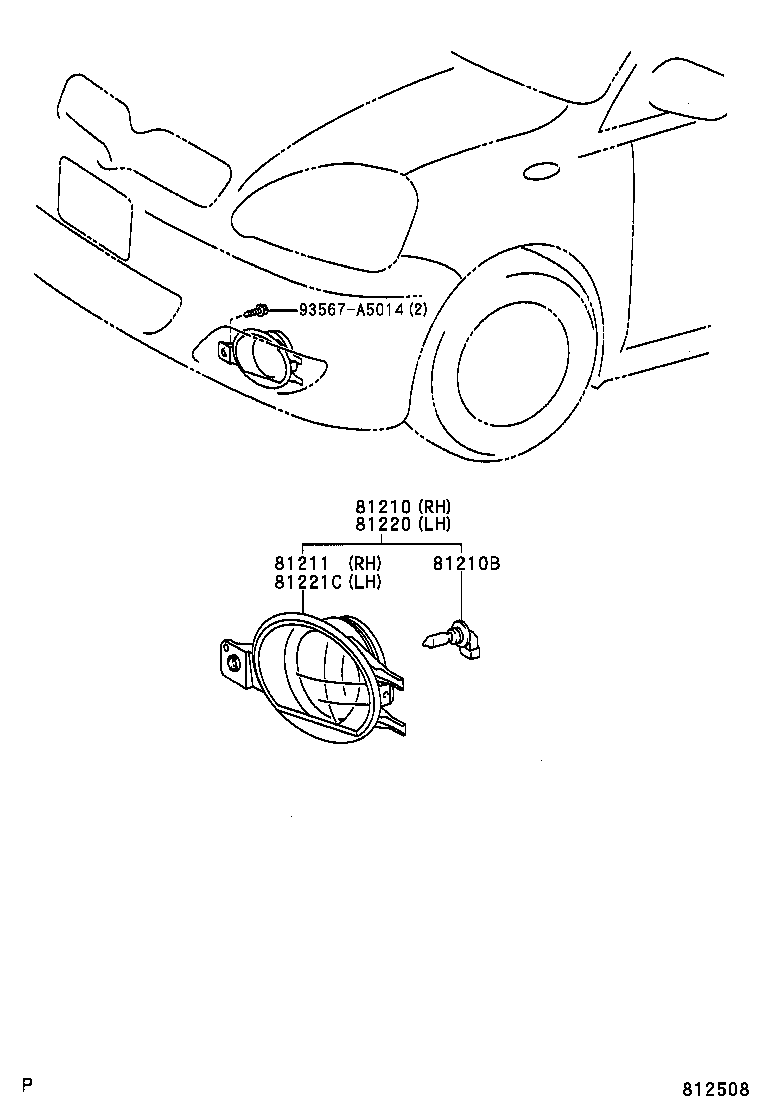

Click highlighted areas on diagram

diagram 81210 81210B 81211 81220 81221C 93567A5014
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-0D020

NCP10,SCP10

 1
81210B - BULB, FOG LAMP
90981-WD009

NCP10,SCP10

12V 51W

 2
90981-13047

NCP10,SCP10

12V 51W,HALOGEN

 2
81211 - LENS, FOG LAMP
81211-0D020

NCP10,SCP10

 1
81220 - LAMP ASSY, FOG, LH
81220-0D020

NCP10,SCP10

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-0D020

NCP10,SCP10

 1
Common parts
93567-A5014
