NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
(9903-0212)

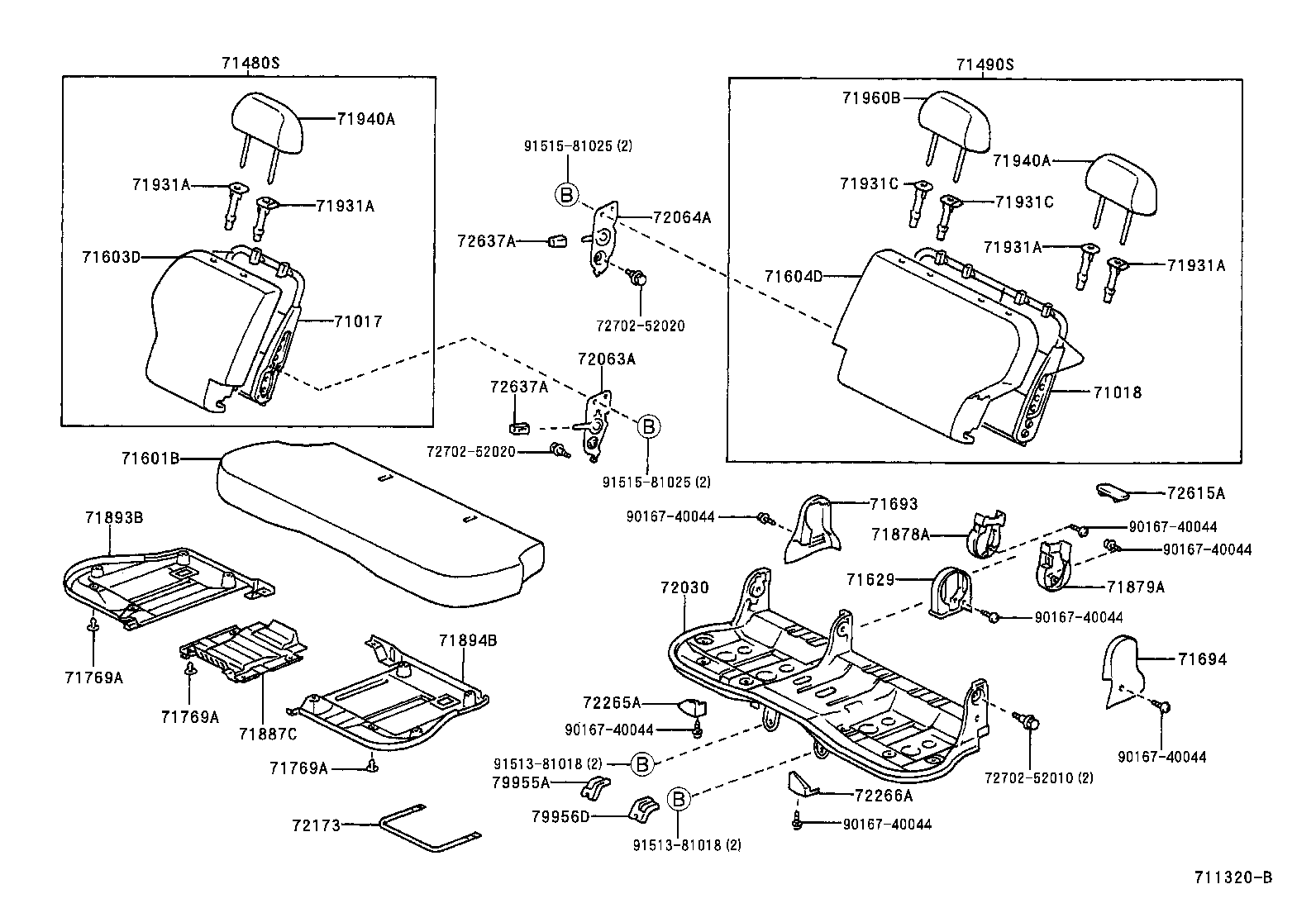

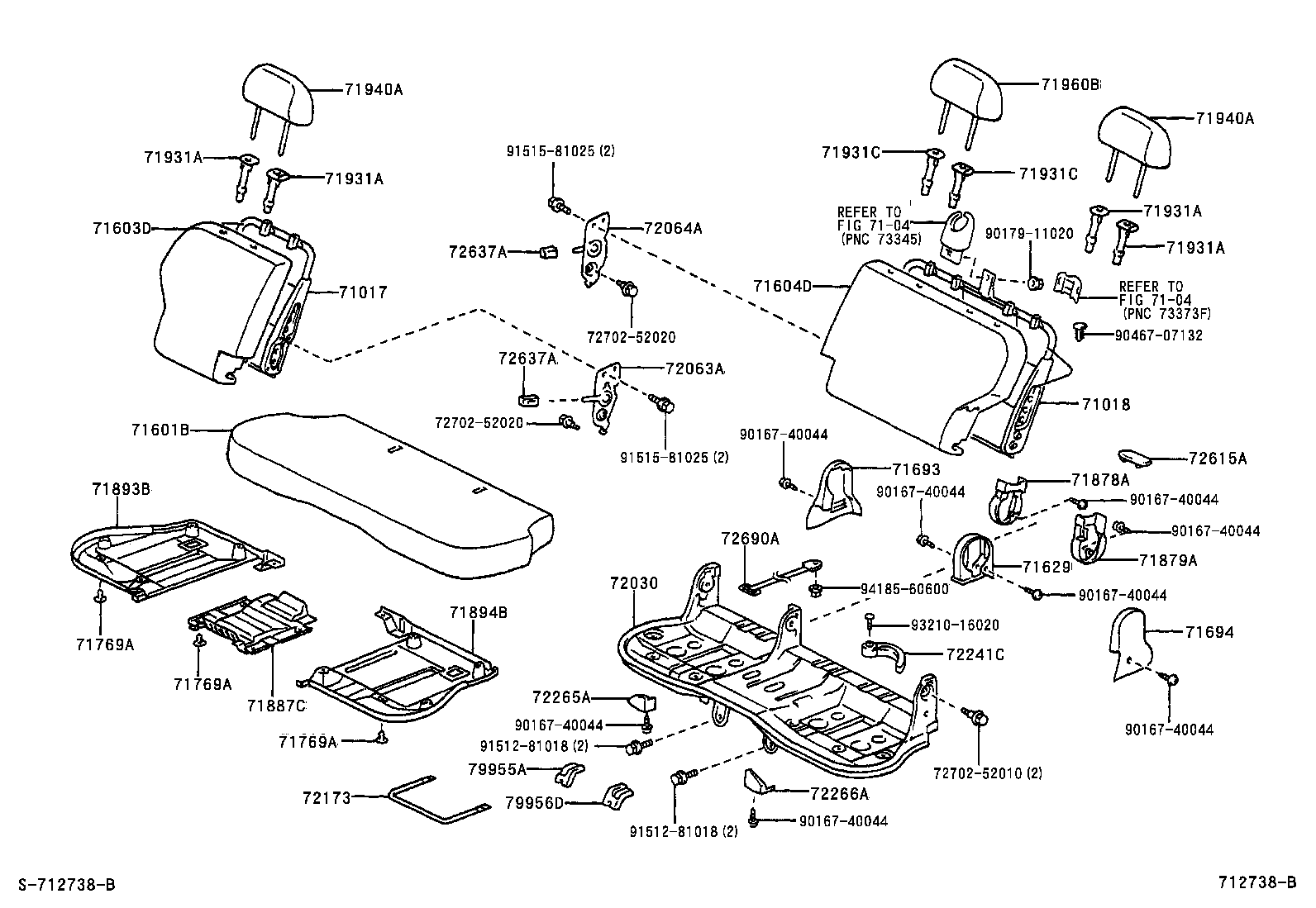

SLIDE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52190 |
NCP10,SCP10 |
1 | ||
| 71017-52190 |
NCP1#,SCP10 |
1 | ||
| 71017-52020 |
NCP10,SCP10 |
1 | ||
| 71017-52190 |
NCP1#,SCP10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52030 |
NCP10 |
1 | ||
| 71018-52300 |
NCP1# |
1 | ||
| 71018-52130 |
NCP1# |
1 | ||
| 71018-52130 |
NCP10 |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52141B4 |
NCP10..ARL SEAT = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52061B2 |
NCP10 SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52700H2 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52700B2 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52061H1 |
NCP10 SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52141H3 |
NCP10..ARL SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52880B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52720B1 |
NCP10..ARL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52720H1 |
NCP10..ARL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52880H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52890B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52890H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52091H2 |
NCP10 SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52091B3 |
NCP10 SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52420B0 |
NCP10..ARL SEAT = TYPE G-*104,XXXX,TRIM1# |
1 | ||
| 71490-52101B4 |
NCP10..ARL SEAT = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52390H0 |
NCP10..ARL SEAT = TYPE E-*104,XXXX,TRIM7# |
1 | ||
| 71490-52101H3 |
NCP10..ARL SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52730B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52390B0 |
NCP10..ARL SEAT = TYPE E-*104,XXXX,TRIM1# |
1 | ||
| 71490-52740B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52420H0 |
NCP10..ARL SEAT = TYPE G-*104,XXXX,TRIM7# |
1 | ||
| 71490-52740H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52730H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52050H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71601-52070B0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),GRAY,TRIM1# |
1 | ||
| 71601-52760H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71601-52750B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52770H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52050B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71601-52780B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52750H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52760B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52070H0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),TORQUOISE,TRIM7# |
1 | ||
| 71601-52770B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-5C890B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-5C870J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71601-5C870B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-52780H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52101B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71603-52091B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52121H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603-52091H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52101H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71603-52121B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71603-5C090H1 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52111B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C090B1 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52111H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C120B1 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5C120H1 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5C230B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C160H1 |
NCP10..ARL SEAT = TYPE E OR TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-5C130H1 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C280H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5D230B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71603-5D230J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71603-5C260B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5C280B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5D250B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71603-5C250H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C260H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5C250B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C230H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C160B1 |
NCP10..ARL SEAT = TYPE E OR TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603-5C130B1 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52181B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71604-52171B0 |
NCP10..3D;NCP10..5D..ARL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52131H0 |
NCP10..5D..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71604-52171H0 |
NCP10..3D;NCP10..5D..ARL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52181H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52131B0 |
NCP10..5D..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71604-52560B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71604-52620H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71604-52620B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71604-5C280B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71604-52560H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71604-52610H0 |
NCP10..ARL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-5C280J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71604-52610B0 |
NCP10..ARL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52550B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52550H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-5C320B0 |
NCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71693-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71693-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71694-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71694-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71694-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71878-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71878-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71879-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71879-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 71887-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71887-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71887-52030B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71893B - CARPET, REAR SEAT CUSHION, UNDER RH | ||||
| 71893-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71893-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893-52020B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71894B - CARPET, REAR SEAT CUSHION, UNDER LH | ||||
| 71894-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71894-52020B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71894-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52030B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71960-52020H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71960-52020B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71960-52090B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71960-52080B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71960-52030H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71960-52090H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-52080H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-52140B0 |
NCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71960-52130B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98,99 |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-52070 |
NCP1#,SCP10 |
1 | ||
| 72030-52010 |
NCP1#,SCP10 |
1 | ||
| 72063A - ARM SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72063-52010 |
NCP1#,SCP10 |
1 | ||
| 72063-52010 |
NCP1#,SCP10 |
1 | ||
| 72064A - ARM SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72064-52010 |
NCP1#,SCP10 |
1 | ||
| 72064-52020 |
NCP1#,SCP10 |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-52010 |
NCP1#,SCP10 |
1 | ||
| 72173-52020 |
NCP1#,SCP10 |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52011B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 72265-52011H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 72265-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-52011B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 72266-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52011H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52011B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
2 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79956-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 79956-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 72702-52010 | ||||
| 72702-52020 | ||||
| 90167-40044 | ||||
| 91513-81018 | ||||
| 91515-81025 | ||||
(9903-0212)

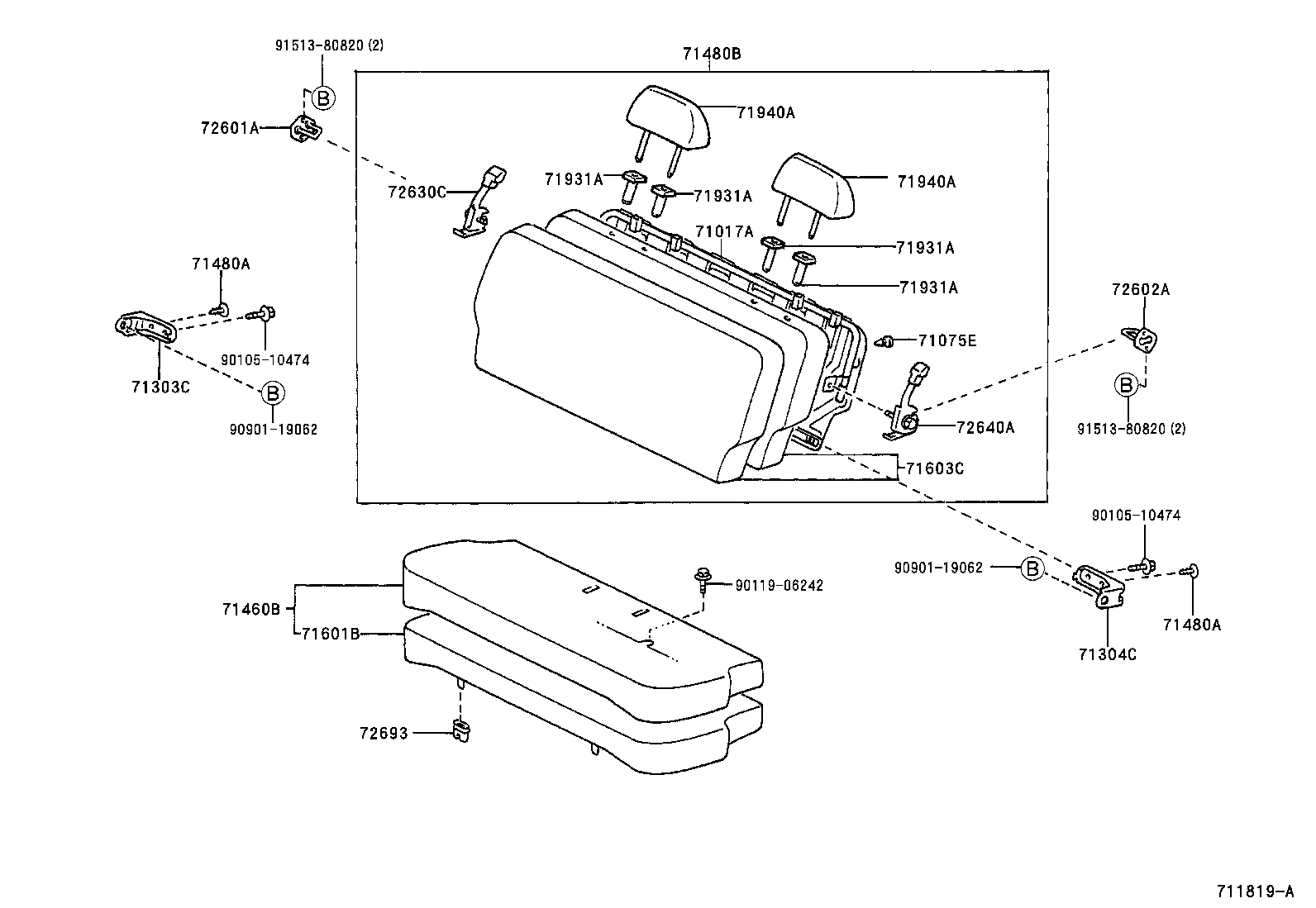

FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52030 |
NCP10,SCP10 |
1 | ||
| 71017-52040 |
NCP10 W(REAR HEADREST) |
1 | ||
| 71017-52390 |
NCP10,SCP10 |
1 | ||
| 71017-52380 |
NCP10 W(REAR HEADREST) |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-09118 |
NCP10,SCP10 |
7 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP10,SCP10 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP10,SCP10 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-52040B1 |
NCP10,SCP10..5D SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-52040B4 |
NCP10,SCP10..5D SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-52040B5 |
NCP10,SCP10..5D SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-52040H5 |
NCP10,SCP10..5D SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71460-52040H4 |
NCP10,SCP10..5D SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71460-52040H1 |
NCP10,SCP10..5D SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71460-52480H0 |
NCP10,SCP10..5D SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71460-52040B3 |
NCP10..5D..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-52040H3 |
NCP10..5D..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71460-52480B0 |
NCP10,SCP10..5D SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070B6 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
2 | ||
| 90467-06070P0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06070B6 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
2 | ||
| 90467-06070P0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
2 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-52090B2 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52080H1 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52090H2 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),FRENCH TORQUOISE,TRIM7# |
1 | ||
| 71480-52080B3 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52730H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52780B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52780H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52770H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52080H5 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52740H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52740B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52080B1 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52730B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52770B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52080B5 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52080H3 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52050H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71601-52070B0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),GRAY,TRIM1# |
1 | ||
| 71601-52760H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71601-52750B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52770H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52050B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71601-52780B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52750H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52760B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52070H0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),TORQUOISE,TRIM7# |
1 | ||
| 71601-52770B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-5C890B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-5C870J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71601-5C870B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-52780H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52150H0 |
NCP10,SCP10 SEAT = TYPE A-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52170H0 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),TORQUOISE,TRIM7# |
1 | ||
| 71603-5C250B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C230B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-52150B0 |
NCP10,SCP10 SEAT = TYPE A-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C230H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C250H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C260B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603-52180B0 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),GRAY,TRIM1#,TNK |
1 | ||
| 71603-52150B1 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C280B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52180H0 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),TORQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C260H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-52150B2 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GREY,TRIM1#,ARACO |
1 | ||
| 71603-52160B0 |
NCP10,SCP10 SEAT = TYPE A-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71603-52170B0 |
NCP10 SEAT = TYPE A-*104 & W(REAR HEADREST),GRAY,TRIM1# |
1 | ||
| 71603-52160H0 |
NCP10,SCP10 SEAT = TYPE A-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C280H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C780H0 |
NCP10..RHD SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-52150H1 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52150H2 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C780B0 |
NCP10..RHD SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71603-5C790B0 |
NCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603-5C790H0 |
NCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-52150B3 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GREY,TRIM1#,ARACO |
1 | ||
| 71603-52150H3 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52010 |
NCP10,SCP10 |
1 | ||
| 72601-52120 |
NCP10,SCP10 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52120 |
NCP10,SCP10 |
1 | ||
| 72601-52010 |
NCP10,SCP10 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52010 |
NCP10,SCP10 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52010 |
NCP10,SCP10 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
NCP10,SCP10 |
2 | ||
| Common parts | ||||
| 90105-10474 | ||||
| 90119-06242 | ||||
| 90901-19062 | ||||
| 91513-80820 | ||||
(0212- )
SLIDE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52190 |
NCP10,SCP10 |
1 | ||
| 71017-52190 |
NCP1#,SCP10 |
1 | ||
| 71017-52020 |
NCP10,SCP10 |
1 | ||
| 71017-52190 |
NCP1#,SCP10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52030 |
NCP10 |
1 | ||
| 71018-52300 |
NCP1# |
1 | ||
| 71018-52130 |
NCP1# |
1 | ||
| 71018-52130 |
NCP10 |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52050H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71601-52070B0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),GRAY,TRIM1# |
1 | ||
| 71601-52760H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71601-52750B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52770H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52050B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71601-52780B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52750H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52760B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71601-52070H0 |
NCP10,SCP10 SEAT = TYPE C-*104 & W(REAR HEADREST),TORQUOISE,TRIM7# |
1 | ||
| 71601-52770B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71601-5C890B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-5C870J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71601-5C870B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71601-52780H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52101B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71603-52091B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52121H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603-52091H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52101H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71603-52121B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71603-5C090H1 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52111B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C090B1 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52111H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C120B1 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5C120H1 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5C230B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C160H1 |
NCP10..ARL SEAT = TYPE E OR TYPE F OR TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-5C130H1 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C280H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5D230B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71603-5D230J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71603-5C260B0 |
NCP10,SCP10 SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5C280B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71603-5D250B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71603-5C250H0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C260H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71603-5C250B0 |
NCP10 SEAT = TYPE F-*104 & W(REAR HEADREST),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C230H0 |
NCP10,SCP10 SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C160B1 |
NCP10..ARL SEAT = TYPE E OR TYPE F OR TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603-5C130B1 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52181B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71604-52171B0 |
NCP10..3D;NCP10..5D..ARL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52131H0 |
NCP10..5D..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71604-52171H0 |
NCP10..3D;NCP10..5D..ARL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52181H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52131B0 |
NCP10..5D..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71604-52560B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TACHIESU |
1 | ||
| 71604-52620H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71604-52620B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71604-5C280B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71604-52560H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TACHIESU |
1 | ||
| 71604-52610H0 |
NCP10..ARL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-5C280J0 |
NCP10..ARL SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71604-52610B0 |
NCP10..ARL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52550B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52550H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-5C320B0 |
NCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71693-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71693-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71694-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71694-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71694-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 90467-10018 |
NCP1#,SCP10 |
18 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71878-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71878-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 71879-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71879-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 71887-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71887-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71887-52030B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71893B - CARPET, REAR SEAT CUSHION, UNDER RH | ||||
| 71893-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71893-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893-52020B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71894B - CARPET, REAR SEAT CUSHION, UNDER LH | ||||
| 71894-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71894-52020B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 71894-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10 W(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP10,SCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10 W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71930-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71930-47010B2 |
NCP10,SCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010P4 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020G0 |
NCP10 W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71956-47010B2 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931-32020B0 |
NCP10 W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71970-47010B2 |
NCP10 W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10..ARL W/O(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71970-47010B2 |
NCP10..ARL W(LOCK),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71930-44010B1 |
NCP10 W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10 W(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10 W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10,SCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
2 | ||
| 71910-52010B0 |
NCP10,SCP10 SEAT = TYPE A-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52010H0 |
NCP10 SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52030H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52180B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190H0 |
NCP10,SCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52360B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52370B0 |
NCP10,SCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM9# |
2 | ||
| 71910-52180H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190B0 |
NCP10,SCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52030B0 |
NCP10 SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71960-52020H0 |
NCP10..ARL SEAT = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71960-52020B0 |
NCP10..ARL SEAT = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71960-52090B0 |
NCP10 SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71960-52080B0 |
NCP10..ARL SEAT = TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71960-52030H0 |
NCP10 SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71960-52090H0 |
NCP10 SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-52080H0 |
NCP10..ARL SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-52140B0 |
NCP10 SEAT = TYPE B-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71960-52130B0 |
NCP10..ARL SEAT = TYPE C-*104,DK. GRAY,TRIM97,98,99 |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-52070 |
NCP1#,SCP10 |
1 | ||
| 72030-52010 |
NCP1#,SCP10 |
1 | ||
| 72063A - ARM SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72063-52010 |
NCP1#,SCP10 |
1 | ||
| 72063-52010 |
NCP1#,SCP10 |
1 | ||
| 72064A - ARM SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72064-52010 |
NCP1#,SCP10 |
1 | ||
| 72064-52020 |
NCP1#,SCP10 |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-52010 |
NCP1#,SCP10 |
1 | ||
| 72173-52020 |
NCP1#,SCP10 |
1 | ||
| 72241C - LEVER, OUTER SEAT TRACK LOCK, RH | ||||
| 72241-52010B0 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52011B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 72265-52011H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 72265-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-52011B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
1 | ||
| 72266-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52011H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52011B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
2 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-52020 |
NCP1#,SCP10 |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-52010B0 |
NCP10,SCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79956-52010B1 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 79956-52010B1 |
NCP10,SCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 72702-52010 | ||||
| 72702-52020 | ||||
| 90167-40044 | ||||
| 90179-11020 | ||||
| 90467-07132 | ||||
| 91512-81018 | ||||
| 91515-81025 | ||||
| 93210-16020 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
