NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)

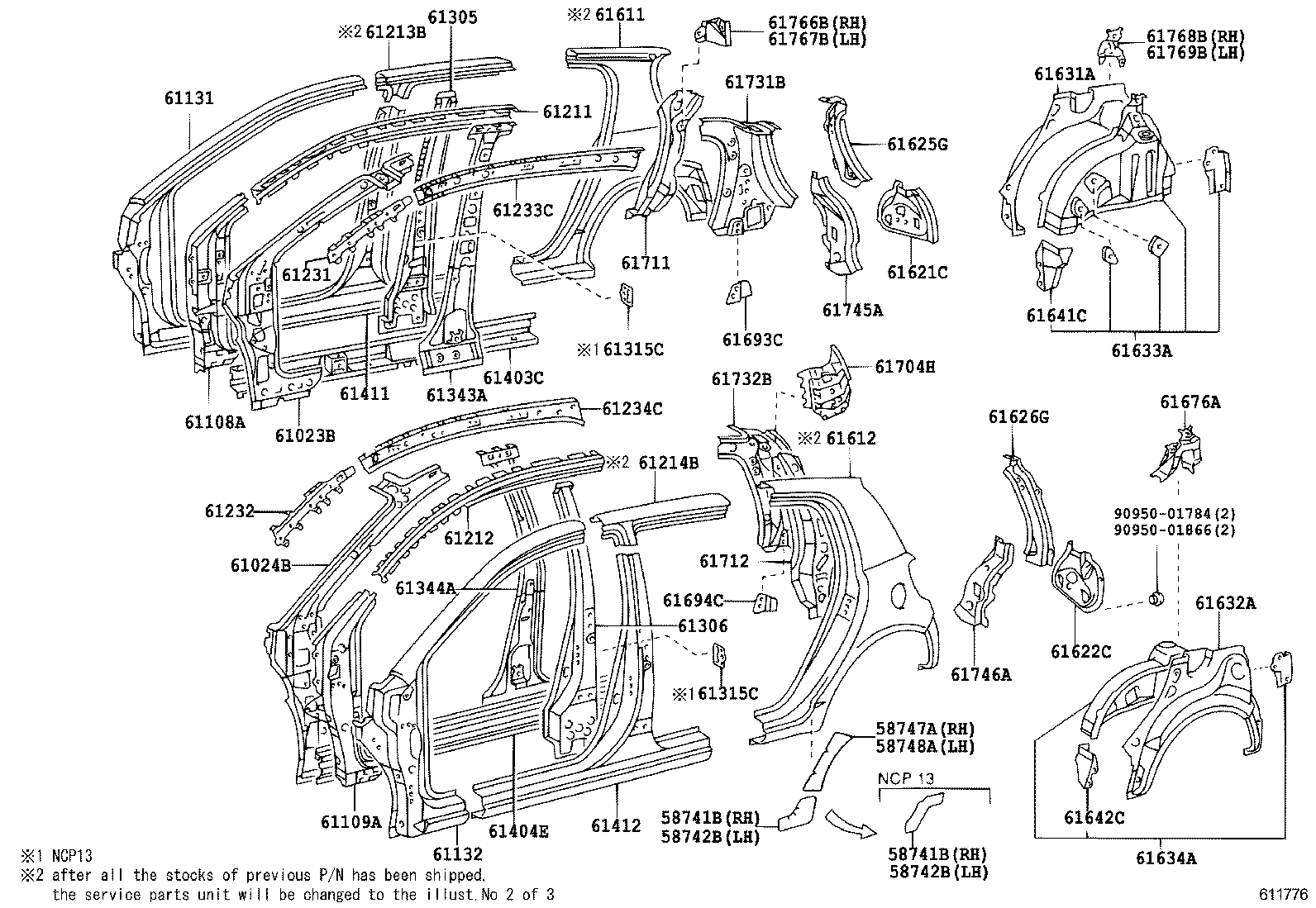

ILLUST NO. 1 OF 3(9903-0212)5D
SIDE MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52011 |
NCP10,SCP10..5D |
1 | ||
| 58741-52010 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52011 |
NCP10,SCP10..5D |
1 | ||
| 58741-52010 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52010 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52011 |
NCP10,SCP10..5D |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52010 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52011 |
NCP10,SCP10..5D |
1 | ||
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-52012 |
NCP1#,SCP10..5D |
1 | ||
| 58747-52011 |
NCP10,SCP10..5D |
1 | ||
| 58747-52012 |
NCP1#..5D |
1 | ||
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-52012 |
NCP1#,SCP10..5D |
1 | ||
| 58748-52011 |
NCP10,SCP10..5D |
1 | ||
| 58748-52012 |
NCP1#..5D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52010 |
NCP10,SCP10 |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52100 |
NCP1#,SCP10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61024-52010 |
NCP10,SCP10 |
1 | ||
| 61024-52080 |
NCP1#,SCP10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52090 |
NCP1#,SCP10 |
1 | ||
| 61108-52100 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61108-52010 |
NCP10,SCP10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52090 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52120 |
NCP1#,SCP10 |
1 | ||
| 61109-52010 |
NCP10,SCP10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,SCP10 |
1 | ||
| 61131-52010 |
NCP10,SCP10 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,SCP10 |
1 | ||
| 61132-52010 |
NCP10,SCP10 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52010 |
NCP10,SCP10..5D |
1 | ||
| 61201-52060 |
NCP1#,SCP10..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52010 |
NCP10,SCP10..5D |
1 | ||
| 61202-52050 |
NCP1#,SCP10..5D |
1 | ||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52250 |
NCP1#,SCP10 |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52020 |
NCP10,SCP10..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52020 |
NCP10,SCP10..5D |
1 | ||
| 61232-52260 |
NCP1#,SCP10 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52901 |
NCP1#,SCP10..5D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52901 |
NCP1#,SCP10..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52903 |
NCP1#,SCP10..5D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52903 |
NCP1#,SCP10..5D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52101 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52101 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52010 |
NCP10,SCP10..5D |
1 | ||
| 61411-52010 |
NCP10,SCP10..5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52010 |
NCP10,SCP10..5D |
1 | ||
| 61412-52010 |
NCP10,SCP10..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,SCP10..5D |
1 | ||
| 61601-52010 |
NCP10,SCP10..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP10,SCP10..5D |
1 | ||
| 61602-52010 |
NCP10,SCP10..5D |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52912 |
NCP1#,SCP10 W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61607-52913 |
NCP1#,SCP10 W(REAR SLIDE SEAT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52912 |
NCP1#,SCP10 W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61608-52914 |
NCP1#..ARL |
1 | ||
| 61608-52913 |
NCP1#,SCP10 W(REAR SLIDE SEAT) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP1#,SCP10 |
1 | ||
| 61641-52010 |
NCP1#,SCP10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP1#,SCP10 |
1 | ||
| 61642-52010 |
NCP1#,SCP10 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52100 |
NCP10,SCP10 |
1 | ||
| 61693-52010 |
NCP10,SCP10 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52010 |
NCP10,SCP10 |
1 | ||
| 61694-52100 |
NCP10,SCP10 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52110 |
NCP1#..5D..ARL |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52150 |
NCP1#..5D..ARL |
1 | ||
| 61732-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP1#,SCP10 |
1 | ||
| 61768-52010 |
NCP1#,SCP10 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
ILLUST NO. 1 OF 3(0212- )5D
SIDE MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52011 |
NCP10,SCP10..5D |
1 | ||
| 58741-52010 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52011 |
NCP10,SCP10..5D |
1 | ||
| 58741-52010 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52010 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52011 |
NCP10,SCP10..5D |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52010 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52012 |
NCP10,SCP10..5D |
1 | ||
| 58742-52011 |
NCP10,SCP10..5D |
1 | ||
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-52012 |
NCP1#,SCP10..5D |
1 | ||
| 58747-52011 |
NCP10,SCP10..5D |
1 | ||
| 58747-52012 |
NCP1#..5D |
1 | ||
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-52012 |
NCP1#,SCP10..5D |
1 | ||
| 58748-52011 |
NCP10,SCP10..5D |
1 | ||
| 58748-52012 |
NCP1#..5D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52010 |
NCP10,SCP10 |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52100 |
NCP1#,SCP10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61024-52010 |
NCP10,SCP10 |
1 | ||
| 61024-52080 |
NCP1#,SCP10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52090 |
NCP1#,SCP10 |
1 | ||
| 61108-52100 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61108-52010 |
NCP10,SCP10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52090 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52120 |
NCP1#,SCP10 |
1 | ||
| 61109-52010 |
NCP10,SCP10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,SCP10 |
1 | ||
| 61131-52010 |
NCP10,SCP10 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,SCP10 |
1 | ||
| 61132-52010 |
NCP10,SCP10 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52010 |
NCP10,SCP10..5D |
1 | ||
| 61201-52060 |
NCP1#,SCP10..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-52050 |
NCP1#,SCP10..5D |
1 | ||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61212-52010 |
NCP10,SCP10..5D |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52250 |
NCP1#,SCP10 |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52020 |
NCP10,SCP10..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52020 |
NCP10,SCP10..5D |
1 | ||
| 61232-52260 |
NCP1#,SCP10 |
1 | ||
| 61233C - HOLDER, SEAT BELT COVER, RH | ||||
| 61233-52130 |
NCP1#..5D..ARL W(MOON ROOF) |
1 | ||
| 61233-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61234C - HOLDER, SEAT BELT COVER, LH | ||||
| 61234-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61234-52130 |
NCP1#..5D..ARL W(MOON ROOF) |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52901 |
NCP1#,SCP10..5D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52901 |
NCP1#,SCP10..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52903 |
NCP1#,SCP10..5D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52903 |
NCP1#,SCP10..5D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52101 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52101 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52120 |
NCP1#,SCP10..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52010 |
NCP10,SCP10..5D |
1 | ||
| 61411-52010 |
NCP10,SCP10..5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52010 |
NCP10,SCP10..5D |
1 | ||
| 61412-52010 |
NCP10,SCP10..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,SCP10..5D |
1 | ||
| 61601-52010 |
NCP10,SCP10..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP10,SCP10..5D |
1 | ||
| 61602-52010 |
NCP10,SCP10..5D |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52912 |
NCP1#,SCP10 W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61607-52913 |
NCP1#,SCP10 W(REAR SLIDE SEAT) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52912 |
NCP1#,SCP10 W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61608-52914 |
NCP1#..ARL |
1 | ||
| 61608-52913 |
NCP1#,SCP10 W(REAR SLIDE SEAT) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP1#,SCP10 |
1 | ||
| 61641-52010 |
NCP1#,SCP10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP1#,SCP10 |
1 | ||
| 61642-52010 |
NCP1#,SCP10 |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61709-52020 |
NCP1#,SCP10 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52100 |
NCP10,SCP10 |
1 | ||
| 61693-52010 |
NCP10,SCP10 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52010 |
NCP10,SCP10 |
1 | ||
| 61694-52100 |
NCP10,SCP10 |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52110 |
NCP1#..5D..ARL |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52150 |
NCP1#..5D..ARL |
1 | ||
| 61732-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP1#,SCP10 |
1 | ||
| 61768-52010 |
NCP1#,SCP10 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
