NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
ILLUST NO. 1 OF 2(9903-0212)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-52010 |
NCP1#,SCP10 |
2 | ||
| 04474-52010 |
NCP1#,SCP10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-52010 |
NCP1#,SCP10 MARK NBK LN521 |
1 | ||
| 04495-52010 |
NCP1#,SCP10 MARK NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52010 |
NCP1#,SCP10 |
1 | ||
| 04906-52010 |
NCP1#,SCP10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-52020 |
NCP1#,SCP10 |
1 | ||
| 47043-52020 |
NCP1#,SCP10 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-52020 |
NCP1#,SCP10 |
1 | ||
| 47044-52020 |
NCP1#,SCP10 |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18081 |
NCP1#,SCP10 |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-14075 |
NCP1#,SCP10 RH |
1 | ||
| 90506-14076 |
NCP1#,SCP10 LH |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-16166 |
NCP1#,SCP10 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-16166 |
NCP1#,SCP10 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16068 |
NCP1#,SCP10 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90949-03085 |
NCP1#,SCP10 RH |
1 | ||
| 90949-03086 |
NCP1#,SCP10 LH |
1 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-10020 |
NCP1#,SCP10 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
NCP1#,SCP10 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
NCP1#,SCP10 |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47491-20020 |
NCP1#,SCP10 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
NCP1#,SCP10 |
2 | ||
| 47547-20010 |
NCP1#,SCP10 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
NCP1#,SCP10 |
2 | ||
| 31478-30010 |
NCP1#,SCP10 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-52011 |
NCP1# |
1 | ||
| 47550-52011 |
NCP1# |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60014 |
NCP1#,SCP10 |
2 | ||
| 90501-07006 |
NCP1#,SCP10 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-52011 |
NCP1# |
1 | ||
| 47570-52011 |
NCP1# |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-52010 |
NCP1#,SCP10 |
1 | ||
| 47601-52010 |
NCP1#,SCP10 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-04001 |
NCP1#,SCP10 T=1.2 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-04001 |
NCP1#,SCP10 T=1.2 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-04001 |
NCP1#,SCP10 T=1.2 |
6 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-52010 |
NCP1#,SCP10 |
1 | ||
| 47602-52010 |
NCP1#,SCP10 |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-52010 |
NCP1#,SCP10 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47608-52010 |
NCP1#,SCP10 |
1 | ||
| 47608-52010 |
NCP1#,SCP10 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47609-52010 |
NCP1#,SCP10 |
1 | ||
| 47609-52010 |
NCP1#,SCP10 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-52010 |
NCP1#,SCP10 |
2 | ||
| 47645-52010 |
NCP1#,SCP10 |
2 | ||
| 47646 - LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE) | ||||
| 47646-52010 |
NCP1#,SCP10 RH |
1 | ||
| 47646-52020 |
NCP1#,SCP10 LH |
1 | ||
| 47646-52010 |
NCP1#,SCP10 RH |
1 | ||
| 47646-52020 |
NCP1#,SCP10 LH |
1 | ||
| 47646A - WASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH) | ||||
| 90206-06008 |
NCP1#,SCP10 |
2 | ||
| 90206-06008 |
NCP1#,SCP10 |
2 | ||
| Common parts | ||||
| 90119-06084 | ||||

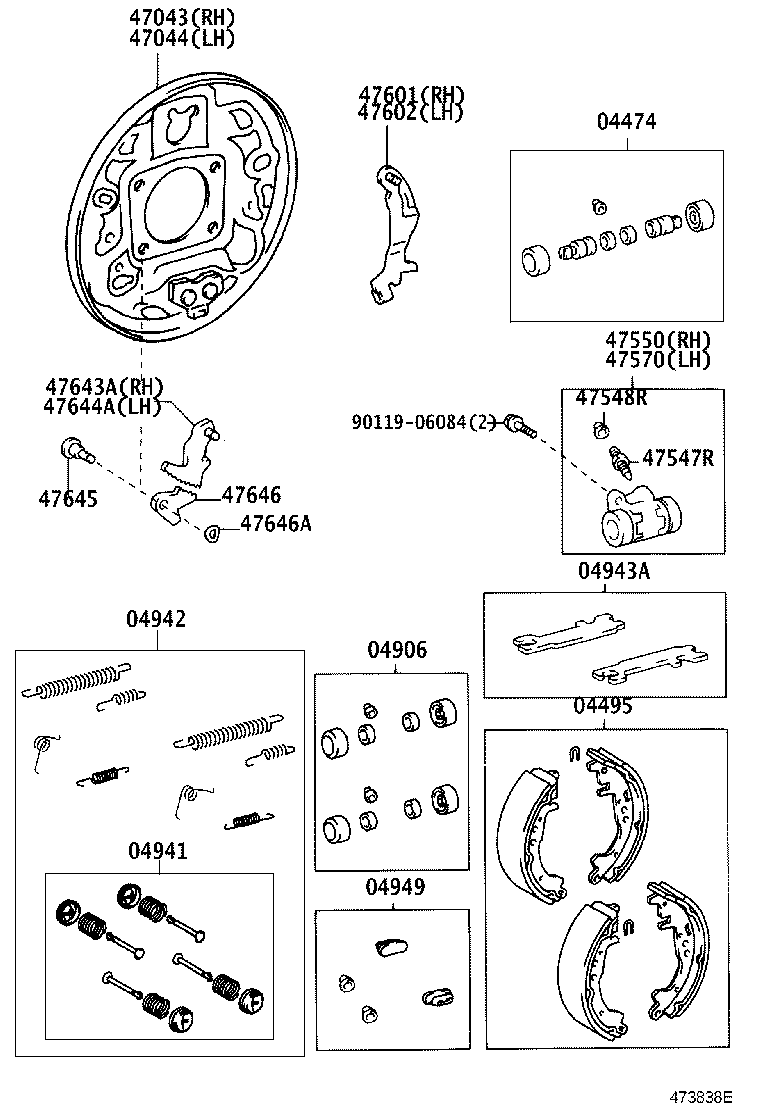

ILLUST NO. 1 OF 2(0212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-52010 |
NCP1#,SCP10 |
2 | ||
| 04474-52010 |
NCP1#,SCP10 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-52010 |
NCP1#,SCP10 MARK NBK LN521 |
1 | ||
| 04495-52010 |
NCP1#,SCP10 MARK NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-52010 |
NCP1#,SCP10 |
1 | ||
| 04906-52010 |
NCP1#,SCP10 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-52010 |
NCP1#,SCP10 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-52010 |
NCP1#,SCP10 |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-52010 |
NCP1#,SCP10 |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-52010 |
NCP1#,SCP10 |
1 | ||
| 04949-52030 |
NCP1#,SCP10 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-52020 |
NCP1#,SCP10 |
1 | ||
| 47043-52020 |
NCP1#,SCP10 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-52020 |
NCP1#,SCP10 |
1 | ||
| 47044-52020 |
NCP1#,SCP10 |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
NCP1#,SCP10 |
2 | ||
| 47547-20010 |
NCP1#,SCP10 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
NCP1#,SCP10 |
2 | ||
| 31478-30010 |
NCP1#,SCP10 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-52011 |
NCP1# |
1 | ||
| 47550-52011 |
NCP1# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-52011 |
NCP1# |
1 | ||
| 47570-52011 |
NCP1# |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-52010 |
NCP1#,SCP10 |
1 | ||
| 47601-52010 |
NCP1#,SCP10 |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-52010 |
NCP1#,SCP10 |
1 | ||
| 47602-52010 |
NCP1#,SCP10 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47608-52010 |
NCP1#,SCP10 |
1 | ||
| 47608-52010 |
NCP1#,SCP10 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47609-52010 |
NCP1#,SCP10 |
1 | ||
| 47609-52010 |
NCP1#,SCP10 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-52010 |
NCP1#,SCP10 |
2 | ||
| 47645-52010 |
NCP1#,SCP10 |
2 | ||
| 47646 - LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE) | ||||
| 47646-52010 |
NCP1#,SCP10 RH |
1 | ||
| 47646-52020 |
NCP1#,SCP10 LH |
1 | ||
| 47646-52010 |
NCP1#,SCP10 RH |
1 | ||
| 47646-52020 |
NCP1#,SCP10 LH |
1 | ||
| 47646A - WASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH) | ||||
| 90206-06008 |
NCP1#,SCP10 |
2 | ||
| 90206-06008 |
NCP1#,SCP10 |
2 | ||
| Common parts | ||||
| 90119-06084 | ||||
