NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)

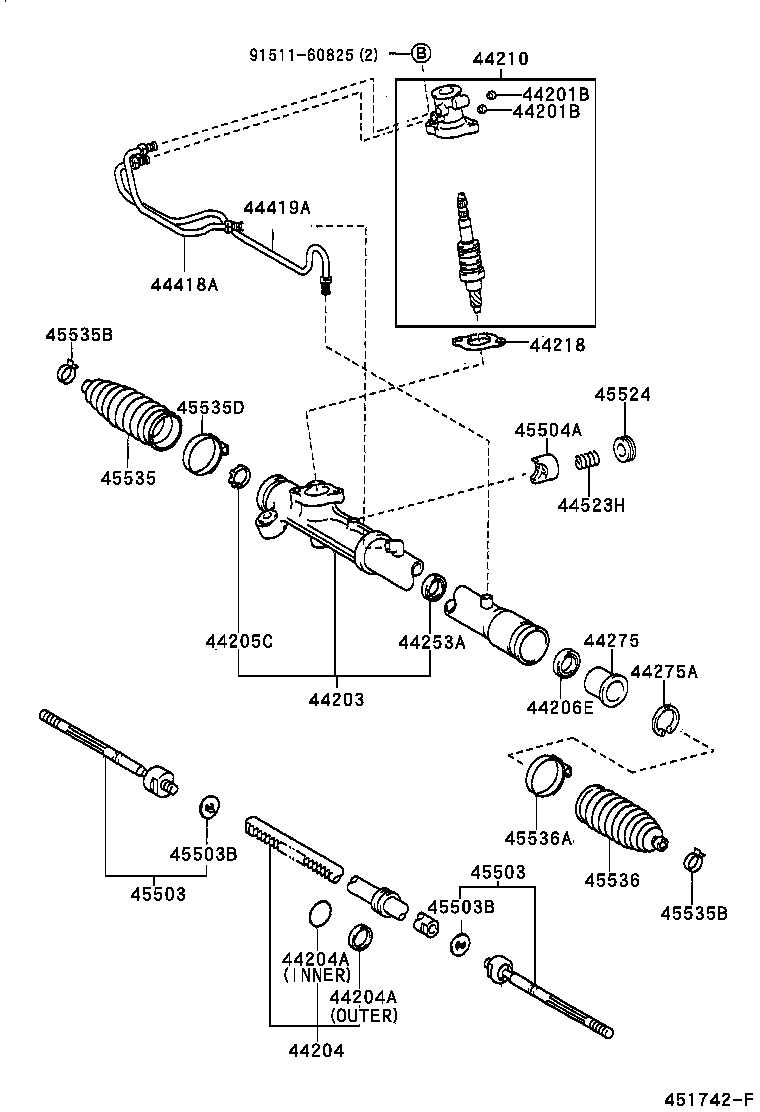

ILLUST NO. 3 OF 3(9903-0212)RHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
NCP1#,SCP10..RHD |
2 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
NCP1#,SCP10..RHD |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-52031 |
NCP1#,SCP10..RHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-52050 |
NCP1#,SCP10..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-35002 |
NCP1#,SCP10..RHD OUTER |
1 | ||
| 90301-31005 |
NCP1#,SCP10..RHD INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-35002 |
NCP1#,SCP10..RHD OUTER |
1 | ||
| 90301-31005 |
NCP1#,SCP10..RHD INNER |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 90903-89017 |
NCP1#,SCP10..RHD |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-22004 |
NCP1#,SCP10..RHD |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-52041 |
NCP1#,SCP10..RHD |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-22004 |
NCP1#,SCP10..RHD |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-52004 |
NCP1#,SCP10..RHD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-52030 |
NCP1#,SCP10..RHD |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-52030 |
NCP1#,SCP10..RHD |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-29044 |
NCP1#,SCP10..RHD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-52010 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45504-52020 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-52020 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45524-52010 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||

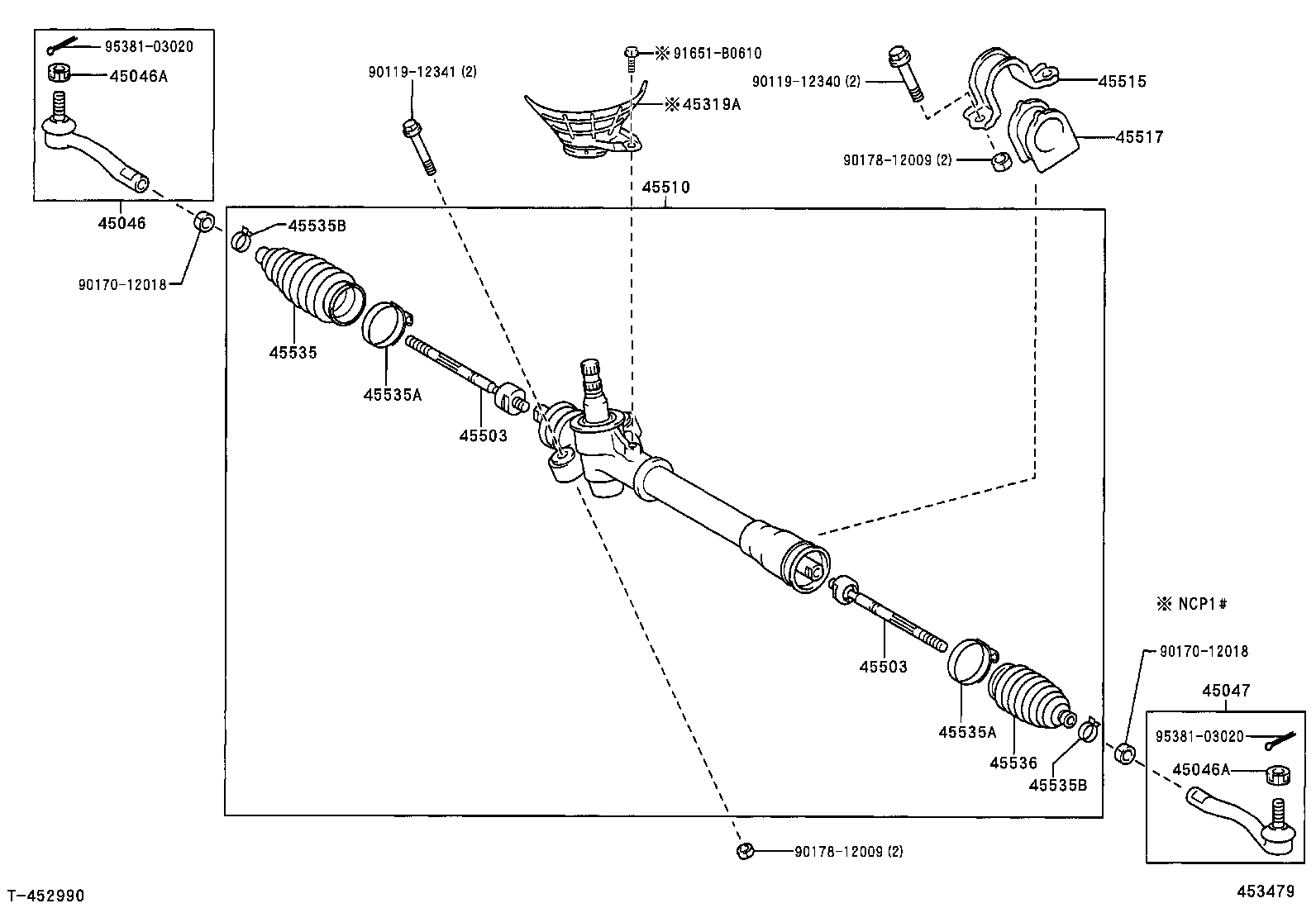

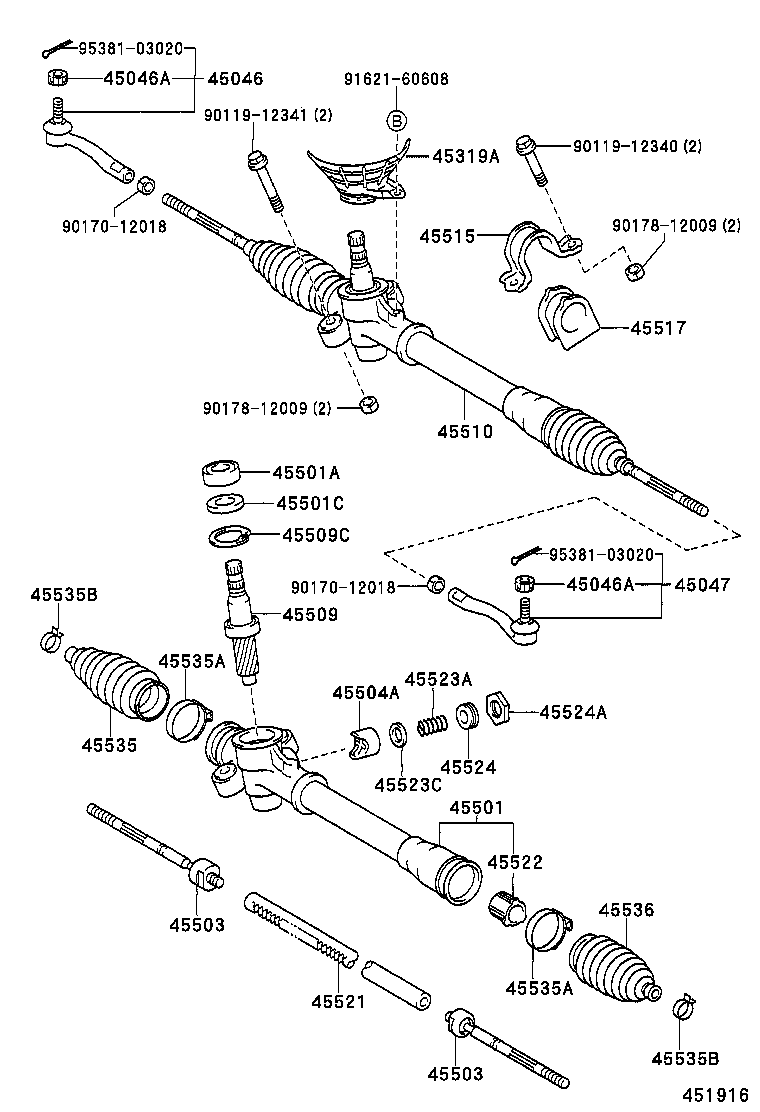

(9908-0212)NCP1#..RHD
W(MANUAL STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45319A - INSULATOR, STEERING GEAR HEAT | ||||
| 45319-52010 |
NCP1#..RHD |
1 | ||
| 45319-52010 |
NCP1#..RHD |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-52011 |
NCP1#,SCP10..RHD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-17009 |
NCP1#,SCP10 |
1 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90561-20003 |
NCP1#,SCP10 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-52010 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45504-52020 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45509 - PINION SUB-ASSY, STEERING | ||||
| 45509-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45509C - RING, HOLE SNAP(FOR STEERING PINION) | ||||
| 90521-35002 |
NCP1#,SCP10 |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-52011 |
NCP1#,SCP10..RHD |
1 | ||
| 45510-52011 |
NCP1#,SCP10..RHD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-52010 |
NCP1#,SCP10 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29050 |
NCP1#,SCP10 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-52010 |
NCP10,SCP10 W(MANUAL STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-52020 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45524-52010 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90177-30002 |
NCP1#,SCP10 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 91621-60608 | ||||
| 95381-03020 | ||||

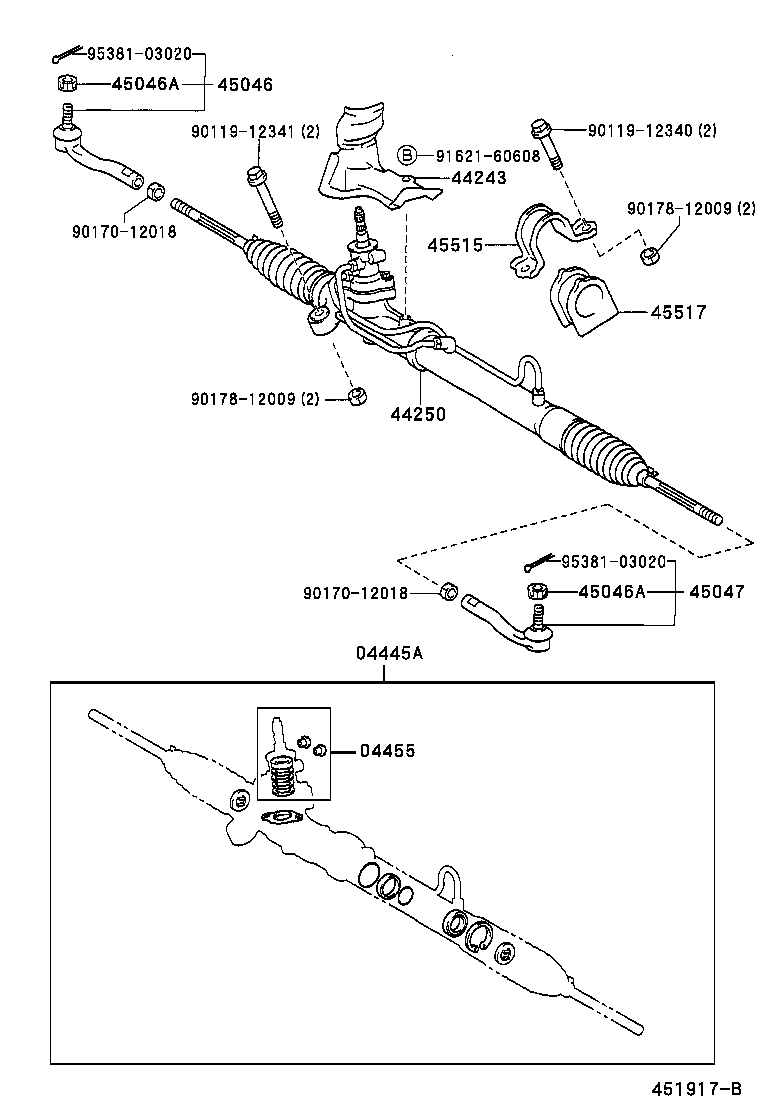

ILLUST NO. 2 OF 3(9908-0212)NCP1#..RHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52050 |
NCP1#,SCP10..RHD |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 04455-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT | ||||
| 44243-52032 |
NCP1#..RHD |
1 | ||
| 44243-52032 |
NCP1#..RHD |
1 | ||
| 44243-52031 |
NCP1#..RHD |
1 | ||
| 44243-52030 |
NCP1#..RHD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52052 |
NCP1#,SCP10..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 91621-60608 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 3(9903-0212)
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-52052 |
NCP1#,SCP10..RHD |
1 | ||
| 44200-52052 |
NCP1#,SCP10..RHD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52052 |
NCP1#,SCP10..RHD |
1 | ||

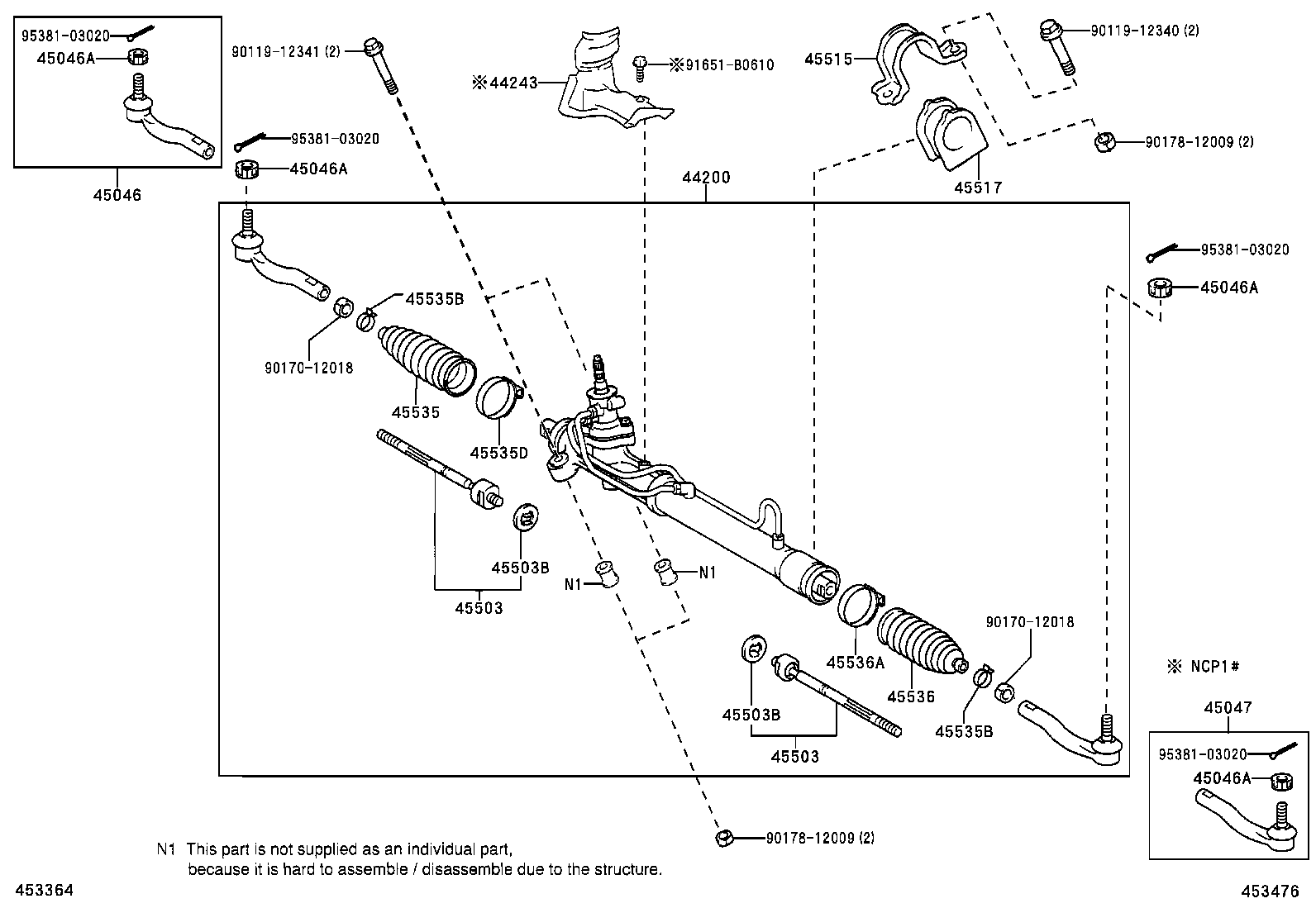

ILLUST NO. 1 OF 2(0212- )RHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-52052 |
NCP1#,SCP10..RHD |
1 | ||
| 44200-52052 |
NCP1#,SCP10..RHD |
1 | ||
| 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT | ||||
| 44243-52032 |
NCP1#..RHD |
1 | ||
| 44243-52032 |
NCP1#..RHD |
1 | ||
| 44243-52031 |
NCP1#..RHD |
1 | ||
| 44243-52030 |
NCP1#..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 90214-14010 |
NCP1#,SCP10..RHD OD=34 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| 90460-55016 |
NCP1#,SCP10..RHD |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 91651-B0610 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(0212- )
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52050 |
NCP1#,SCP10..RHD |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52020 |
NCP1#,SCP10..RHD |
1 | ||
| 04445-52050 |
NCP1#,SCP10..RHD |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 04455-52010 |
NCP1#,SCP10..RHD |
1 | ||
(0212- )RHD
W(MANUAL STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046-59026 |
NCP1#,SCP10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45047-59026 |
NCP1#,SCP10 |
1 | ||
| 45319A - INSULATOR, STEERING GEAR HEAT | ||||
| 45319-52010 |
NCP1#..RHD |
1 | ||
| 45319-52010 |
NCP1#..RHD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-52010 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
2 | ||
| 45503-59045 |
NCP1#,SCP10 |
2 | ||
| 45503-59045 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-52011 |
NCP1#,SCP10..RHD |
1 | ||
| 45510-52011 |
NCP1#,SCP10..RHD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45515-52010 |
NCP1#,SCP10 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45517-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 90904-67039 |
NCP1#,SCP10 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17002 |
NCP1#,SCP10..RHD W(POWER STEERING) |
2 | ||
| 90466-17001 |
NCP1#,SCP10 W(MANUAL STEERING) |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52040 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45535-52030 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 91651-B0610 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
