NCP10R-AHPRKQ (1999)

Toyota Yaris/Echo (3d,5d)

Production Aug 1999 - Aug 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )NCP1#..RHD

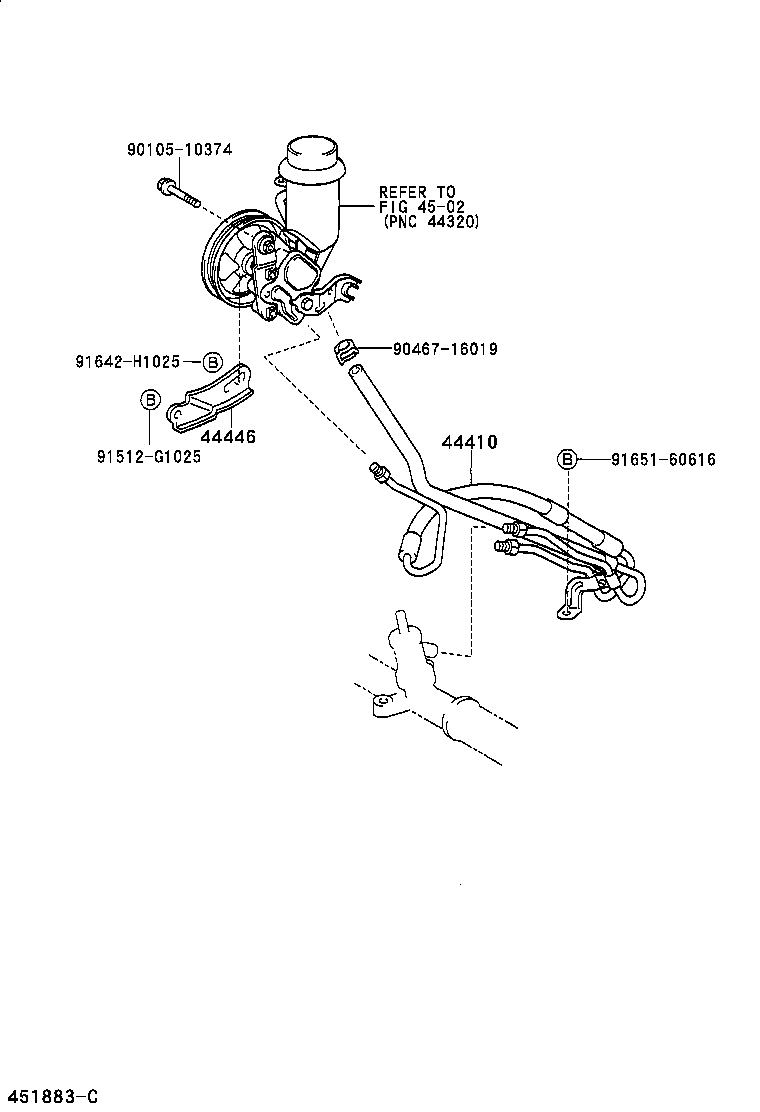

Click highlighted areas on diagram

diagram 44410 44446 4502 9010510374 9046716019 91512G1025 91642H1025 9165160616
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-52070

NCP1#..RHD

 1
44410-52070

NCP1#..RHD

 1
44446 - STRUT, ADJUSTING
44446-52010

NCP1#

 1
44446-52010

NCP1#

 1
Common parts
90105-10374
90467-16019
91512-G1025
91642-H1025
91651-60616
Linked diagrams
4502
