NCP10R-AHPRKQ (1999)
Toyota Yaris/Echo (3d,5d)
(9908-0212)

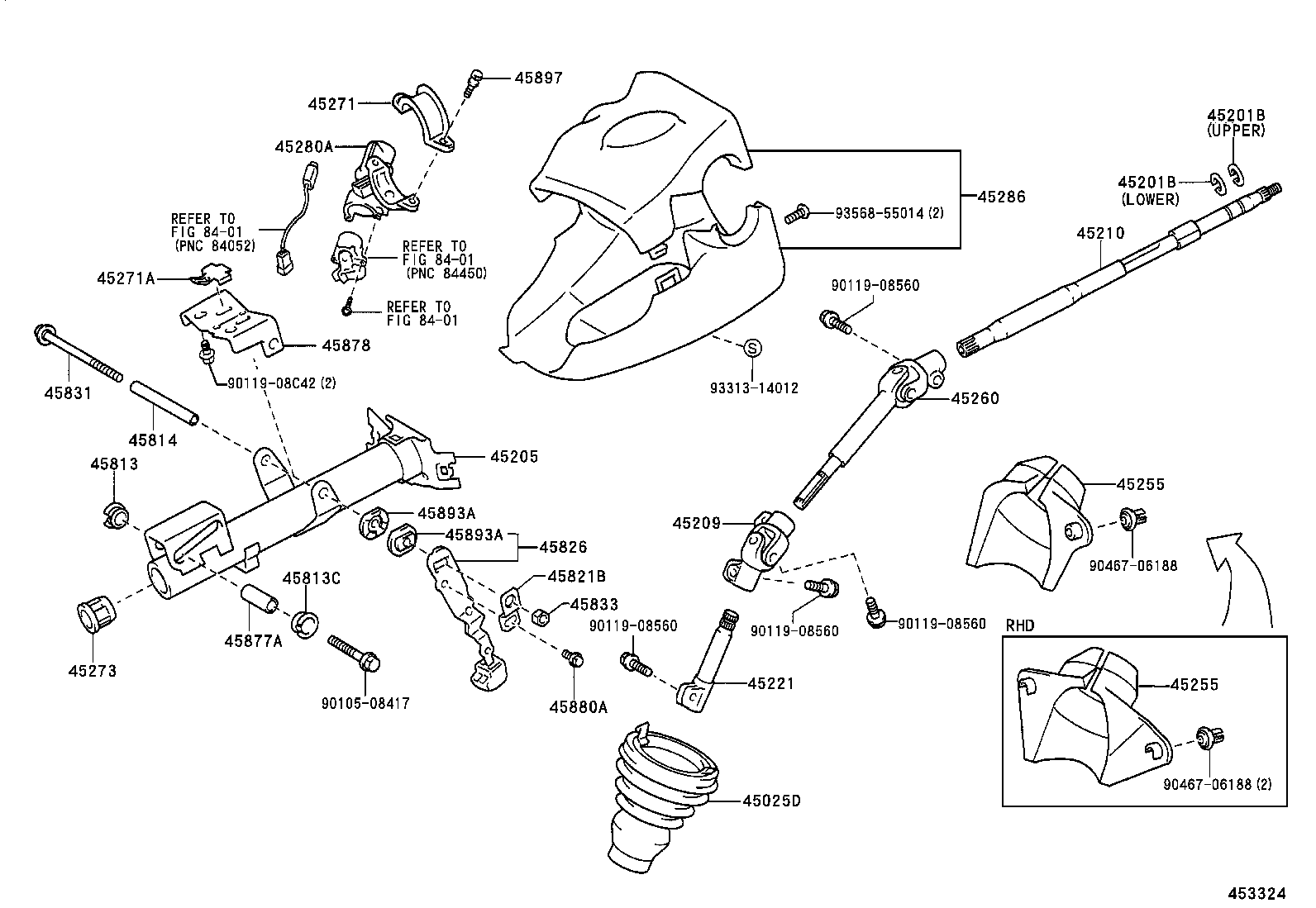

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52010 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52020 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
1 | ||
| 45025-52011 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52011 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52020 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-52010 |
NCP1#,SCP10 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52020 |
NCP1#,SCP10 |
1 | ||
| 45209-52020 |
NCP1#,SCP10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-52010 |
NCP1#,SCP10 |
1 | ||
| 45210-52010 |
NCP1#,SCP10 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45297-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45297-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45297-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45297-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45260-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
NCP1#,SCP10 |
1 | ||
| 45271-16020 |
NCP1#,SCP10 |
1 | ||
| 45271A - CLAMP, STEERING COLUMN, UPPER NO.2 | ||||
| 45271-52010 |
NCP1#,SCP10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
NCP1#,SCP10 |
1 | ||
| 45273-33030 |
NCP1#,SCP10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-52030 |
NCP10,SCP10..ATM W(UNLOCK WARNING SWITCH) |
1 | ||
| 45280-52030 |
NCP10,SCP10..ATM W(UNLOCK WARNING SWITCH) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52901B0 |
NCP10,SCP10 MD.GRAY,TRIM1# |
1 | ||
| 45286-52901B3 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 45286-52901G0 |
NCP10,SCP10 MIST GREEN,TRIM7# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52010 |
NCP1#,SCP10 OD=24 |
1 | ||
| 45813C - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52020 |
NCP1#,SCP10 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-52010 |
NCP1#,SCP10 OD=8 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-52010 |
NCP1#,SCP10 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-52011 |
NCP1#,SCP10 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-52010 |
NCP1#,SCP10 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-52010 |
NCP1#,SCP10 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-52010 |
NCP1#,SCP10 |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-52010 |
NCP1#,SCP10 |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
NCP1#,SCP10 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
NCP1#,SCP10 |
2 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
NCP1#,SCP10 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP1#,SCP10 |
2 | ||
| 45897-12020 |
NCP1#,SCP10 |
2 | ||
| Common parts | ||||
| 90105-08417 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0212- )

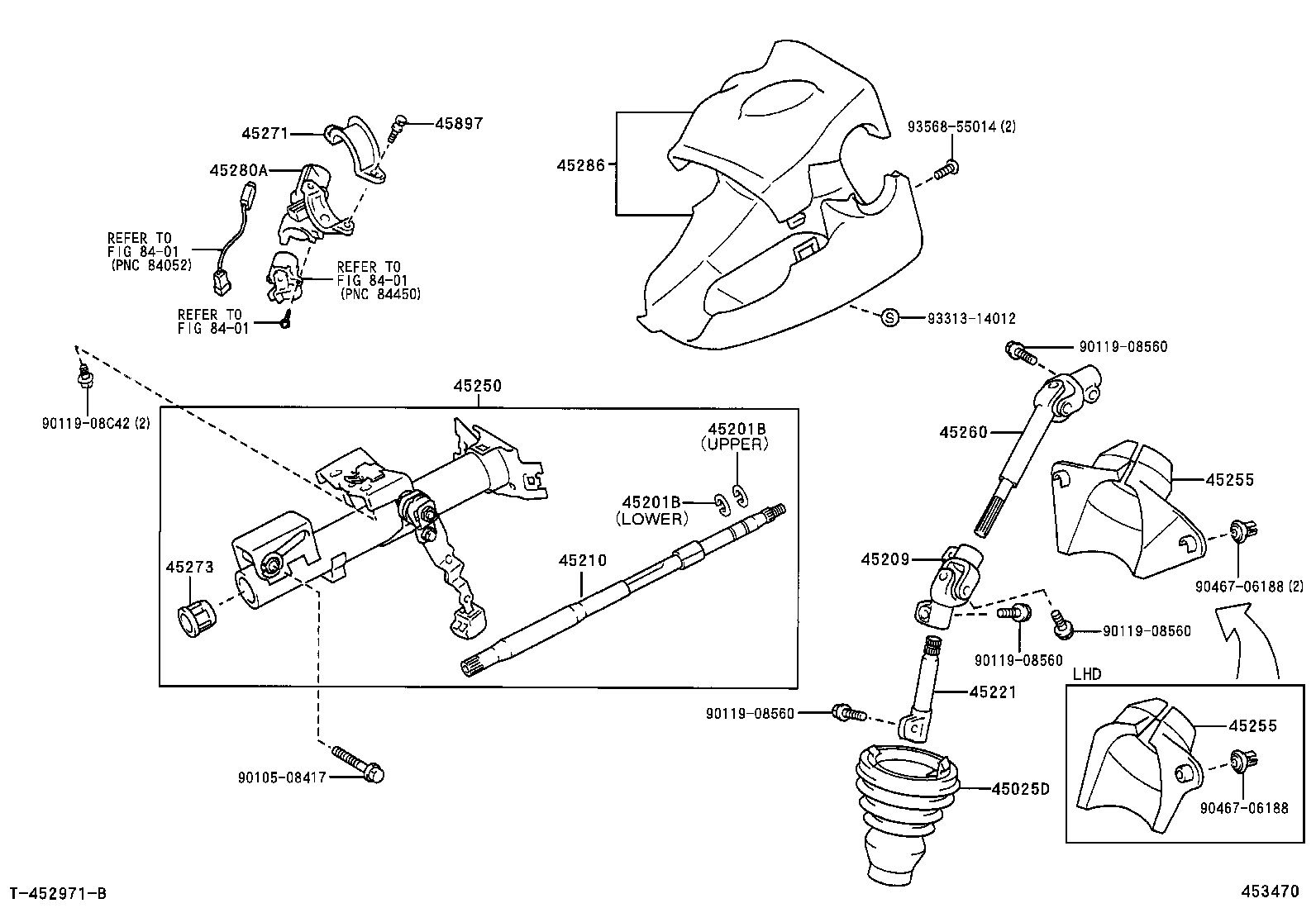

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52010 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52020 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
1 | ||
| 45025-52011 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52011 |
NCP1#,SCP10..RHD W(POWER STEERING) |
1 | ||
| 45025-52020 |
NCP1#,SCP10..RHD W(MANUAL STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 90520-17269 |
NCP1#,SCP10 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP1#,SCP10 T=1.20,LOWER |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52020 |
NCP1#,SCP10 |
1 | ||
| 45209-52020 |
NCP1#,SCP10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-52010 |
NCP1#,SCP10 |
1 | ||
| 45210-52010 |
NCP1#,SCP10 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45297-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45297-52010 |
NCP1#,SCP10 W(POWER STEERING) |
1 | ||
| 45297-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45297-52020 |
NCP1#,SCP10 W(MANUAL STEERING) |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-52010 |
NCP1#,SCP10 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45255-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45260-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
NCP1#,SCP10 |
1 | ||
| 45271-16020 |
NCP1#,SCP10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
NCP1#,SCP10 |
1 | ||
| 45273-33030 |
NCP1#,SCP10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-52030 |
NCP10,SCP10..ATM W(UNLOCK WARNING SWITCH) |
1 | ||
| 45280-52030 |
NCP10,SCP10..ATM W(UNLOCK WARNING SWITCH) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52901B0 |
NCP10,SCP10 MD.GRAY,TRIM1# |
1 | ||
| 45286-52901B3 |
NCP10..ARL DK.GRAY,TRIM97,98,99 |
1 | ||
| 45286-52901G0 |
NCP10,SCP10 MIST GREEN,TRIM7# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP1#,SCP10 |
2 | ||
| 45897-12020 |
NCP1#,SCP10 |
2 | ||
| Common parts | ||||
| 90105-08417 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
