NCP10R-AHPRK (1999)
Toyota Yaris/Echo (3d,5d)

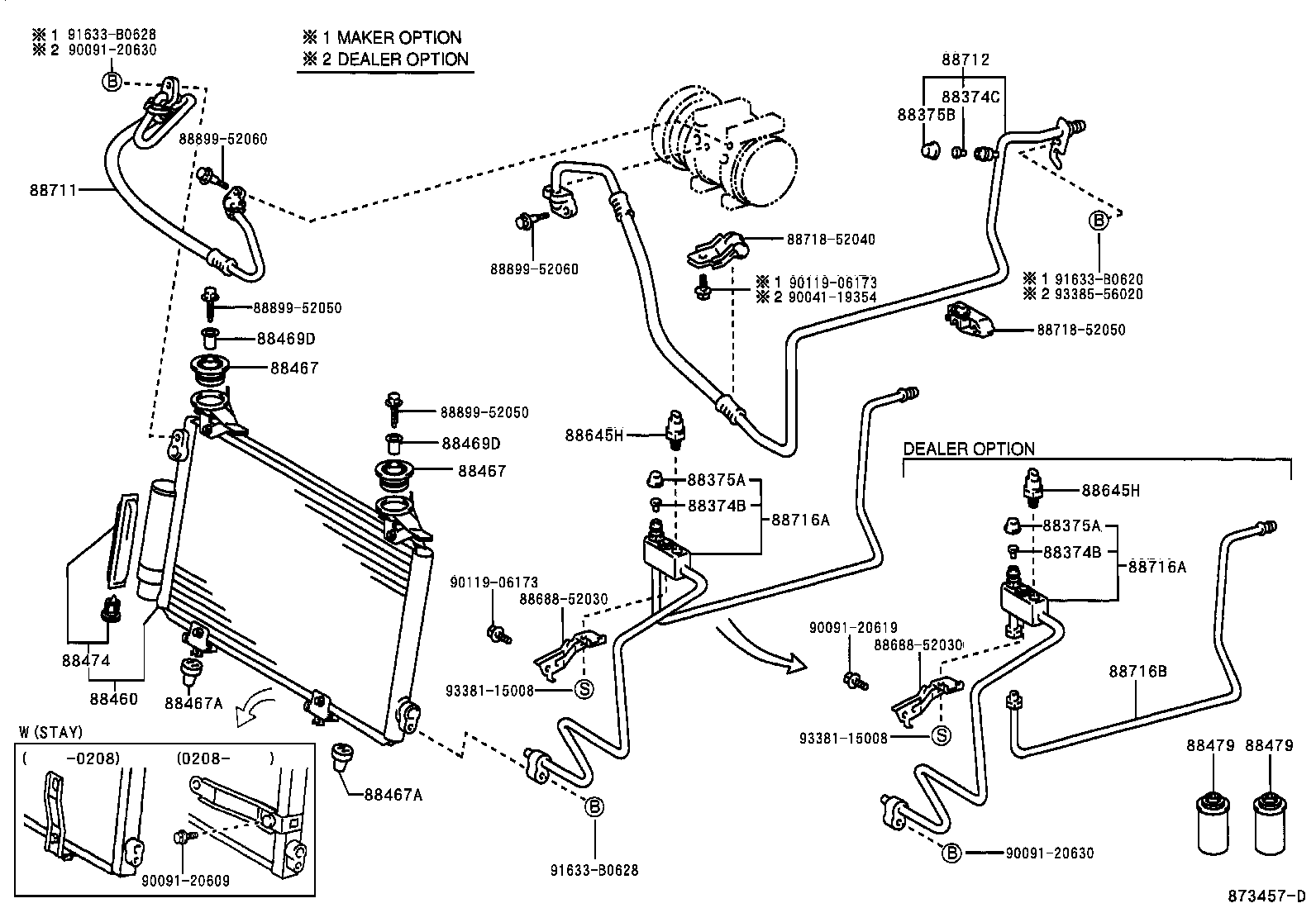

ILLUST NO. 1 OF 2(9908-0212)NCP1#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
NCP1# W(MANUAL AIR CONDITIONER) |
1 | ||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
NCP1# W(MANUAL AIR CONDITIONER) |
1 | ||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP1#,SCP10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP1#,SCP10 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NCP1#,SCP10 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52050 |
NCP1#,SCP10..RHD W(STAY) |
1 | ||
| 88450-52181 |
NCP1#..RHD DEALER OPTION |
1 | ||
| 88450-52181 |
NCP10..RHD..GEN |
1 | ||
| 88450-52180 |
NCP1#,SCP10..RHD MAKER OPTION |
1 | ||
| 88450-52161 |
NCP1#,SCP10..RHD MAKER OPTION |
1 | ||
| 88460-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP1#..RHD |
2 | ||
| 88467-12180 |
NCP1#,SCP10..RHD |
2 | ||
| 88467-52010 |
NCP1#,SCP10..RHD DEALER OPTION |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP1#..RHD |
2 | ||
| 88467-12180 |
NCP1#,SCP10..RHD |
2 | ||
| 88467-52010 |
NCP1#,SCP10..RHD DEALER OPTION |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP1#,SCP10 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88474-47010 |
NCP1#,SCP10 DEALER OPTION |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP1#,SCP10 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP1#,SCP10 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP1# |
1 | ||
| 88711-52020 |
NCP10 DEALER OPTION |
1 | ||
| 88711-52021 |
NCP1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52030 |
NCP1#..RHD |
1 | ||
| 88712-52160 |
NCP10..RHD..GEN DEALER OPTION |
1 | ||
| 88712-52030 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88712-52160 |
NCP10..RHD..GEN DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52040 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88716-52110 |
NCP1#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP10..RHD..GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52040 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88716-52110 |
NCP1#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP10..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52120 |
NCP1#..RHD |
1 | ||
| 88716-52360 |
NCP10..RHD..GEN |
1 | ||
| 88716-52120 |
NCP10..RHD..GEN W(FRONT HEATER) |
1 | ||
| 88716-52360 |
NCP10..RHD..GEN |
1 | ||
| Common parts | ||||
| 88688-52030 | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90119-06173 | ||||
| 91633-B0620 | ||||
| 91633-B0628 | ||||
| 93381-15008 | ||||
| 93385-56020 | ||||

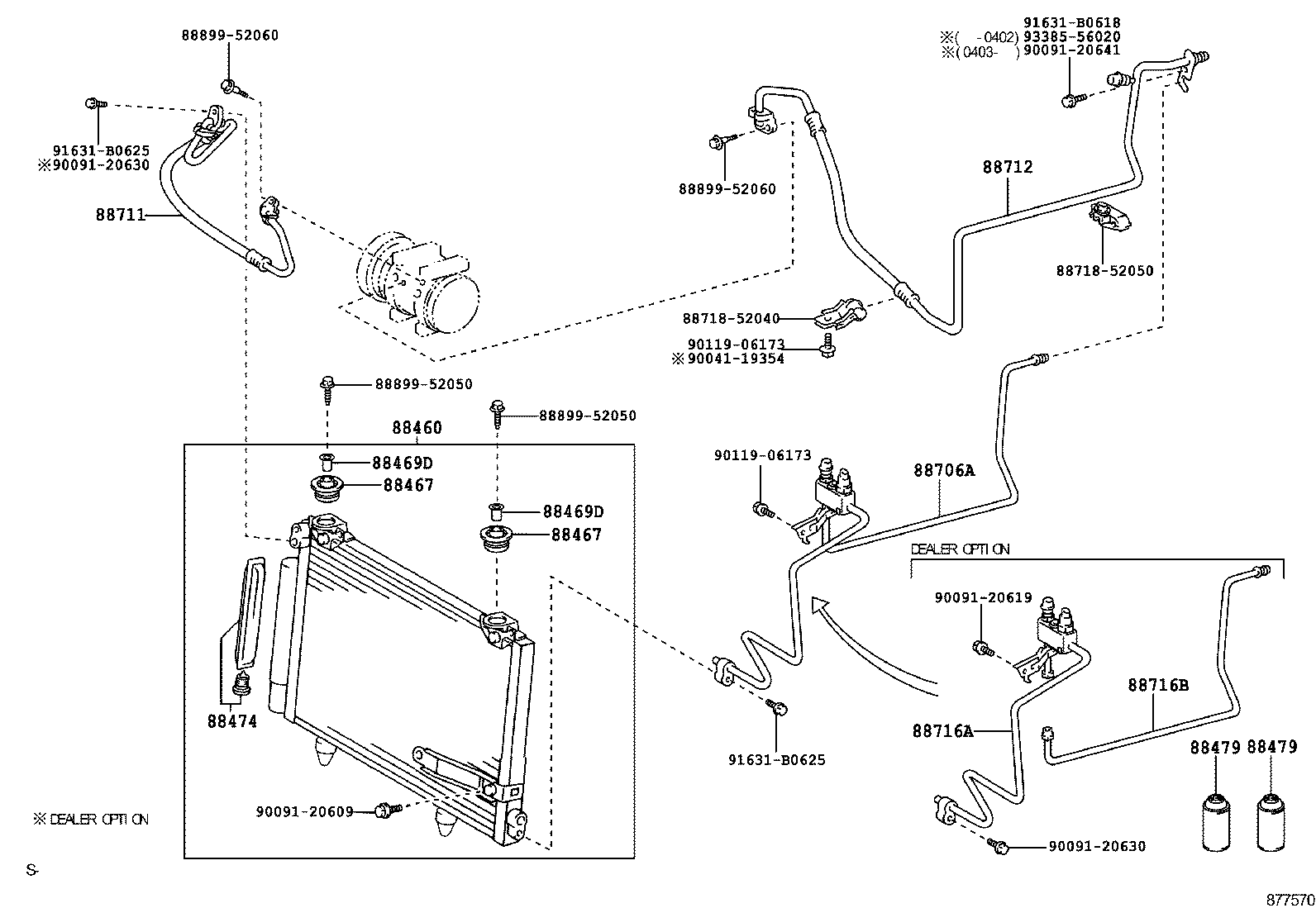

ILLUST NO. 1 OF 2(0212- )NCP1#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52050 |
NCP1#,SCP10..RHD W(STAY) |
1 | ||
| 88450-52181 |
NCP1#..RHD DEALER OPTION |
1 | ||
| 88450-52181 |
NCP10..RHD..GEN |
1 | ||
| 88450-52180 |
NCP1#,SCP10..RHD MAKER OPTION |
1 | ||
| 88450-52161 |
NCP1#,SCP10..RHD MAKER OPTION |
1 | ||
| 88460-52010 |
NCP1#,SCP10..RHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP1#..RHD |
2 | ||
| 88467-12180 |
NCP1#,SCP10..RHD |
2 | ||
| 88467-52010 |
NCP1#,SCP10..RHD DEALER OPTION |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP1#..RHD |
2 | ||
| 88467-12180 |
NCP1#,SCP10..RHD |
2 | ||
| 88467-52010 |
NCP1#,SCP10..RHD DEALER OPTION |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP1#,SCP10 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88474-47010 |
NCP1#,SCP10 DEALER OPTION |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52040 |
NCP1#..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP1# |
1 | ||
| 88711-52020 |
NCP10 DEALER OPTION |
1 | ||
| 88711-52021 |
NCP1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52030 |
NCP1#..RHD |
1 | ||
| 88712-52160 |
NCP10..RHD..GEN DEALER OPTION |
1 | ||
| 88712-52030 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88712-52160 |
NCP10..RHD..GEN DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52040 |
NCP1#..RHD MAKER OPTION |
1 | ||
| 88716-52110 |
NCP1#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP10..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52120 |
NCP1#..RHD |
1 | ||
| 88716-52360 |
NCP10..RHD..GEN |
1 | ||
| 88716-52120 |
NCP10..RHD..GEN W(FRONT HEATER) |
1 | ||
| 88716-52360 |
NCP10..RHD..GEN |
1 | ||
| Common parts | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90091-20641 | ||||
| 90119-06173 | ||||
| 91631-B0618 | ||||
| 91631-B0625 | ||||
| 93385-56020 | ||||
