NCP10R-AGPRK (1999)

Toyota Yaris/Echo (3d,5d)

Production Aug 1999 - Aug 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

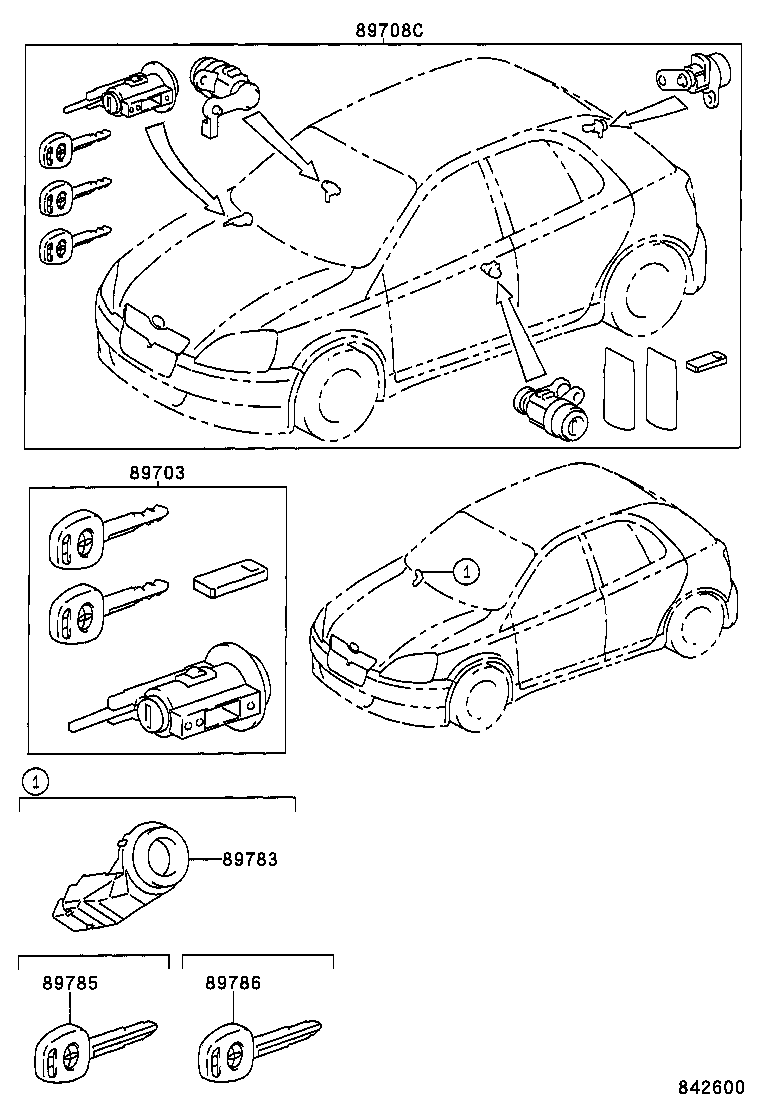

(9908-0212)NCP1#

Click highlighted areas on diagram

diagram 89703 89708C 89783 89785 89786
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-48040

NCP1#

 1
89703-52010

NCP1#

 1
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-52010

NCP10

 1
69005-52870

NCP1#

 1
89708-52050

NCP1#

 1
89708-52011

NCP1#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52010

NCP1#

 1
89783-52010

NCP1#

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

NCP1#

 1
89785-26020

NCP1#

 1
89785-17020

NCP1#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

NCP1#

 1
89786-60050

NCP1#

 1
89786-17020

NCP1#

 1

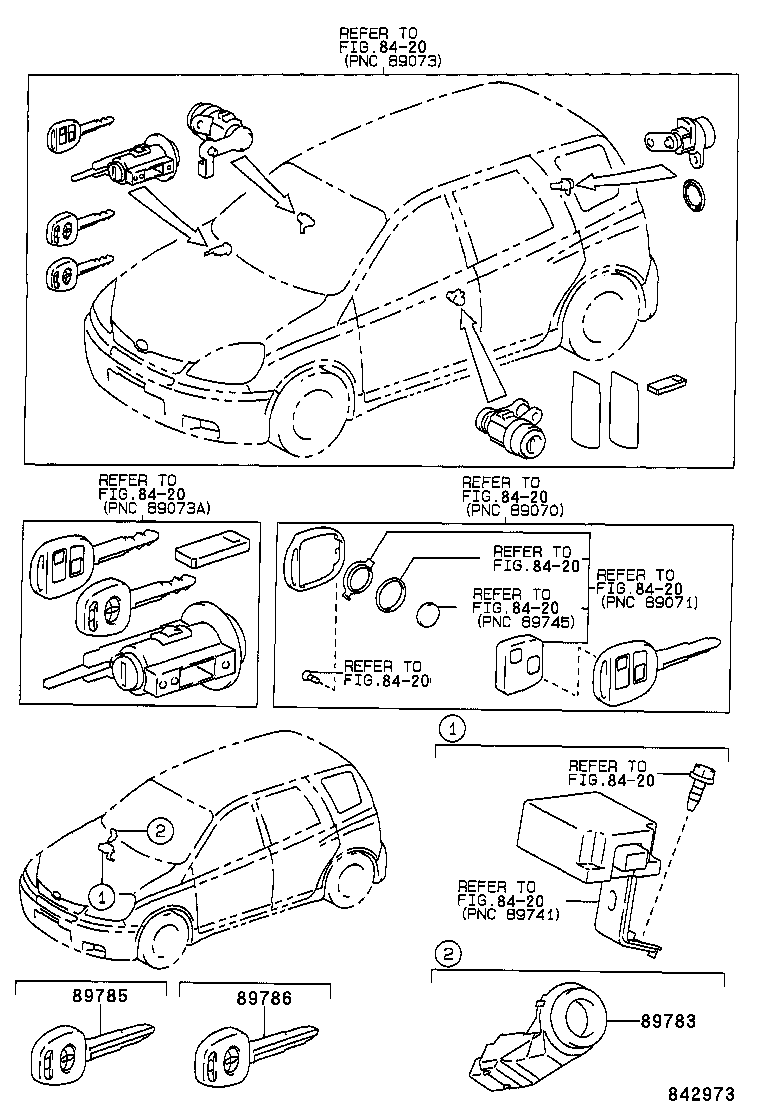

(9908- )NCP1#

Click highlighted areas on diagram

W(KEY LESS ENTRY)

diagram 8420 8420 8420 8420 8420 8420 8420 8420 8420 89783 89785 89786
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52010

NCP1#

 1
89783-52010

NCP1#

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

NCP1#

 1
89785-26020

NCP1#

 1
89785-17020

NCP1#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

NCP1#

 1
89786-60050

NCP1#

 1
89786-17020

NCP1#

 1
Linked diagrams
8420

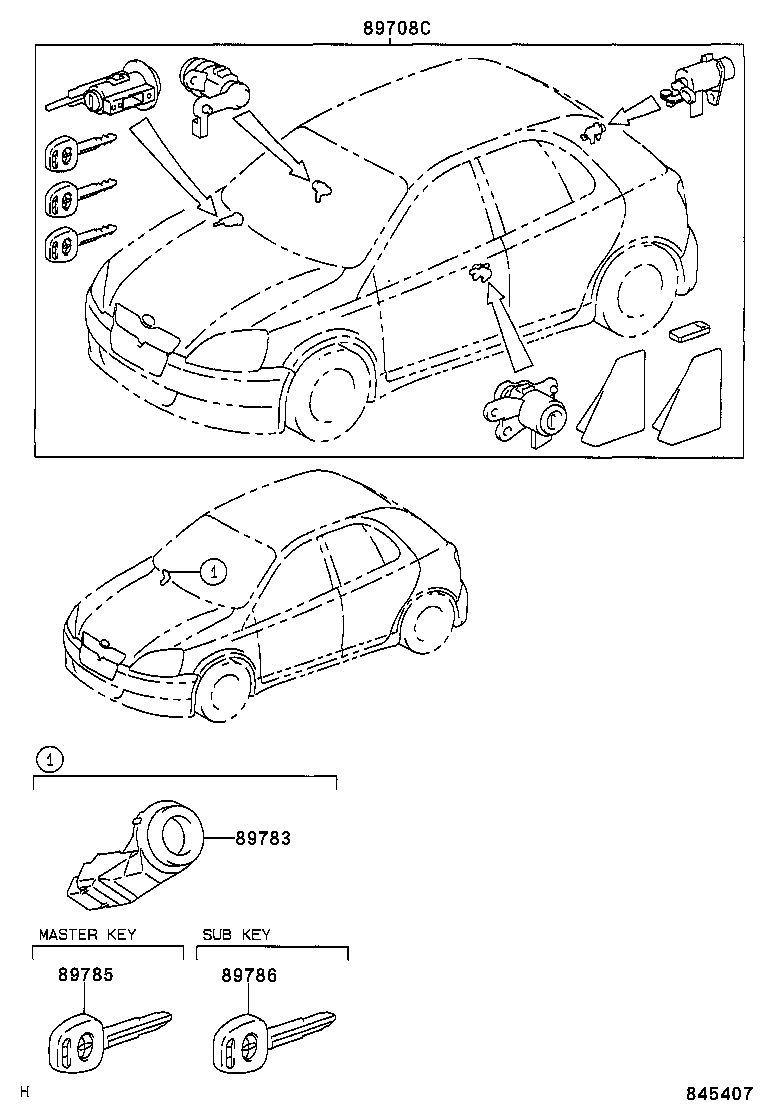

(0212- )NCP1#

Click highlighted areas on diagram

diagram 89708C 89783 89785 89786
Part # Description Qty Price
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-52010

NCP10

 1
69005-52870

NCP1#

 1
89708-52050

NCP1#

 1
89708-52011

NCP1#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52010

NCP1#

 1
89783-52010

NCP1#

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

NCP1#

 1
89785-26020

NCP1#

 1
89785-17020

NCP1#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

NCP1#

 1
89786-60050

NCP1#

 1
89786-17020

NCP1#

 1
