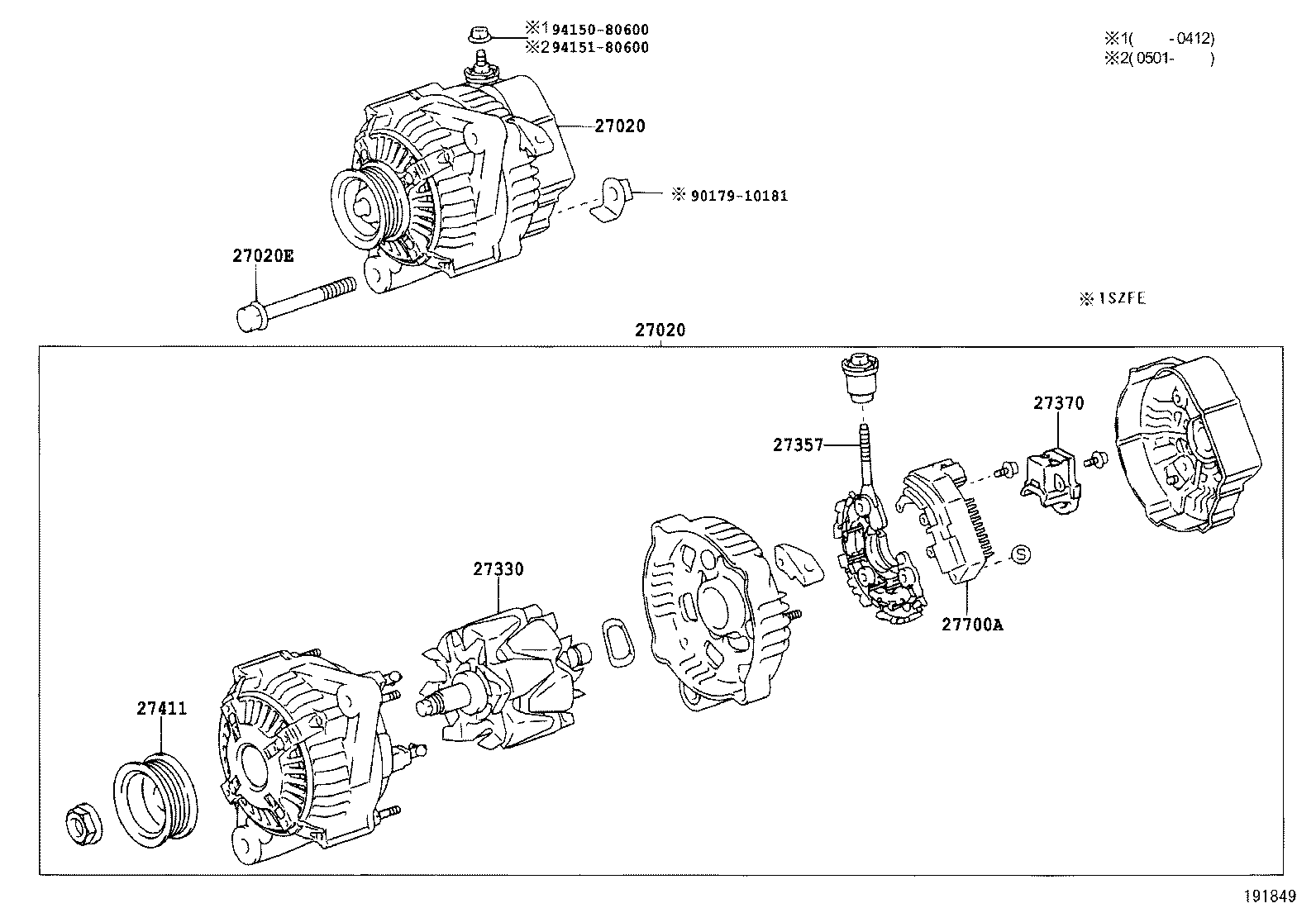

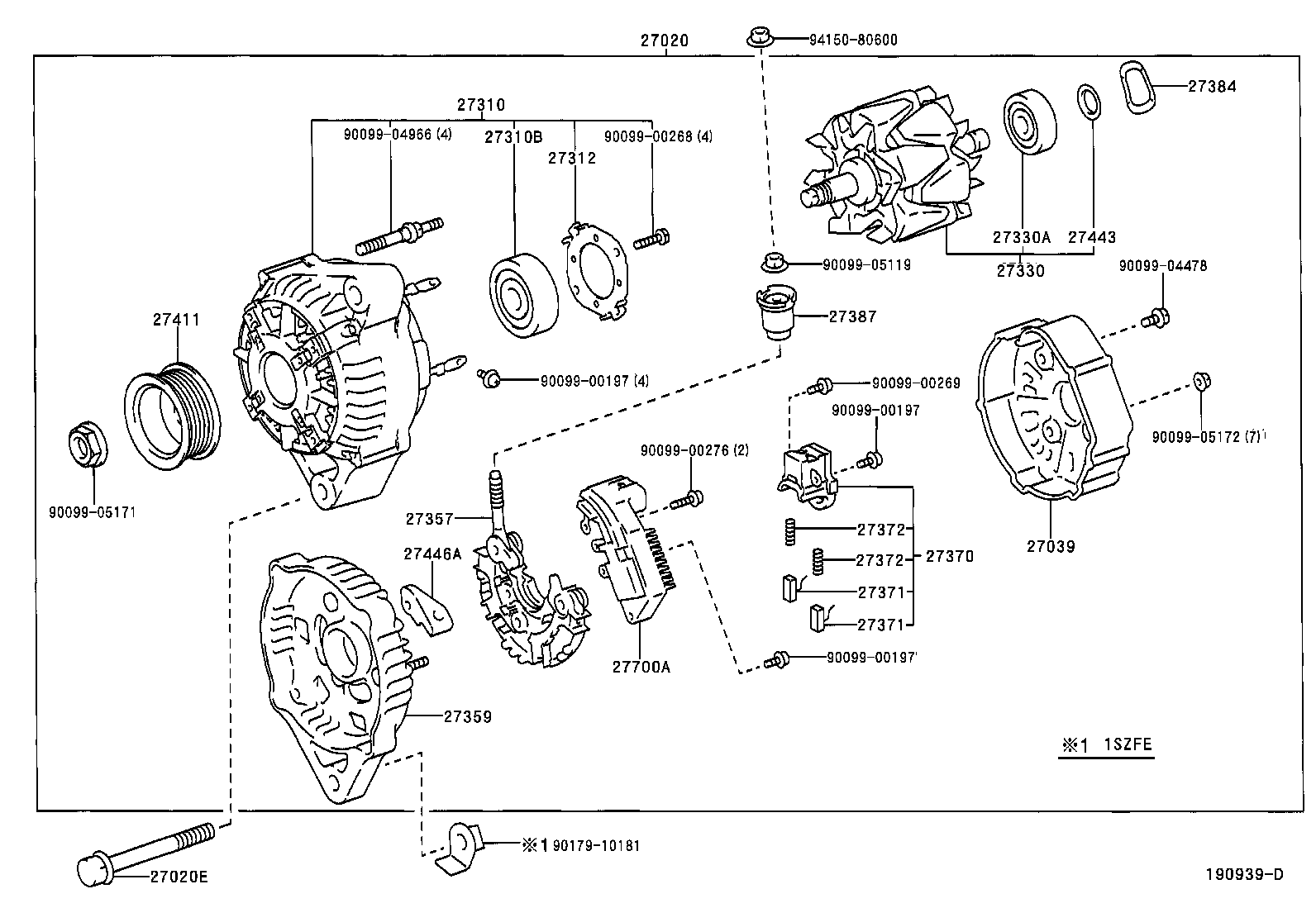

NCP10R-AGPRK (1999)
Toyota Yaris/Echo (3d,5d)
(9903-0212)2NZFE,1SZFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21041 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-21020 |
2NZFE..NCP10 |
1 | ||
| 27039-21060 |
2NZFE..NCP10 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-21020 |
2NZFE..NCP10 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10220 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27330-16390 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27357-67100 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27357-22050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-21020 |
2NZFE..NCP10 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27370-75060 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27372-87501 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27372-87501 |
2NZFE,1SZFE..NCP10,SCP10 |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27411-70140 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 27446A - CLAMP | ||||
| 27446-21020 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21010 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-10181 | ||||
| 94150-80600 | ||||
(0212- )
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21041 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21041 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27330-16390 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27357-67100 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27357-22050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27370-75060 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27411-70140 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21010 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| Common parts | ||||
| 90179-10181 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
(0212- )2NZFE,1SZFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21041 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21041 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21040 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27330-16390 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27330-67100 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27357-67100 |
2NZFE,1SZFE..NCP10,SCP10 |
1 | ||
| 27357-22050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27357-21060 |
2NZFE,1SZFE..NCP10,SCP10 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27370-75060 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 80A |
1 | ||
| 27370-35060 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-65010 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27411-70140 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21010 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| 27700-21020 |
2NZFE..NCP10 12V 70A |
1 | ||
| Common parts | ||||
| 90179-10181 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
