NCP10L-AHPRK (1999)
Toyota Yaris/Echo (3d,5d)

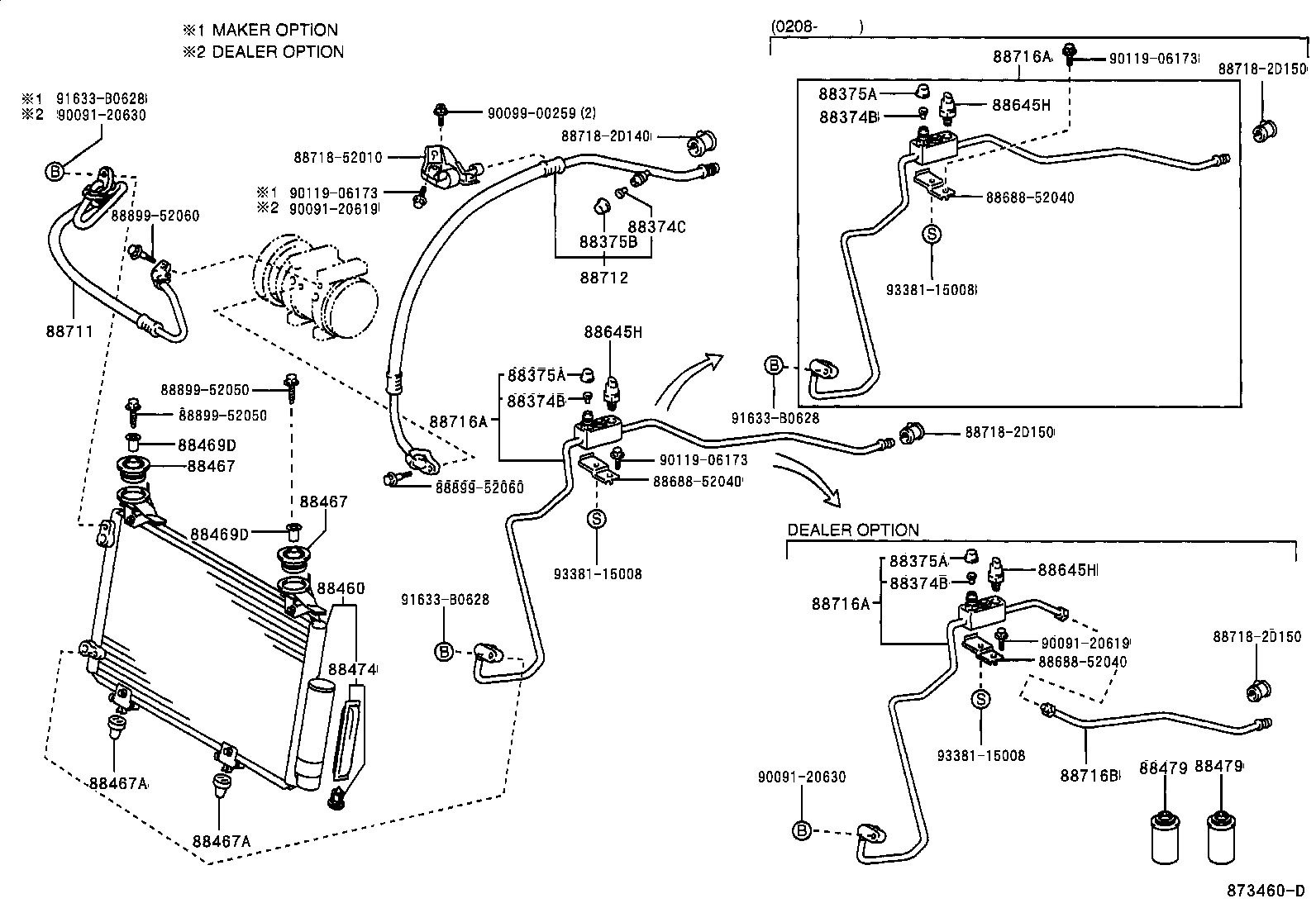

ILLUST NO. 1 OF 2(9908-0212)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
NCP1# W(MANUAL AIR CONDITIONER) |
1 | ||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
NCP1# W(MANUAL AIR CONDITIONER) |
1 | ||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33070 |
NCP1# W(MANUAL AIR CONDITIONER) |
1 | ||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP1#,SCP10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP1#,SCP10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP1#,SCP10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP1#,SCP10 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NCP1#,SCP10 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52020 |
NCP10..LHD |
1 | ||
| 88450-52170 |
NCP10..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88467-52020 |
NCP10..LHD |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88467-52020 |
NCP10..LHD |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88474-17010 |
NCP1#,SCP10 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP10..LHD |
1 | ||
| 88474-47010 |
NCP1#,SCP10 DEALER OPTION |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP1#,SCP10 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP1#,SCP10 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP1#,SCP10 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP1# |
1 | ||
| 88711-52020 |
NCP10 DEALER OPTION |
1 | ||
| 88711-52021 |
NCP1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52150 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88712-52050 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88704-52060 |
NCP10..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52030 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88706-52310 |
NCP10..LHD |
1 | ||
| 88716-52160 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88706-52260 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52030 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88706-52310 |
NCP10..LHD |
1 | ||
| 88716-52160 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88706-52260 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52030 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88706-52310 |
NCP10..LHD |
1 | ||
| 88716-52160 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88706-52260 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52140 |
NCP10..LHD |
1 | ||
| 88716-52380 |
NCP10..LHD |
1 | ||
| Common parts | ||||
| 88688-52040 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-52010 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90099-00259 | ||||
| 90119-06173 | ||||
| 91633-B0628 | ||||
| 93381-15008 | ||||

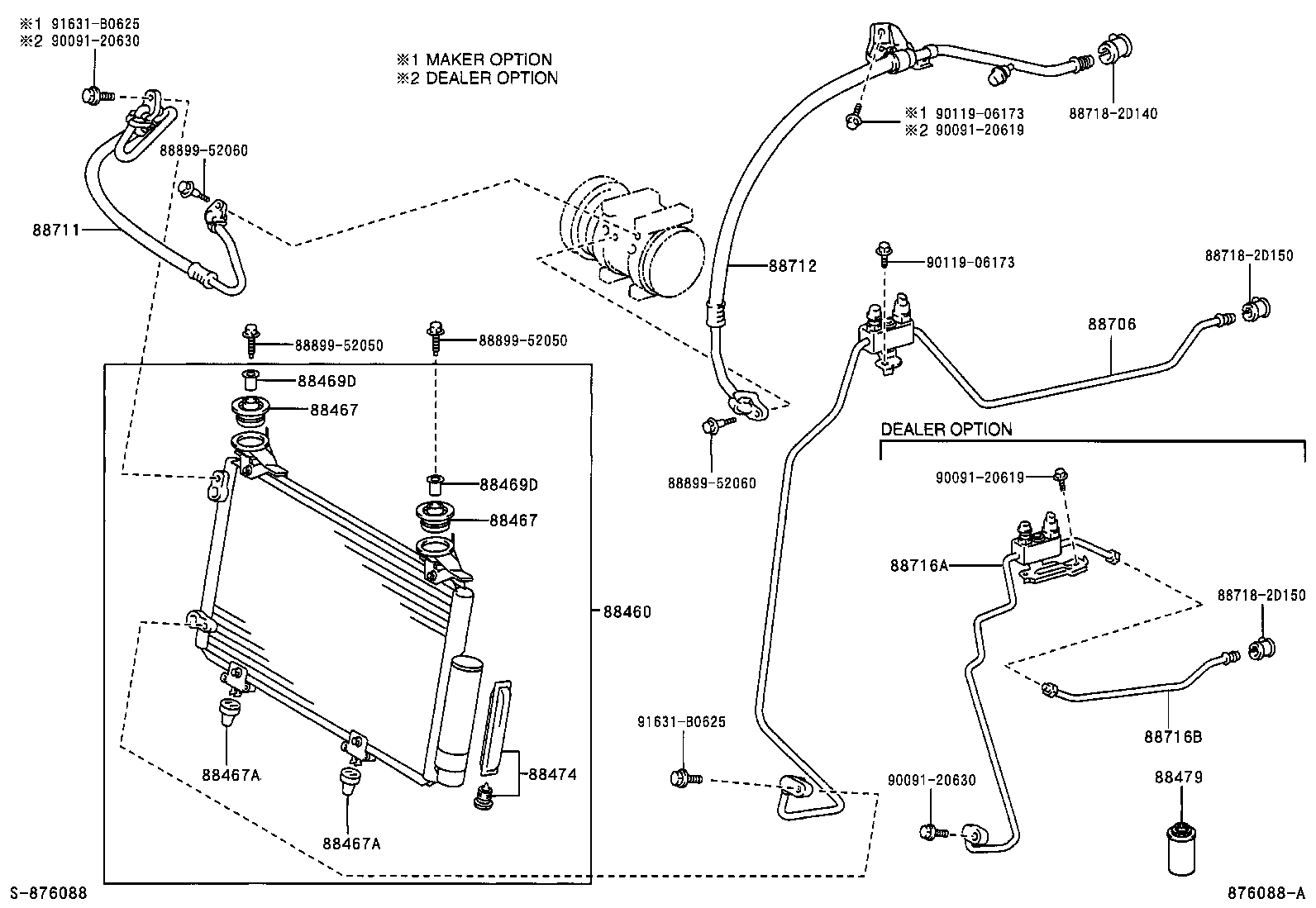

ILLUST NO. 1 OF 2(0212- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52020 |
NCP10..LHD |
1 | ||
| 88450-52170 |
NCP10..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467-52010 |
NCP10..LHD |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88467-52020 |
NCP10..LHD |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP1#,SCP10 |
2 | ||
| 88467-52020 |
NCP10..LHD |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP1#,SCP10 |
2 | ||
| 88469-52010 |
NCP1# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88474-17010 |
NCP1#,SCP10 MAKER OPTION |
1 | ||
| 88474-17010 |
NCP10..LHD |
1 | ||
| 88474-47010 |
NCP1#,SCP10 DEALER OPTION |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
NCP10,SCP10..GEN 200G |
1 | ||
| 90986-02007 |
NCP10,SCP10..GEN 250G |
1 | ||
| 90986-02007 |
NCP10..GEN 250G |
1 | ||
| 90986-02008 |
NCP10..GEN 200G |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-52260 |
NCP10..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP1# |
1 | ||
| 88711-52020 |
NCP10 DEALER OPTION |
1 | ||
| 88711-52021 |
NCP1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52150 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88712-52050 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88704-52060 |
NCP10..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52030 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88706-52310 |
NCP10..LHD |
1 | ||
| 88716-52160 |
NCP10..LHD DEALER OPTION |
1 | ||
| 88706-52260 |
NCP10..LHD MAKER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52140 |
NCP10..LHD |
1 | ||
| 88716-52380 |
NCP10..LHD |
1 | ||
| Common parts | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90119-06173 | ||||
| 91631-B0625 | ||||
