NCP10L-AHPRK (1999)
Toyota Yaris/Echo (3d,5d)
Production
Aug 1999
-
Aug 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

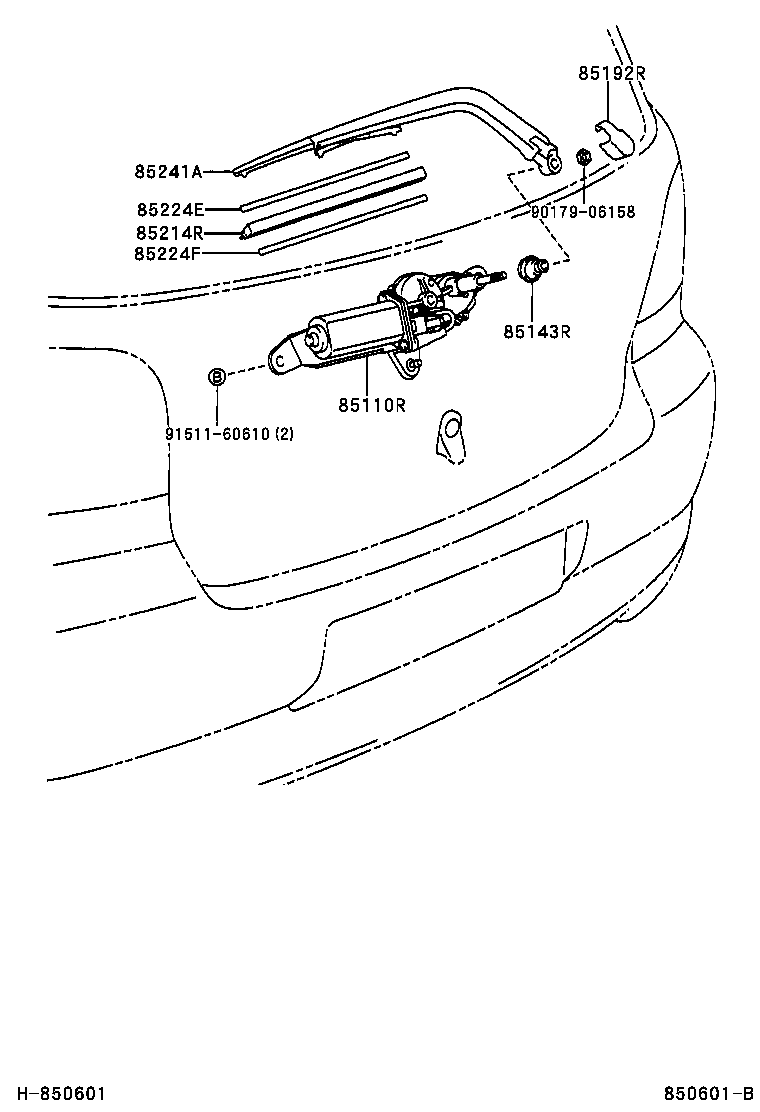

(9903-0212)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-52010 |
NCP1#,SCP10 |
1 | ||
| 85130-52010 |
NCP1#,SCP10 |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-52010 |
NCP1#,SCP10 |
1 | ||
| 85143-52010 |
NCP1#,SCP10 |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85244-52010 |
NCP1#,SCP10 |
1 | ||
| 85244-52010 |
NCP1#,SCP10 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-52020 |
NCP1#,SCP10 |
1 | ||
| 85214-52020 |
NCP1#,SCP10 |
1 | ||
| 85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1 | ||||
| 85224-52020 |
NCP1#,SCP10 |
1 | ||
| 85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2 | ||||
| 85224-52020 |
NCP1#,SCP10 |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-52010 |
NCP1#,SCP10 |
1 | ||
| 85241-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91511-60610 | ||||

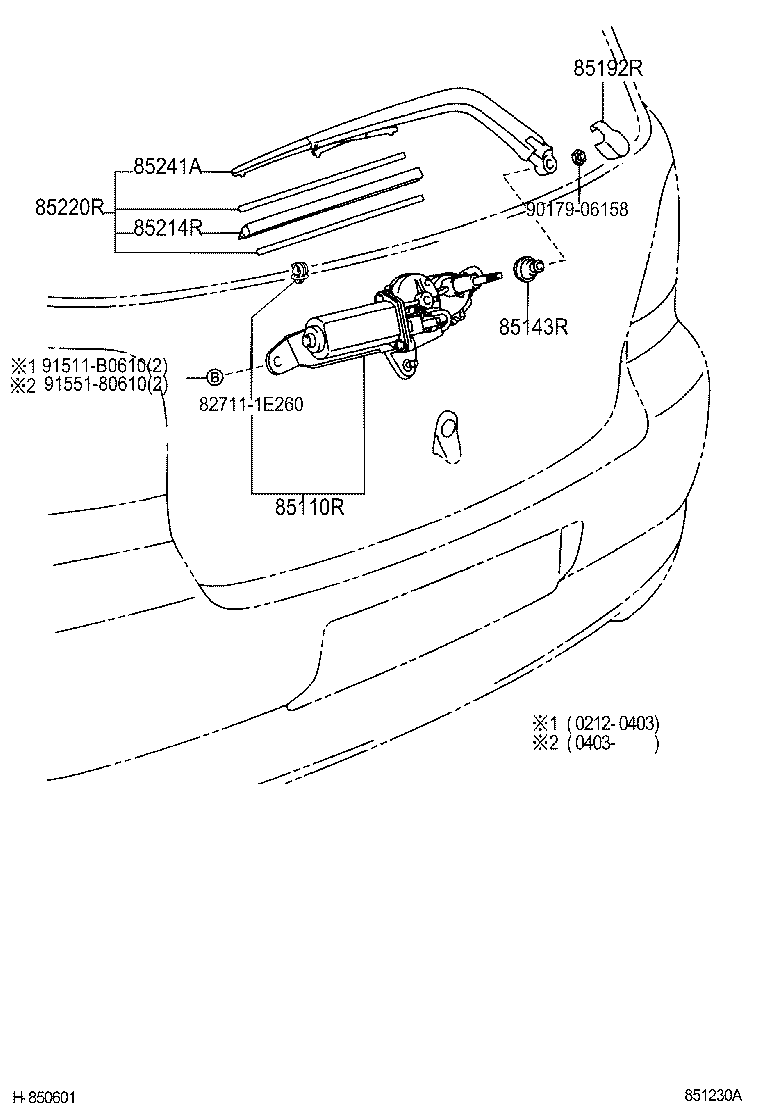

(0212- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-52010 |
NCP1#,SCP10 |
1 | ||
| 85130-52010 |
NCP1#,SCP10 |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-52010 |
NCP1#,SCP10 |
1 | ||
| 85143-52010 |
NCP1#,SCP10 |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85244-52010 |
NCP1#,SCP10 |
1 | ||
| 85244-52010 |
NCP1#,SCP10 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-52020 |
NCP1#,SCP10 |
1 | ||
| 85214-52020 |
NCP1#,SCP10 |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85240-52010 |
NCP1#,SCP10 |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-52010 |
NCP1#,SCP10 |
1 | ||
| 85241-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90179-06158 | ||||
| 91511-B0610 | ||||
| 91551-80610 | ||||
