NCP10L-AHMRK (1999)

Toyota Yaris/Echo (3d,5d)

Production Aug 1999 - Aug 2005
Engine 2NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )2NZFE

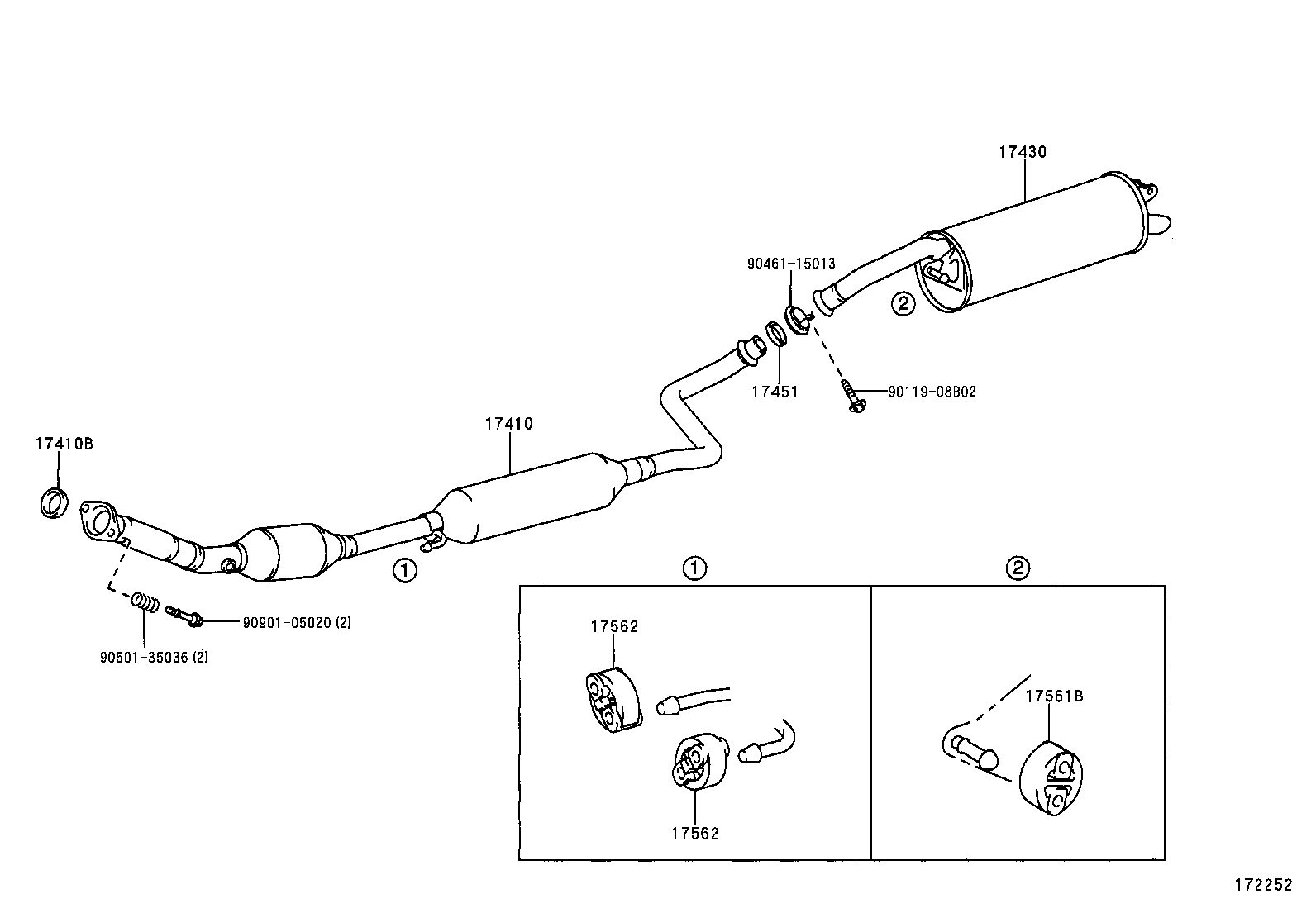

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17562 17562 9011908B02 9046115013 9050135036 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21080

2NZFE..NCP10..GEN

LEADED GASOLINE SPEC

 1
17410-21060

2NZFE..NCP10..MTM

*115=TOYOTA/99-/Y

 1
17410-21080

2NZFE..NCP10..GEN

LEADED GASOLINE SPEC

 1
17410-21380

2NZFE..NCP10

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

1NZFE,2NZFE..NCP1#

 1
17451-21030

1NZFE,2NZFE..NCP1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21031

2NZFE..NCP10

 1
17430-21031

2NZFE..NCP10

 1
17430-21030

2NZFE..NCP10

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

1NZFE,2NZFE..NCP1#

 1
90917-06082

1NZFE,2NZFE..NCP1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-74280

1NZFE,2NZFE..NCP1#

 2
17565-74280

1NZFE,2NZFE..NCP1#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 2
17562-23040

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 2
17562-23040

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 2
Common parts
90119-08B02
90461-15013
90501-35036
90901-05020
