NCP10L-AGPRK (1999)
Toyota Yaris/Echo (3d,5d)
Production
Aug 1999
-
Aug 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )2NZFE

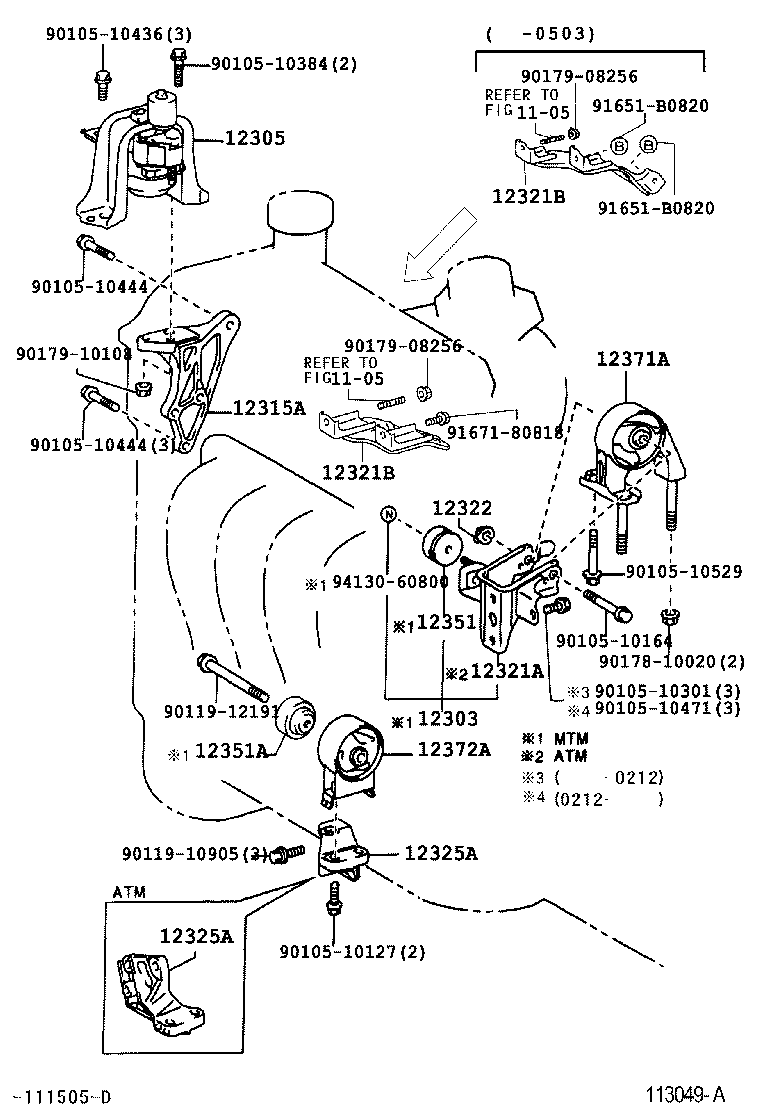

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21060 |
2NZFE..NCP10 |
1 | ||
| 12305-21060 |
2NZFE..NCP10 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21030 |
2NZFE..NCP10 |
1 | ||
| 12315-21030 |
2NZFE..NCP10 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-21140 |
2NZFE..NCP10..ATM |
1 | ||
| 12321-21030 |
2NZFE..NCP10..ATM |
1 | ||
| 12321-21140 |
2NZFE..NCP10..ATM |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 43409-52010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 43409-52010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 43409-52010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 43409-52010 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-23020 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 12322-23020 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21030 |
2NZFE..NCP10..ATM |
1 | ||
| 12325-21030 |
2NZFE..NCP10..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21030 |
2NZFE..NCP10..ATM |
1 | ||
| 12325-21030 |
2NZFE..NCP10..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-23010 |
2NZFE..NCP10..ATM |
1 | ||
| 12371-23011 |
2NZFE..NCP10..ATM |
1 | ||
| 12371-23011 |
2NZFE..NCP10..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-23020 |
2NZFE..NCP10..ATM |
1 | ||
| 12372-23020 |
2NZFE..NCP10..ATM |
1 | ||
| Common parts | ||||
| 90105-10127 | ||||
| 90105-10164 | ||||
| 90105-10301 | ||||
| 90105-10384 | ||||
| 90105-10436 | ||||
| 90105-10444 | ||||
| 90105-10471 | ||||
| 90105-10529 | ||||
| 90119-10905 | ||||
| 90119-12191 | ||||
| 90178-10020 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 91651-B0820 | ||||
| 91671-80818 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
