NCP10L-AGMRK (1999)
Toyota Yaris/Echo (3d,5d)
(9903-0212)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH | ||||
| 73201-52010 |
NCP1#..3D |
1 | ||
| 73201-52010 |
NCP1#..3D |
1 | ||
| 73201-52010 |
NCP10..3D..ARL;NCP10..LHD..3D |
1 | ||
| 73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH | ||||
| 73202-52010 |
NCP10..3D..ARL;NCP10..LHD..3D |
1 | ||
| 73202-52010 |
NCP1#..3D |
1 | ||
| 73202-52010 |
NCP1#..3D |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52011C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52021C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52031C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52031C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C0 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52011C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52041C1 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52021C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C0 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C1 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52220C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C2 |
NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C3 |
NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7# |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM9# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52011C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52021C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52031C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52031C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C0 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52011C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52041C1 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52021C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C0 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C1 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52220C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C2 |
NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C3 |
NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7# |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM9# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52011C0 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52011C1 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C1 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C0 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52250C2 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C0 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C1 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52250C3 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73220-52250C1 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52250C0 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52011C0 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52011C1 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C1 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C0 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52250C2 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C0 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C1 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52250C3 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73220-52250C1 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52250C0 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52030B0 |
NCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B2 |
NCP10,SCP10..GEN DK.GRAY,TRIM9# |
1 | ||
| 73230-52030B2 |
NCP10..GEN DK.GRAY,TRIM1#,7# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B3 |
NCP10..5D..ARL;NCP10,SCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73233-33010B8 |
NCP10..GEN;NCP10..5D..ARL;NCP13,SCP10..5D DK.GRAY,TRIM9# |
1 | ||
| 73233-33010B8 |
NCP10..5D..ARL;NCP10,SCP10..GEN DK.GRAY,TRIM1#,7# |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-33010B8 |
NCP10..GEN;NCP10..5D..ARL;NCP13,SCP10..5D DK.GRAY,TRIM9# |
1 | ||
| 73233-33010B3 |
NCP10..5D..ARL;NCP10,SCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52030B0 |
NCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B2 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73230-52030B2 |
NCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B0 |
NCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||

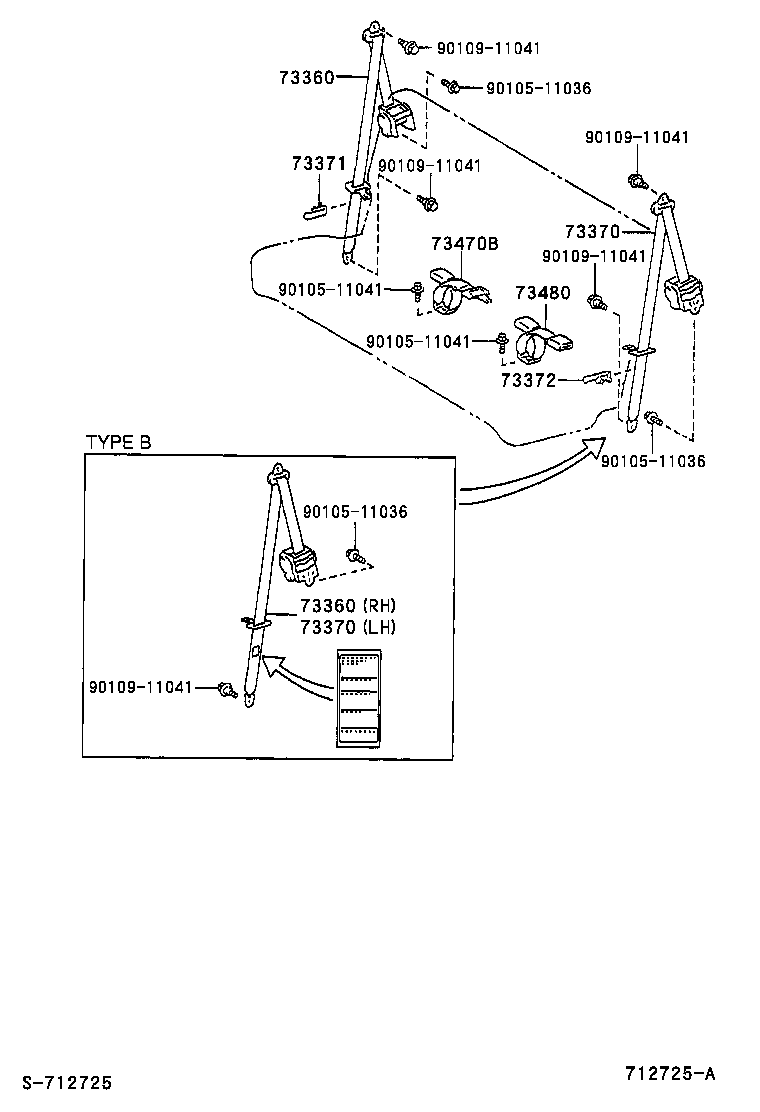

| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C0 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C1 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52200C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73470-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C0 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C1 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52200C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73470-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52010C1 |
NCP10,SCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52010C0 |
NCP10..3D..GEN W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52160C1 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73480-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52010C1 |
NCP10,SCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52010C0 |
NCP10..3D..GEN W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52160C1 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73480-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 90105-08381 | ||||
| 90105-10162 | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90109-11027 | ||||
| 90109-11049 | ||||
| 90109-11050 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91631-60612 | ||||
ILLUST NO. 1 OF 2(0212- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH | ||||
| 73201-52010 |
NCP1#..3D |
1 | ||
| 73201-52010 |
NCP1#..3D |
1 | ||
| 73201-52010 |
NCP10..3D..ARL;NCP10..LHD..3D |
1 | ||
| 73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH | ||||
| 73202-52010 |
NCP10..3D..ARL;NCP10..LHD..3D |
1 | ||
| 73202-52010 |
NCP1#..3D |
1 | ||
| 73202-52010 |
NCP1#..3D |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52011C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52021C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52031C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52031C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C0 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52011C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52041C1 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52021C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C0 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C1 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52220C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C2 |
NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C3 |
NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7# |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM9# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52050C0 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52011C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52021C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52031C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52031C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C0 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52011C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52041C1 |
NCP10..3D..ARL;NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52021C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C1 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52220C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C2 |
NCP10..LHD..3D BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52041C3 |
NCP10..LHD..3D BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73210-52050C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM1# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73210-52220C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM7# |
1 | ||
| 73210-52042C3 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7# |
1 | ||
| 73210-52050C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73210-52042C2 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM9# |
1 | ||
| 73210-52220C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT),BLACK,TRIM9# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52011C0 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52011C1 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C1 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C0 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52250C2 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C0 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C1 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52250C3 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73220-52250C1 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52250C0 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52011C0 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52011C1 |
NCP10..LHD..3D TYPE A:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C1 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52051C0 |
NCP10..LHD..3D TYPE B:REFER TO ILLUSTRATION, W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52250C2 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C0 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C1 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52250C3 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1#,TYPE A |
1 | ||
| 73220-52250C1 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52250C0 |
NCP10..LHD..3D W(*80,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1#,TYPE B |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7#,TYPE B |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7#,TYPE A |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-52060C3 |
NCP10..3D..GEN BLACK,TRIM7# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM1# |
1 | ||
| 73220-52060C2 |
NCP10..3D..GEN BLACK,TRIM9# |
1 | ||
| 73220-52251C1 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM7# |
1 | ||
| 73220-52251C0 |
NCP10..LHD..3D W(PRETENSIONER SEAT BELT & SRS AIR BAG,DRIVER SIDE),BLACK,TRIM9# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52030B0 |
NCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B2 |
NCP10,SCP10..GEN DK.GRAY,TRIM9# |
1 | ||
| 73230-52030B2 |
NCP10..GEN DK.GRAY,TRIM1#,7# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B3 |
NCP10..5D..ARL;NCP10,SCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73233-33010B8 |
NCP10..GEN;NCP10..5D..ARL;NCP13,SCP10..5D DK.GRAY,TRIM9# |
1 | ||
| 73233-33010B8 |
NCP10..5D..ARL;NCP10,SCP10..GEN DK.GRAY,TRIM1#,7# |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-33010B8 |
NCP10..GEN;NCP10..5D..ARL;NCP13,SCP10..5D DK.GRAY,TRIM9# |
1 | ||
| 73233-33010B3 |
NCP10..5D..ARL;NCP10,SCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52030B0 |
NCP10..GEN SHADOW GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B2 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73230-52030B2 |
NCP10 DK.GRAY,TRIM1#,7# |
1 | ||
| 73230-52030B0 |
NCP10 SHADOW GRAY,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 90105-10162 | ||||
| 90105-11036 | ||||
| 90109-11027 | ||||
| 90109-11049 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91512-B1020 | ||||
| 91631-60612 | ||||
ILLUST NO. 2 OF 2(0212- )
3 POINT REAR CENTER SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73132A - RING, SEAT BELT BRACKET | ||||
| 73132-52010 |
NCP1#,SCP10 |
2 | ||
| 73132A - RING, SEAT BELT BRACKET | ||||
| 73132-52010 |
NCP1#,SCP10 |
2 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-52040C0 |
NCP10,SCP10..GEN BLACK,TRIM97,98 |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-52040C0 |
NCP10,SCP10..GEN BLACK,TRIM97,98 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-52010B0 |
NCP10,SCP10..GEN DK.GRAY,TRIM97,98 |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73310-52010C0 |
NCP10,SCP10..GEN BLACK,TRIM97,98 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-52020B0 |
NCP10,SCP10..GEN DK.GRAY,TRIM97,98 |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-52050C0 |
NCP10,SCP10..GEN BLACK,TRIM97,98 |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-52050C0 |
NCP10,SCP10..GEN BLACK,TRIM97,98 |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11041 | ||||
| 90205-10008 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO. 2 OF 2(0212- )GEN
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52180C0 |
NCP10,SCP10..GEN W (FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73360-52150C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73360-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73360-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52020C3 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C3 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52020C4 |
NCP10,SCP10 TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52010C4 |
NCP10,SCP10..GEN TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,7# |
1 | ||
| 73370-52110C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73370-52130C0 |
NCP10,SCP10..GEN W(FOLDING REAR SEAT),BLACK,TRIM9# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050H0 |
NCP10,SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73371-52010B1 |
NCP1#,SCP10 DK.GRAY,TRIM9# |
1 | ||
| 73371-16050B1 |
NCP10,SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C0 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52020C1 |
NCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73470-52200C0 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73470-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52010C1 |
NCP10,SCP10 W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52010C0 |
NCP10..3D..GEN W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52160C1 |
NCP10,SCP10..GEN BLACK,TRIM9# |
1 | ||
| 73480-52040C0 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| 73480-52040C1 |
NCP10,SCP10 W(BENCH SEAT),BLACK,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11041 | ||||
| 90109-11041 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
