ZNE10R-HPPNK (2008)

Toyota Wish

Production Apr 2008 - Mar 2009
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804-0903)ZNE10

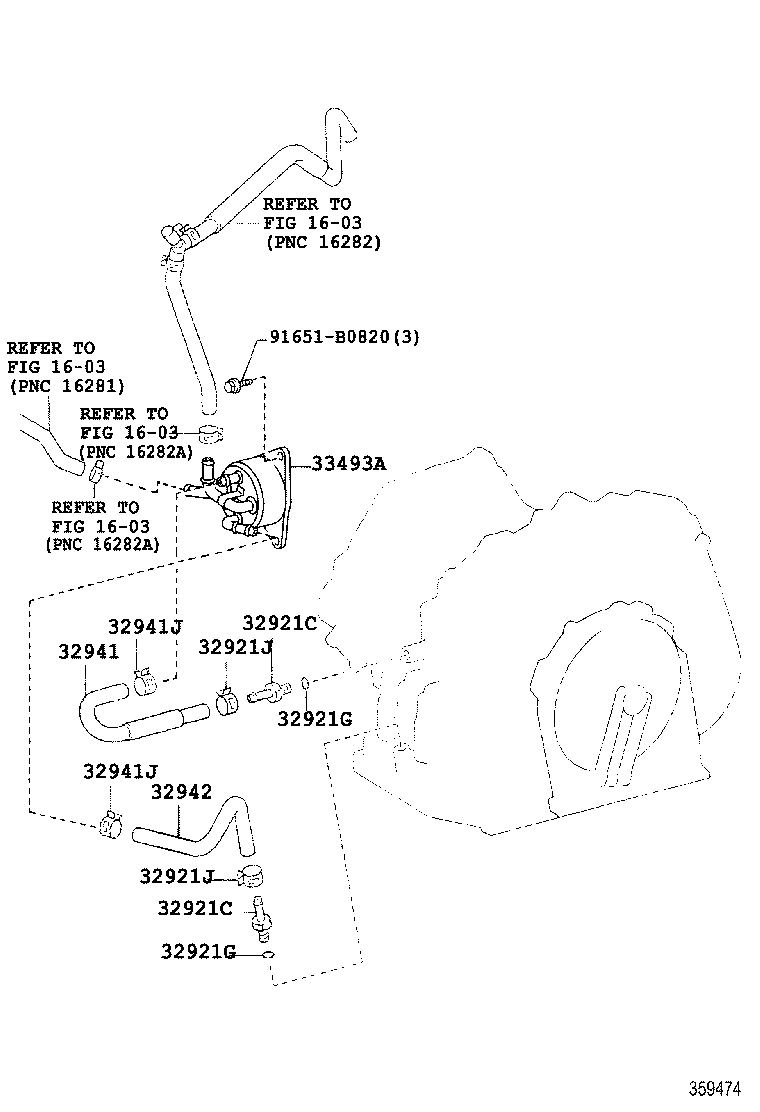

Click highlighted areas on diagram

U341E

diagram 1603 1603 1603 1603 32921C 32921C 32921G 32921G 32921J 32921J 32941 32941J 32941J 32942 33493A 91651B0820
Part # Description Qty Price
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ZNE10

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ZNE10

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-68010

ZNE10

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ANE1#,ZNE10

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ANE1#,ZNE10

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-68010

ZNE10

 1
33493A - COOLER, TRANSMISSION OIL
33493-20021

ZNE10

 1
Common parts
91651-B0820
Linked diagrams
1603
