ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1006-1204)3ZRFAE

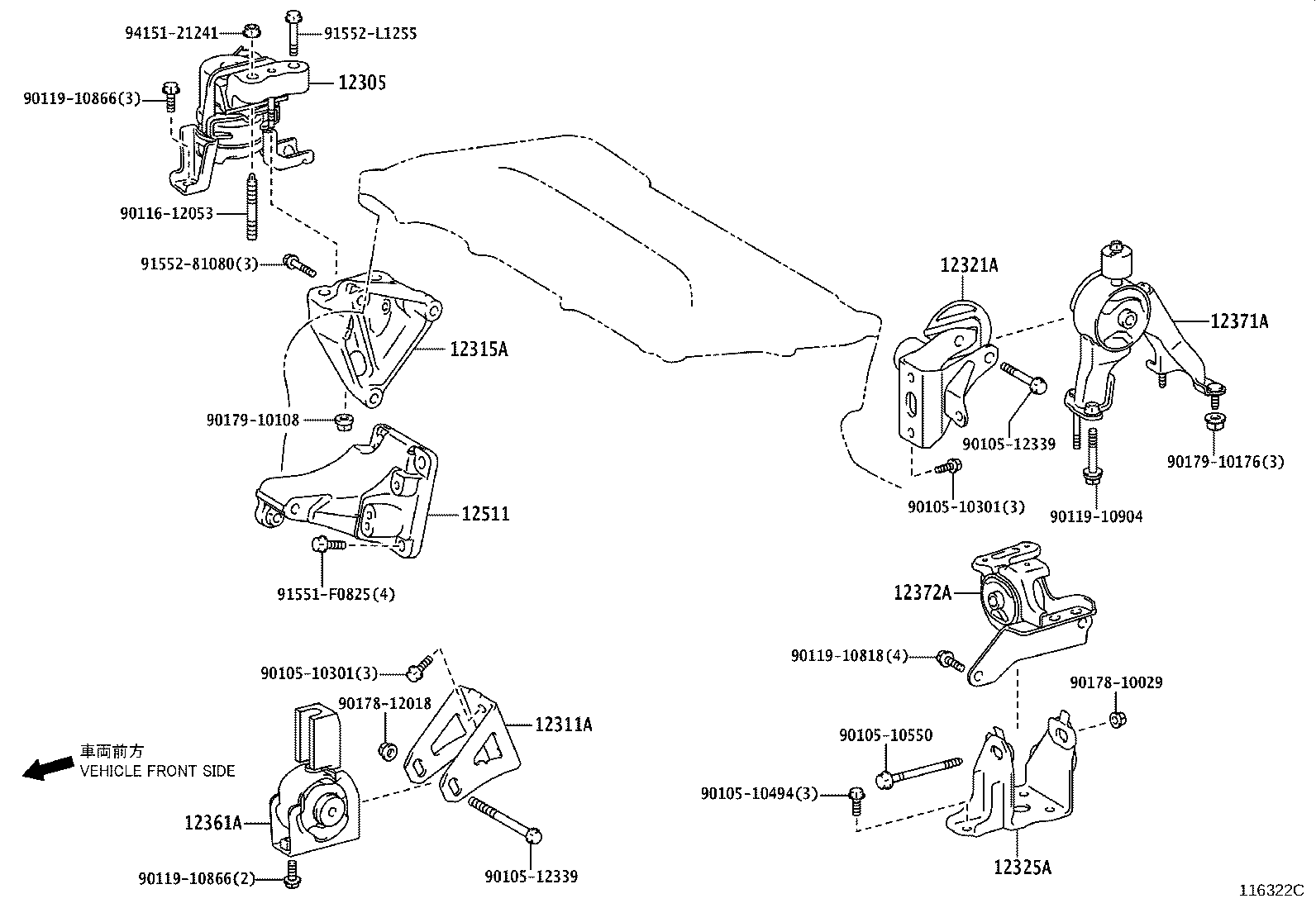

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37121 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-37040 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-37130 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-37170 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-28010 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-37110 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-37120 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-37050 |
3ZRFAE..ZGE21,22 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-37010 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-10562 | ||||
| 90105-12339 | ||||
| 90116-12053 | ||||
| 90119-10866 | ||||
| 90119-10885 | ||||
| 90178-10020 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-10108 | ||||
| 90179-10176 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1255 | ||||
| 94151-21241 | ||||
(0911-1212)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12339 | ||||
| 90116-12053 | ||||
| 90119-10818 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90178-10029 | ||||
| 90178-12018 | ||||
| 90179-10108 | ||||
| 90179-10176 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-L1255 | ||||
| 94151-21241 | ||||
