ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

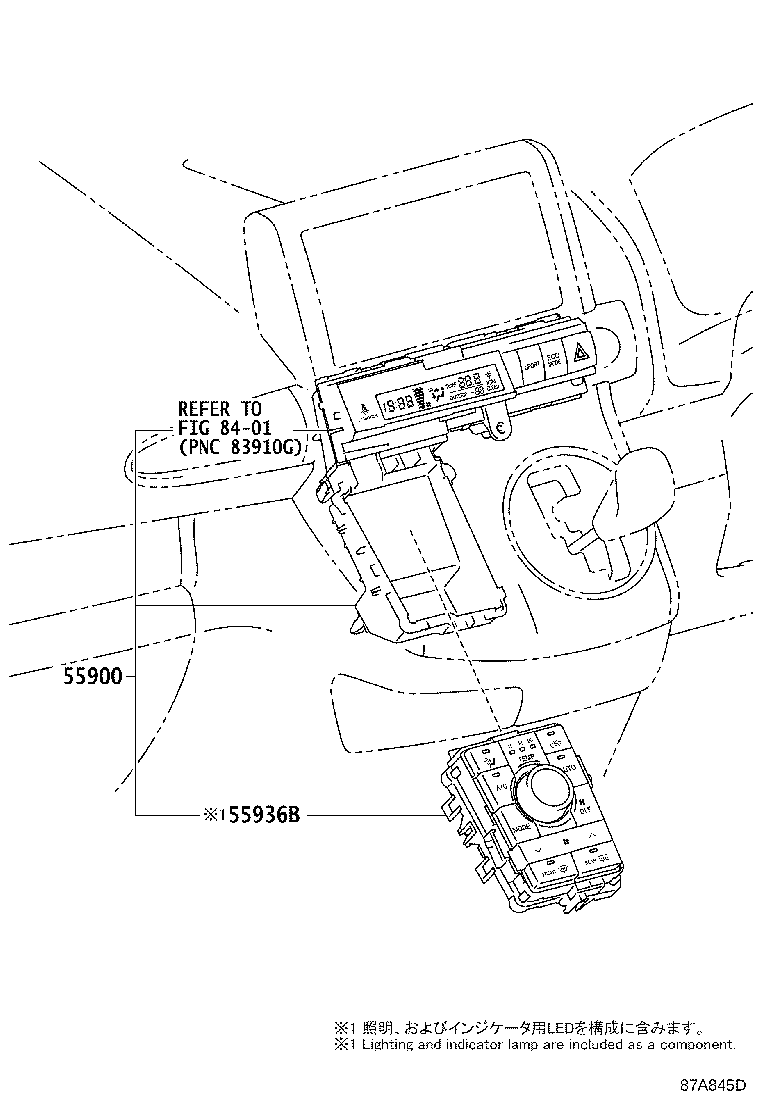

ILLUST NO. 1 OF 3(0909- )
Click highlighted areas on diagram
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-68170 |
ZGE21..20G |
1 | ||
| 55900-68140 |
ZGE21 |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-68020 |
ZGE2#..18S,20G,20Z |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

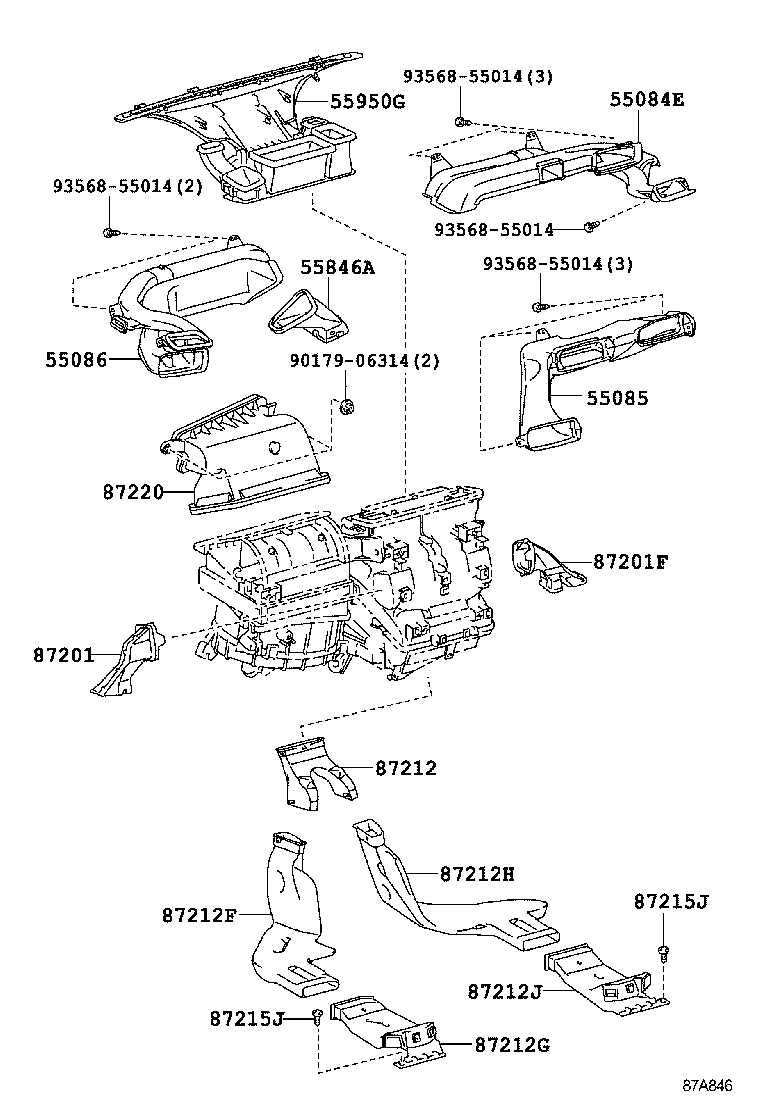

ILLUST NO. 2 OF 3(0909- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-68010 |
ZGE2#..CVFC..(18S,20G,20Z) |
1 | ||
| 55084-68010 |
ZGE21..20G |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-68010 |
ZGE2#..CVFC |
1 | ||
| 55085-68010 |
ZGE21 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-68010 |
ZGE2#..CVFC |
1 | ||
| 55086-68010 |
ZGE21 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-68010 |
ZGE21 |
1 | ||
| 55846-68010 |
ZGE2#..CVFC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-68020 |
ZGE21 |
1 | ||
| 55950-68020 |
ZGE2#..CVFC |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-12330 |
ZGE21 |
1 | ||
| 87211-12330 |
ZGE2#..CVFC |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-68020 |
ZGE21 |
1 | ||
| 87211-68020 |
ZGE2#..CVFC |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-68020 |
ZGE2#..CVFC |
1 | ||
| 87215-68020 |
ZGE21 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-68020 |
ZGE2#..CVFC |
1 | ||
| 87213-68020 |
ZGE21 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87276-68010 |
ZGE21 |
1 | ||
| 87276-68010 |
ZGE2#..CVFC |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87212-68030 |
ZGE2#..CVFC |
1 | ||
| 87212-68030 |
ZGE21 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87275-68010 |
ZGE2#..CVFC |
1 | ||
| 87275-68010 |
ZGE21 |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
ZGE2# BLACK |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
ZGE2# BLACK |
2 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-68010 |
ZGE21 |
1 | ||
| 87220-68010 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||

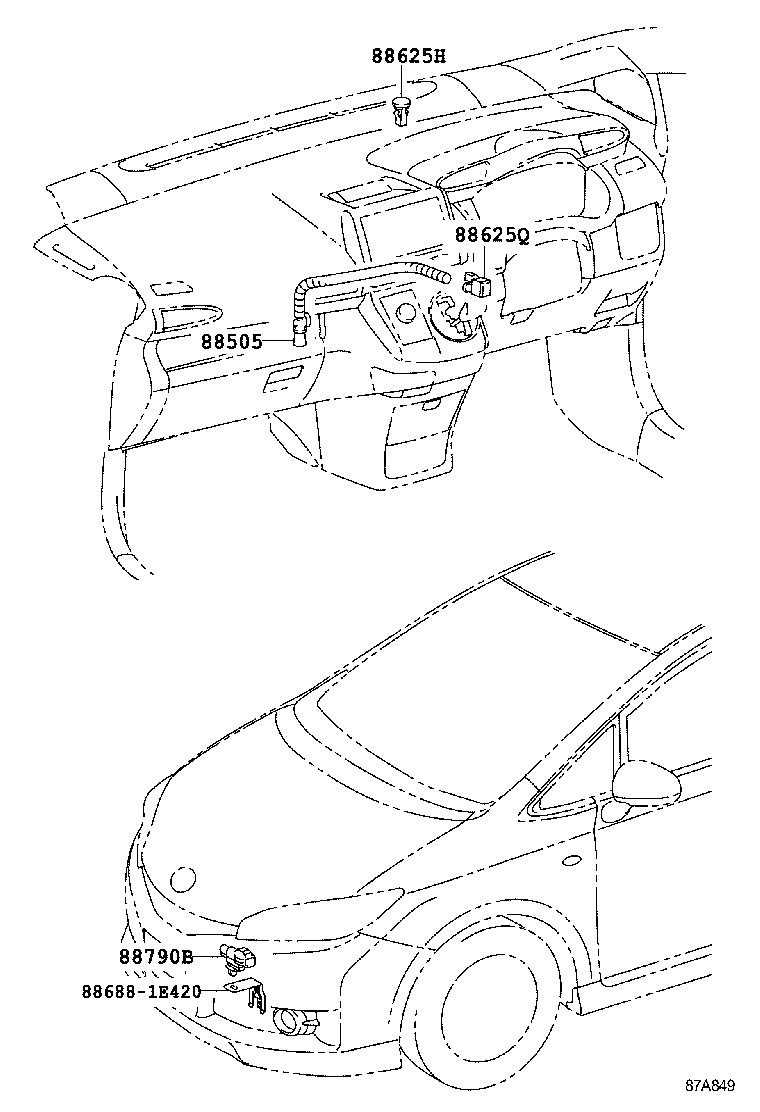

ILLUST NO. 3 OF 3(0909- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-68020 |
ZGE21 |
1 | ||
| 88505-68020 |
ZGE2#..CVFC |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
ZGE2#..CVFC |
1 | ||
| 88625-47031 |
ZGE21 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZGE2#..CVFC |
1 | ||
| 88625-47021 |
ZGE21 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ZGE21 |
1 | ||
| 88790-22131 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 88688-1E420 | ||||

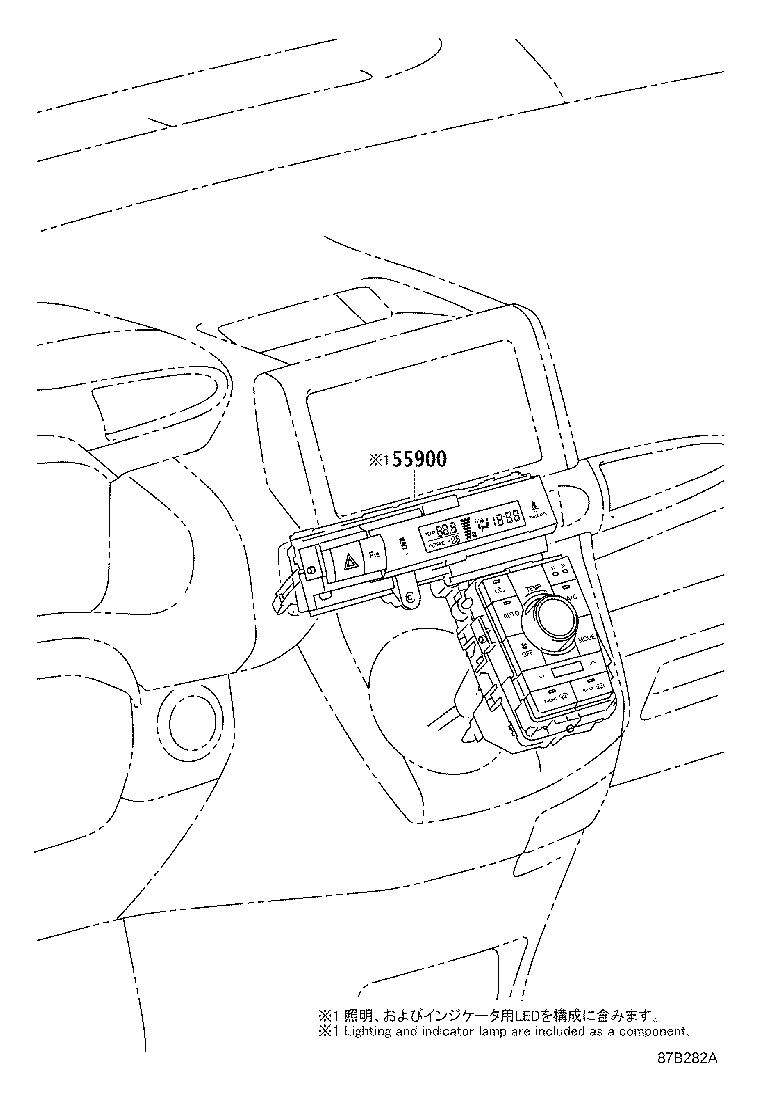

ILLUST NO. 1 OF 4(0911- )
Click highlighted areas on diagram
HEATER CONTROL PANEL
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 4(0911- )
Click highlighted areas on diagram
AIR DUCT - FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||

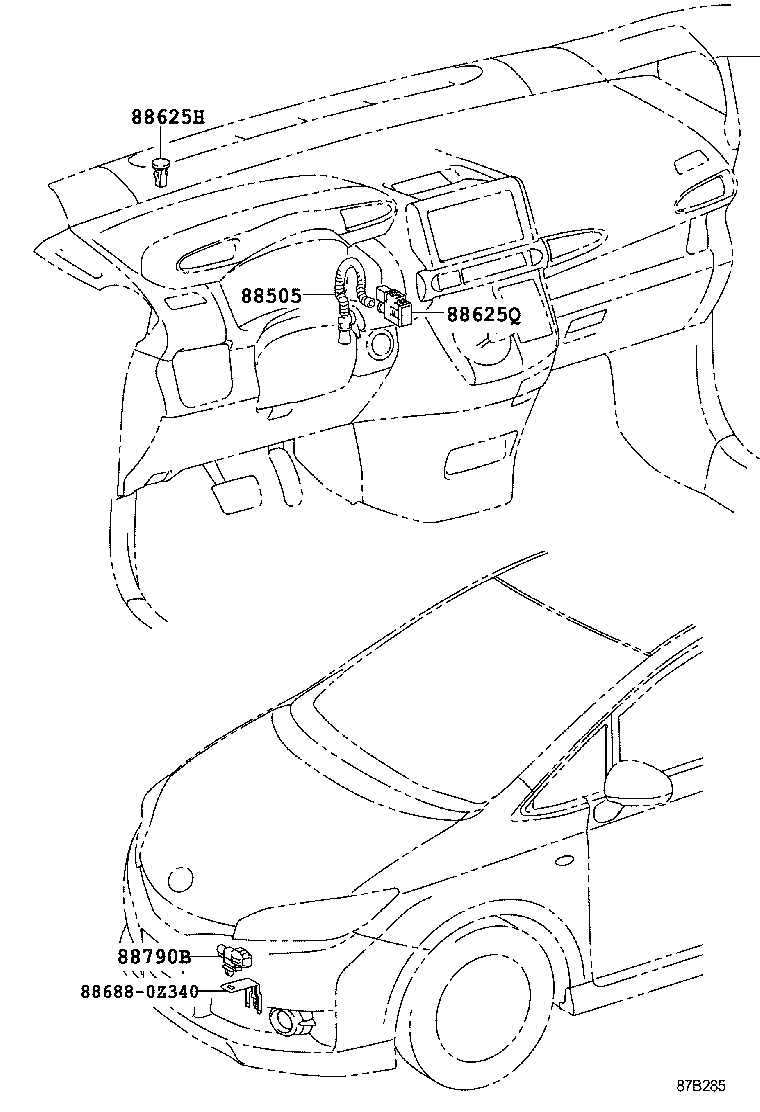

ILLUST NO. 4 OF 4(0911- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-0Z340 | ||||

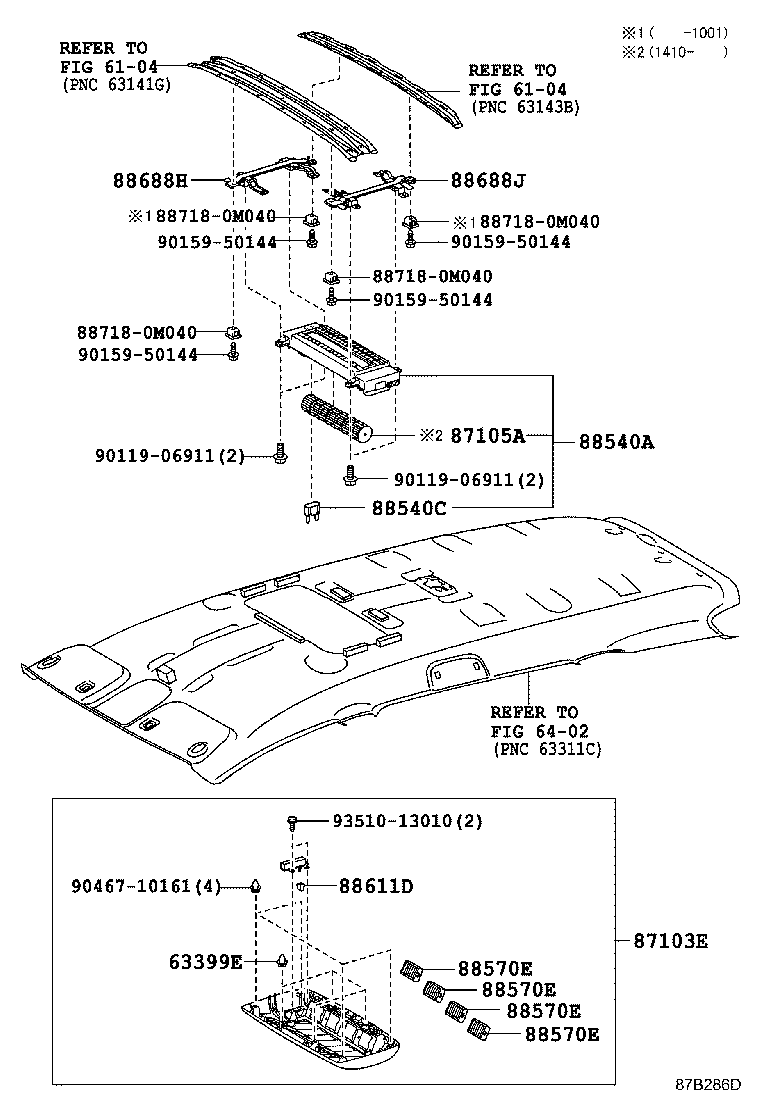

ILLUST NO. 3 OF 4(0911- )
Click highlighted areas on diagram
AIR DUCT - REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-0M040 | ||||
| 90119-06911 | ||||
| 90159-50144 | ||||
| 90467-10161 | ||||
| 93510-13010 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 6402 | ||||
