ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

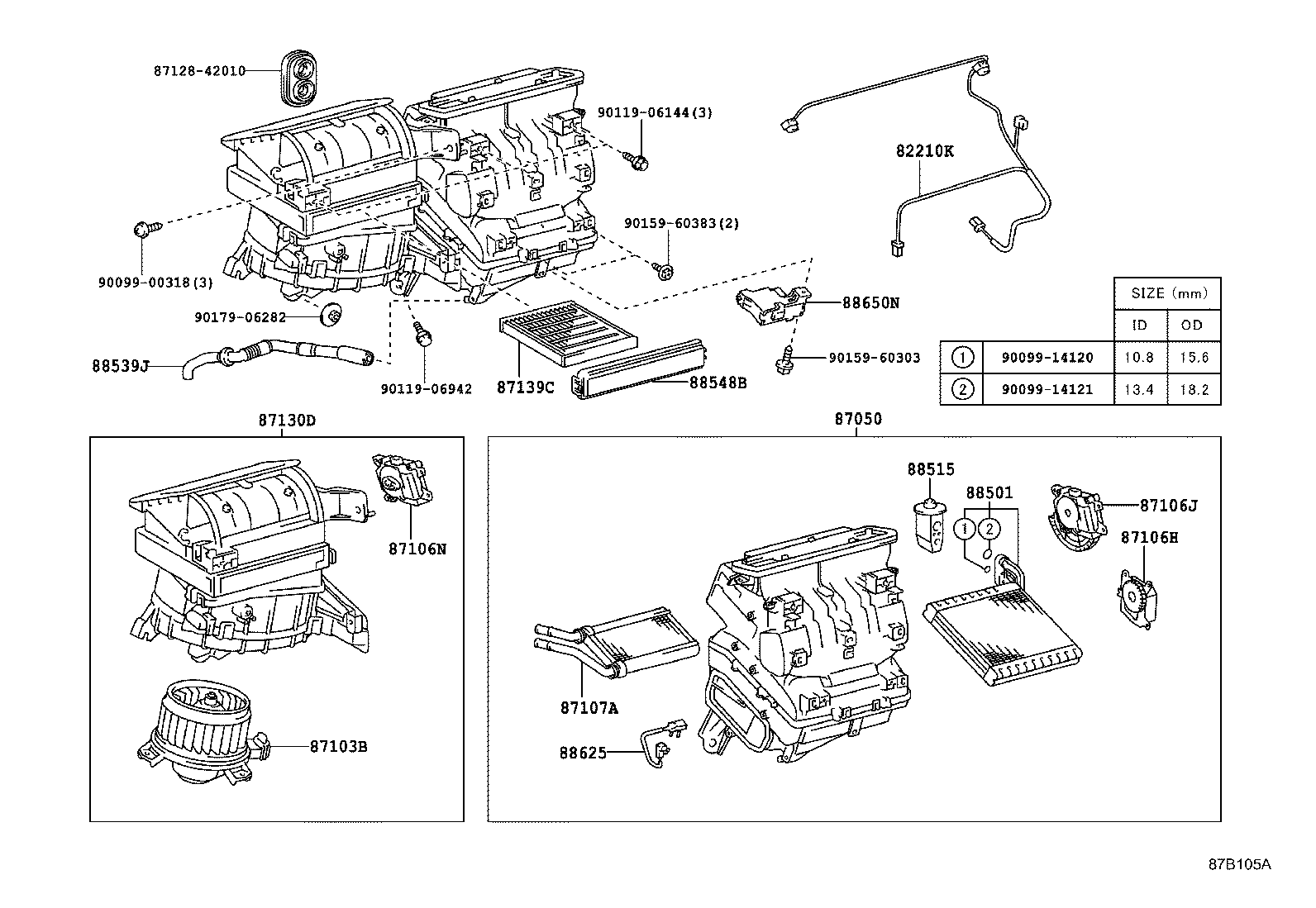

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12020 |
ZGE2# |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12351 |
ZGE2# |
1 | ||
| 87050-68050 |
ZGE21 |
1 | ||
| 87050-68050 |
ZGE2#..CVFC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12060 |
ZGE21 |
1 | ||
| 87103-12060 |
ZGE2#..CVFC |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-12170 |
ZGE21 |
1 | ||
| 87106-12170 |
ZGE2#..CVFC |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-42100 |
ZGE2#..CVFC |
1 | ||
| 87106-42100 |
ZGE21 |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42120 |
ZGE21 |
1 | ||
| 87106-42120 |
ZGE2#..CVFC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ZGE2#..CVFC |
1 | ||
| 87107-42170 |
ZGE21 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12531 |
ZGE2#..CVFC |
1 | ||
| 87130-12531 |
ZGE21 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
ZGE2# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26211 |
ZGE2#..CVFC |
1 | ||
| 88501-26211 |
ZGE21 |
1 | ||
| 88501-72020 |
ZGE2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
ZGE2#..CVFC |
1 | ||
| 88515-12100 |
ZGE2# |
1 | ||
| 88515-68010 |
ZGE21 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12190 |
ZGE21 |
1 | ||
| 88539-12190 |
ZGE2#..CVFC |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ZGE2#..CVFC |
1 | ||
| 88548-42010 |
ZGE21 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
ZGE21 |
1 | ||
| 88625-26090 |
ZGE2#..CVFC |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-68140 |
ZGE2#..CVFC..(18X,20G,20Z) |
1 | ||
| 88650-68140 |
ZGE21 |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06144 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
ILLUST NO. 2 OF 2(0911- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

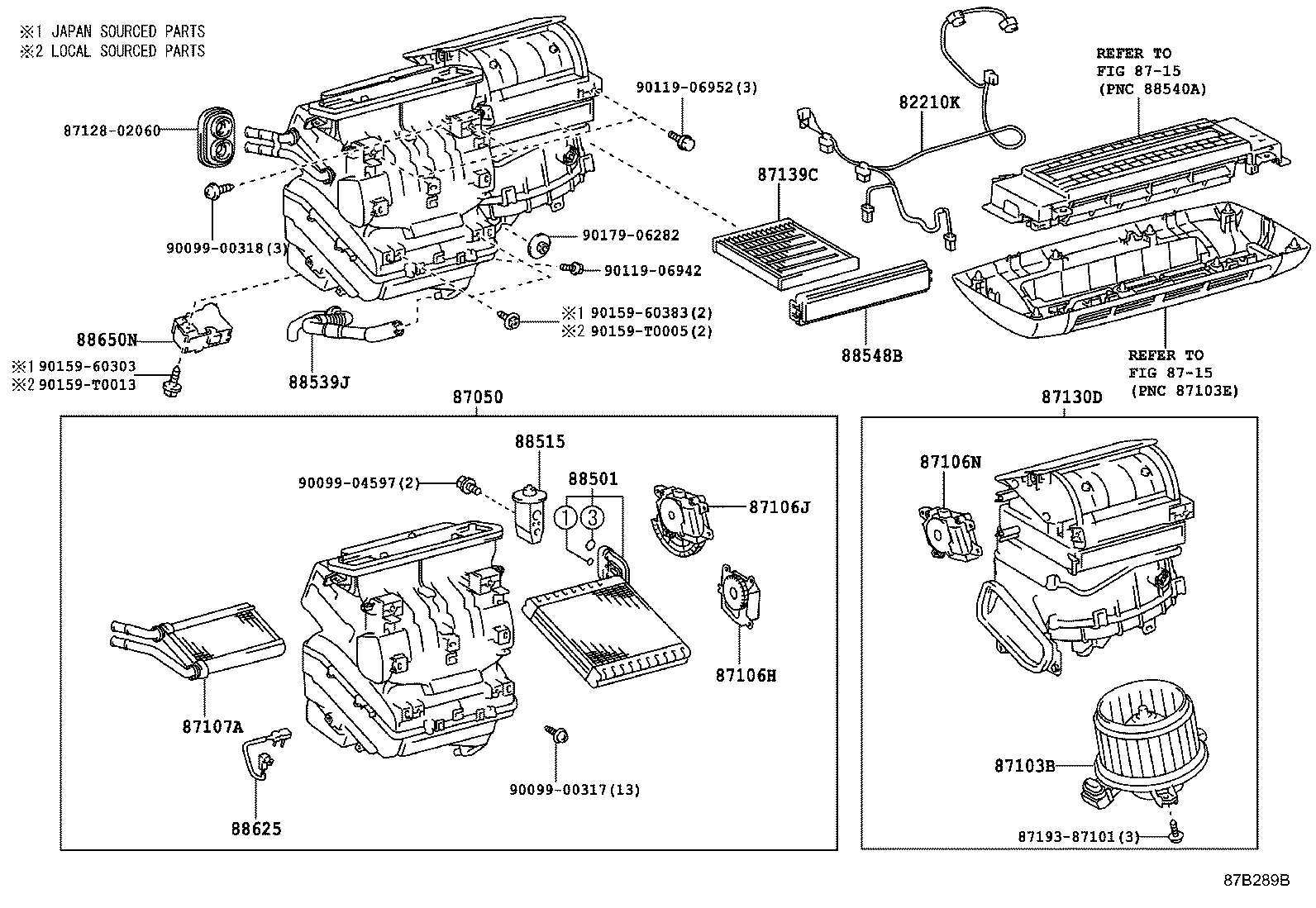

ILLUST NO. 1 OF 2(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87128-02060 | ||||
| 87193-87101 | ||||
| 90099-00317 | ||||
| 90099-00318 | ||||
| 90099-04597 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
