ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )ZGE20,21

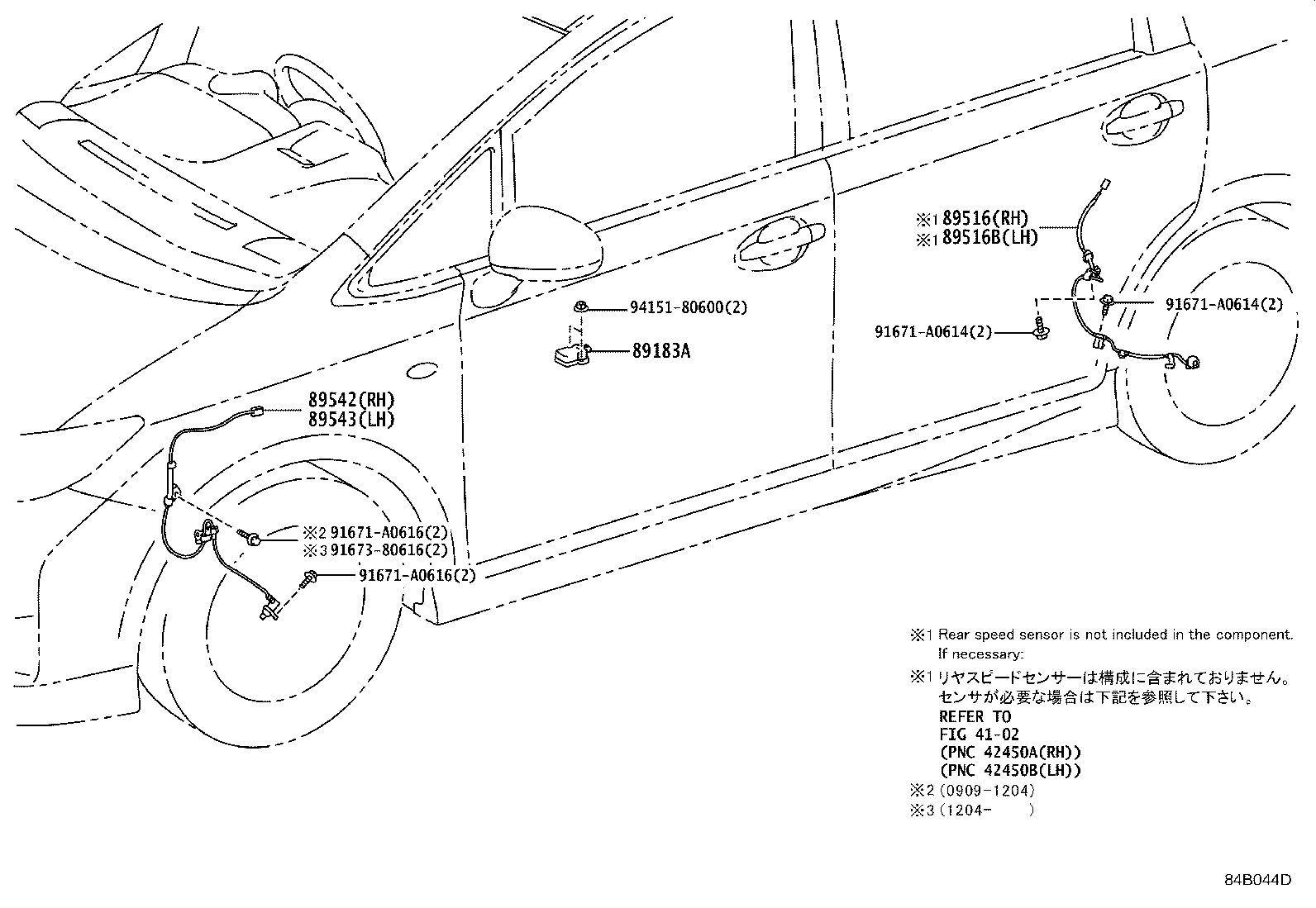

Click highlighted areas on diagram
ZGE20,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-48030 |
ZGE2#..CVFC |
1 | ||
| 89183-48030 |
ZGE21 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-68050 |
ZGE20,21..CVFC |
1 | ||
| 89516-68050 |
ZGE21 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-68060 |
ZGE21 |
1 | ||
| 89516-68060 |
ZGE20,21..CVFC |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-68020 |
ZGE2# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-68020 |
ZGE21 |
1 | ||
| 89543-68020 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 91671-A0614 | ||||
| 91671-A0616 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(0911-1212)

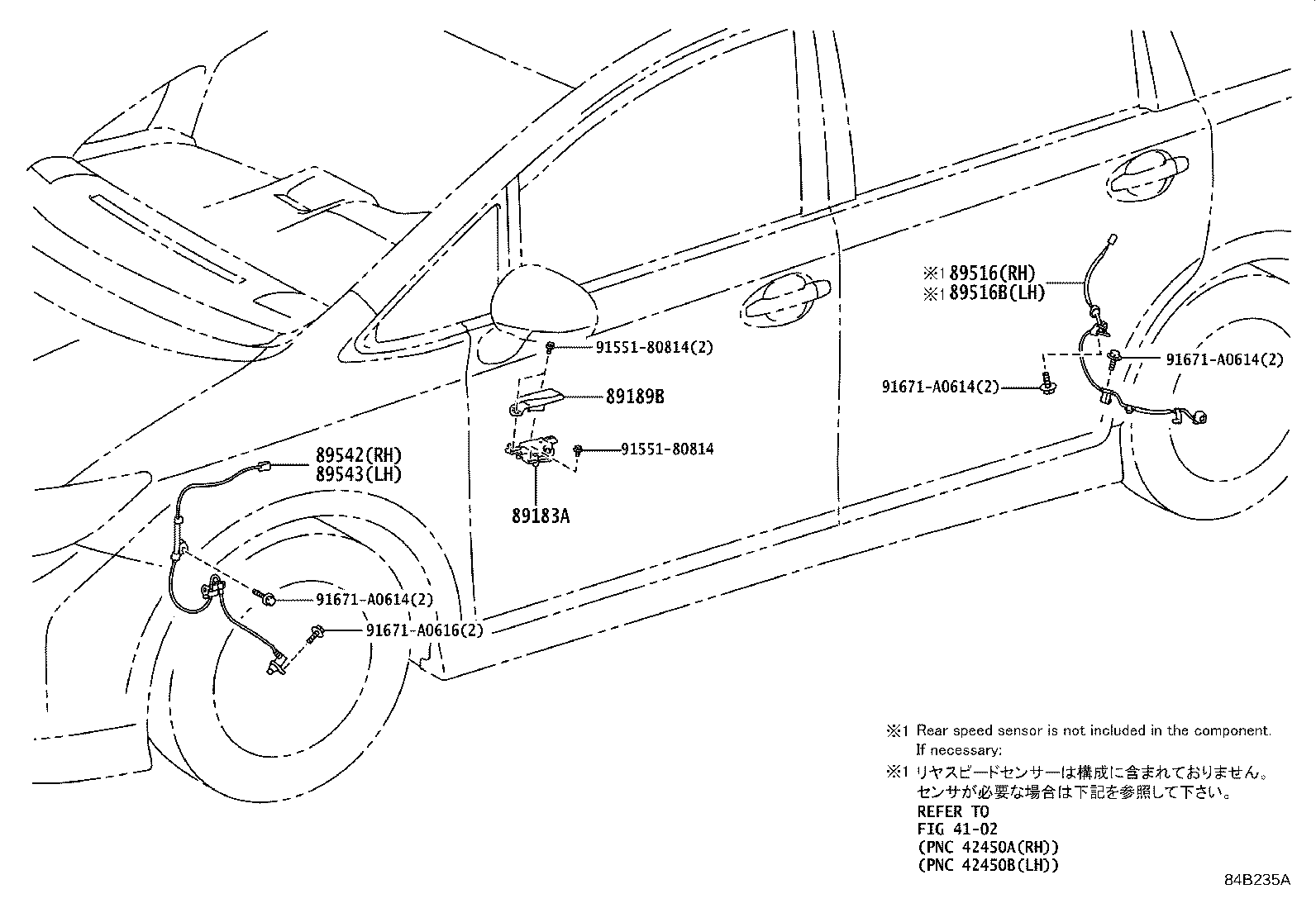

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80814 | ||||
| 91671-A0614 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
