ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 4 OF 7(0909- )
Click highlighted areas on diagram

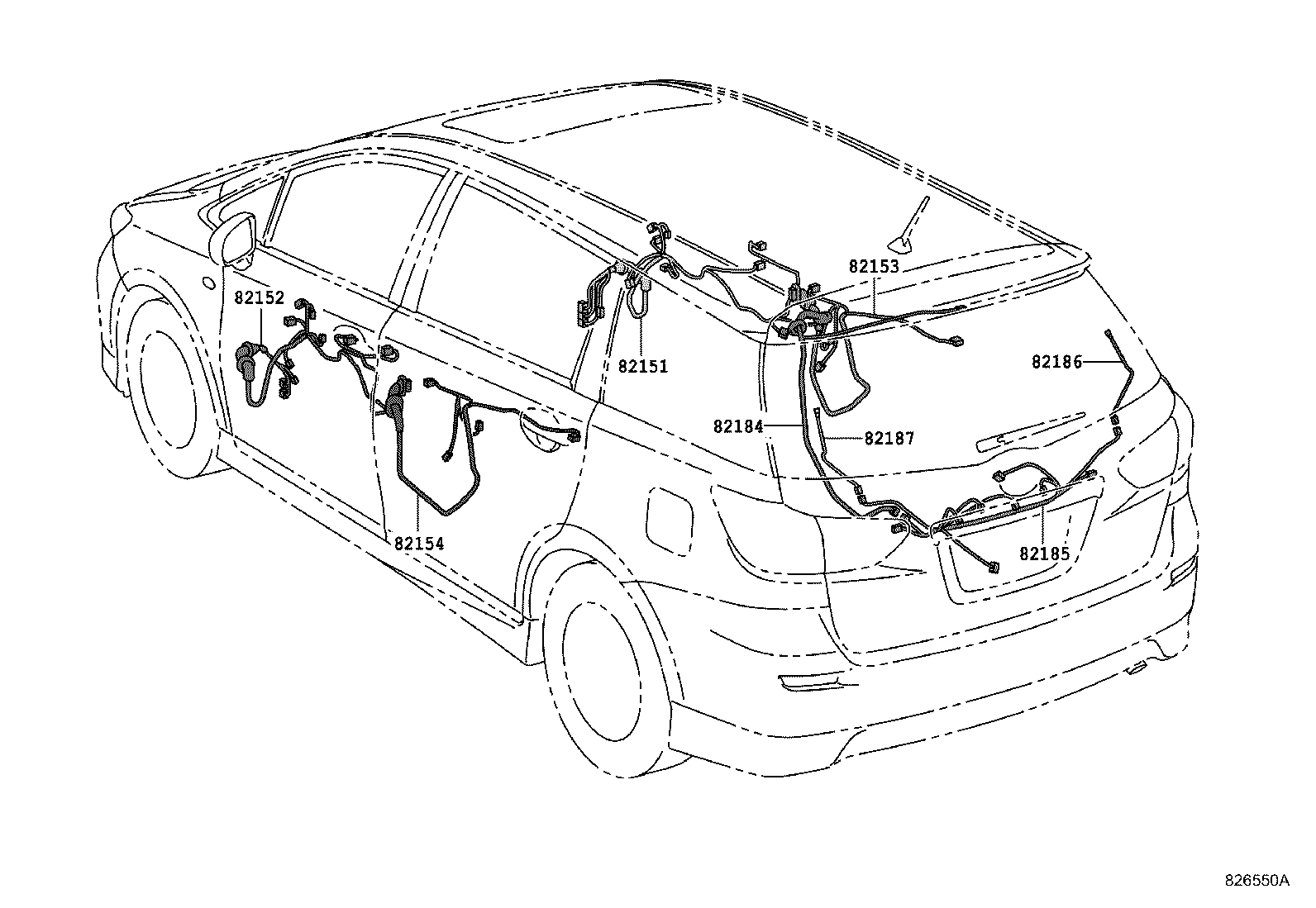

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-68090 |
ZGE21,22 |
1 | ||
| 82151-68080 |
ZGE21 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-68080 |
ZGE21,22 |
1 | ||
| 82152-68070 |
ZGE21 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-68060 |
ZGE21,22 |
1 | ||
| 82153-68050 |
ZGE21 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-68060 |
ZGE21,22 |
1 | ||
| 82154-68050 |
ZGE21 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-68050 |
ZGE21,22 |
1 | ||
| 82184-68030 |
ZGE21 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-68031 |
ZGE21,22 |
1 | ||
| 82185-68020 |
ZGE21 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-68020 |
ZGE2# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-68020 |
ZGE2# |
1 | ||
ILLUST NO. 2 OF 7(1006- )ZGE21,22
Click highlighted areas on diagram

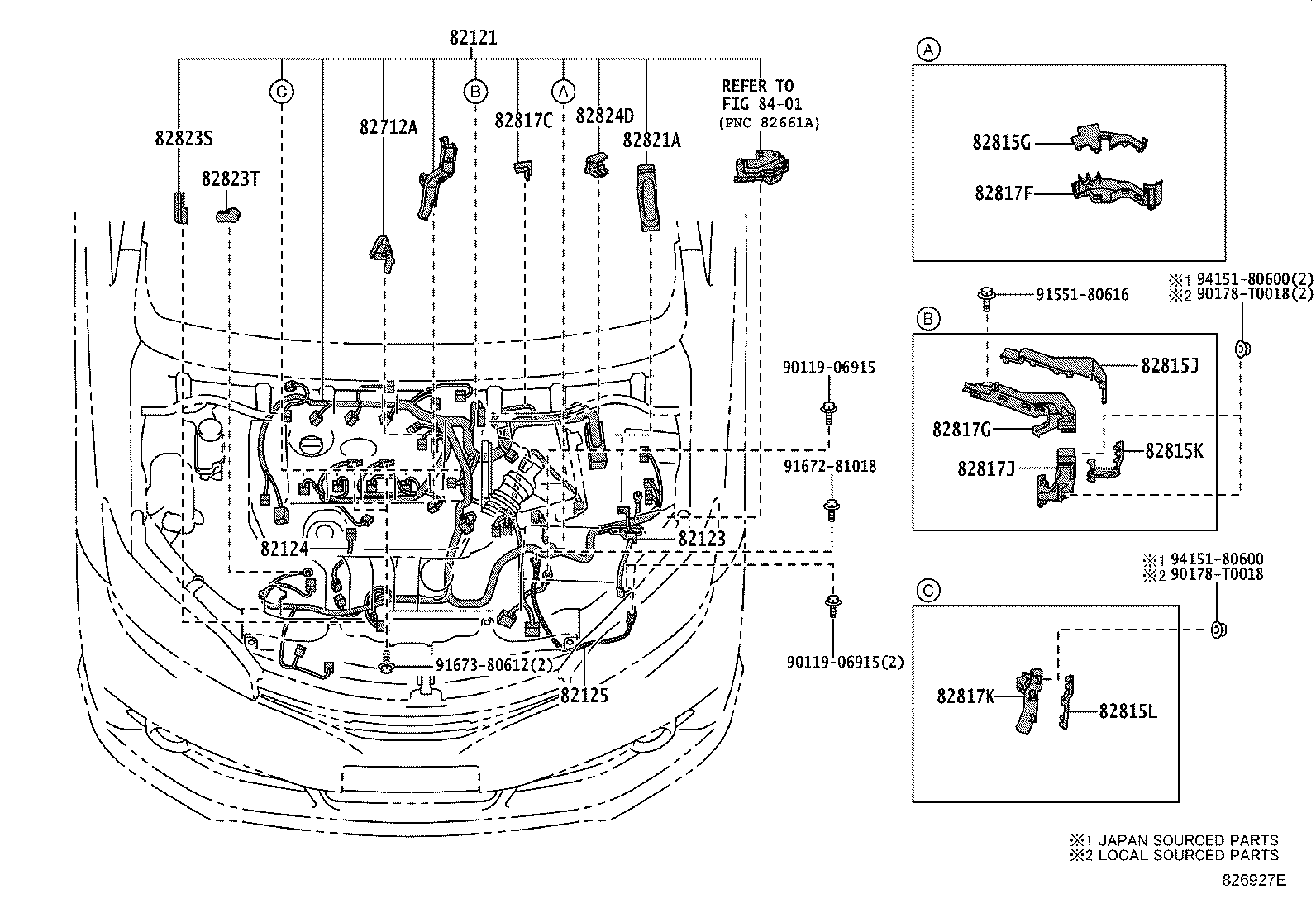

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-68070 |
ZGE21,22 |
1 | ||
| 82121-68080 |
ZGE21 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12440 |
ZGE2#..CVFC |
1 | ||
| 82123-12440 |
ZGE21 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZGE2# |
1 | ||
| 82124-02090 |
ZGE2#..CVFC |
1 | ||
| 82124-02090 |
ZGE21 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-68030 |
ZGE21 |
1 | ||
| 82125-20330 |
ZGE21,22 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-28440 |
ZGE2# |
1 | ||
| 82712-28560 |
ZGE21 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42070 |
ZGE2# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-42060 |
ZGE21,22 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12230 |
ZGE21 |
1 | ||
| 82815-12230 |
ZGE2#..CVFC |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-68040 |
ZGE21,22 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12180 |
ZGE21 |
1 | ||
| 82815-12180 |
ZGE2#..CVFC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12860 |
ZGE21 |
1 | ||
| 82817-12860 |
ZGE2#..CVFC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42610 |
ZGE2# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-42600 |
ZGE21,22 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12D30 |
ZGE2#..CVFC |
1 | ||
| 82817-12D30 |
ZGE21 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-68150 |
ZGE21,22 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12B60 |
ZGE21 |
1 | ||
| 82817-12B60 |
ZGE2#..CVFC |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
ZGE2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZGE2# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZGE21 |
1 | ||
| 82824-34100 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 91551-80612 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 7(0909- )
Click highlighted areas on diagram

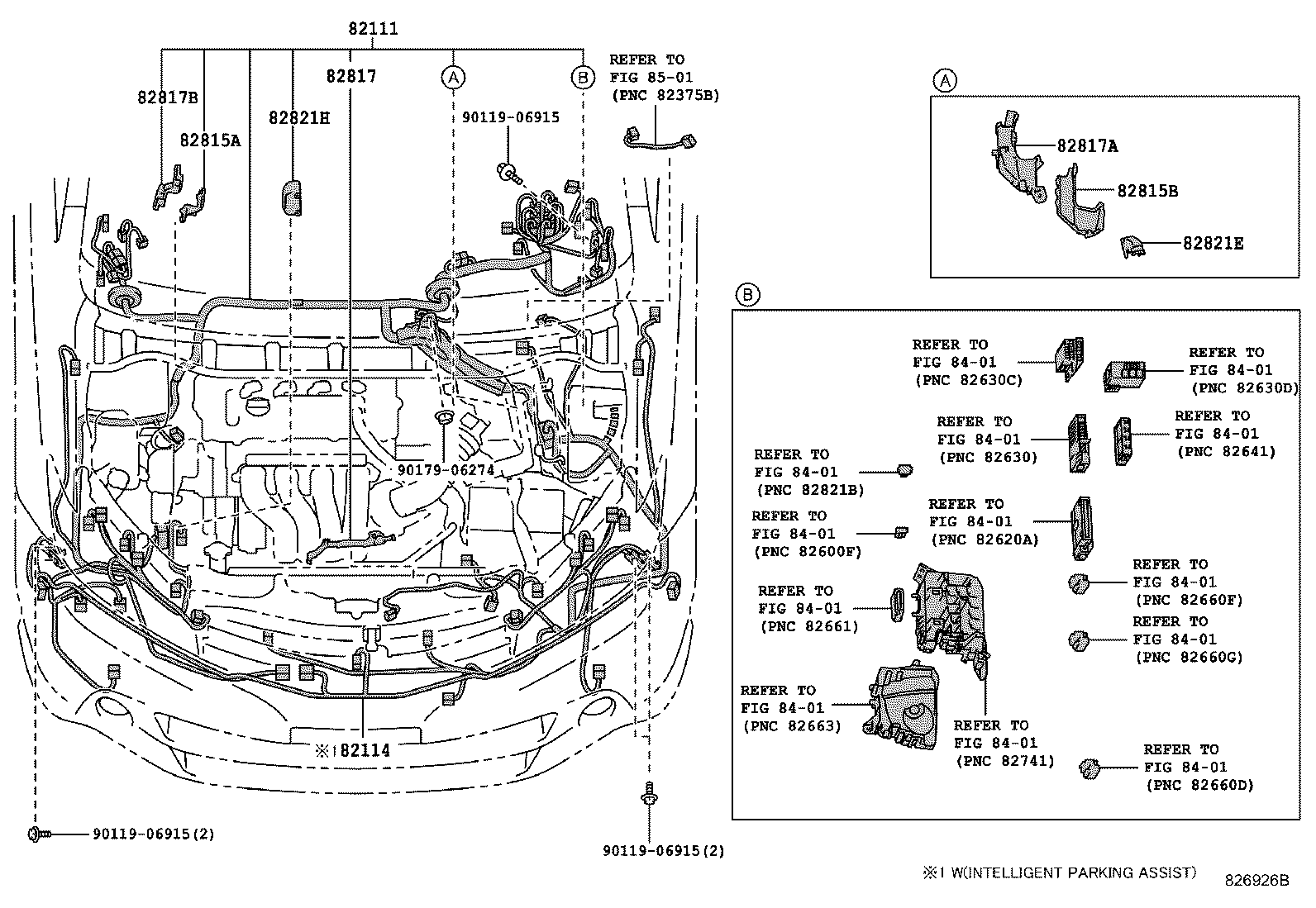

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-68180 |
ZGE21 |
1 | ||
| 82111-68220 |
ZGE21 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12330 |
ZGE21 |
1 | ||
| 82815-12330 |
ZGE2#..CVFC |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
ZGE21 |
1 | ||
| 82815-12250 |
ZGE2#..CVFC |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12E91 |
ZGE2#..CVFC |
1 | ||
| 82817-12E91 |
ZGE21 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12D50 |
ZGE21 |
1 | ||
| 82817-12D50 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
ILLUST NO. 3 OF 7(0909- )
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-68120 |
ZGE2# MOON ROOF-WITH |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-68340 |
ZGE21 |
1 | ||
| 82141-68311 |
ZGE21,22 |
1 | ||
| 82141-68321 |
ZGE21,22 MOON ROOF-WITH |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-68020 |
ZGE21 |
1 | ||
| 82140-68020 |
ZGE2#..CVFC |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12360 |
ZGE21 |
2 | ||
| 82666-12360 |
ZGE2#..CVFC |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12360 |
ZGE21 |
2 | ||
| 82666-12360 |
ZGE2#..CVFC |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12430 |
ZGE21 |
1 | ||
| 82666-12430 |
ZGE2#..CVFC |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-58050 |
ZGE2#..CVFC |
1 | ||
| 82666-58050 |
ZGE21 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12350 |
ZGE21 |
1 | ||
| 82666-12350 |
ZGE2#..CVFC |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12B40 |
ZGE21 |
1 | ||
| 82817-12B40 |
ZGE2#..CVFC |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ZGE21 |
1 | ||
| 82824-12220 |
ZGE2#..CVFC |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ZGE21 |
1 | ||
| 82824-42190 |
ZGE2#..CVFC |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ZGE21 |
1 | ||
| 82824-42180 |
ZGE2#..CVFC |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ZGE2#..CVFC |
1 | ||
| 82824-47210 |
ZGE21 |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ZGE2#..CVFC |
1 | ||
| 82824-30220 |
ZGE21 |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZGE2#..CVFC |
1 | ||
| 82824-12210 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 7(0909- )
Click highlighted areas on diagram

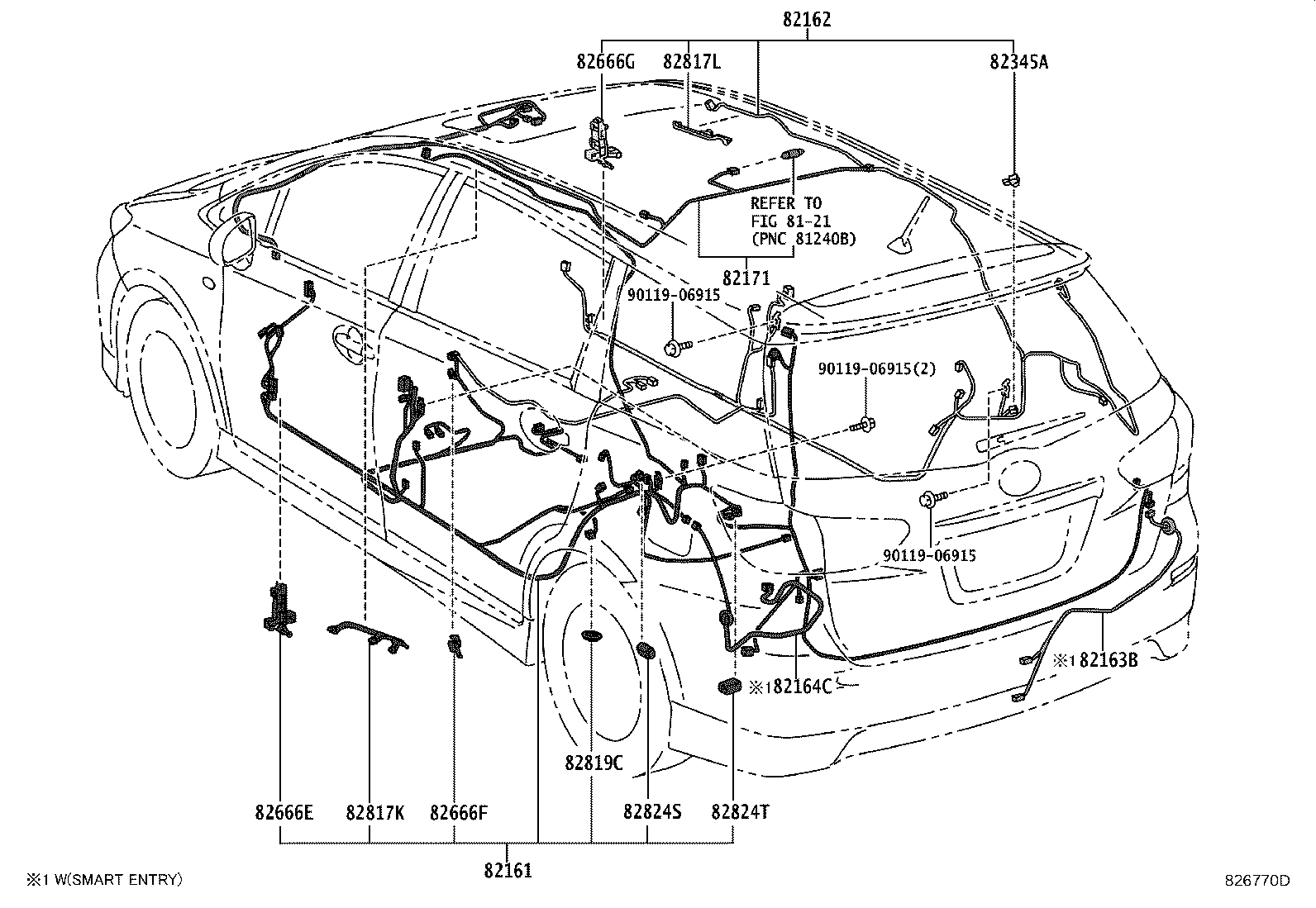

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-68180 |
ZGE21 |
1 | ||
| 82161-68210 |
ZGE21,22 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-68090 |
ZGE21 |
1 | ||
| 82162-68101 |
ZGE21,22 |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-68010 |
ZGE21,22 |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-68050 |
ZGE20,21..18S,20G |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-68090 |
ZGE21 |
1 | ||
| 82171-68110 |
ZGE21..20G W(MOON ROOF) |
1 | ||
| 82171-68110 |
ZGE2# MOON ROOF-WITH |
1 | ||
| 82171-68090 |
ZGE2#..CVFC |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
ZGE21 |
1 | ||
| 82345-12050 |
ZGE2#..CVFC |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-12400 |
ZGE21 |
1 | ||
| 82666-12400 |
ZGE2#..CVFC |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-68030 |
ZGE21 |
1 | ||
| 82666-68030 |
ZGE2#..CVFC |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-12370 |
ZGE21 |
1 | ||
| 82666-12370 |
ZGE2#..CVFC |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-68120 |
ZGE21 |
1 | ||
| 82817-68120 |
ZGE2#..CVFC |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-68130 |
ZGE2#..CVFC |
1 | ||
| 82817-68130 |
ZGE21 |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-32200 |
ZGE21 |
1 | ||
| 82819-32200 |
ZGE2#..CVFC |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ZGE2#..CVFC |
1 | ||
| 82824-30180 |
ZGE21 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZGE21 |
1 | ||
| 82824-12210 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF 7(0909- )
Click highlighted areas on diagram

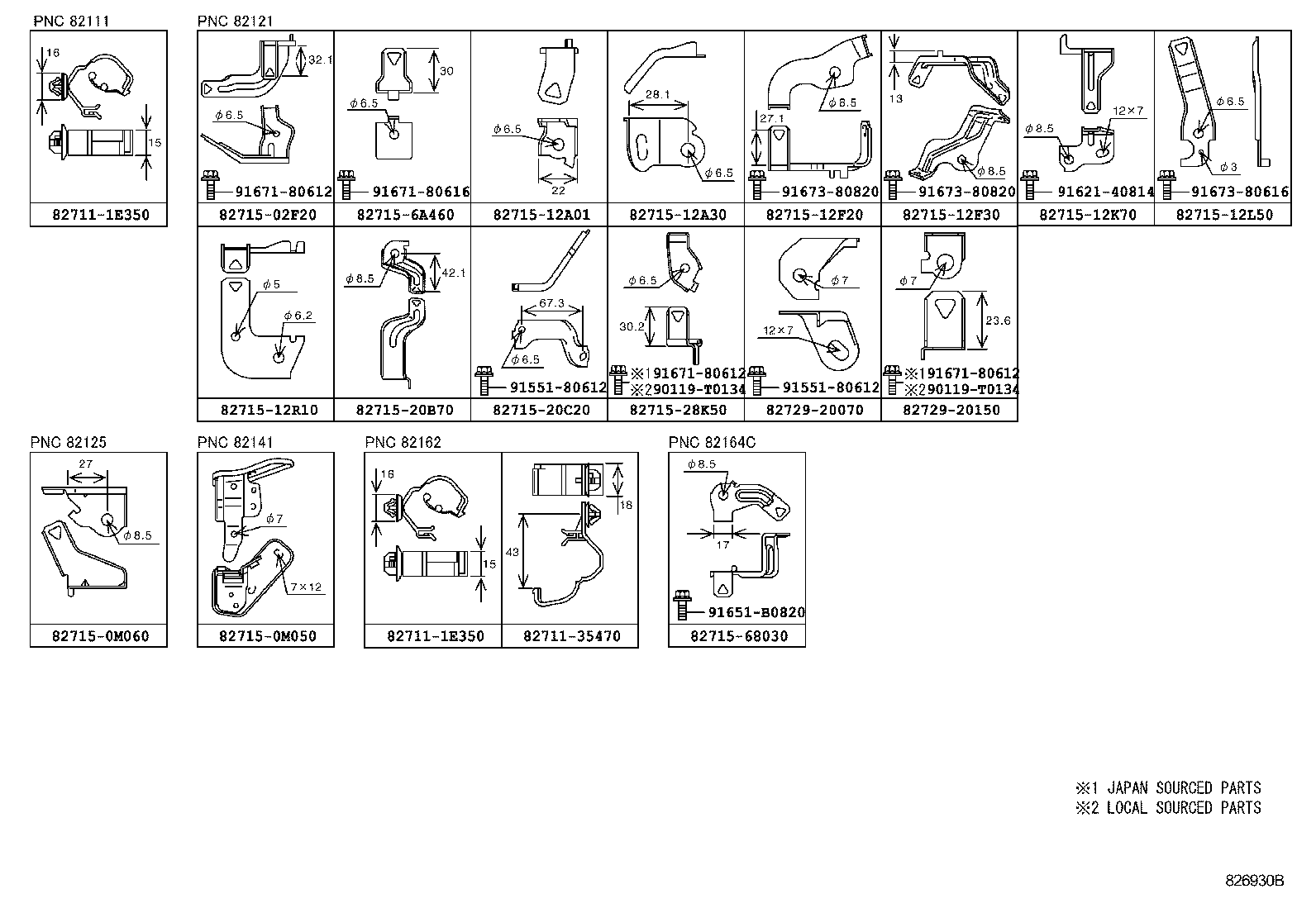

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12L50 | ||||
| 82715-12R10 | ||||
| 82715-20B70 | ||||
| 82715-20B80 | ||||
| 82715-20C20 | ||||
| 82715-28K50 | ||||
| 82715-28L90 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-68030 | ||||
| 82715-68110 | ||||
| 82715-68140 | ||||
| 82715-68150 | ||||
| 82715-68160 | ||||
| 82715-68170 | ||||
| 82715-68180 | ||||
| 82715-68190 | ||||
| 82715-68200 | ||||
| 82715-68210 | ||||
| 82715-68220 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 91621-B0816 | ||||
| 91651-B0820 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
ILLUST NO. 7 OF 7(0909- )
Click highlighted areas on diagram

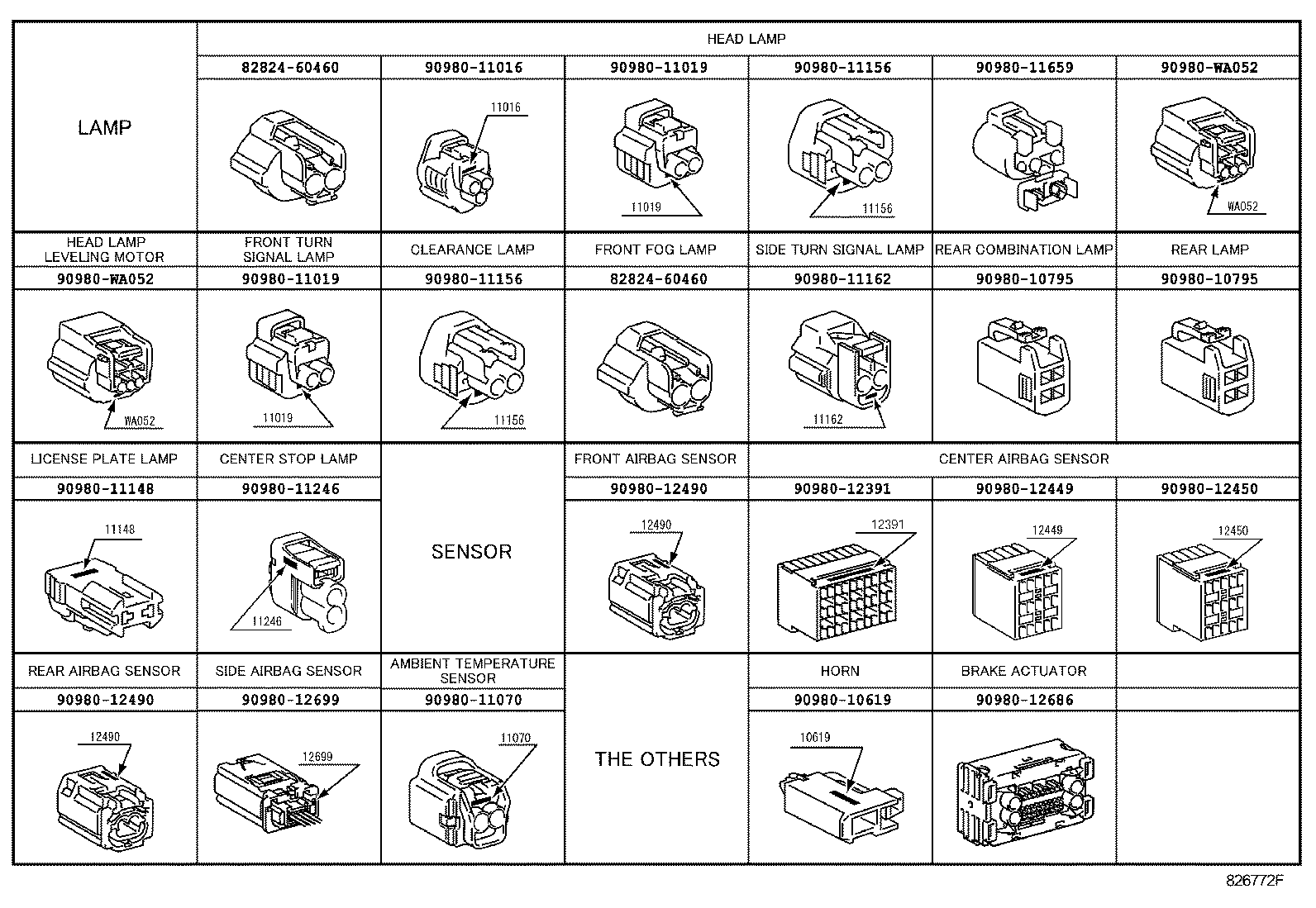

CONNECTOR(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11246 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||
| 90980-WA052 | ||||
ILLUST NO. 7 OF 7(0909- )
Click highlighted areas on diagram
CONNECTOR(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12460 | ||||
ILLUST NO. 4 OF 7(0911- )
Click highlighted areas on diagram

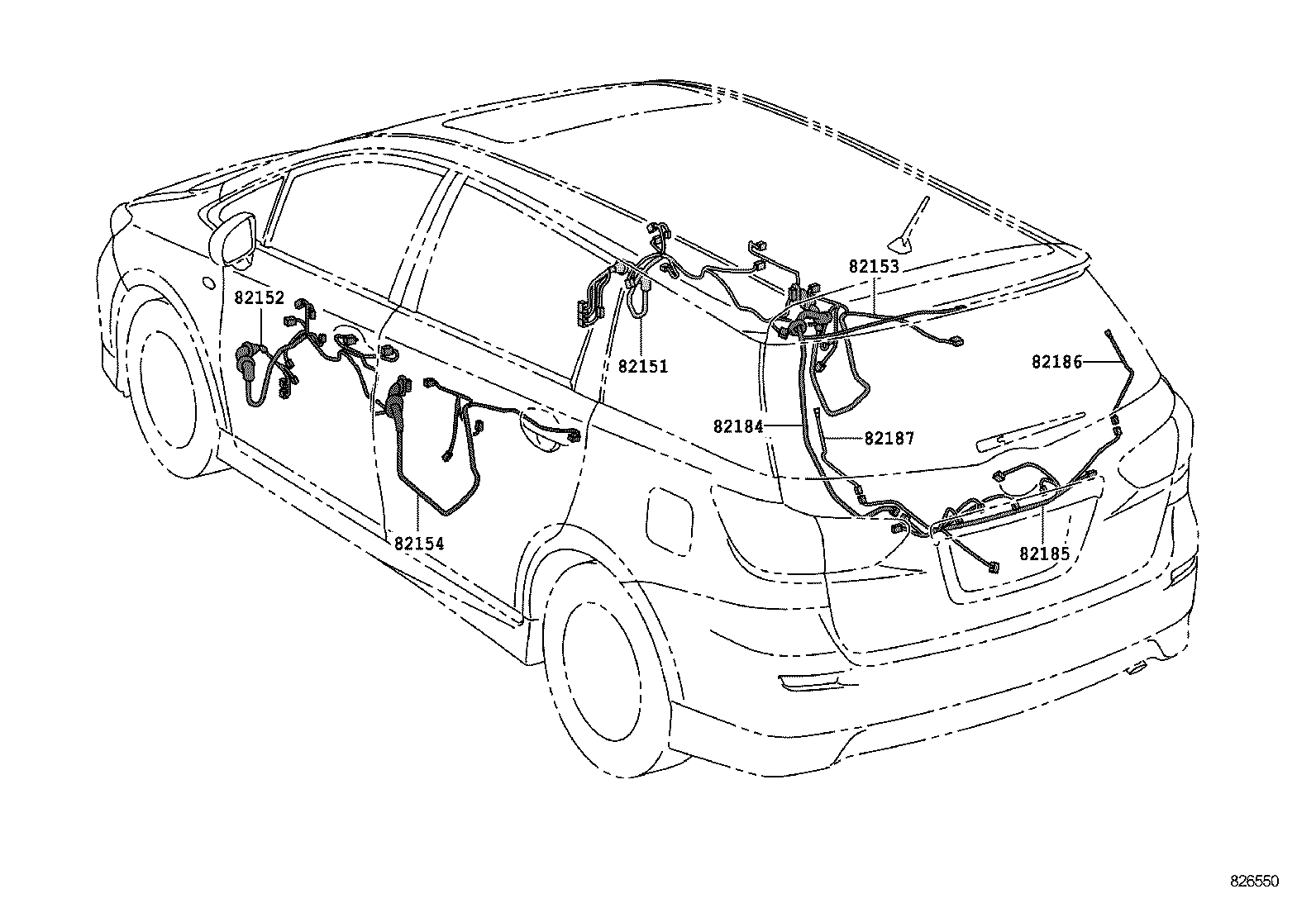

DOOR
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 7(0911- )
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
ILLUST NO. 2 OF 7(0911- )
Click highlighted areas on diagram

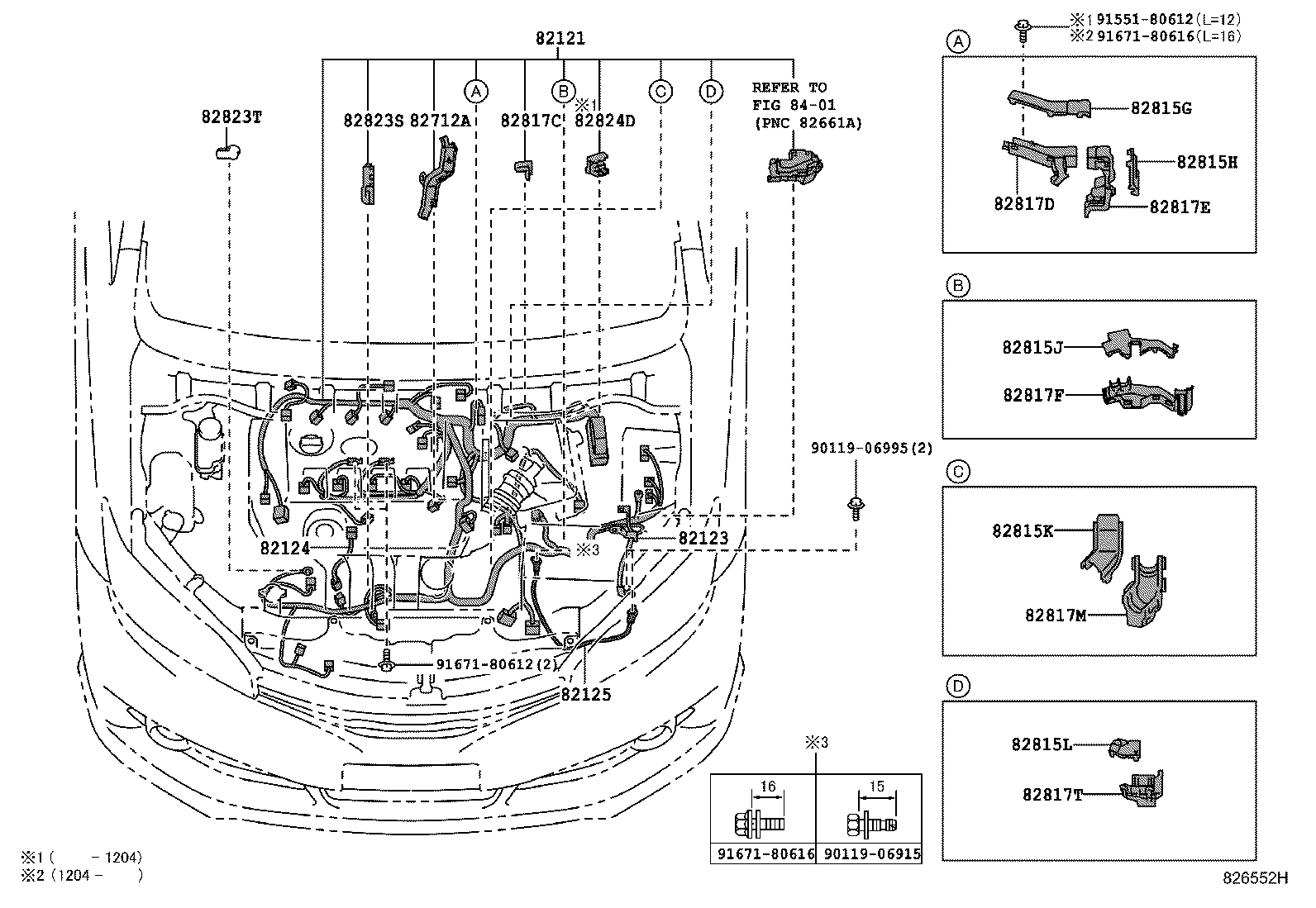

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 90178-T0018 | ||||
| 91551-80616 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 7(0911- )
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 7(0911- )
Click highlighted areas on diagram
FLOOR, ROOF & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF 7(0911- )
Click highlighted areas on diagram
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02F20 | ||||
| 82715-0M050 | ||||
| 82715-0M060 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12K70 | ||||
| 82715-12L50 | ||||
| 82715-12R10 | ||||
| 82715-20B70 | ||||
| 82715-20C20 | ||||
| 82715-28K50 | ||||
| 82715-68030 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90119-T0134 | ||||
| 91551-80612 | ||||
| 91621-40814 | ||||
| 91651-B0820 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
