ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

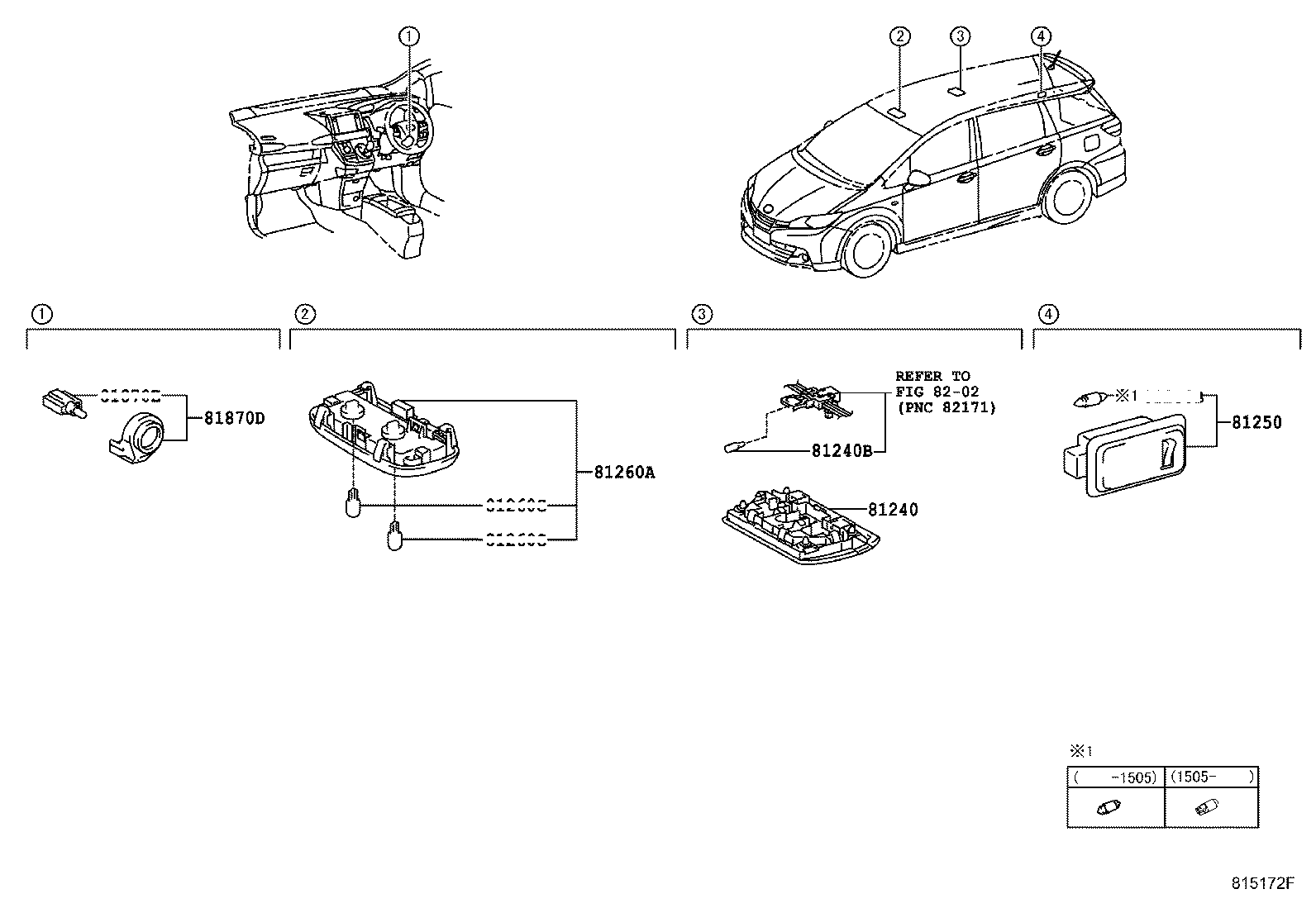

Click highlighted areas on diagram

diagram 81240 81240B 81250 81250B 81260A 81260C 81260C 81870D 81870E 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-60060E1

ZGE20,21

GREGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZGE2#..CVFC

12V 8W

 1
90981-14011

ZGE21

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ZGE21

 1
81250-48010

ZGE2#..CVFC

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ZGE21

12V 5W

 1
99132-13050

ZGE2#..CVFC

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-68030E0

ZGE20,21

MOON ROOF-WITH,GREGE,TRIM4#

 1
81260-68010E0

ZGE20,21

GREGE,TRIM4#

 1
81260-68030E0

ZGE21..20G

W(MOON ROOF),GREGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

ZGE21

12V 8W

 2
90981-11062

ZGE2#..CVFC

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ZGE21

12V 8W

 2
90981-11062

ZGE2#..CVFC

12V 8W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-20060

ZGE21

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01022

ZGE21

14V1.4W,W(GREEN CAP)

 1
Linked diagrams
8202
