ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1006- )

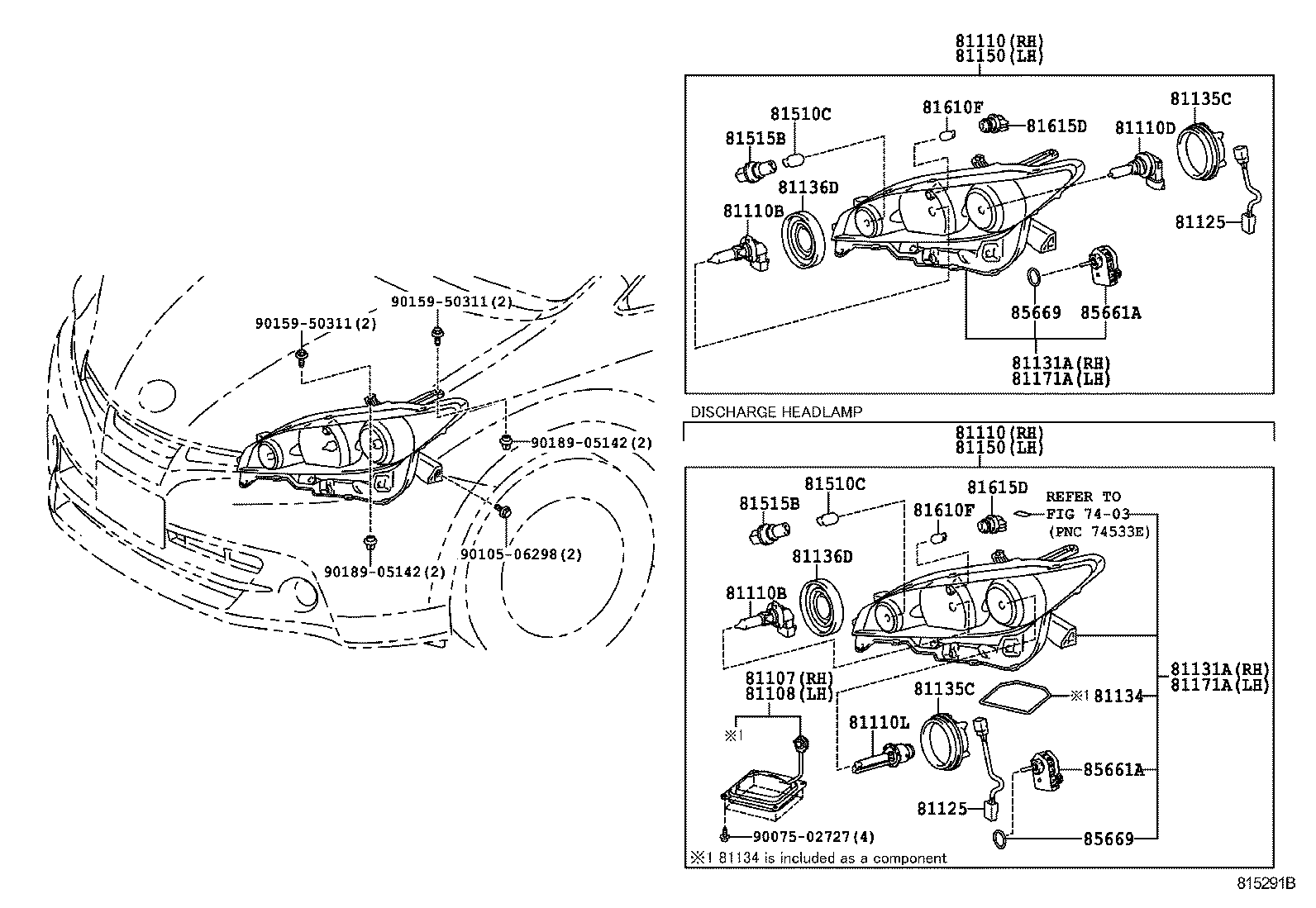

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-52A01 |
ZGE2#..18S,20G,20Z |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-52A01 |
ZGE2#..18S,20G,20Z |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZGE2#..CVFC 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
ZGE21 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20028 |
ZGE2#..18S,20G,20Z 45V 35W,HARISON TOSHIBA |
2 | ||
| 81119 - SCREW, HEADLAMP | ||||
| 90159-50311 |
ZGE2# TYPE A:REFER ILLUST. |
4 | ||
| 81119 - SCREW, HEADLAMP | ||||
| 90159-50311 |
ZGE2# TYPE A:REFER ILLUST. |
4 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-68070 |
ZGE21 |
1 | ||
| 81145-68080 |
ZGE2#..18S,20G,20Z |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ZGE2#..18S,20G,20Z |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-12B30 |
ZGE2#..18S,20G,20Z |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81185-68080 |
ZGE2#..18S,20G,20Z |
1 | ||
| 81170-68070 |
ZGE21 |
1 | ||
| 81191B - TAPE, HEADLAMP, RH | ||||
| 81191-68010 |
ZGE2# |
1 | ||
| 81192B - TAPE, HEADLAMP, LH | ||||
| 81192-68010 |
ZGE2# |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-68050 |
ZGE21 |
1 | ||
| 81193-68050 |
ZGE2#..CVFC |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-68050 |
ZGE21 |
1 | ||
| 81193-68050 |
ZGE2#..CVFC |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-68050 |
ZGE21 |
1 | ||
| 81195-68050 |
ZGE2#..CVFC |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-68050 |
ZGE2#..CVFC |
1 | ||
| 81195-68050 |
ZGE21 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZGE2#..CVFC 12V 21W,AMBER |
2 | ||
| 90981-15011 |
ZGE21 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-42050 |
ZGE2#..CVFC |
2 | ||
| 81515-42050 |
ZGE21 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZGE21 12V 5W |
2 | ||
| 99132-12050 |
ZGE2#..CVFC 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60046 |
ZGE21 |
2 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 90105-06298 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
| Linked diagrams | ||||
| 5201 | ||||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90075-02727 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7403 | ||||
