ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

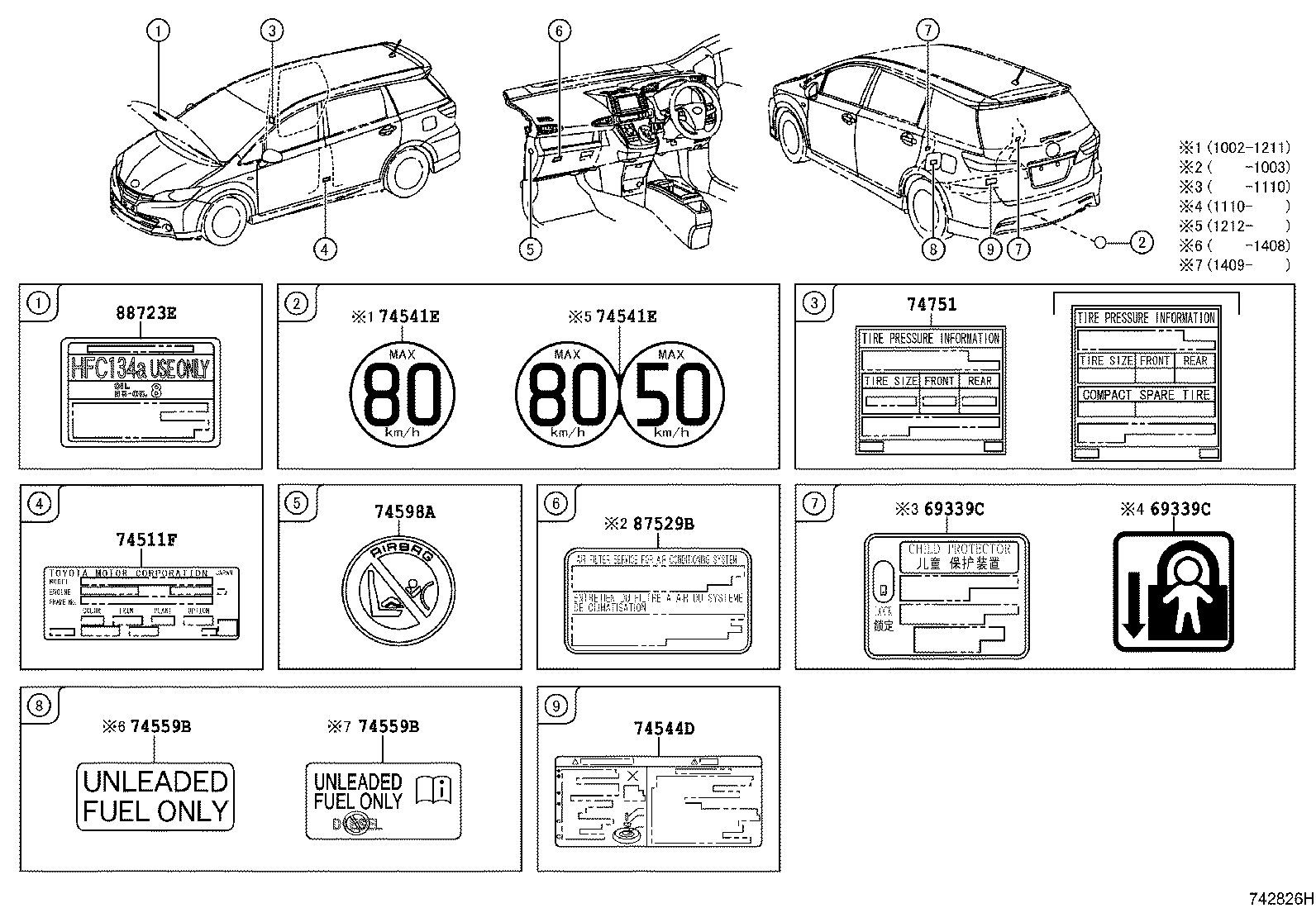

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-48010 |
ZGE21 REFER TO ILLUST. |
2 | ||
| 69339-33040 |
ZGE2# REFER TO ILLUST. |
2 | ||
| 69339-48010 |
ZGE2#..CVFC REFER TO ILLUST. |
2 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-48010 |
ZGE21 REFER TO ILLUST. |
2 | ||
| 69339-33040 |
ZGE2# REFER TO ILLUST. |
2 | ||
| 69339-48010 |
ZGE2#..CVFC REFER TO ILLUST. |
2 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
ZGE21 *111 |
1 | ||
| 74511-2B300 |
ZGE2#..CVFC *111 |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
ZGE20,21..18X,20G |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
ZGE20,21..18X,20G |
1 | ||
| 74544D - PLATE, TIRE CARRIER CAUTION | ||||
| 74544-68030 |
ZGE21..20G |
1 | ||
| 74544-68021 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 74544-68030 |
ZGE20,21..18X,20G |
1 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-14050 |
ZGE21 |
1 | ||
| 74559-14050 |
ZGE2#..CVFC |
1 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-14050 |
ZGE21 |
1 | ||
| 74559-14050 |
ZGE2#..CVFC |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
ZGE2#..CVFC |
1 | ||
| 74598-20010 |
ZGE21 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-68090 |
ZGE21..20G |
1 | ||
| 42661-68080 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 42661-68200 |
ZGE20,21..18X,20G |
1 | ||
| 87529B - LABEL, A/C FILTER INFORMATION | ||||
| 87529-50010 |
ZGE21 |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28220 |
ZGE2#..CVFC |
1 | ||
| 88723-28220 |
ZGE21 |
1 | ||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
