ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0909- )

Click highlighted areas on diagram

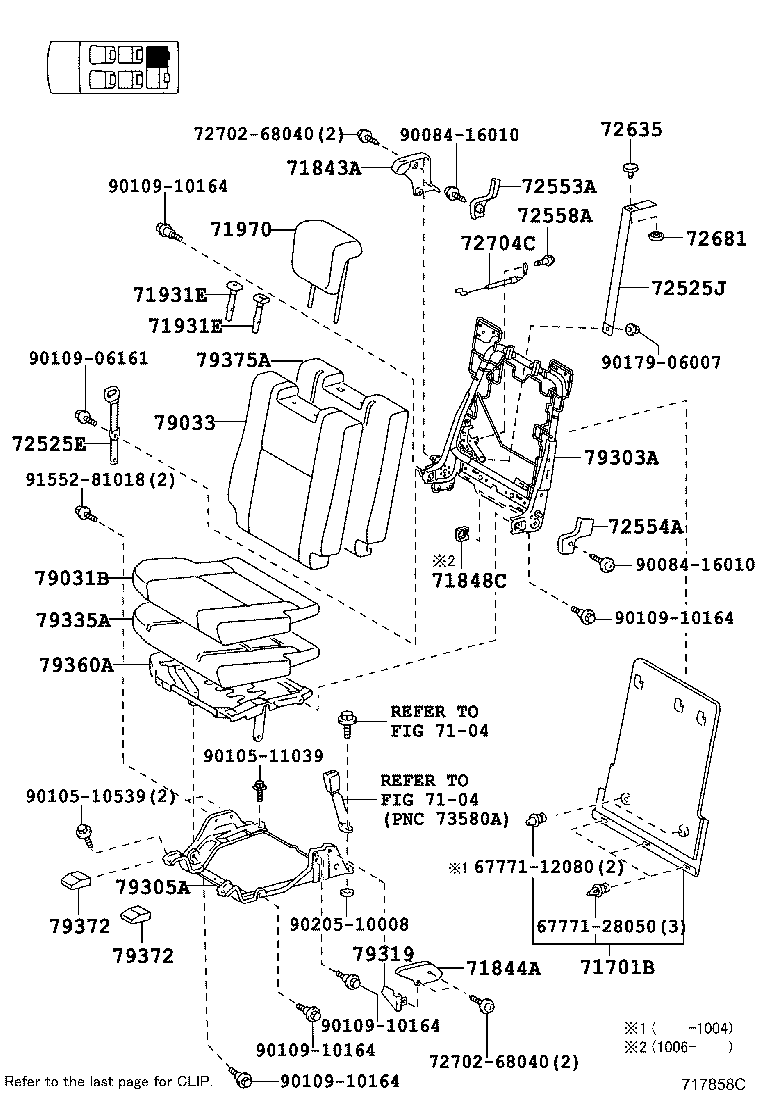

REAR NO.2 SEAT (RH)

diagram 6777112080 6777128050 7104 7104 71701B 71843A 71844A 71848C 71931E 71931E 71970 72525E 72525J 72553A 72554A 72558A 72635 72681 7270268040 7270268040 72704C 79031B 79033 79303A 79305A 79319 79335A 79360A 79372 79372 79375A 9008416010 9008416010 9010510539 9010511039 9010906161 9010910164 9010910164 9010910164 9010910164 9010910164 9017906007 9020510008 9155281018
Part # Description Qty Price
71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68030E0

ZGE20,21

GREGE,TRIM4#

 1
71843-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71848C - CAP, SEAT ADJUSTER COVER, RH
71848-68020

ZGE2#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71970 - HEADREST ASSY, REAR SEAT
71970-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
71970-68010E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH
72525-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-68060E0

ZGE20,21

GREGE,TRIM4#

 1
72553A - PROTECTOR, RECLINING COVER, RH
72553-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72554A - PROTECTOR, RECLINING COVER, LH
72554-68020E0

ZGE20,21

GREGE,TRIM4#

 1
72558A - STOPPER, RECLINING
72558-44010

ZGE2#..CVFC

 1
72558-44010

ZGE21

 1
72635 - HOOK, REAR SEAT BACK LOCK
72635-13010E2

ZGE20,21

GREGE,TRIM4#

 1
72681 - HOOK, REAR SEAT BACK LOCK, LOWER
72635-13020E2

ZGE20,21

GREGE,TRIM4#

 1
72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68050

ZGE2#..CVFC

 1
72704-68050

ZGE21

 1
79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79031-68090E0

ZGE21..20G

GREGE,TRIM4#

 1
79031-68080E1

ZGE20,21

GREGE,TRIM4#

 1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79033-68090E0

ZGE21..20G

GREGE,TRIM4#

 1
79033-68080E1

ZGE20,21

GREGE,TRIM4#

 1
79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79303-68030

ZGE2#..CVFC

 1
79303-68030

ZGE21

 1
79305A - LEG SUB-ASSY, NO.3 SEAT, RH
79305-68020

ZGE2#..CVFC

 1
79305-68020

ZGE21

 1
79319 - BRACKET, NO.3 SEAT LEG, RR RH
79319-68010

ZGE2#..CVFC

 1
79319-68010

ZGE21

 1
79335A - PAD, NO.3 SEAT CUSHION, RH
79335-68020

ZGE2#..CVFC

 1
79335-68020

ZGE21

 1
79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH
79360-68020

ZGE2#..CVFC

 1
79360-68020

ZGE21

 1
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
79372-68020B0

ZGE21

DK.GRAY,TRIM4#

 2
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
79372-68020B0

ZGE21

DK.GRAY,TRIM4#

 2
79375A - PAD, NO.3 SEAT BACK, RH
79375-68020

ZGE21

 1
79375-68020

ZGE2#..CVFC

 1
Common parts
67771-12080
67771-28050
72702-68040
90084-16010
90105-10539
90105-11039
90109-06161
90109-10164
90179-06007
90205-10008
91552-81018
Linked diagrams
7104

ILLUST NO. 4 OF 4(0909- )

Click highlighted areas on diagram

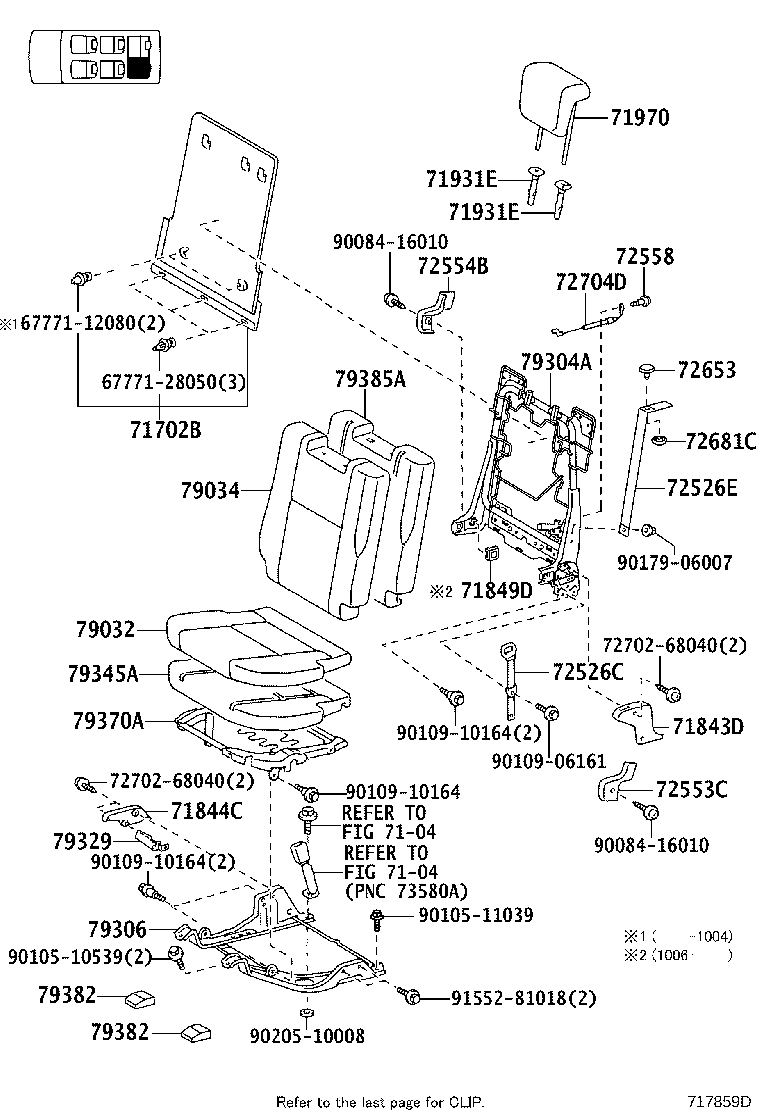

REAR NO.2 SEAT (LH)

diagram 6777112080 6777128050 7104 7104 71702B 71843D 71844C 71849D 71931E 71931E 71970 72526C 72526E 72553C 72554B 72558 72653 72681C 7270268040 7270268040 72704D 79032 79034 79304A 79306 79329 79345A 79370A 79382 79382 79385A 9008416010 9008416010 9010510539 9010511039 9010906161 9010910164 9010910164 9010910164 9017906007 9020510008 9155281018
Part # Description Qty Price
71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH
71702-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71843D - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71843-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71844C - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71849D - CAP, SEAT ADJUSTER COVER, LH
71848-68020

ZGE2#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71970 - HEADREST ASSY, REAR SEAT
71970-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
71970-68010E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72525-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-68060E0

ZGE20,21

GREGE,TRIM4#

 1
72553C - PROTECTOR, RECLINING COVER, RH
72553-68020E0

ZGE20,21

GREGE,TRIM4#

 1
72554B - PROTECTOR, RECLINING COVER, LH
72554-68030E0

ZGE20,21

GREGE,TRIM4#

 1
72558 - STOPPER, RECLINING
72558-44010

ZGE2#..CVFC

 1
72558-44010

ZGE21

 1
72653 - HOOK, REAR SEAT BACK REAR LOCK
72635-13010E2

ZGE20,21

GREGE,TRIM4#

 1
72681C - HOOK, REAR SEAT BACK LOCK, LOWER
72635-13020E2

ZGE20,21

GREGE,TRIM4#

 1
72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68050

ZGE21

 1
72704-68050

ZGE2#..CVFC

 1
79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH
79032-68080E1

ZGE20,21

GREGE,TRIM4#

 1
79032-68090E0

ZGE21..20G

GREGE,TRIM4#

 1
79032-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79034-68090E0

ZGE21..20G

GREGE,TRIM4#

 1
79034-68080E1

ZGE20,21

GREGE,TRIM4#

 1
79034-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH
79304-68030

ZGE2#..CVFC

 1
79304-68030

ZGE21

 1
79306 - LEG SUB ASSY, NO.3 SEAT, LH
79306-68020

ZGE2#..CVFC

 1
79306-68020

ZGE21

 1
79329 - BRACKET, NO.3 SEAT LEG, RR LH
79329-68010

ZGE2#..CVFC

 1
79329-68010

ZGE21

 1
79345A - PAD, NO.3 SEAT CUSHION, LH
79345-68020

ZGE21

 1
79345-68020

ZGE2#..CVFC

 1
79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH
79370-68020

ZGE21

 1
79370-68020

ZGE2#..CVFC

 1
79382 - COVER, NO.3 SEAT FRONT BRACKET, LH
79372-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
79372-68020B0

ZGE21

DK.GRAY,TRIM4#

 2
79382 - COVER, NO.3 SEAT FRONT BRACKET, LH
79372-68020E0

ZGE21..20G

GREGE,TRIM4#

 2
79372-68020B0

ZGE21

DK.GRAY,TRIM4#

 2
79385A - PAD, NO.3 SEAT BACK, LH
79385-68020

ZGE2#..CVFC

 1
79385-68020

ZGE21

 1
Common parts
67771-12080
67771-28050
72702-68040
90084-16010
90105-10539
90105-11039
90109-06161
90109-10164
90179-06007
90205-10008
91552-81018
Linked diagrams
7104

(0909- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

ILLUST NO. 2 OF 4(0911- )

Click highlighted areas on diagram

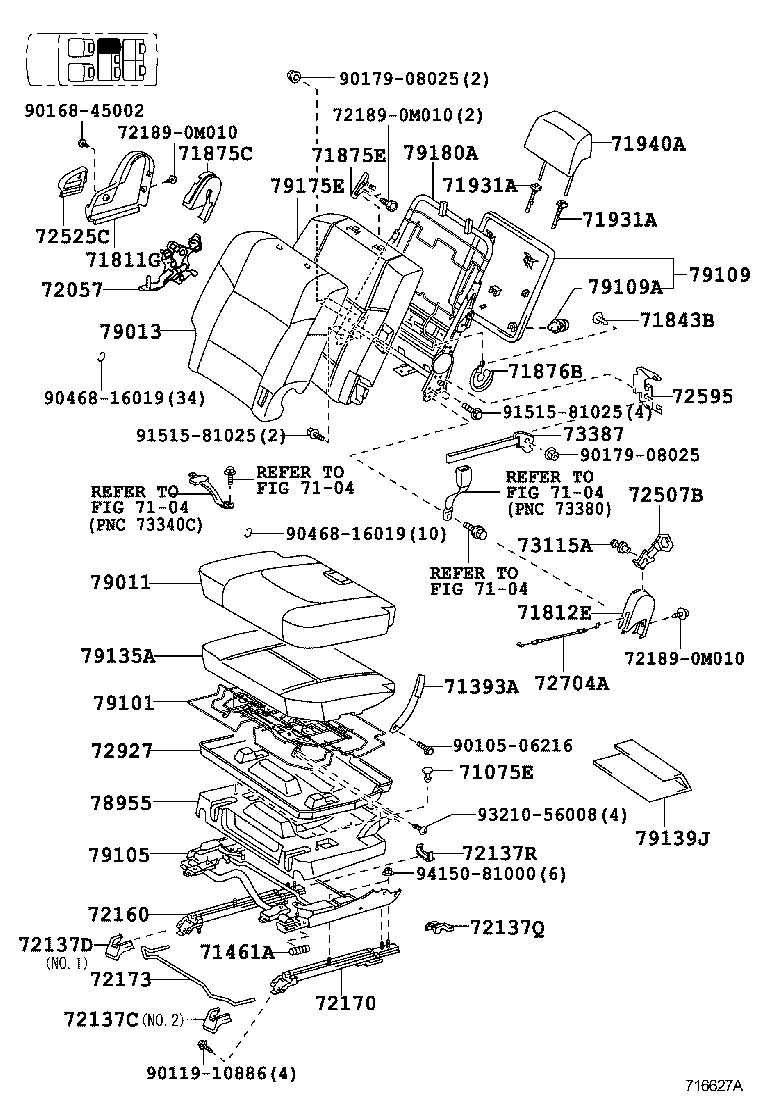

REAR NO.1 SEAT (RH)

diagram 7104 7104 7104 7104 71075E 71393A 71461A 71811G 71812E 71843B 71875C 71875E 71876B 71931A 71931A 71940A 72057 72137C 72137D 72137Q 72137R 72160 72170 72173 721890M010 721890M010 721890M010 72507B 72525C 72595 72704A 72927 73115A 73387 78955 79011 79013 79101 79105 79109 79109A 79135A 79139J 79175E 79180A 9010506216 9011910886 9016845002 9017908025 9017908025 9046816019 9046816019 9151581025 9151581025 9321056008 9415081000
Part # Description Qty Price
Common parts
72189-0M010
90105-06216
90119-10886
90168-45002
90179-08025
90468-16019
91515-81025
93210-56008
94150-81000
Linked diagrams
7104

ILLUST NO. 3 OF 4(0911- )

Click highlighted areas on diagram

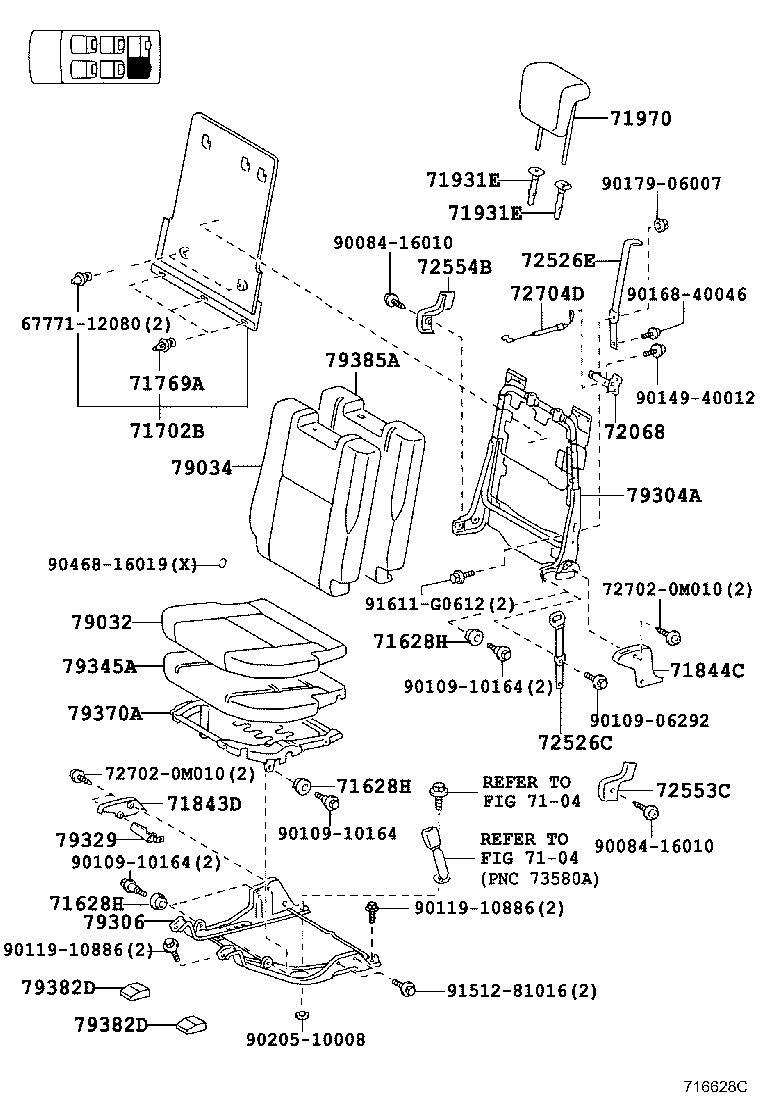

REAR NO.2 SEAT (LH)

diagram 6777112080 7104 7104 71628H 71628H 71628H 71702B 71769A 71843D 71844C 71931E 71931E 71970 72068 72526C 72526E 72553C 72554B 727020M010 727020M010 72704D 79032 79034 79304A 79306 79329 79345A 79370A 79382D 79382D 79385A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9011910886 9011910886 9014940012 9016840046 9017906007 9020510008 9046816019 9151281016 91611G0612
Part # Description Qty Price
Common parts
67771-12080
72702-0M010
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
90468-16019
91512-81016
91611-G0612
Linked diagrams
7104

ILLUST NO. 4 OF 4(0911- )

Click highlighted areas on diagram

REAR NO.2 SEAT (RH)

diagram 6777112080 7104 7104 71628G 71628G 71628G 71628G 71628G 71701B 71769A 71843A 71844A 71931E 71931E 71970 72067 72525D 72525E 72553A 72554A 727020M010 727020M010 72704C 79031B 79033 79303A 79305A 79319 79335A 79360A 79372B 79372B 79375A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9010910164 9010910164 9011910886 9014940012 9016840046 9017906007 9020510008 9046816019 9151281016 91611G0612
Part # Description Qty Price
Common parts
67771-12080
72702-0M010
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
90468-16019
91512-81016
91611-G0612
Linked diagrams
7104

ILLUST NO. 1 OF 4(0911- )

Click highlighted areas on diagram

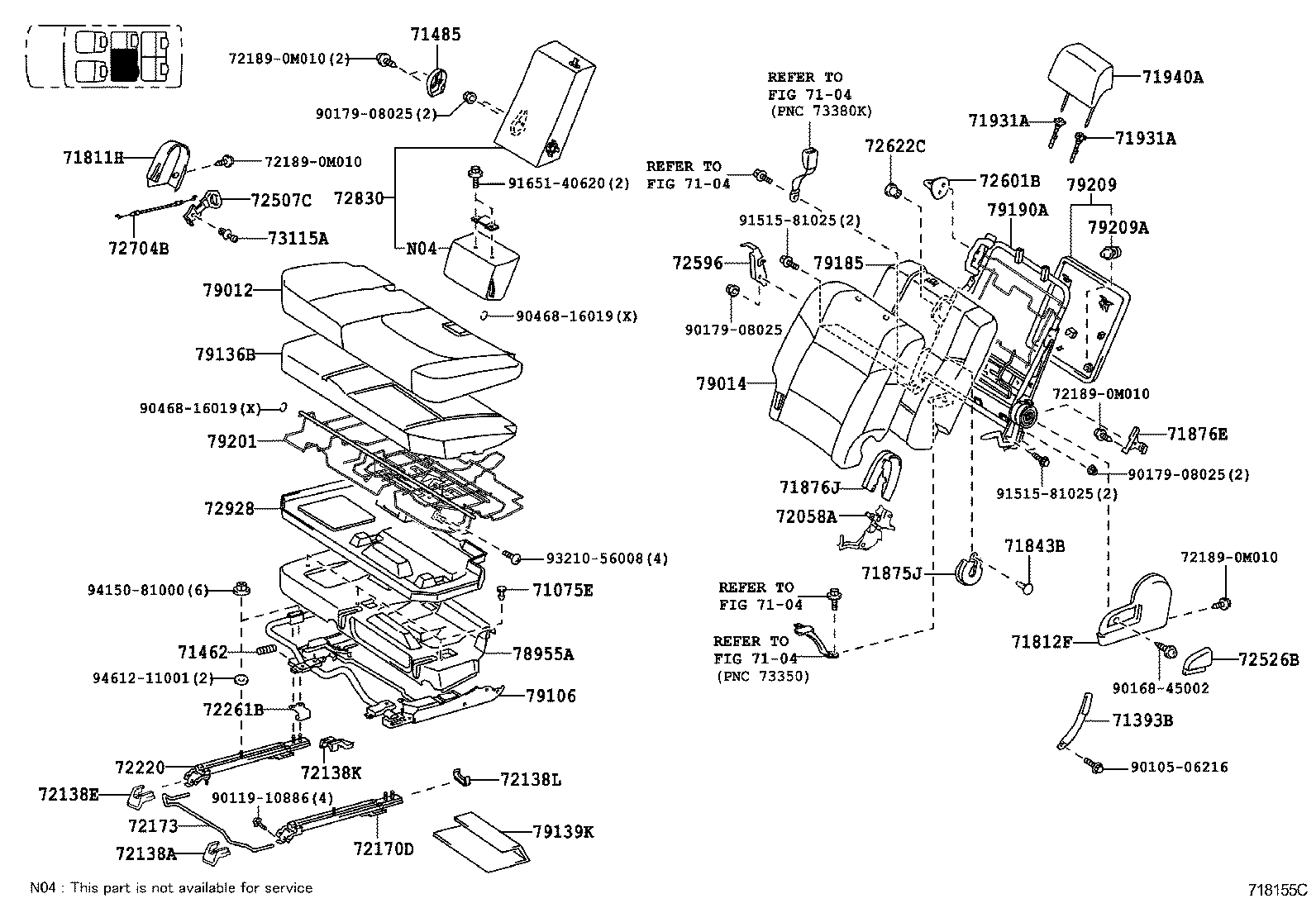

REAR NO.1 SEAT (LH)

diagram 7104 7104 7104 7104 71075E 71393B 71462 71485 71811H 71812F 71843B 71875J 71876E 71876J 71931A 71931A 71940A 72058A 72138A 72138E 72138K 72138L 72170D 72173 721890M010 721890M010 721890M010 721890M010 72220 72261B 72507C 72526B 72596 72601B 72622C 72704B 72830 72928 73115A 78955A 79012 79014 79106 79136B 79139K 79185 79190A 79201 79209 79209A 9010506216 9011910886 9016845002 9017908025 9017908025 9017908025 9046816019 9046816019 9151581025 9151581025 9165140620 9321056008 9415081000 9461211001
Part # Description Qty Price
Common parts
72189-0M010
90105-06216
90119-10886
90168-45002
90179-08025
90468-16019
91515-81025
91651-40620
93210-56008
94150-81000
94612-11001
Linked diagrams
7104
