ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

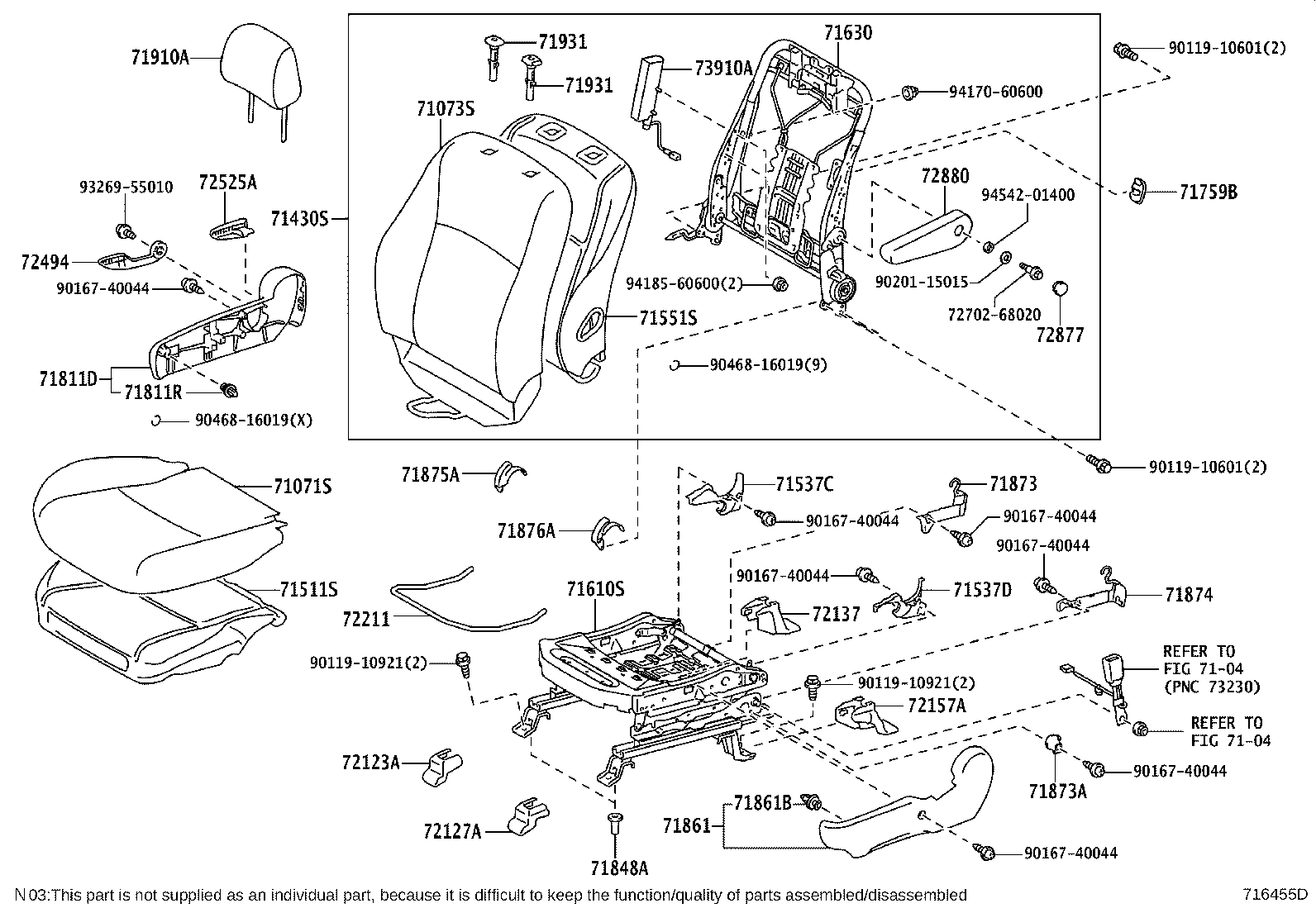

ILLUST NO. 1 OF 2(0909- )

Click highlighted areas on diagram

RH SEAT

diagram 7104 7104 71071S 71073S 71430S 71511S 71537C 71537D 71551S 71610S 71630 71759B 71811D 71811R 71848A 71861 71861B 71873 71873A 71874 71875A 71876A 71910A 71931 71931 72123A 72127A 72137 72157A 72211 72494 72525A 7270268020 72877 72880 73910A 9011910601 9011910601 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9020115015 9046816019 9046816019 9326955010 9417060600 9418560600 9454201400
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-68160E0

ZGE21..20G

GREGE,TRIM4#

 1
71071-68150E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
71071-68150E2

ZGE20,21

GREGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-68420E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
71073-68430E0

ZGE21..20G

GREGE,TRIM4#

 1
71073-68420E1

ZGE20,21

GREGE,TRIM4#

 1
71073-68420E2

ZGE20,21

GREGE,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-68610E1

ZGE21..20G

GREGE,TRIM4#

 1
71430-68600E2

ZGE20,21

GREGE,TRIM4#

 1
71430-68600E3

ZGE20,21

GREGE,TRIM4#

 1
71430-68600E1

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-68020

ZGE21

 1
71511-68020

ZGE2#..CVFC

 1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-47010E0

ZGE20,21

GREGE,TRIM4#

 1
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71538-47010E0

ZGE20,21

GREGE,TRIM4#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-68060

ZGE21

 1
71551-68060

ZGE2#..CVFC

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-68010

ZGE2#..CVFC

 1
71610-68010

ZGE21

 1
71630 - SPRING ASSY, FRONT SEAT BACK, RH
71630-68020

ZGE21

 1
71630-68020

ZGE2#..CVFC

 1
71759B - HOOK, FRONT SEAT BACK
71759-B2020E2

ZGE20,21

GREGE,TRIM4#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH
71769-47020

ZGE2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-68010

ZGE21

 2
71848-68010

ZGE2#..CVFC

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
71769-47020

ZGE2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-47040

ZGE2#..CVFC

 1
71873-47040

ZGE21

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-68020

ZGE21

 1
71873-68020

ZGE2#..CVFC

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-47040

ZGE21

 1
71874-47040

ZGE2#..CVFC

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47030E0

ZGE20,21

GREGE,TRIM4#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47030E0

ZGE20,21

GREGE,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-68081E0

ZGE21

GREGE,TRIM4#

 2
71910-68080E0

ZGE21..20G

GREGE,TRIM4#

 2
71910-68081E0

ZGE21

GREGE,TRIM42

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020E0

ZGE20,21

W/O(LOCK),GREGE,TRIM4#

 2
71930-47020E0

ZGE20,21

W(LOCK),GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020E0

ZGE20,21

W/O(LOCK),GREGE,TRIM4#

 2
71930-47020E0

ZGE20,21

W(LOCK),GREGE,TRIM4#

 2
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-68030E0

ZGE21..20G

GREGE,TRIM4#

 1
72123-68030E0

ZGE21

GREGE,TRIM42

 1
72123-68030B0

ZGE21

DK.GRAY,TRIM42

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-68030E0

ZGE21..20G

GREGE,TRIM4#

 1
72127-68030E0

ZGE21

GREGE,TRIM42

 1
72127-68030B0

ZGE21

DK.GRAY,TRIM42

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-68070B0

ZGE21

DK.GRAY,TRIM42

 1
72137-68070E0

ZGE21..20G

GREGE,TRIM4#

 1
72137-68070E0

ZGE21

GREGE,TRIM42

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-68010E0

ZGE21..20G

GREGE,TRIM4#

 1
72157-68010E0

ZGE21

GREGE,TRIM42

 1
72157-68010B0

ZGE21

DK.GRAY,TRIM42

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-47020

ZGE2#

 1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010E0

ZGE20,21

GREGE,TRIM4#

 1
72877 - COVER, SEAT ARMREST, RH
71877-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72880 - ARMREST ASSY, SEAT, C RH
72820-68010E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
72820-68020E0

ZGE21..20G

GREGE,TRIM4#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-68020

ZGE2#..CVFC

 1
73910-68020

ZGE21

 1
Common parts
72702-68020
90119-10601
90119-10921
90167-40044
90201-15015
90468-16019
93269-55010
94170-60600
94185-60600
94542-01400
Linked diagrams
7104

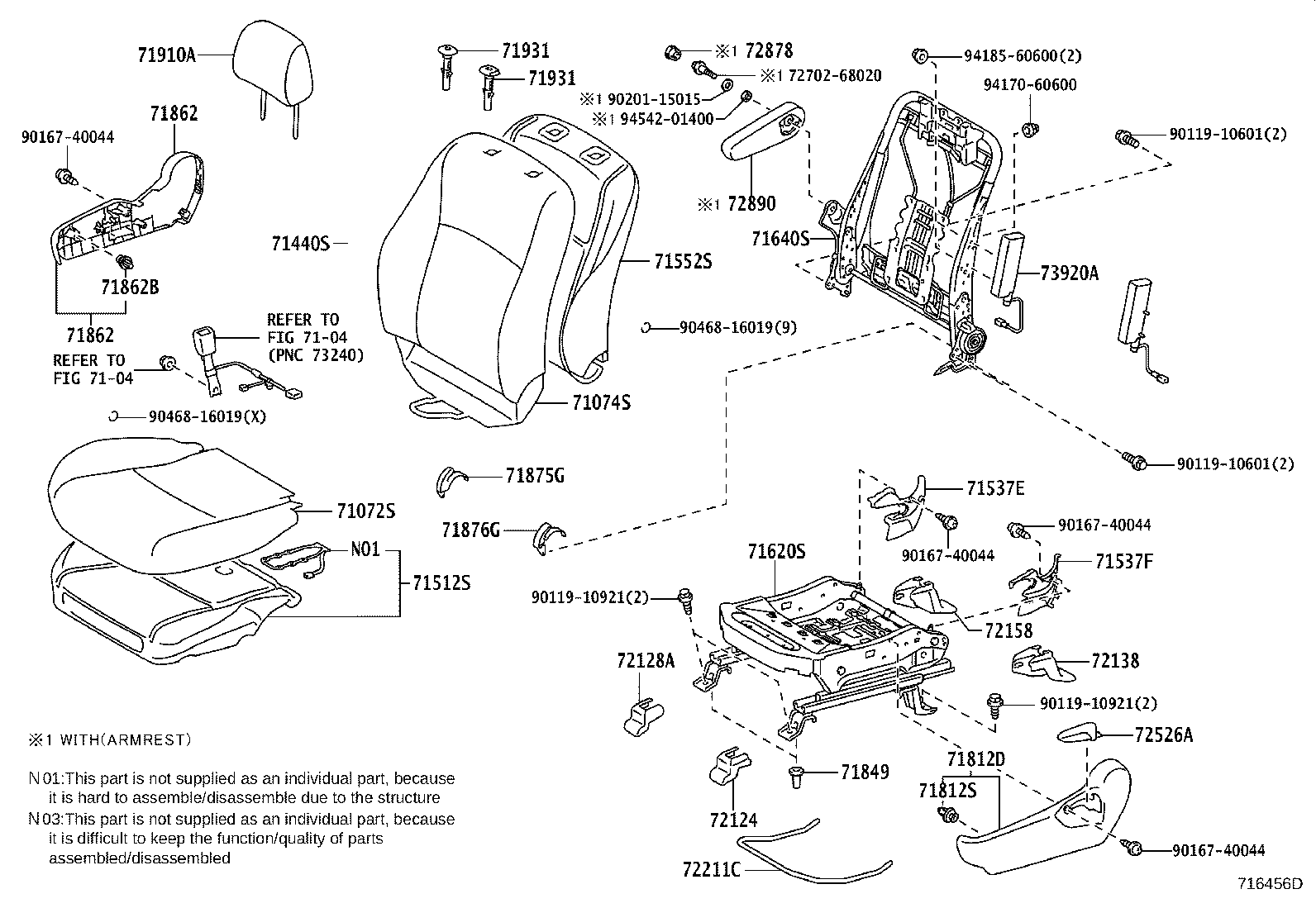

ILLUST NO. 2 OF 2(0909- )

Click highlighted areas on diagram

LH SEAT

diagram 7104 7104 71072S 71074S 71440S 71512S 71537E 71537F 71552S 71620S 71640S 71812D 71812S 71849 71862 71862 71862B 71875G 71876G 71910A 71931 71931 72124 72128A 72138 72158 72211C 72526A 7270268020 72878 72890 73920A 9011910601 9011910601 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9020115015 9046816019 9046816019 9417060600 9418560600 9454201400
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-68160E0

ZGE21..20G

GREGE,TRIM4#

 1
71072-68150E3

ZGE20,21

GREGE,TRIM4#

 1
71072-68150E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-68380E1

ZGE21..20G

GREGE,TRIM4#

 1
71074-68430E0

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71074-68430E1

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71074-68430E2

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-68460E3

ZGE21..20G

GREGE,TRIM4#

 1
71440-68260E1

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71440-68260E0

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71440-68260E2

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-68030

ZGE21

 1
71052-68030

ZGE2#..CVFC

 1
71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1
71537-47020E0

ZGE20,21

GREGE,TRIM4#

 1
71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2
71538-47020E0

ZGE20,21

GREGE,TRIM4#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-68080

ZGE21..20G

 1
71552-68080

ZGE2#..CVFC..(18S,20G,20Z)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-68030

ZGE21

 1
71620-68030

ZGE2#..CVFC

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-68010

ZGE2#..CVFC..(18S,20G,20Z)

 1
71640-68010

ZGE21..20G

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

ZGE2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-68010

ZGE2#..CVFC

 2
71848-68010

ZGE21

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
71769-47020

ZGE2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-47030E0

ZGE20,21

GREGE,TRIM4#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-47030E0

ZGE20,21

GREGE,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-68081E0

ZGE21

GREGE,TRIM4#

 2
71910-68080E0

ZGE21..20G

GREGE,TRIM4#

 2
71910-68081E0

ZGE21

GREGE,TRIM42

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020E0

ZGE20,21

W/O(LOCK),GREGE,TRIM4#

 2
71930-47020E0

ZGE20,21

W(LOCK),GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020E0

ZGE20,21

W/O(LOCK),GREGE,TRIM4#

 2
71930-47020E0

ZGE20,21

W(LOCK),GREGE,TRIM4#

 2
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72127-68030E0

ZGE21

GREGE,TRIM42

 1
72127-68030E0

ZGE21..20G

GREGE,TRIM4#

 1
72127-68030B0

ZGE21

DK.GRAY,TRIM42

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72123-68030E0

ZGE21..20G

GREGE,TRIM4#

 1
72123-68030B0

ZGE21

DK.GRAY,TRIM42

 1
72123-68030E0

ZGE21

GREGE,TRIM42

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-68010E0

ZGE21..20G

GREGE,TRIM4#

 1
72138-68010B0

ZGE21

DK.GRAY,TRIM42

 1
72138-68010E0

ZGE21

GREGE,TRIM42

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-68010E0

ZGE21..20G

GREGE,TRIM4#

 1
72158-68010B0

ZGE21

DK.GRAY,TRIM42

 1
72158-68010E0

ZGE21

GREGE,TRIM42

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-47020

ZGE2#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010E0

ZGE20,21

GREGE,TRIM4#

 1
72878 - COVER, SEAT ARMREST, LH
71877-68010E0

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
72890 - ARMREST ASSY, SEAT, C LH
72810-68010E0

ZGE20,21..18S,20G

GREGE,TRIM4#

 1
72810-68020E0

ZGE21..20G

GREGE,TRIM4#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-68030

ZGE21

 1
73920-68030

ZGE2#..CVFC

 1
Common parts
72702-68020
90119-10601
90119-10921
90167-40044
90201-15015
90468-16019
94170-60600
94185-60600
94542-01400
Linked diagrams
7104

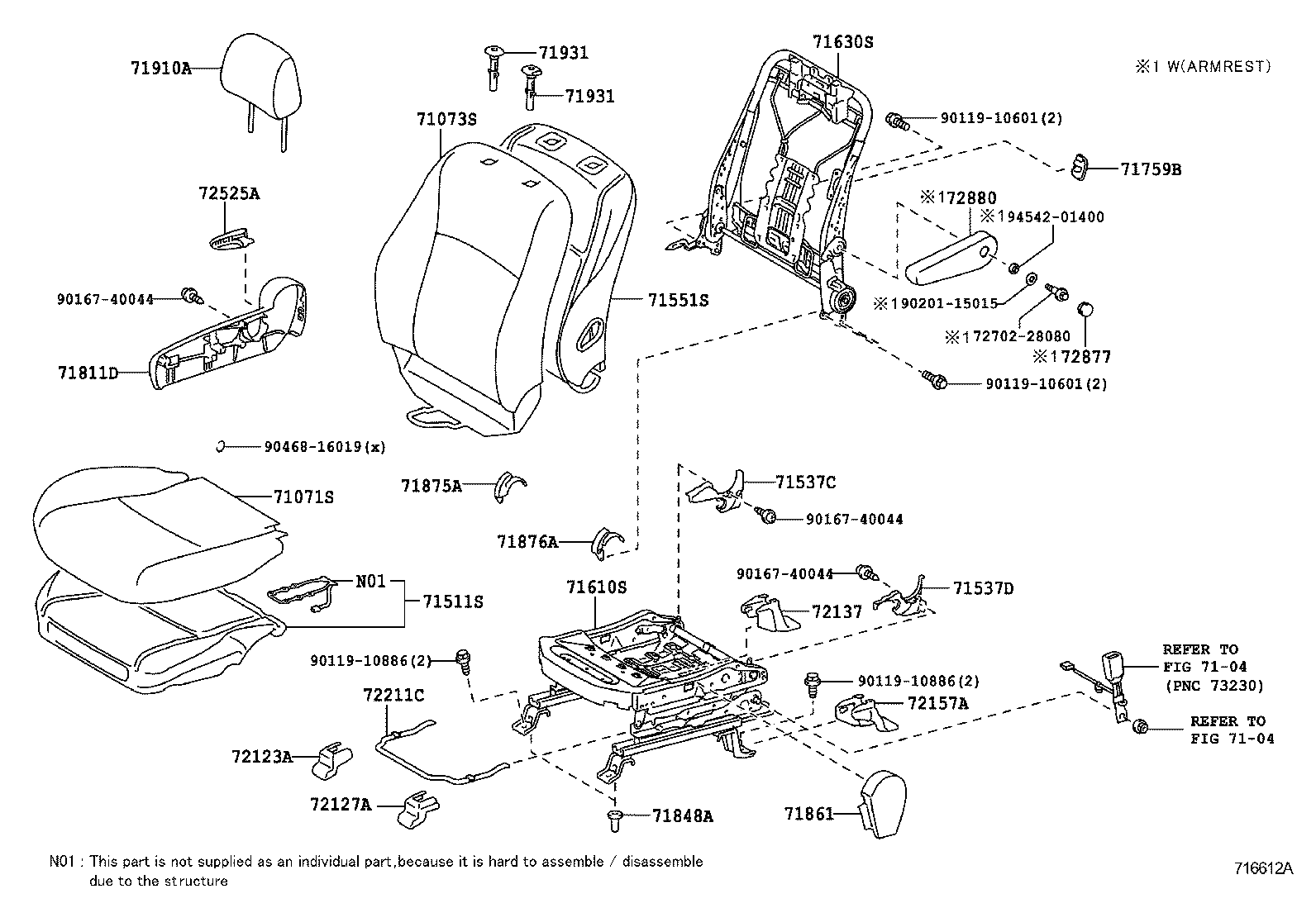

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

RH SEAT

diagram 7104 7104 71071S 71073S 71511S 71537C 71537D 71551S 71610S 71630S 71759B 71811D 71848A 71861 71875A 71876A 71910A 71931 71931 72123A 72127A 72137 72157A 72211C 72525A 7270228080 72877 72880 9011910601 9011910601 9011910886 9011910886 9016740044 9016740044 9016740044 9020115015 9046816019 9454201400
Part # Description Qty Price
Common parts
72702-28080
90119-10601
90119-10886
90167-40044
90201-15015
90468-16019
94542-01400
Linked diagrams
7104

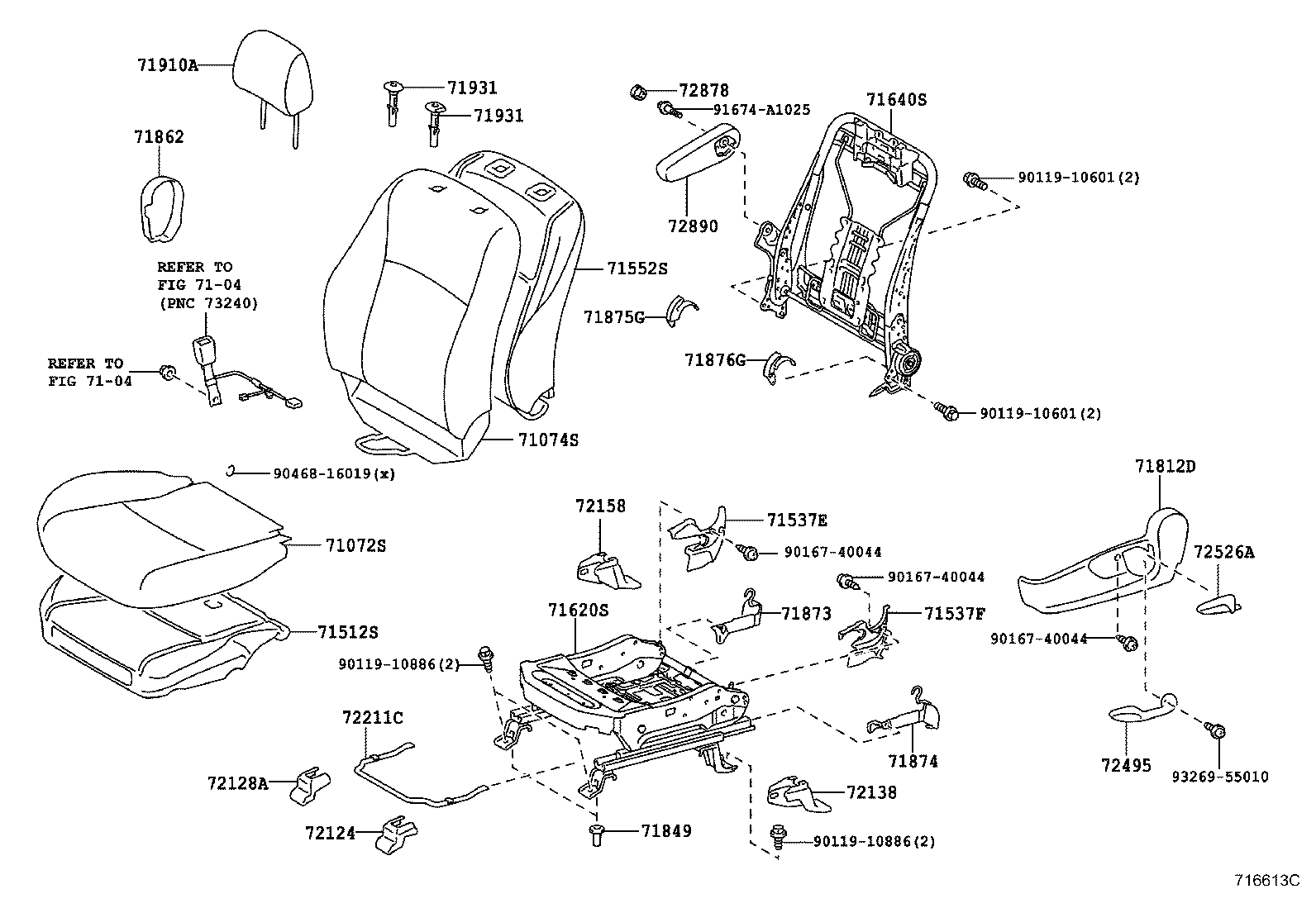

ILLUST NO. 1 OF 2(0911- )E,J

Click highlighted areas on diagram

LH SEAT (MANUAL)

diagram 7104 7104 71072S 71074S 71512S 71537E 71537F 71552S 71620S 71640S 71812D 71849 71862 71873 71874 71875G 71876G 71910A 71931 71931 72124 72128A 72138 72158 72211C 72495 72526A 72878 72890 9011910601 9011910601 9011910886 9011910886 9016740044 9016740044 9016740044 9046816019 91674A1025 9326955010
Part # Description Qty Price
Common parts
90119-10601
90119-10886
90167-40044
90468-16019
91674-A1025
93269-55010
Linked diagrams
7104

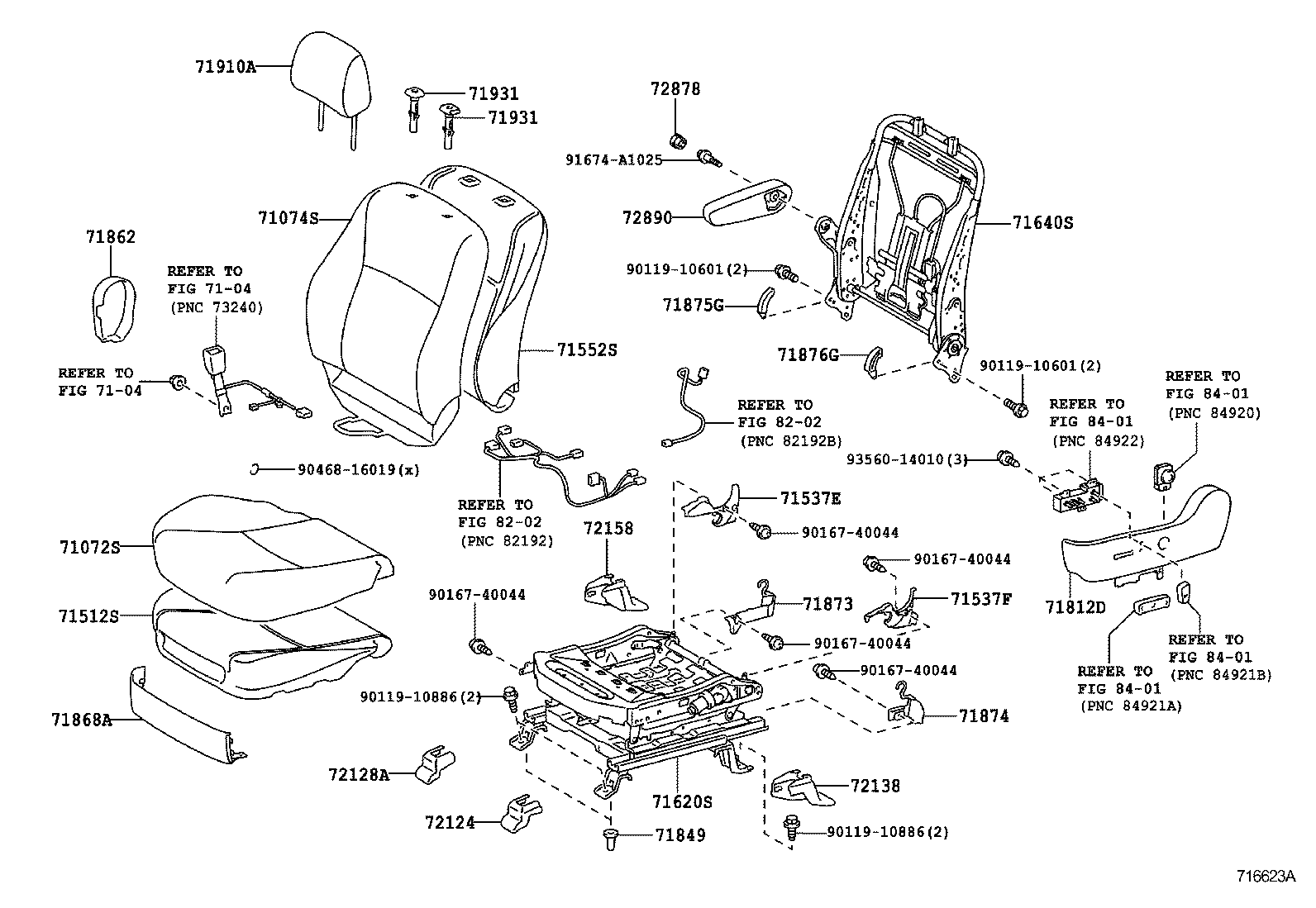

ILLUST NO. 1 OF 2(0911- )E,G

Click highlighted areas on diagram

LH SEAT (POWER)

diagram 7104 7104 71072S 71074S 71512S 71537E 71537F 71552S 71620S 71640S 71812D 71849 71862 71868A 71873 71874 71875G 71876G 71910A 71931 71931 72124 72128A 72138 72158 72878 72890 8202 8202 8401 8401 8401 8401 9011910601 9011910601 9011910886 9011910886 9016740044 9016740044 9016740044 9016740044 9016740044 9046816019 91674A1025 9356014010
Part # Description Qty Price
Common parts
90119-10601
90119-10886
90167-40044
90468-16019
91674-A1025
93560-14010
Linked diagrams
7104
8202
8401
