ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0909- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5801 5801 6101 6101 64818B 64819B 64885A 64886 67005 67293 67293 67881A 68131 75129C 75571F 75573C 75573C 75575D 9054109142 9054109142
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-68020

ZGE2#

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-68020

ZGE2#

 1
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-68050

ZGE2#..CVFC

 1
64885-68050

ZGE21

 1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-68050

ZGE2#..CVFC

 1
64886-68050

ZGE21

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-68040

ZGE21

 1
67005-68040

ZGE2#..CVFC

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-68010

ZGE21

 2
67293-68010

ZGE2#..CVFC

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-68010

ZGE21

 2
67293-68010

ZGE2#..CVFC

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-68020

ZGE21

 1
68131 - GLASS, BACK DOOR
68105-68070

ZGE2#

*UVCEHT,T=3.1,GREEN

 1
68105-68071

ZGE2#

*UVCEHT,T=3.1,GREEN

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-13020

ZGE21

 2
75129-13020

ZGE2#..CVFC

 2
75571F - MOULDIMG, BACK DOOR WINDOW
75571-68020

ZGE2#

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-68020

ZGE2#

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-68020

ZGE2#

 2
75575D - MOULDING, BACK WINDOW, LOWER
75575-68030

ZGE2#

 1
75575-68020

ZGE2#

 1
Common parts
90541-09142
Linked diagrams
5801
6101

ILLUST NO. 2 OF 2(0909- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67750 67750A 67750A 67765A 67766 67847E 67848E 67937B 67937C 67937C 67938A 67939B 67939C 74811D
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161

ZGE2#..CVFC

 14
90467-10161

ZGE21

 14
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161

ZGE2#..CVFC

 14
90467-10161

ZGE21

 14
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
67847-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67848E - COVER, BACK DOOR SERVICE HOLE, LH
67848-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ZGE21

 4
90467-10161

ZGE2#..CVFC

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ZGE21

 4
90467-10161

ZGE2#..CVFC

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

ZGE2#..CVFC

 4
90467-10161

ZGE21

 4
74811D - HANDLE, DOOR PULL
74811-13010C0

ZGE21..20G

BLACK,TRIM4#

 1

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67750 67750A 67750A 67765A 67766 67847E 67848E 67937B 67937C 67937C 67938A 67939B 67939C 74811D
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161

ZGE2#..CVFC

 14
90467-10161

ZGE21

 14
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161

ZGE2#..CVFC

 14
90467-10161

ZGE21

 14
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
67847-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67848E - COVER, BACK DOOR SERVICE HOLE, LH
67848-68010B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ZGE21

 4
90467-10161

ZGE2#..CVFC

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

ZGE21

 4
90467-10161

ZGE2#..CVFC

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-68020B1

ZGE21..20G

DK.GRAY,TRIM4#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

ZGE2#..CVFC

 4
90467-10161

ZGE21

 4
74811D - HANDLE, DOOR PULL
74811-13010C0

ZGE21..20G

BLACK,TRIM4#

 1

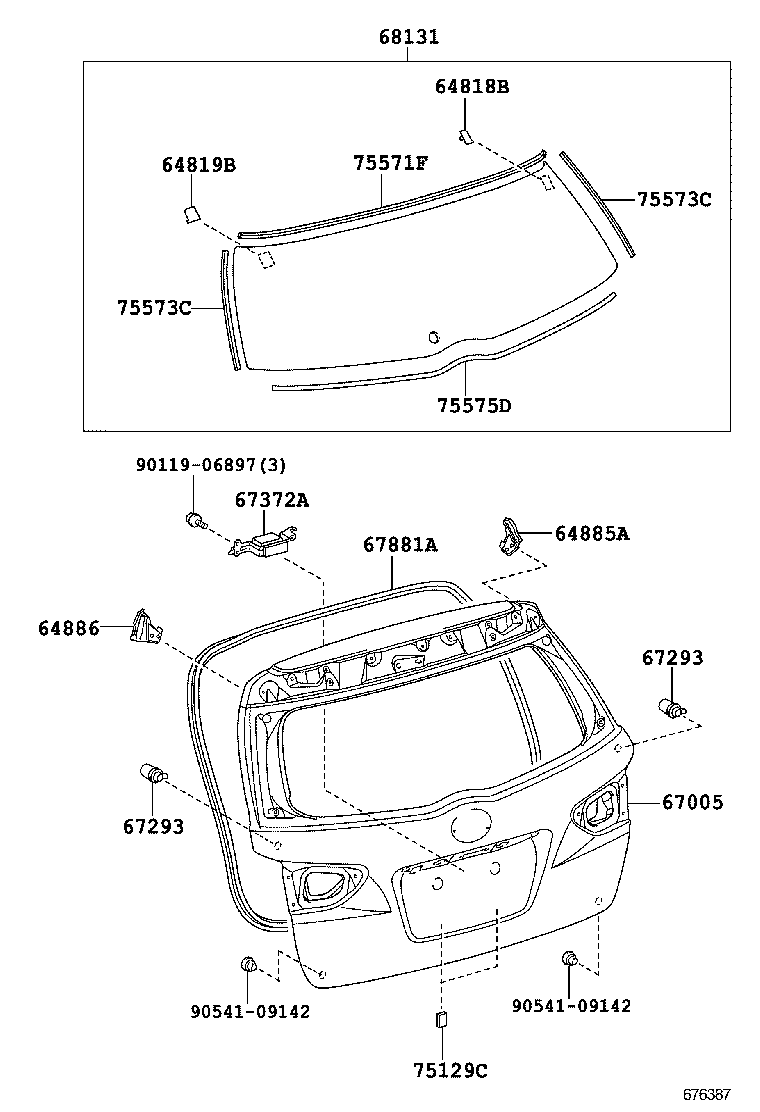

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

DOOR PANEL

diagram 64818B 64819B 64885A 64886 67005 67293 67293 67372A 67881A 68131 75129C 75571F 75573C 75573C 75575D 9011906897 9054109142 9054109142
Part # Description Qty Price
Common parts
90119-06897
90541-09142
