ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

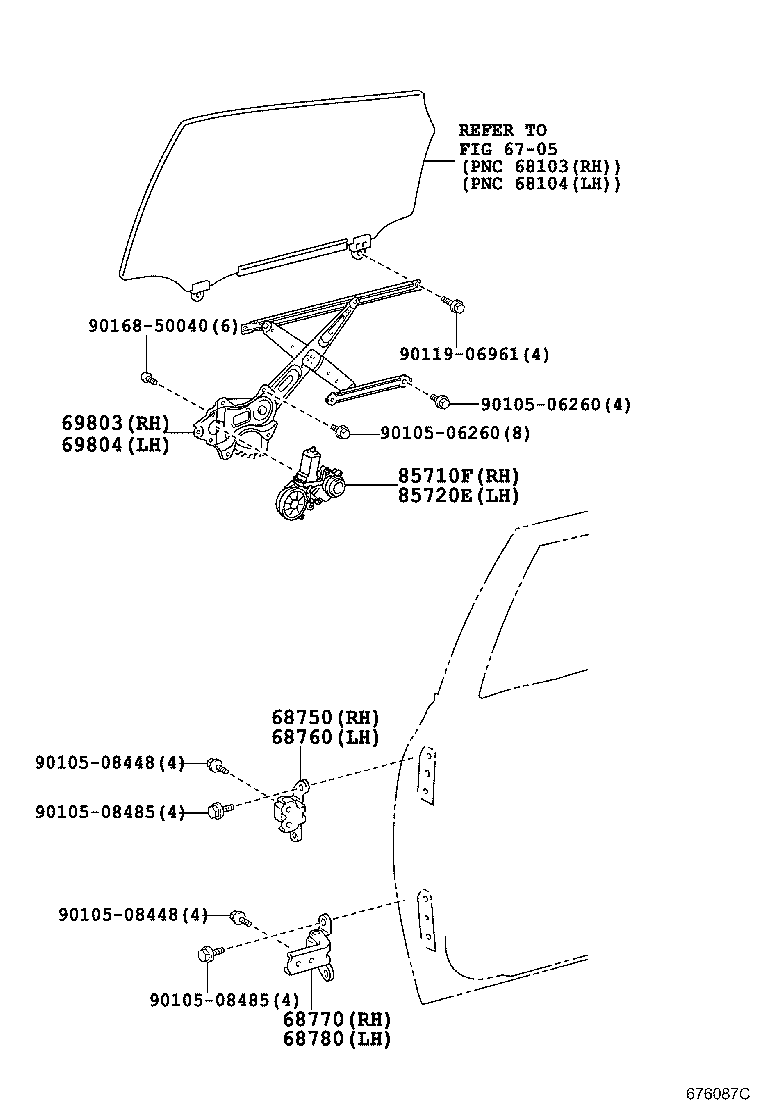

(0909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-35041 |
ZGE2# |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-35041 |
ZGE2# |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52031 |
ZGE21 |
1 | ||
| 68770-52031 |
ZGE2#..CVFC |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52031 |
ZGE2#..CVFC |
1 | ||
| 68780-52031 |
ZGE21 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69801-68020 |
ZGE2#..CVFC |
1 | ||
| 69801-68020 |
ZGE21 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69802-68020 |
ZGE2#..CVFC |
1 | ||
| 69802-68020 |
ZGE21 |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-68020 |
ZGE21 |
1 | ||
| 85710-68020 |
ZGE2#..CVFC |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-68020 |
ZGE21 |
1 | ||
| 85720-68020 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6705 | ||||

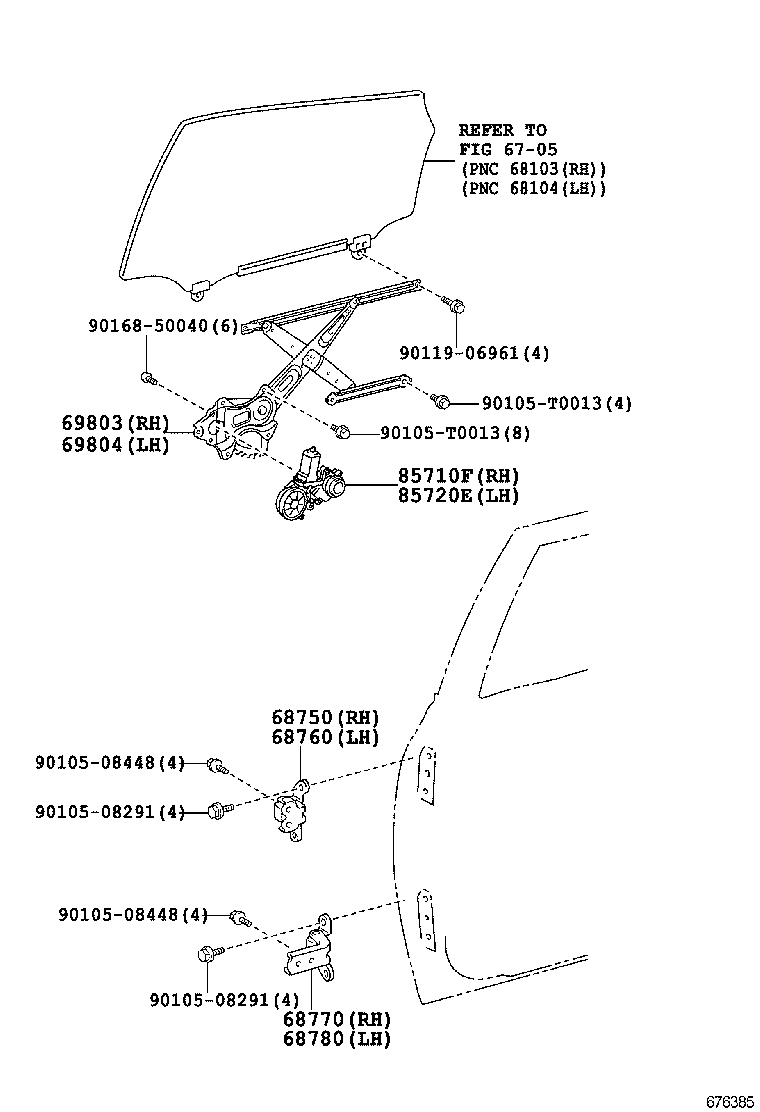

(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08291 | ||||
| 90105-08448 | ||||
| 90105-T0013 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6705 | ||||
