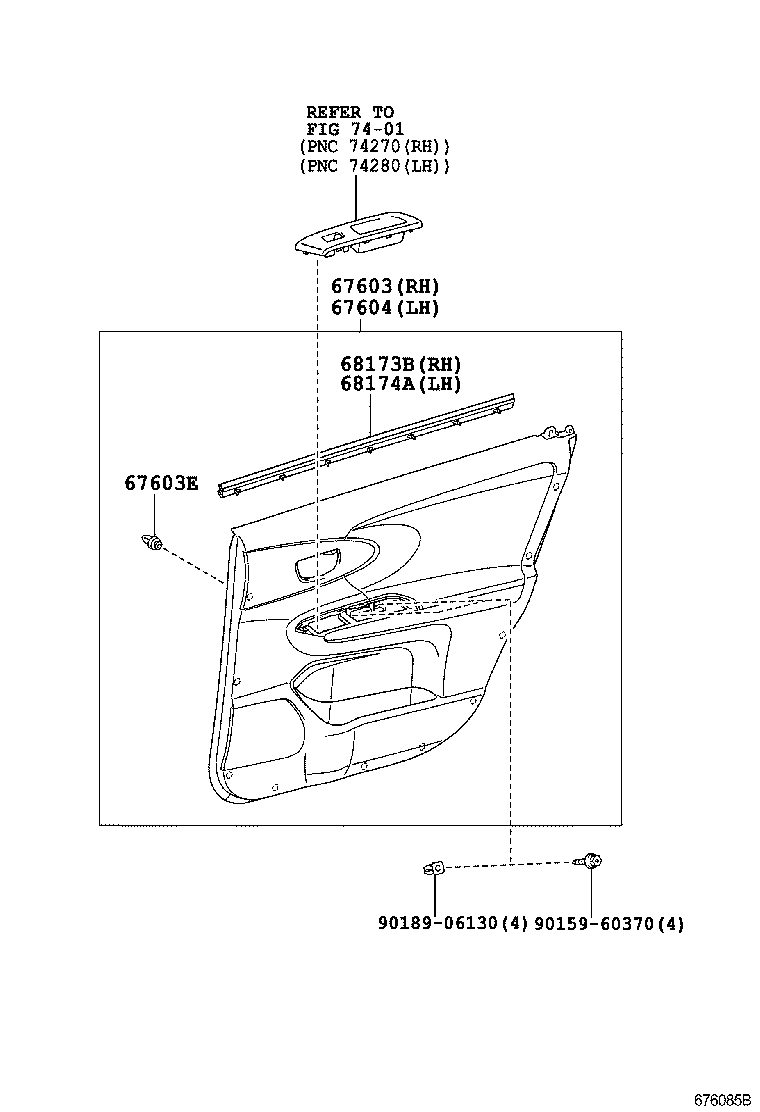

ZGE21R-HPXGP (2010)
Toyota Wish
ILLUST NO. 2 OF 2(0909- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-68140B1 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 67630-68080B3 |
ZGE21 LEATHER PACKAGE,DK.GRAY/GREGE(MOIST B),TRIM4# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZGE21 |
20 | ||
| 90467-09206 |
ZGE2#..CVFC |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-68140B1 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 67640-68080B3 |
ZGE21 LEATHER PACKAGE,DK.GRAY/GREGE(MOIST B),TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-68030 |
ZGE2# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-68030 |
ZGE2# |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06130 | ||||
| Linked diagrams | ||||
| 7401 | ||||

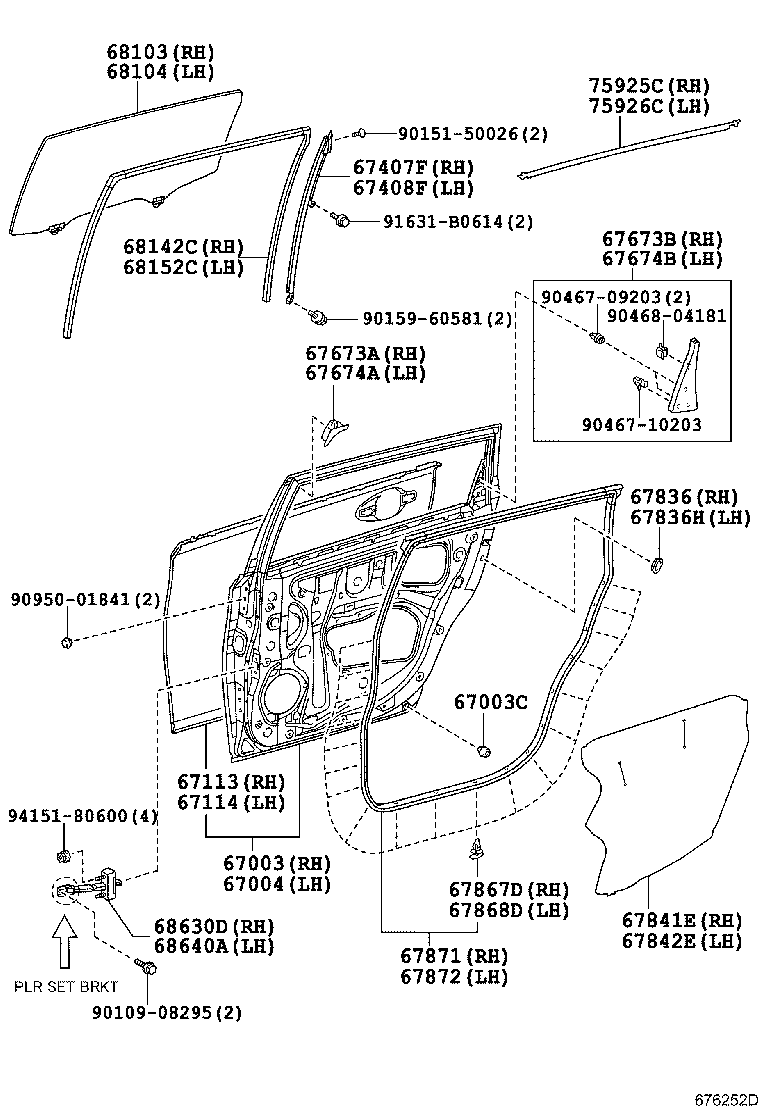

ILLUST NO. 1 OF 2(0909- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-68050 |
ZGE20,21..CVFC |
1 | ||
| 67003-68050 |
ZGE21 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
ZGE2#..CVFC |
2 | ||
| 90541-09137 |
ZGE21 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-68050 |
ZGE21 |
1 | ||
| 67004-68050 |
ZGE20,21..CVFC |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-68030 |
ZGE20,21 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-68030 |
ZGE20,21 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-68020 |
ZGE2#..CVFC |
1 | ||
| 67407-68020 |
ZGE21 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-68020 |
ZGE21 |
1 | ||
| 67408-68020 |
ZGE2#..CVFC |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ZGE21 |
1 | ||
| 67673-48010 |
ZGE2#..CVFC |
1 | ||
| 67673B - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-68020 |
ZGE2#..CVFC |
1 | ||
| 67673-68020 |
ZGE21 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ZGE2#..CVFC |
1 | ||
| 67674-48010 |
ZGE21 |
1 | ||
| 67674B - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-68020 |
ZGE21 |
1 | ||
| 67674-68020 |
ZGE2#..CVFC |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
ZGE21 |
1 | ||
| 67836-14010 |
ZGE2#..CVFC |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
ZGE2#..CVFC |
1 | ||
| 67836-14010 |
ZGE21 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-68031 |
ZGE2#..CVFC |
1 | ||
| 67841-68031 |
ZGE21 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-68010 |
ZGE2#..CVFC |
1 | ||
| 67842-68010 |
ZGE21 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZGE2#..CVFC |
19 | ||
| 67867-12150 |
ZGE21 |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZGE21 |
19 | ||
| 67867-12150 |
ZGE2#..CVFC |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-68020 |
ZGE2#..CVFC |
1 | ||
| 67871-68020 |
ZGE21 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-68020 |
ZGE2#..CVFC |
1 | ||
| 67872-68020 |
ZGE21 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-68050 |
ZGE21 *UVCT,T=3.5,GREEN |
1 | ||
| 68103-68050 |
ZGE2#..CVFC *UVCT,T=3.5,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-68050 |
ZGE2#..CVFC *UVCT,T=3.5,GREEN |
1 | ||
| 68104-68050 |
ZGE21 *UVCT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-68030 |
ZGE21 |
1 | ||
| 68142-68030 |
ZGE2#..CVFC |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-68030 |
ZGE21 |
1 | ||
| 68152-68030 |
ZGE2#..CVFC |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-68010 |
ZGE2#..CVFC PLR SET BRKT:BLACK |
1 | ||
| 68630-68011 |
ZGE2# PLR SET BRKT:SILVER |
1 | ||
| 68630-68010 |
ZGE21 PLR SET BRKT:BLACK |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-68011 |
ZGE2# PLR SET BRKT:SILVER |
1 | ||
| 68640-68010 |
ZGE21 PLR SET BRKT:BLACK |
1 | ||
| 68640-68010 |
ZGE2#..CVFC PLR SET BRKT:BLACK |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-68010 |
ZGE2#..CVFC |
1 | ||
| 75925-68010 |
ZGE21 |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-68010 |
ZGE2#..CVFC |
1 | ||
| 75926-68010 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50026 | ||||
| 90159-60581 | ||||
| 90467-09203 | ||||
| 90467-10203 | ||||
| 90468-04181 | ||||
| 90950-01841 | ||||
| 91631-B0614 | ||||
| 94151-80600 | ||||

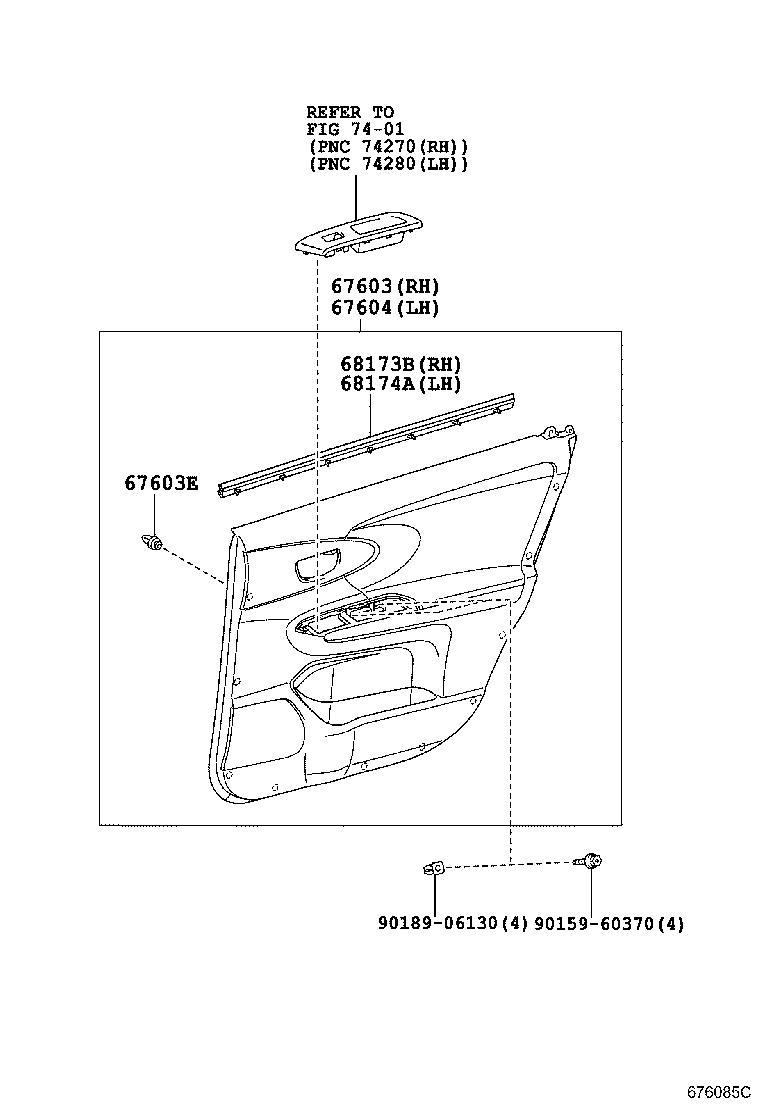

ILLUST NO. 2 OF 2(0911- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06130 | ||||
| Linked diagrams | ||||
| 7401 | ||||

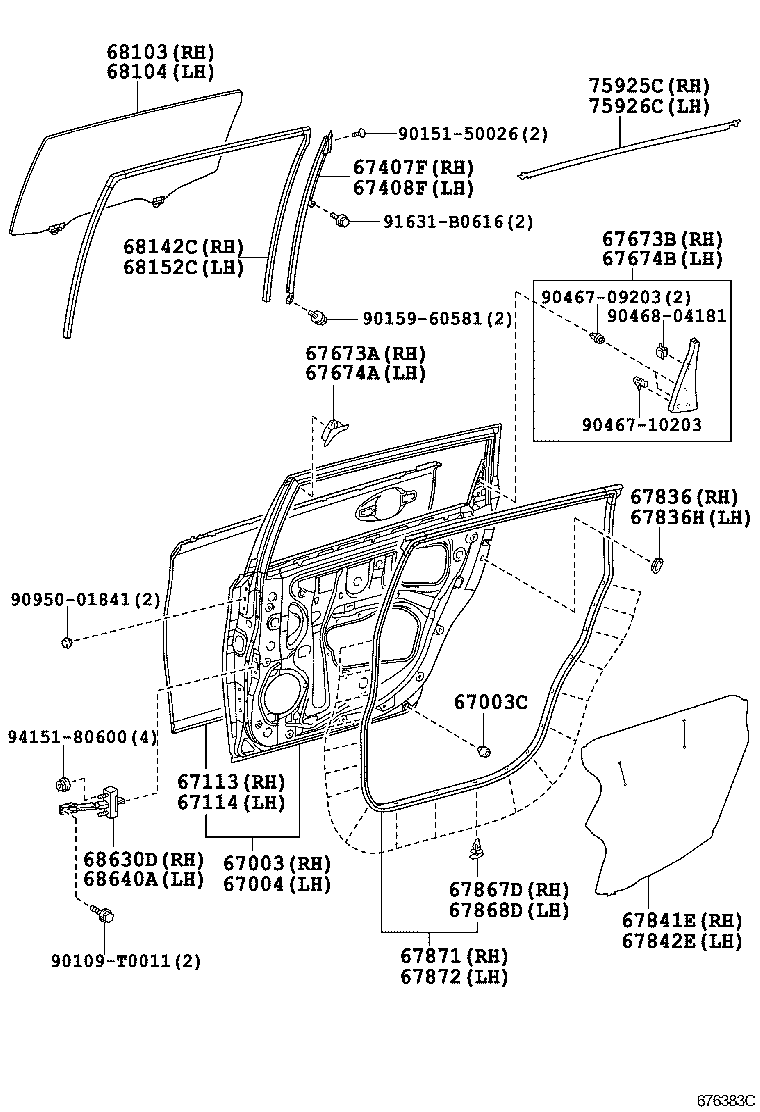

ILLUST NO. 1 OF 2(0911- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-T0011 | ||||
| 90151-50026 | ||||
| 90159-60581 | ||||
| 90467-09203 | ||||
| 90467-10203 | ||||
| 90468-04181 | ||||
| 90950-01841 | ||||
| 91631-B0616 | ||||
| 94151-80600 | ||||
