ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

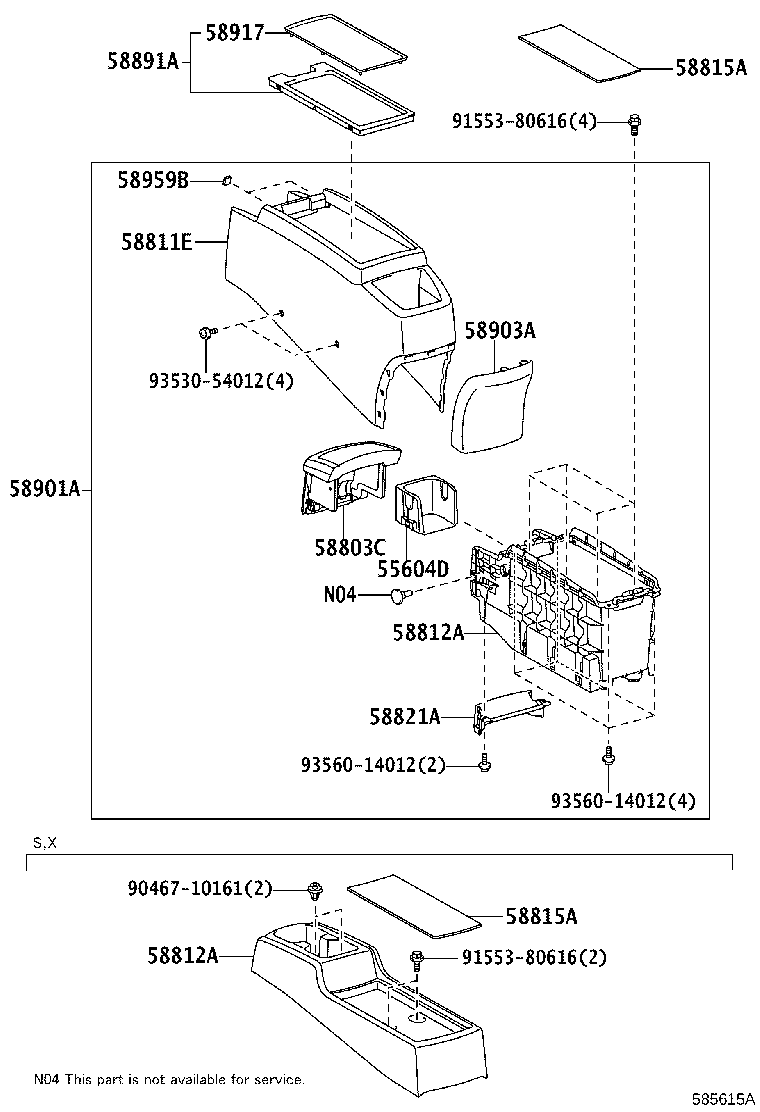

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-68010 |
ZGE21,22..CVFC |
1 | ||
| 55604-68010 |
ZGE21..20G |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58811E - BOX, CONSOLE, UPPER | ||||
| 58811-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-68040 |
ZGE21,22..20G,20Z |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-68040 |
ZGE21,22..20G,20Z |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-68050 |
ZGE21..20G |
1 | ||
| 58815-68050 |
ZGE21,22..CVFC |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-68050 |
ZGE21..20G |
1 | ||
| 58815-68050 |
ZGE21,22..CVFC |
1 | ||
| 58821A - PANEL, CONSOLE | ||||
| 58821-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58891A - PANEL, EQUIPMENT SET, NO.1 | ||||
| 58891-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-68020E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58917 - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-68010E0 |
ZGE21..20G GREGE,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
ZGE21,22..CVFC |
2 | ||
| 58959-60030 |
ZGE21..20G |
2 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 91553-80616 | ||||
| 93530-54012 | ||||
| 93560-14012 | ||||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55419-32020 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 91631-J0612 | ||||
| 93568-55018 | ||||
