ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

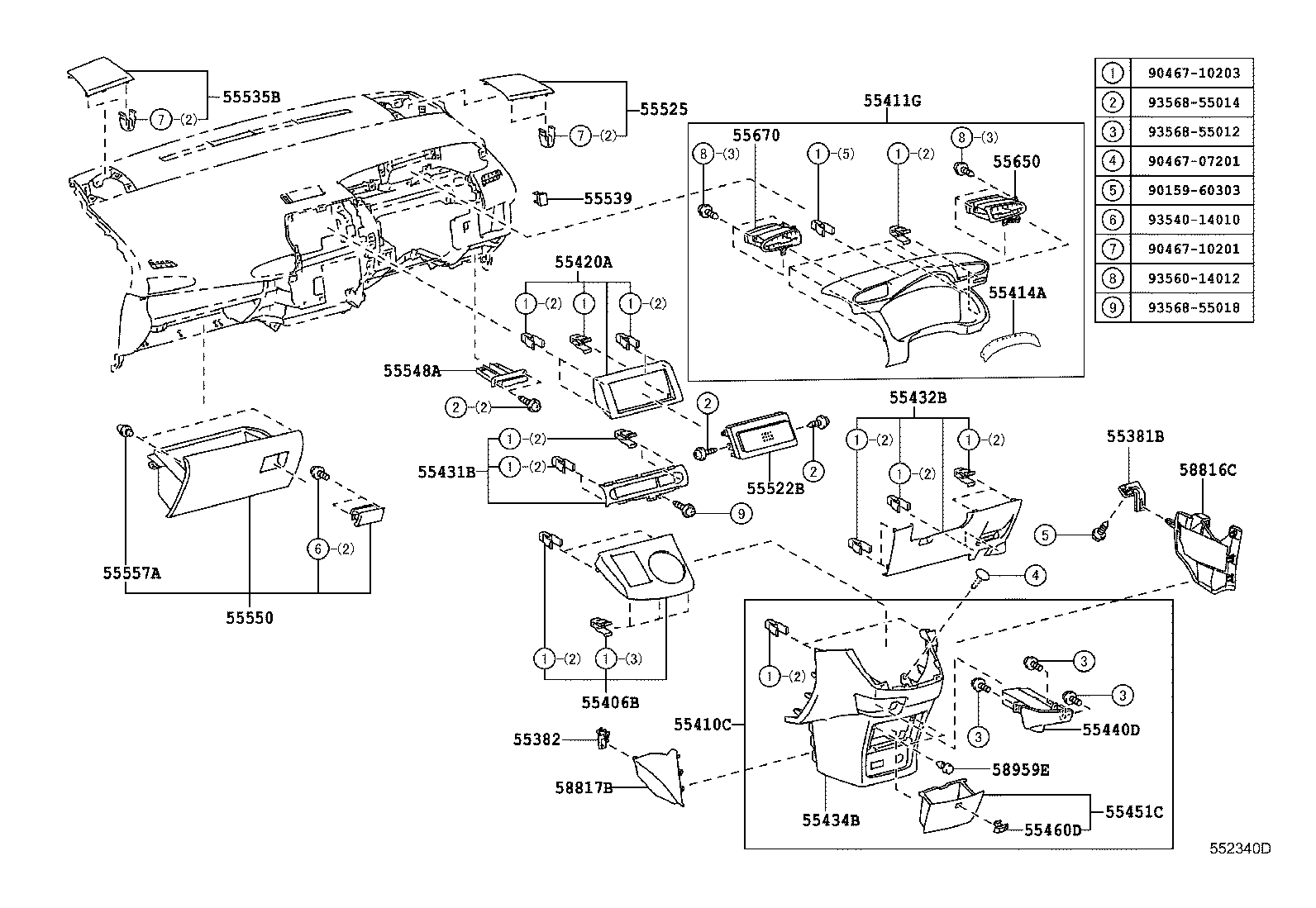

ILLUST NO. 2 OF 2(0909-1204)

Click highlighted areas on diagram

diagram 55381B 55382 55406B 55410C 55411G 55414A 55420A 55431B 55432B 55434B 55440D 55451C 55460D 55522B 55525 55535B 55539 55548A 55550 55557A 55650 55670 58816C 58817B 58959E 9015960303 9046707201 9046710201 9046710203 9354014010 9356014012 9356855012 9356855014 9356855018
Part # Description Qty Price
55381B - BRACKET, FINISH PANEL MOUNTING, NO.1
55389-42020

ZGE21

 1
55389-42020

ZGE2#..CVFC

 1
55382 - BRACKET, FINISH PANEL MOUNTING, NO.2
55388-42020

ZGE21

 1
55388-42020

ZGE2#..CVFC

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-68030

ZGE21,22..20G,20Z

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-68030B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-68130

ZGE21,22..CVFC

 1
55420-68130

ZGE21..20G

 1
55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER
55431-68010

ZGE2#..CVFC

 1
55431-68010

ZGE21

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-68030B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-68030B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-68040B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55451C - BOX, INSTRUMENT PANEL, NO.1
55451-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55460D - LOCK ASSY, INSTRUMENT PANEL BOX
55460-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

ZGE2#

 1
55525 - COVER, SPEAKER HOLE, NO.1
55525-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55535B - COVER, SPEAKER HOLE, NO.2
55535-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-52060B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-52030B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-68020B0

ZGE21..CVFC

DK.GRAY,TRIM4#

 1
55550-68020B0

ZGE21

DK.GRAY,TRIM4#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-53030

ZGE2#..CVFC

 2
55557-53030

ZGE21

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-68040

ZGE2#..CVFC

 1
55650-68040

ZGE21

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-68040

ZGE2#..CVFC

 1
55670-68040

ZGE21

 1
58816C - INSERT, CONSOLE BOX, FRONT NO.1
58816-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
58817B - INSERT, CONSOLE BOX, FRONT NO.2
58817-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
58959E - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ZGE2#..CVFC

 2
58959-60060

ZGE21

 2
Common parts
90159-60303
90467-07201
90467-10201
90467-10203
93540-14010
93560-14012
93568-55012
93568-55014
93568-55018

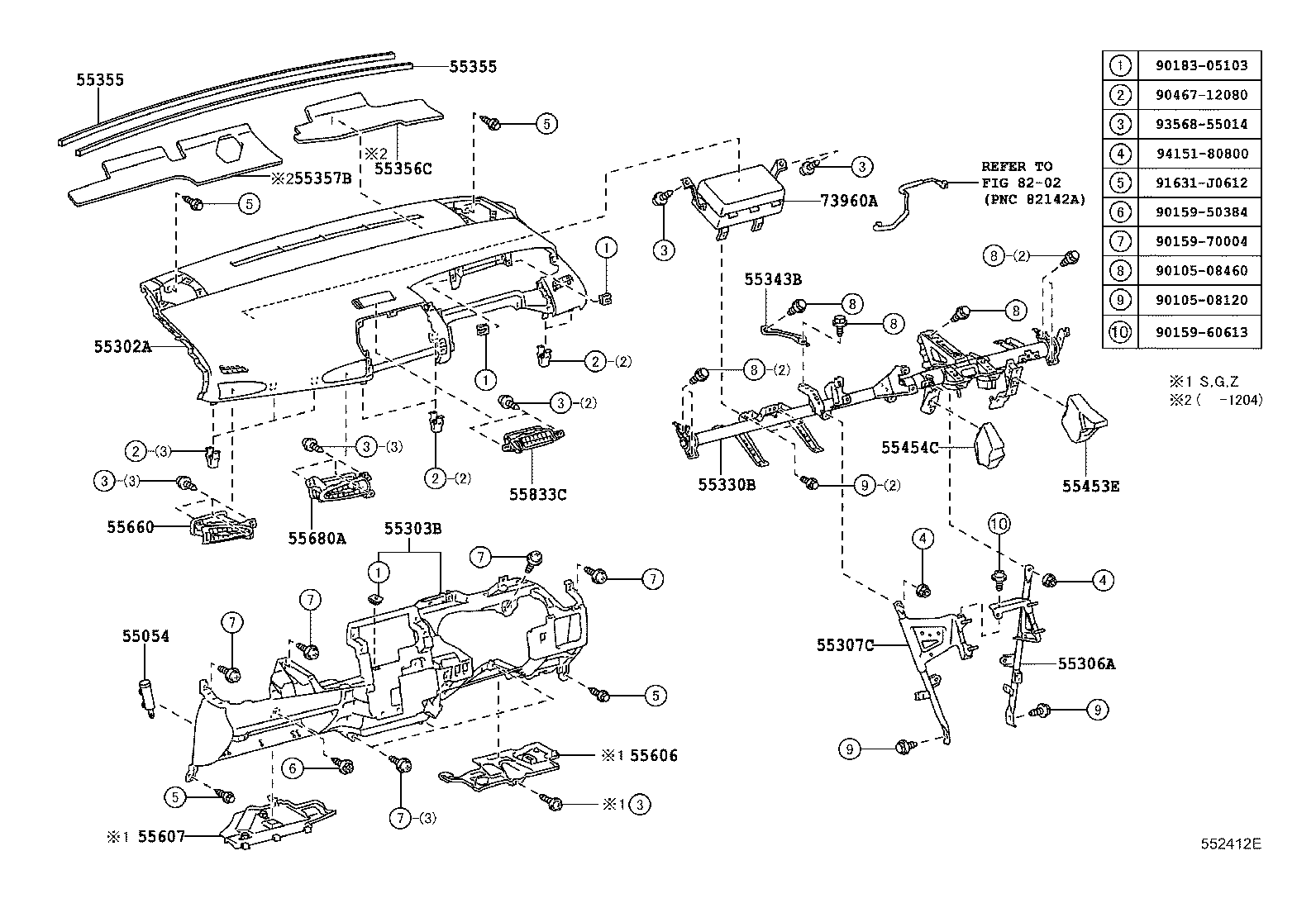

ILLUST NO. 1 OF 2(0909- )

Click highlighted areas on diagram

diagram 55054 55302A 55303B 55306A 55307C 55330B 55343B 55355 55355 55356C 55357B 55453E 55454C 55606 55607 55660 55680A 55833C 73960A 8202 9010508120 9010508460 9015950384 9015960613 9015970004 9018305103 9046712080 91631J0612 9356855014 9415180800
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-33060

ZGE2#..CVFC

 1
55054-33060

ZGE21

 1
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-68900B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-68010B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-68020

ZGE21

 1
55306-68020

ZGE2#..CVFC

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-68020

ZGE21

 1
55307-68020

ZGE2#..CVFC

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-68050

ZGE21

 1
55330-68050

ZGE2#..CVFC

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-20080

ZGE21

 1
55343-20080

ZGE2#..CVFC

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68020

ZGE2#

 2
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68020

ZGE2#

 2
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-68020

ZGE2#

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-68020

ZGE2#

 1
55453E - PAD, INSTRUMENT, LOWER RH
55453-68020

ZGE21

 1
55453-68020

ZGE2#..CVFC

 1
55454C - PAD, INSTRUMENT, LOWER LH
55454-68020

ZGE2#..CVFC

 1
55454-68020

ZGE21

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-68010

ZGE21..20G

 1
55606-68010

ZGE2#..CVFC..(18S,20G,20Z)

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-12061

ZGE2#..CVFC..(18S,20G,20Z)

 1
55607-12061

ZGE21..20G

 1
55607-72010

ZGE2#..18S,20G,20Z

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-68040

ZGE2#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-68040

ZGE2#

 1
55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER
55833-68020B0

ZGE21..20G

DK.GRAY,TRIM4#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-68010

ZGE2#..CVFC

 1
73960-68010

ZGE21

 1
Common parts
90105-08120
90105-08460
90159-50384
90159-60613
90159-70004
90183-05103
90467-12080
91631-J0612
93568-55014
94151-80800
Linked diagrams
8202

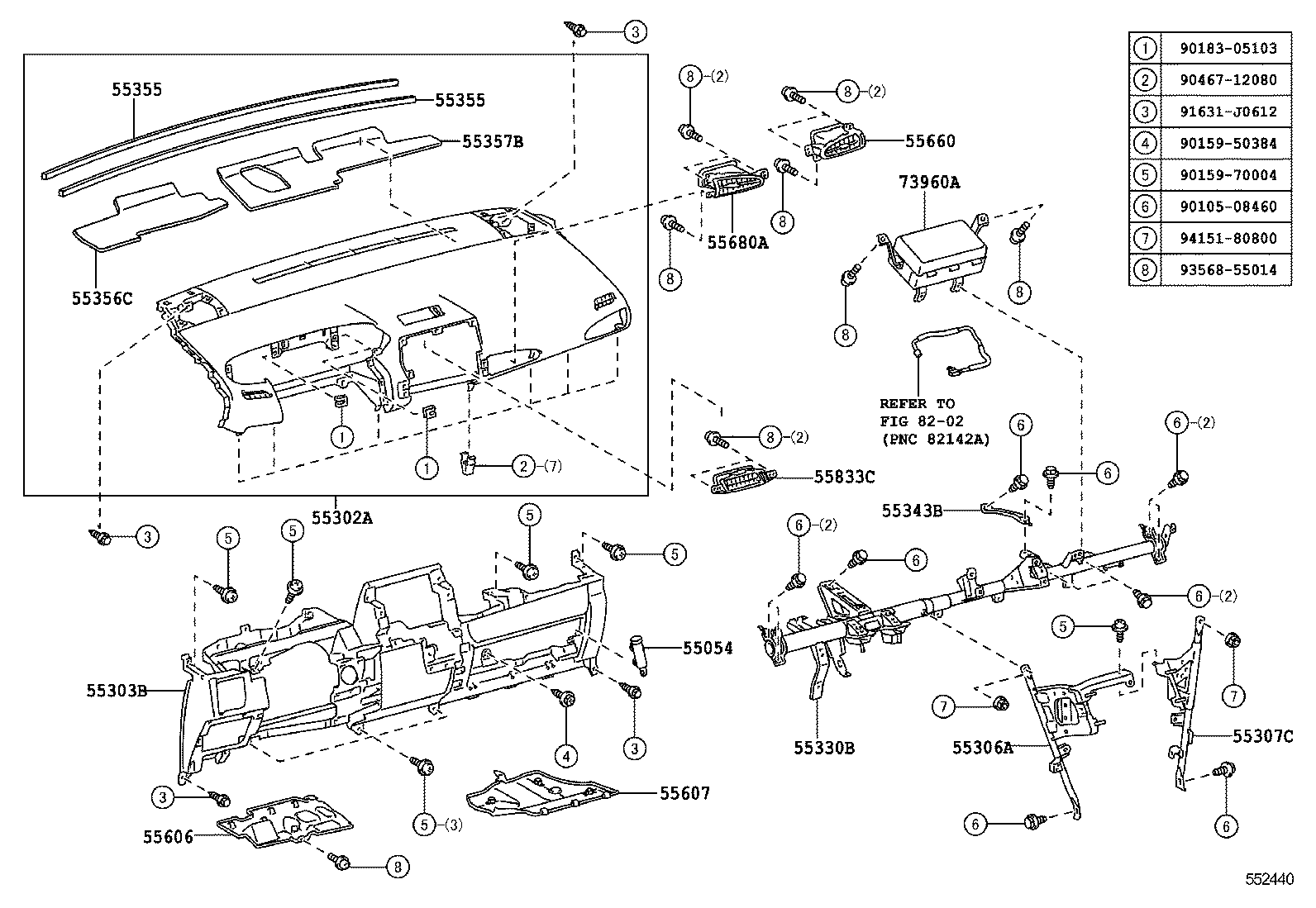

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

diagram 55054 55302A 55303B 55306A 55307C 55330B 55343B 55355 55355 55356C 55357B 55606 55607 55660 55680A 55833C 73960A 8202 9010508460 9015950384 9015970004 9018305103 9046712080 91631J0612 9356855014 9415180800
Part # Description Qty Price
Common parts
90105-08460
90159-50384
90159-70004
90183-05103
90467-12080
91631-J0612
93568-55014
94151-80800
Linked diagrams
8202

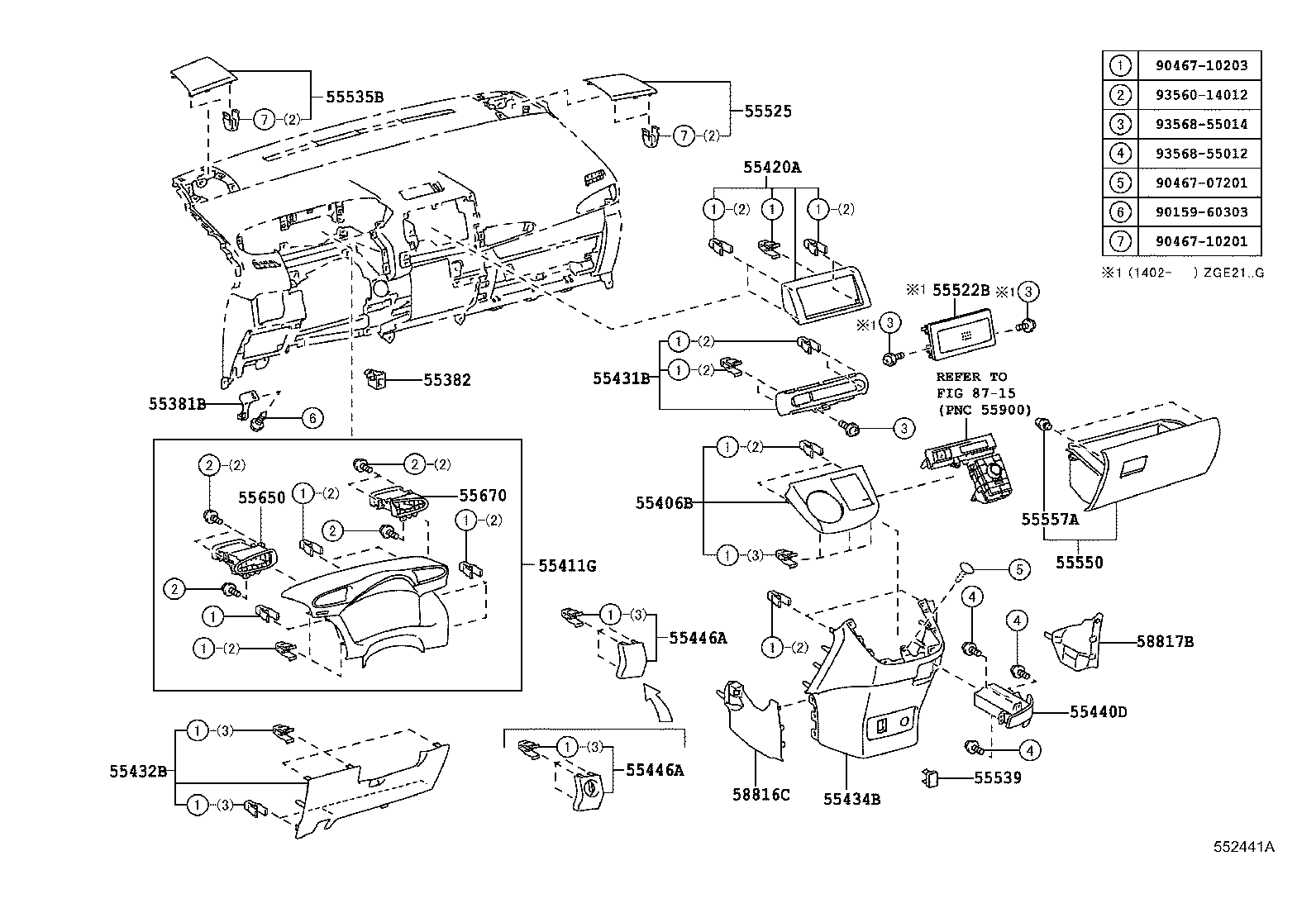

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

diagram 55381B 55382 55406B 55411G 55420A 55431B 55432B 55434B 55440D 55446A 55446A 55522B 55525 55535B 55539 55550 55557A 55650 55670 58816C 58817B 8715 9015960303 9046707201 9046710201 9046710203 9356014012 9356855012 9356855014
Part # Description Qty Price
Common parts
90159-60303
90467-07201
90467-10201
90467-10203
93560-14012
93568-55012
93568-55014
Linked diagrams
8715
