ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

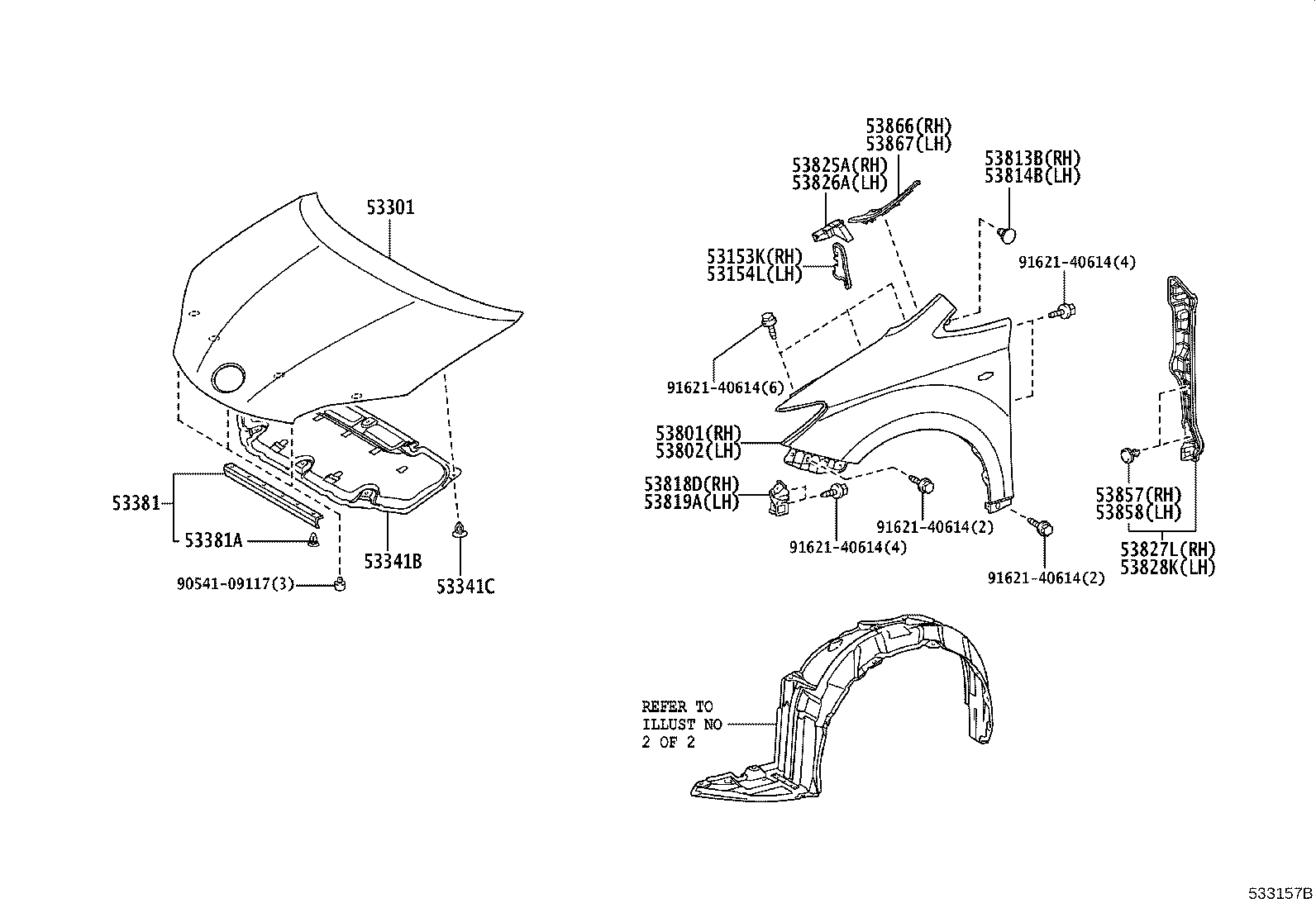

ILLUST NO. 1 OF 2(0909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-68020 |
ZGE2#..CVFC |
1 | ||
| 53153-68020 |
ZGE21 |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-68020 |
ZGE21 |
1 | ||
| 53154-68020 |
ZGE2#..CVFC |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-68020 |
ZGE2# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-68020 |
ZGE21 |
1 | ||
| 53341-68020 |
ZGE2#..CVFC |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZGE21 |
6 | ||
| 90467-09050 |
ZGE2#..CVFC |
6 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-68020 |
ZGE21 |
1 | ||
| 53381-68020 |
ZGE2#..CVFC |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ZGE21 |
6 | ||
| 90467-08011 |
ZGE2#..CVFC |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-68030 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 53811-68030 |
ZGE21 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-68030 |
ZGE21 |
1 | ||
| 53812-68030 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-52020 |
ZGE21 |
1 | ||
| 53813-48011 |
ZGE2# |
1 | ||
| 53813-52020 |
ZGE2#..CVFC |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-52020 |
ZGE21 |
1 | ||
| 53813-52020 |
ZGE2#..CVFC |
1 | ||
| 53813-48011 |
ZGE2# |
1 | ||
| 53818D - REINFORCEMENT, FRONT FENDER, REAR RH | ||||
| 53818-68010 |
ZGE21 |
1 | ||
| 53818-68010 |
ZGE2#..CVFC |
1 | ||
| 53819A - REINFORCEMENT, FRONT FENDER, REAR LH | ||||
| 53819-68010 |
ZGE2#..CVFC |
1 | ||
| 53819-68010 |
ZGE21 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-68030 |
ZGE2#..CVFC |
1 | ||
| 53825-68030 |
ZGE21 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-68030 |
ZGE21 |
1 | ||
| 53826-68030 |
ZGE2#..CVFC |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-68020 |
ZGE21 |
1 | ||
| 53827-68020 |
ZGE2#..CVFC |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-68020 |
ZGE21 |
1 | ||
| 53828-68020 |
ZGE2#..CVFC |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZGE21 |
4 | ||
| 53857-47011 |
ZGE2#..CVFC |
4 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-68020 |
ZGE21 |
1 | ||
| 53866-68020 |
ZGE2#..CVFC |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-68020 |
ZGE2#..CVFC |
1 | ||
| 53867-68020 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90541-09117 | ||||
| 90950-06064 | ||||
| 91621-40610 | ||||
| 91671-80612 | ||||

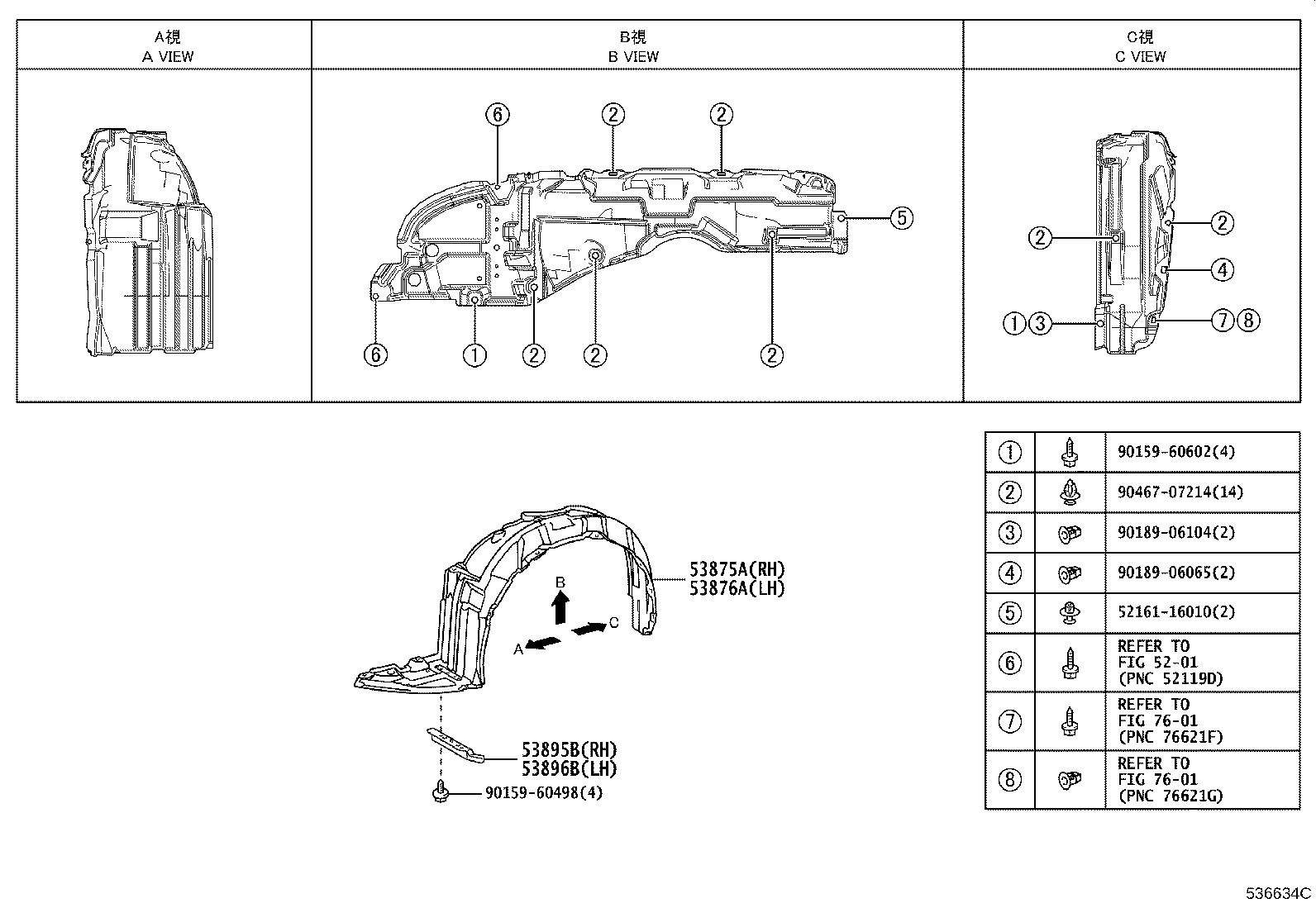

ILLUST NO. 2 OF 2(0909- )ZGE20,21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-68020 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 53875-68020 |
ZGE21 |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60602 |
ZGE2# |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-68020 |
ZGE21 |
1 | ||
| 53876-68020 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-68010 |
ZGE21 |
2 | ||
| 53879-68010 |
ZGE2#..CVFC |
2 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-68010 |
ZGE21 |
1 | ||
| 53895-68010 |
ZGE2#..CVFC |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-68010 |
ZGE21 |
1 | ||
| 53896-68010 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90159-60431 | ||||
| 90189-06065 | ||||
| 90189-06104 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||

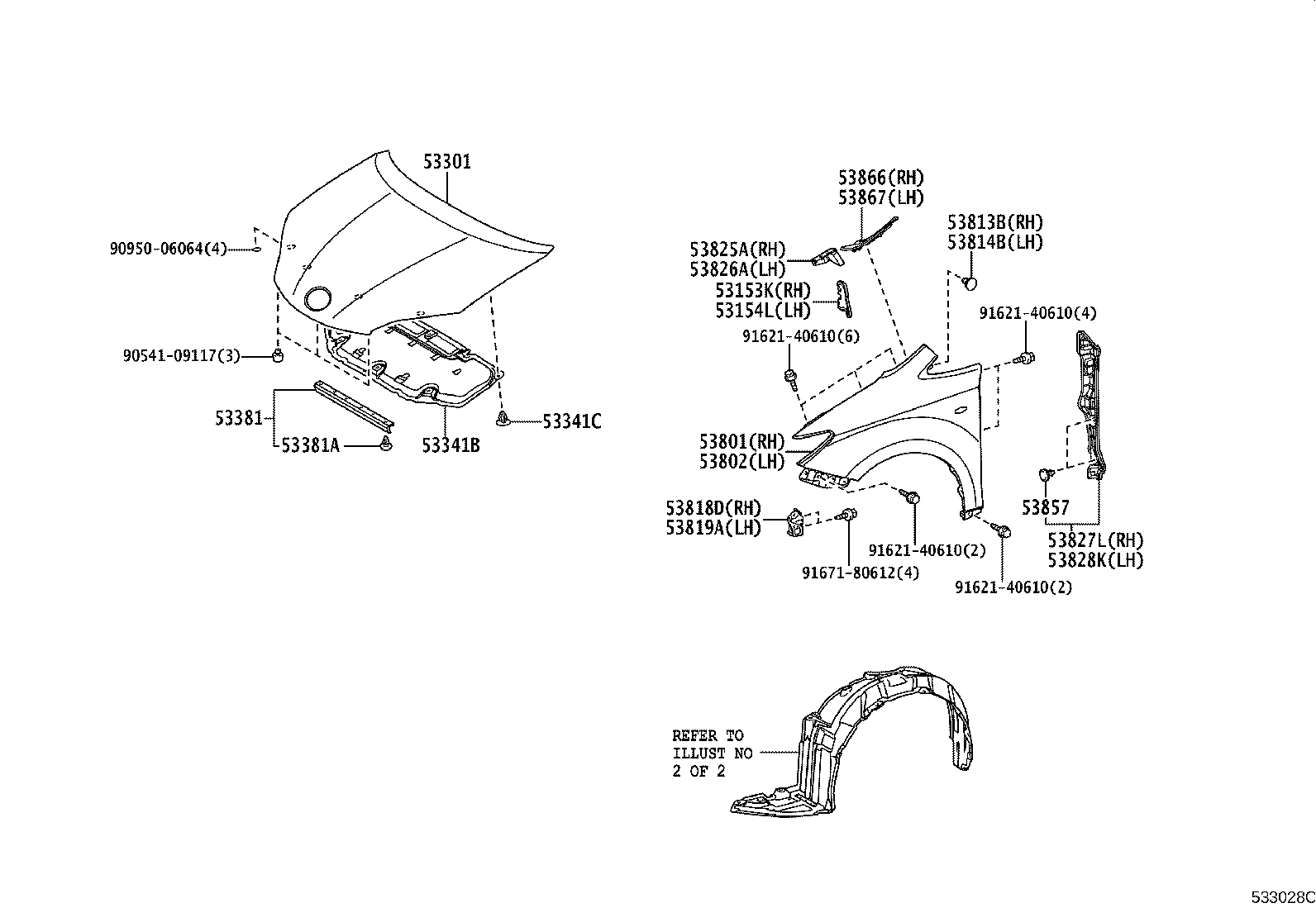

ILLUST NO. 1 OF 2(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90541-09117 | ||||
| 91621-40614 | ||||
ILLUST NO. 2 OF 2(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 52161-16010 | ||||
| 90159-60498 | ||||
| 90159-60602 | ||||
| 90189-06065 | ||||
| 90189-06104 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7601 | ||||
