ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

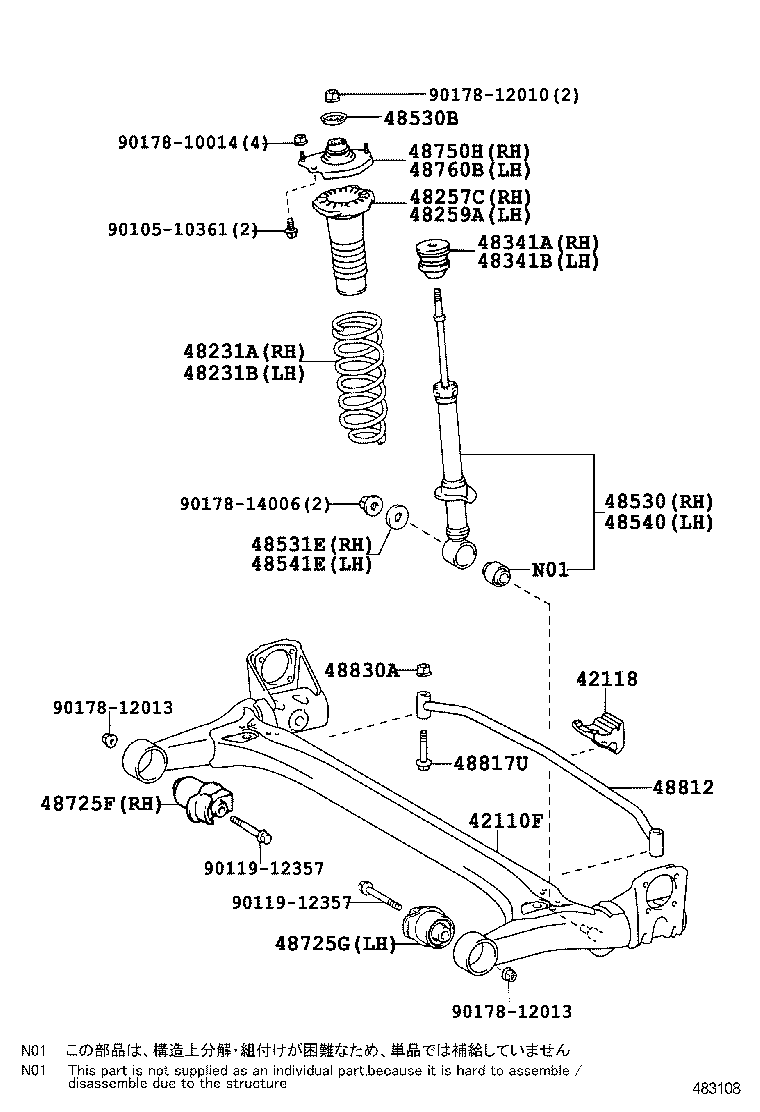

(0909- )ZGE20,21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-68040 |
ZGE21 |
1 | ||
| 42101-68040 |
ZGE20,21..CVFC..(18S,20G) |
1 | ||
| 42118 - DAMPER, REAR AXLE BEAM | ||||
| 42118-68020 |
ZGE21 |
1 | ||
| 42118-68020 |
ZGE20,21..CVFC |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-68060 |
ZGE21 |
1 | ||
| 48231-68060 |
ZGE20,21..CVFC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-68060 |
ZGE20,21..CVFC |
1 | ||
| 48231-68060 |
ZGE21 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-68011 |
ZGE21 |
1 | ||
| 48257-68011 |
ZGE20,21..CVFC |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-68011 |
ZGE20,21..CVFC |
1 | ||
| 48257-68011 |
ZGE21 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32100 |
ZGE2#..CVFC |
1 | ||
| 48341-32100 |
ZGE21 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32100 |
ZGE21 |
1 | ||
| 48341-32100 |
ZGE2#..CVFC |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-68060 |
ZGE21 MARK 48530-68060 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ZGE21 |
2 | ||
| 90948-03021 |
ZGE2#..CVFC |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90201-14034 |
ZGE21 |
1 | ||
| 90201-14034 |
ZGE20,21..CVFC |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-68060 |
ZGE21 MARK 48530-68060 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90201-14034 |
ZGE20,21..CVFC |
1 | ||
| 90201-14034 |
ZGE21 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-12640 |
ZGE21 |
1 | ||
| 48725-12640 |
ZGE20,21..CVFC |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-12640 |
ZGE21 |
1 | ||
| 48725-12640 |
ZGE20,21..CVFC |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-68010 |
ZGE20,21..CVFC |
1 | ||
| 48750-68010 |
ZGE21 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-68010 |
ZGE21 |
1 | ||
| 48760-68010 |
ZGE20,21..CVFC |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-68040 |
ZGE20,21..CVFC |
1 | ||
| 48812-68040 |
ZGE21 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-16085 |
ZGE20,21..CVFC |
2 | ||
| 90105-16085 |
ZGE21 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21641 |
ZGE20,21..CVFC |
2 | ||
| 94151-21641 |
ZGE21 |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12010 | ||||
| 90178-12013 | ||||
| 90178-14006 | ||||

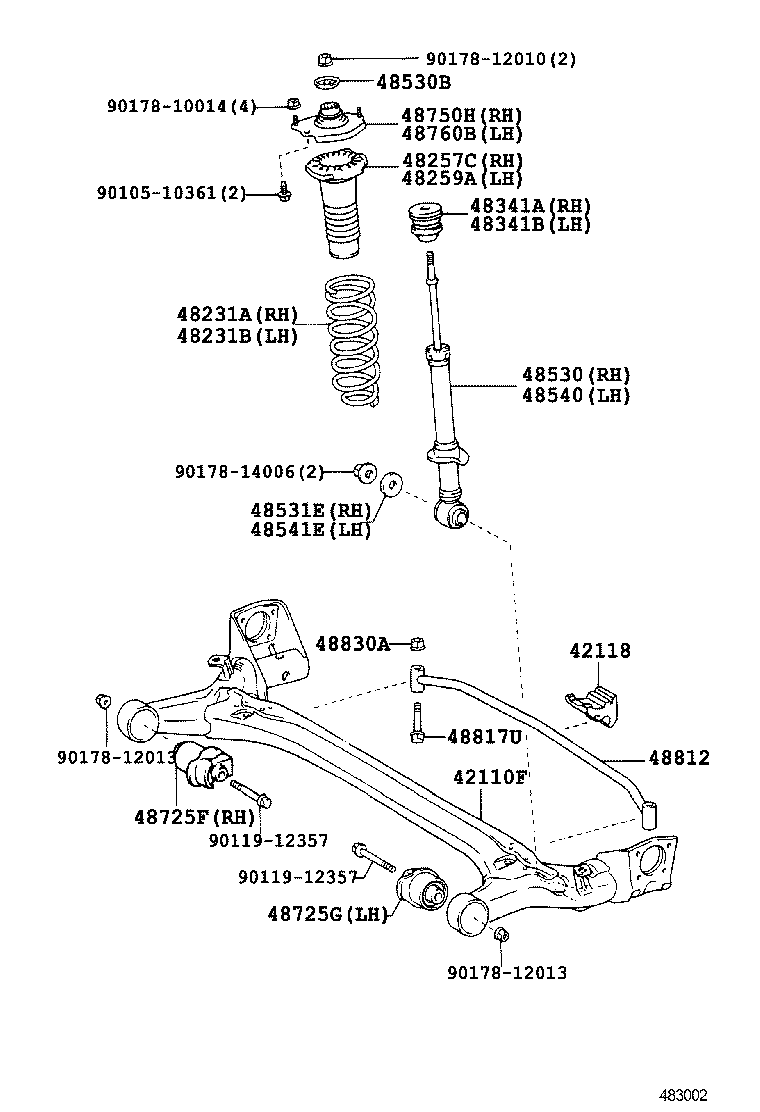

(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12010 | ||||
| 90178-12013 | ||||
| 90178-14006 | ||||
