ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )18X,20G,20X ; (1006- )18S,20Z

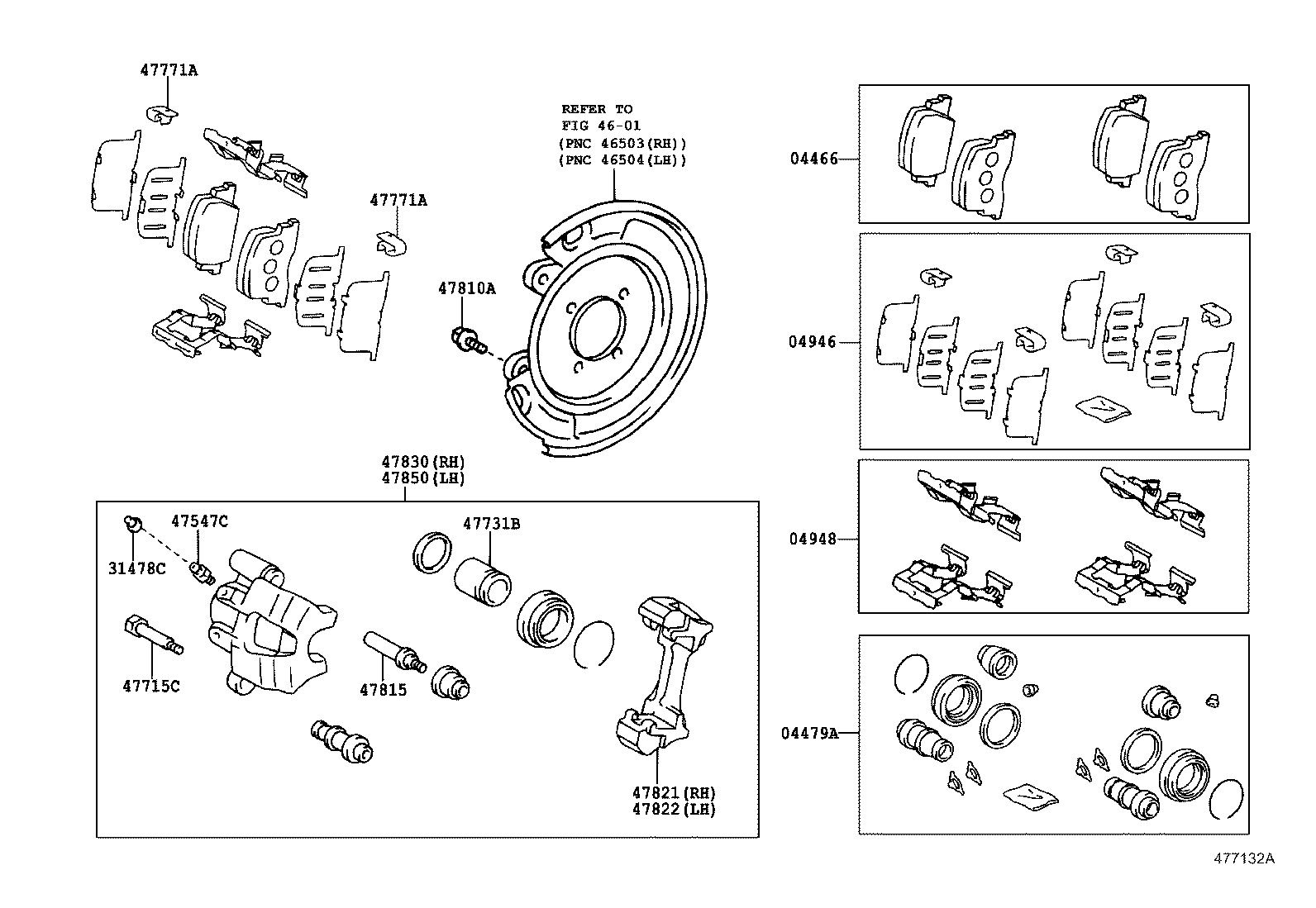

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-48080 |
ZGE21 MARK AK PA561 |
1 | ||
| 04466-48080 |
ZGE2#..CVFC..(18S,20G,20Z) MARK AK PA561 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-68090 |
ZGE2#..18S,20G,20Z PNC 47715F=TYPE B |
1 | ||
| 04479-68060 |
ZGE2#..18S,20G,20X,20Z PNC 47715F=TYPE B |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-33050 |
ZGE2#..18S,20G,20X,20Z PNC 47715F=TYPE B |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-48010 |
ZGE21 |
1 | ||
| 04948-48010 |
ZGE2#..CVFC..(18S,20G,20Z) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ZGE2#..CVFC..(18S,20G,20Z) |
2 | ||
| 31478-30010 |
ZGE21 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ZGE21 |
2 | ||
| 47547-20010 |
ZGE2#..CVFC..(18S,20G,20Z) |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-32020 |
ZGE21 |
2 | ||
| 47715-32020 |
ZGE2#..CVFC..(18S,20G,20Z) |
2 | ||
| 47715F - PIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47715-32040 |
ZGE2#..18S,20G,20X,20Z TYPE B |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-21031 |
ZGE2#..18S,20G,20X,20Z PNC 47715F=TYPE B |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47722-21031 |
ZGE2#..18S,20G,20X,20Z PNC 47715F=TYPE B |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-21040 |
ZGE21 |
1 | ||
| 47730-21040 |
ZGE2#..CVFC..(18S,20G,20Z) |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-48020 |
ZGE2#..CVFC..(18S,20G,20Z) |
2 | ||
| 47731-48020 |
ZGE21 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-21040 |
ZGE21 |
1 | ||
| 47750-21040 |
ZGE2#..CVFC..(18S,20G,20Z) |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
ZGE2#..18S,20G,20X,20Z |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
(0911- )

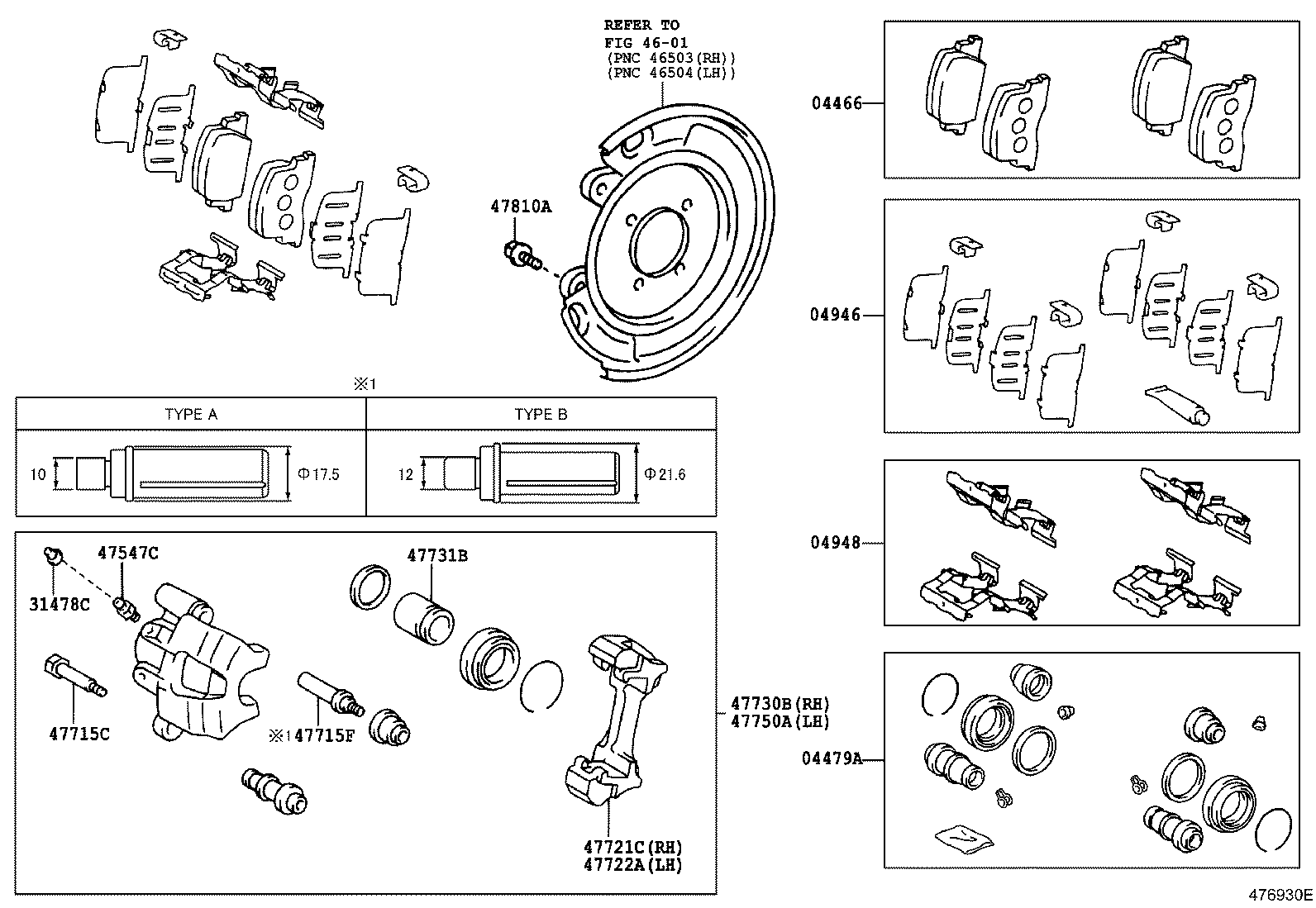

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4601 | ||||
