ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909-1204)

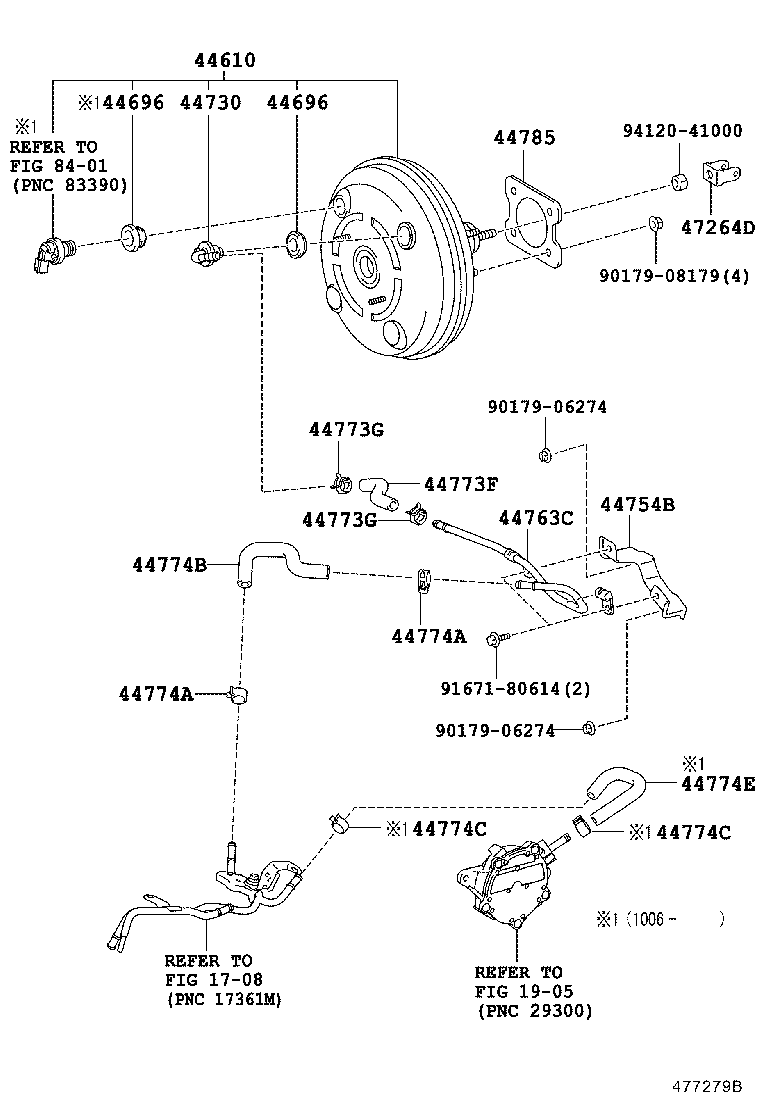

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-68090 |
ZGE2# |
1 | ||
| 44610-68110 |
ZGE21 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZGE21 |
1 | ||
| 90480-24439 |
ZGE2# |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZGE21 |
1 | ||
| 90480-24439 |
ZGE2# |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
ZGE2# |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-12040 |
ZGE2#..CVFC |
1 | ||
| 44754-12040 |
ZGE21 |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-12460 |
ZGE21 |
1 | ||
| 44763-12460 |
ZGE2#..CVFC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12820 |
ZGE2#..CVFC |
1 | ||
| 44773-12820 |
ZGE21 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZGE21 |
2 | ||
| 96133-41500 |
ZGE2#..CVFC |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
ZGE21 |
2 | ||
| 96133-41500 |
ZGE2#..CVFC |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZGE2#..CVFC |
2 | ||
| 96133-41500 |
ZGE21 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZGE2#..CVFC |
2 | ||
| 96133-41500 |
ZGE21 |
2 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12650 |
ZGE2#..CVFC |
1 | ||
| 44774-12650 |
ZGE21 |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZGE2# |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZGE2# |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-28320 |
ZGE2# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
ZGE2#..CVFC |
1 | ||
| 44785-12040 |
ZGE21 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-68010 |
ZGE2# |
1 | ||
| 47264-63020 |
ZGE2# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-08179 | ||||
| 91671-80614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 1905 | ||||
| 8401 | ||||
(0911- )

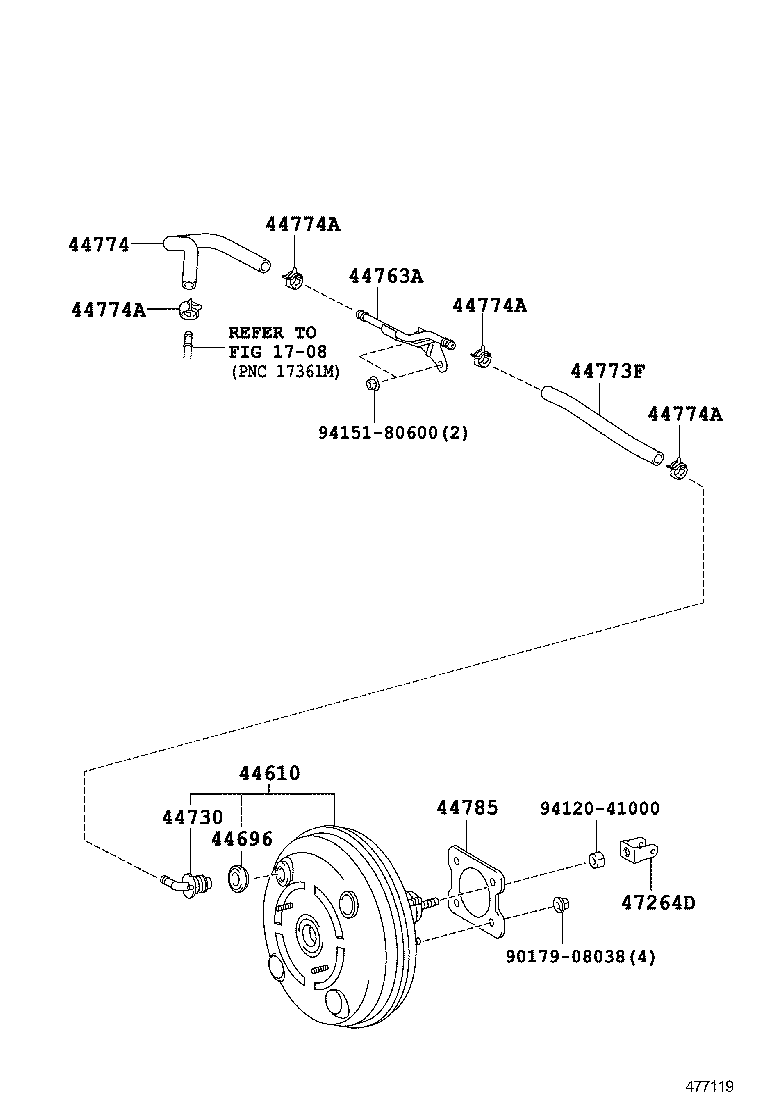

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
