ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

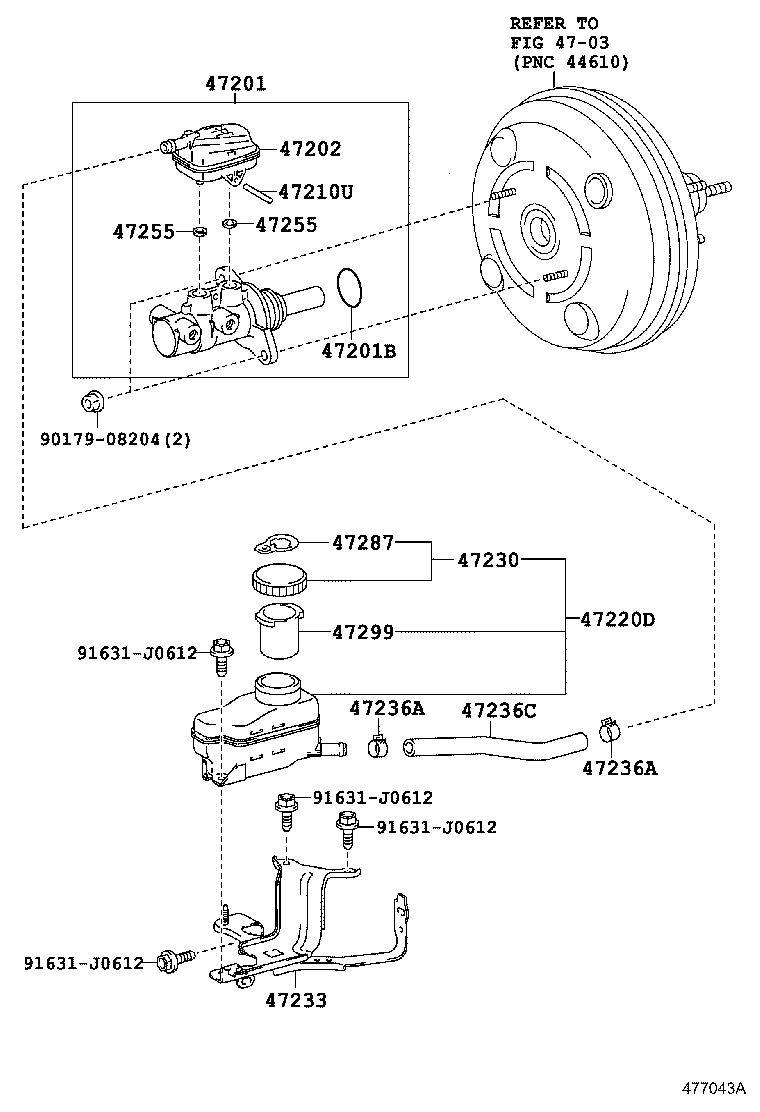

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-68041 |
ZGE2# |
1 | ||
| 47201-68040 |
ZGE2# |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
ZGE2# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-28330 |
ZGE2# |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
ZGE2# |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-68020 |
ZGE2#..CVFC |
1 | ||
| 47220-68020 |
ZGE21 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20100 |
ZGE21 |
1 | ||
| 47230-20140 |
ZGE2# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47203-68010 |
ZGE2#..CVFC |
1 | ||
| 47203-68010 |
ZGE21 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 96134-51700 |
ZGE21 |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 96134-51700 |
ZGE21 |
2 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47234-68030 |
ZGE21 |
1 | ||
| 47234-68030 |
ZGE2#..CVFC |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ZGE2# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ZGE2# |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
ZGE2# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
ZGE2#..CVFC |
1 | ||
| 47299-24010 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 4703 | ||||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
