ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

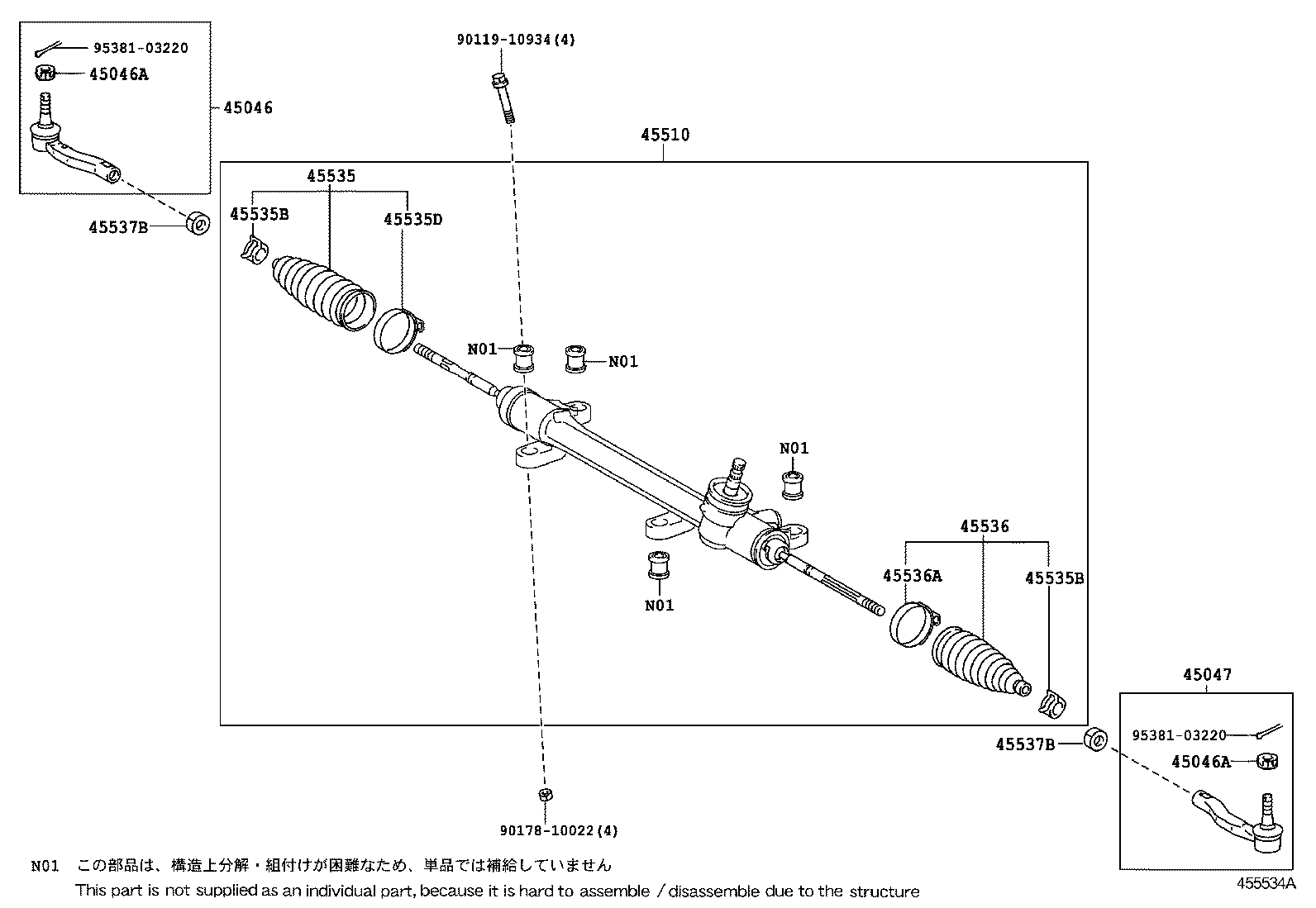

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011910934 9017810022 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-59205

ZGE20,21..CVFC..(18X,20G)

 1
45046-59205

ZGE21

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZGE2#..CVFC

 2
90171-12028

ZGE21

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZGE2#..CVFC

 2
90171-12028

ZGE21

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59145

ZGE21

 1
45047-59145

ZGE20,21..CVFC..(18X,20G)

 1
45510 - GEAR ASSY, STEERING
45510-68020

ZGE20,21..CVFC..(18X,20G)

 1
45510-68020

ZGE21

 1
45535 - BOOT, STEERING RACK, NO.1
45535-29015

ZGE20,21..CVFC..(18X,20G)

 1
45535-29015

ZGE21

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZGE21

 2
90467-19021

ZGE2#..CVFC

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZGE21

 2
90467-19021

ZGE2#..CVFC

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-52010

ZGE2#..CVFC

 1
45538-52010

ZGE21

 1
45536 - BOOT, STEERING RACK, NO.2
45535-29015

ZGE21

 1
45535-29015

ZGE20,21..CVFC..(18X,20G)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-52010

ZGE2#..CVFC

 1
45538-52010

ZGE21

 1
45537B - NUT, RACK END LOCK
90170-15001

ZGE2#

 2
45537B - NUT, RACK END LOCK
90170-15001

ZGE2#

 2
Common parts
90119-10934
90178-10022
95381-03020

(0911- )

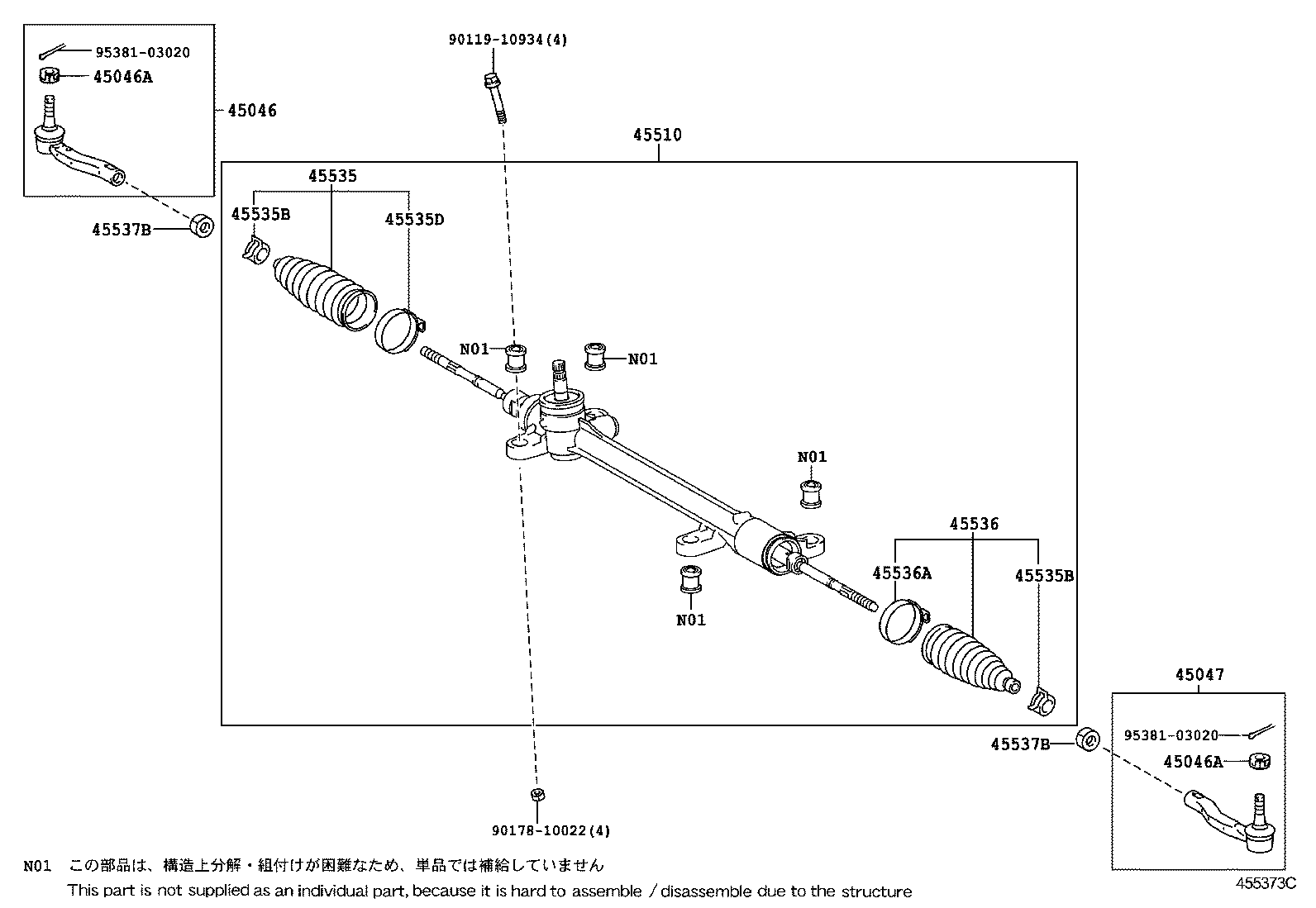

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011910934 9017810022 9538103220 9538103220
Part # Description Qty Price
Common parts
90119-10934
90178-10022
95381-03220
