ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

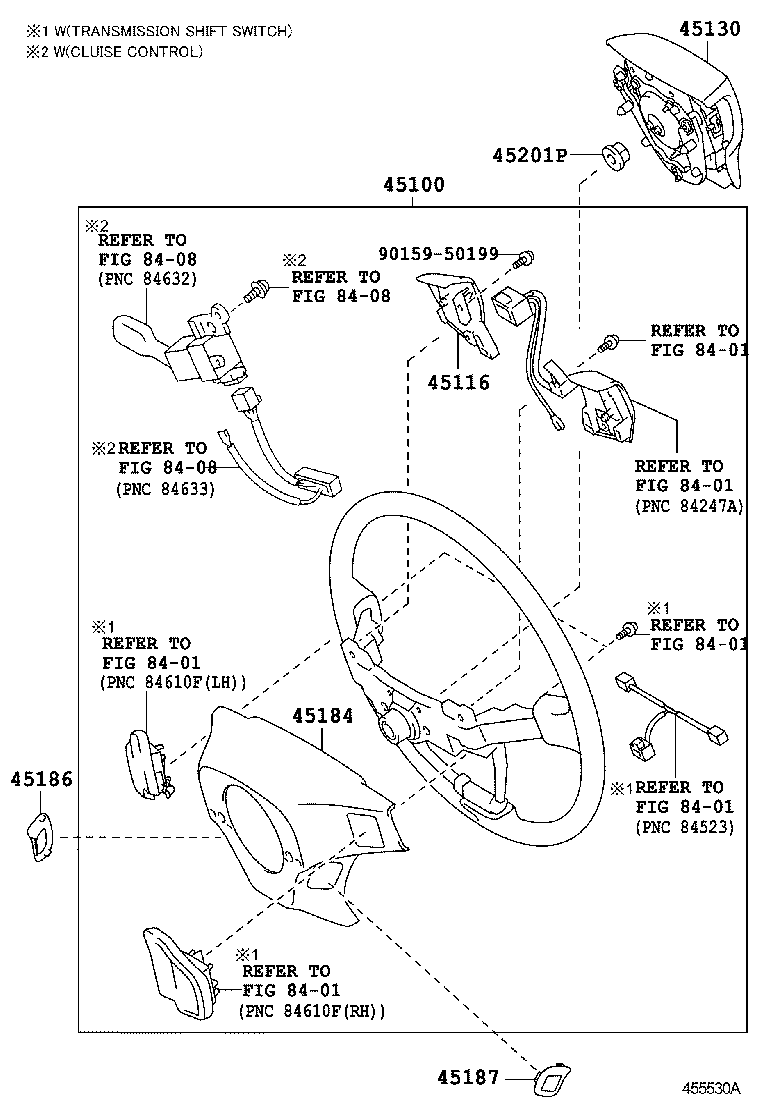

Click highlighted areas on diagram
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-68140B0 |
ZGE21..20G 3-SPOKE,LEATHER,W(MOON ROOF),DK.GRAY,TRIM4# |
1 | ||
| 45100-68130B0 |
ZGE21..20G 3-SPOKE,URETHANE,DK.GRAY,TRIM4# |
1 | ||
| 45100-68141B0 |
ZGE21 3-SPOKE,LEATHER,LEATHER PACKAGE,DK.GRAY,TRIM4# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-68010 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-68050 |
ZGE21..20G |
1 | ||
| 45116-68050 |
ZGE21,22..CVFC |
1 | ||
| 45117 - ORNAMENT, STEERING WHEEL, NO.2 | ||||
| 45117-68040 |
ZGE21,22..CVFC |
1 | ||
| 45117-68040 |
ZGE21..20G |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-68040B0 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-42040B0 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 45186-42030B0 |
ZGE21 DK.GRAY,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-42020B0 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ZGE21 |
1 | ||
| 90179-12071 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
(0911- )CVFC ; (0911- )4FC..E,G

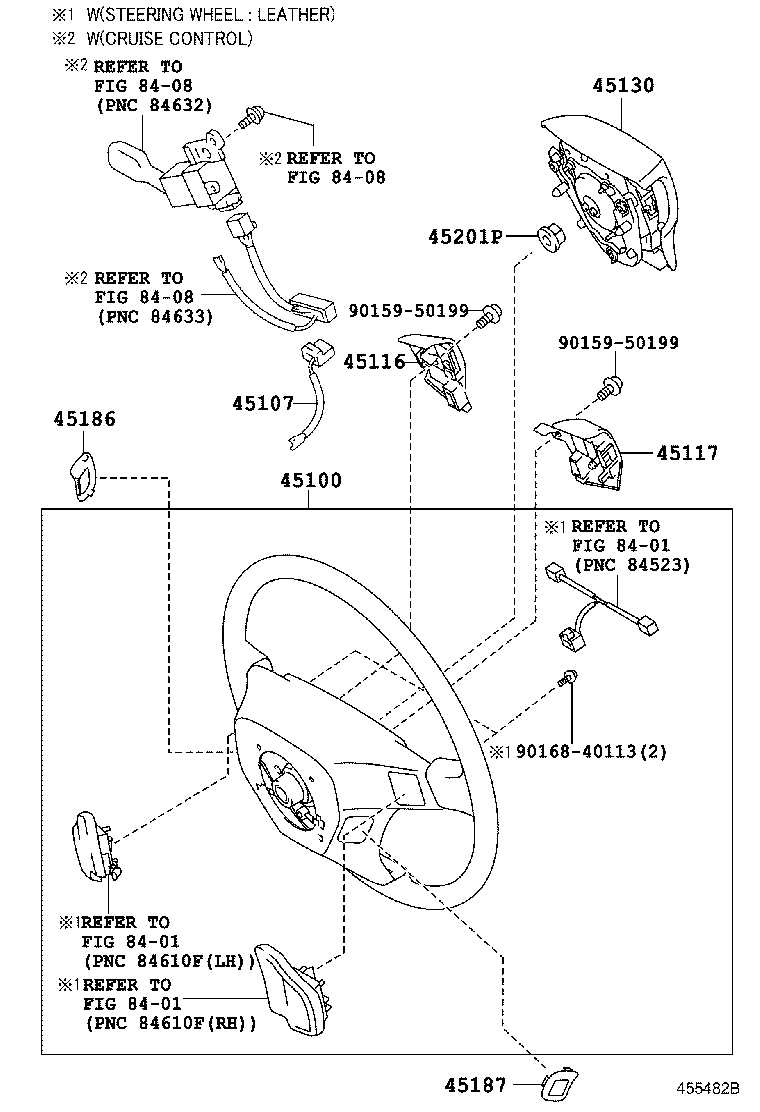

Click highlighted areas on diagram
3-SPOKE,W(STEERING SWITCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
