ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

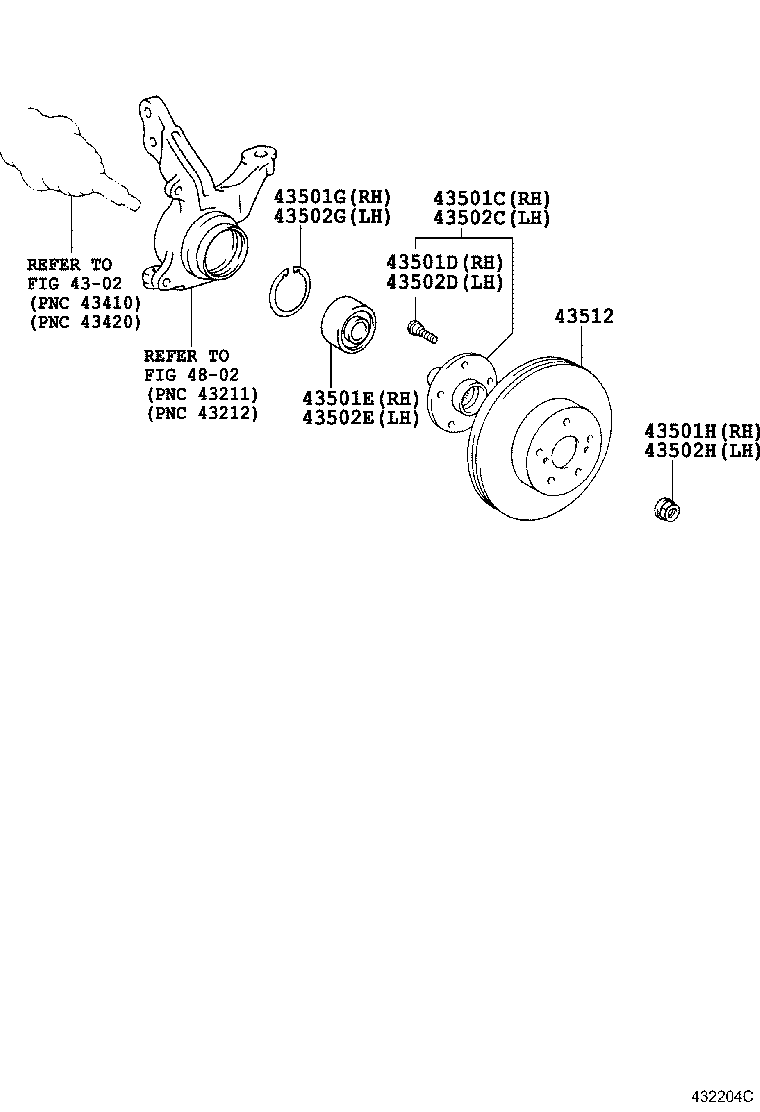

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-32080 |
ZGE21 |
1 | ||
| 43502-32080 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
ZGE21 |
5 | ||
| 90942-02049 |
ZGE2#..CVFC |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90363-40066 |
ZGE2#..CVFC |
1 | ||
| 90363-40066 |
ZGE21 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-79002 |
ZGE21 |
1 | ||
| 90521-79002 |
ZGE2#..CVFC |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
ZGE2#..CVFC |
1 | ||
| 90177-22001 |
ZGE21 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-32080 |
ZGE20,21..CVFC..(18X,20G) |
1 | ||
| 43502-32080 |
ZGE21 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
ZGE21 |
5 | ||
| 90942-02049 |
ZGE2#..CVFC |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90363-40066 |
ZGE2#..CVFC |
1 | ||
| 90363-40066 |
ZGE21 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-79002 |
ZGE21 |
1 | ||
| 90521-79002 |
ZGE2#..CVFC |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
ZGE2#..CVFC |
1 | ||
| 90177-22001 |
ZGE21 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-68020 |
ZGE2# |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
| 4802 | ||||
(0911- )

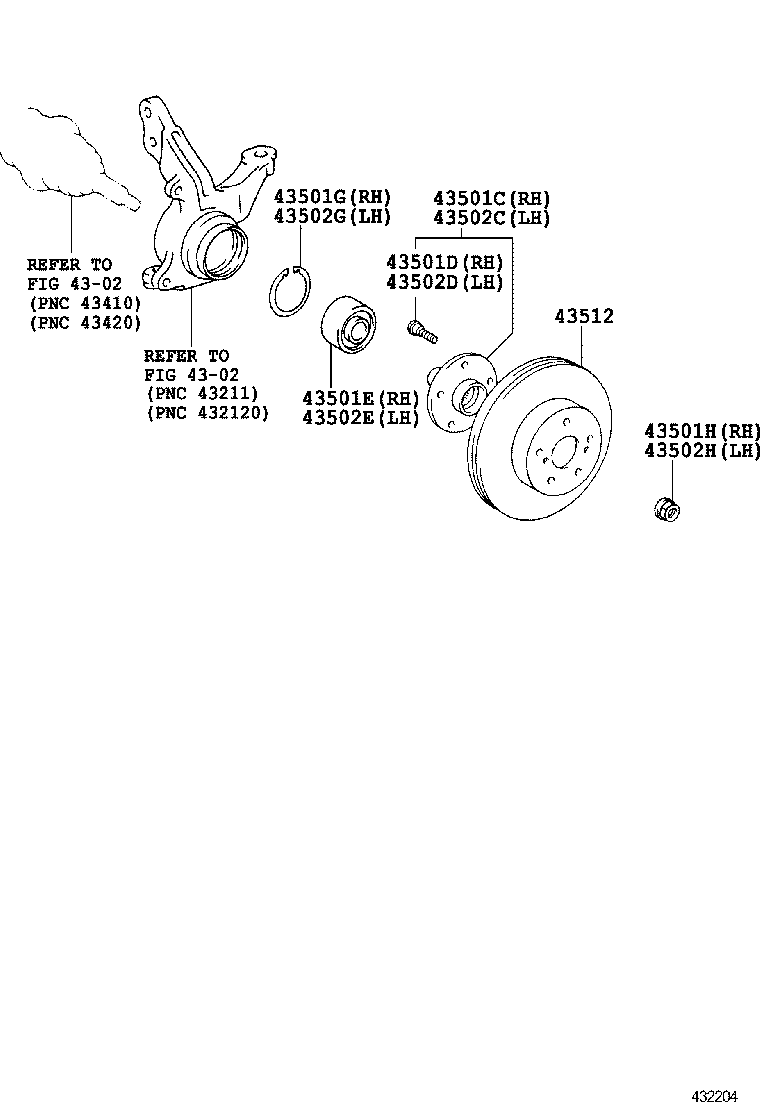

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4302 | ||||
