ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1006- )ZGE21,22

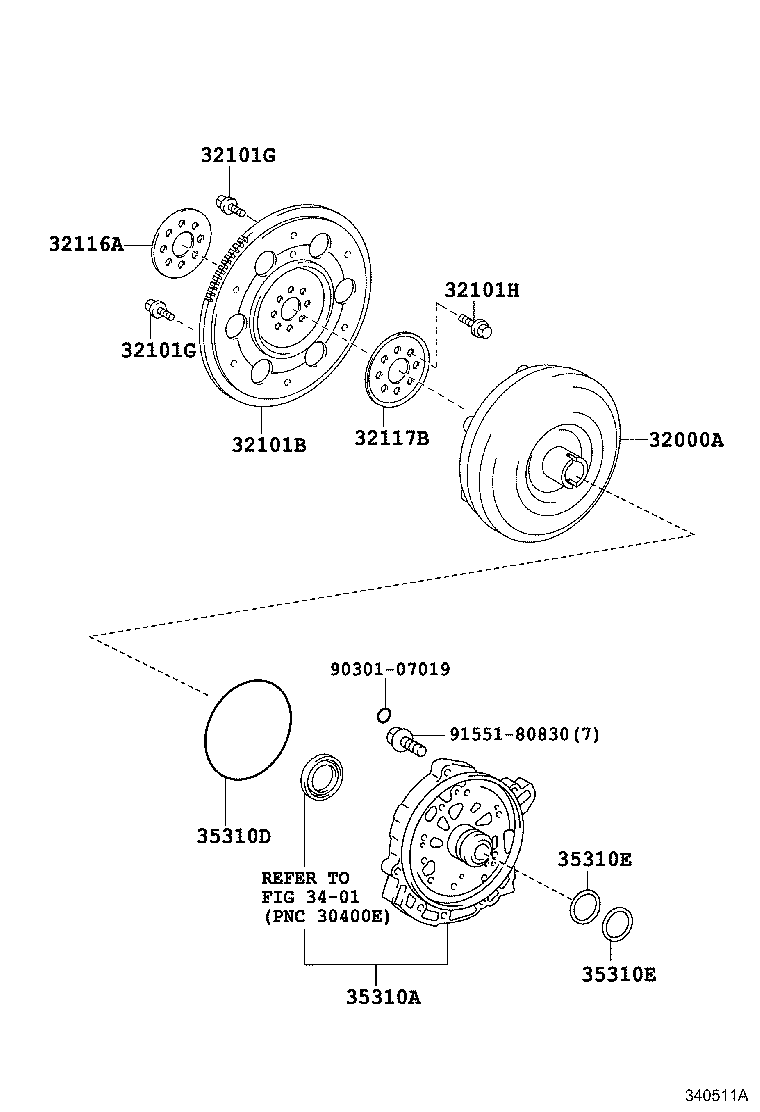

Click highlighted areas on diagram

K111

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B 3401 35310A 35310D 35310E 35310E 9030107019 9155180830
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-28180

ZGE21,22

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZGE2#

(J)

 8
35310A - PUMP ASSY, FRONT OIL
35310-28030

ZGE21,22

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90301-99090

ZGE21,22

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-44010

ZGE21,22

 2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-44010

ZGE21,22

 2
Common parts
90301-07019
91551-80830
Linked diagrams
3401
