ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

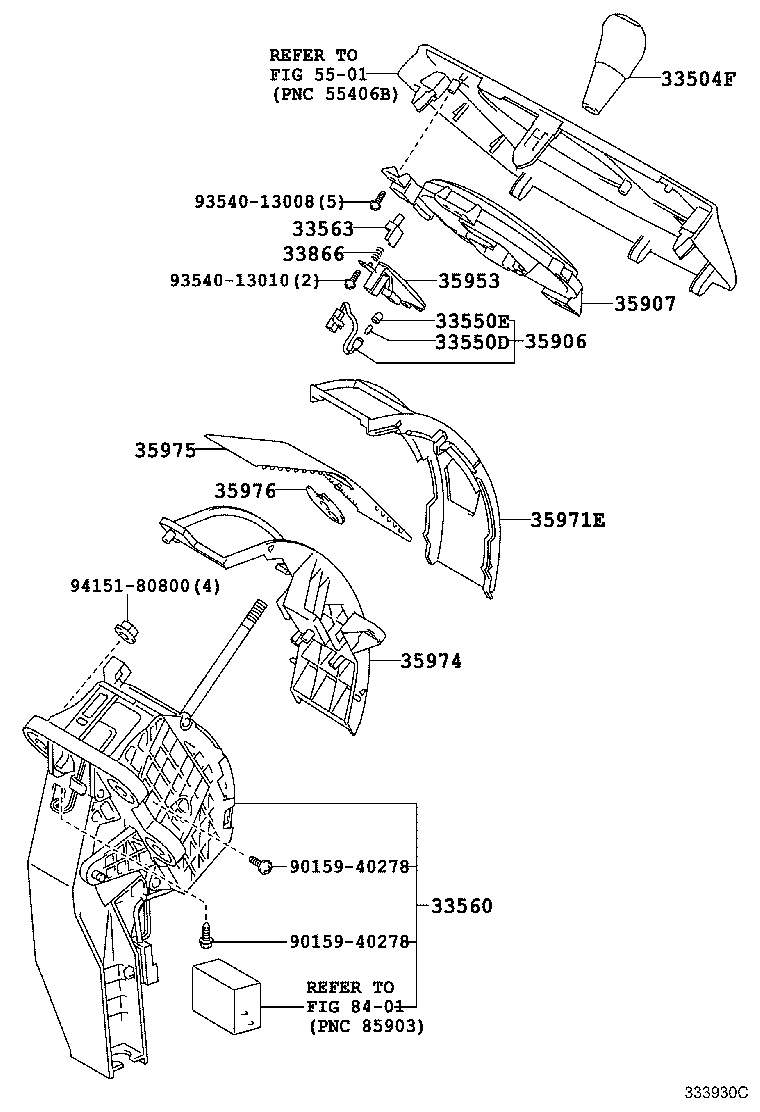

ILLUST NO. 1 OF 2(0909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-74010B0 |
ZGE21..20G DK.GRAY,TRIM4# |
1 | ||
| 33504-68030B0 |
ZGE21 LEATHER PACKAGE,DK.GRAY,TRIM4# |
1 | ||
| 33504-68030B0 |
ZGE21..20G W(MOON ROOF),DK.GRAY,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ZGE21 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
ZGE2#..CVFC 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-58010 |
ZGE2#..CVFC |
1 | ||
| 35956-58010 |
ZGE21 |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-68070 |
ZGE21,22 |
1 | ||
| 33560-68080 |
ZGE21 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-68030 |
ZGE2#..CVFC |
1 | ||
| 33563-68030 |
ZGE21 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-64010 |
ZGE2#..CVFC |
1 | ||
| 33866-64010 |
ZGE21 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-68030 |
ZGE21 |
1 | ||
| 35906-68030 |
ZGE2#..CVFC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-68110 |
ZGE21..20G |
1 | ||
| 35907-68090 |
ZGE2#..18S,20G,20Z |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-68050 |
ZGE2#..CVFC |
1 | ||
| 35953-68050 |
ZGE21 |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-68010 |
ZGE21 |
1 | ||
| 35971-68010 |
ZGE2#..CVFC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-68030 |
ZGE2#..CVFC |
1 | ||
| 35974-68030 |
ZGE21 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-28040 |
ZGE2#..CVFC |
1 | ||
| 35975-28040 |
ZGE21 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-28010 |
ZGE21 |
1 | ||
| 35976-28010 |
ZGE2#..CVFC |
1 | ||
| Common parts | ||||
| 90159-40278 | ||||
| 93540-13008 | ||||
| 93540-13010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||

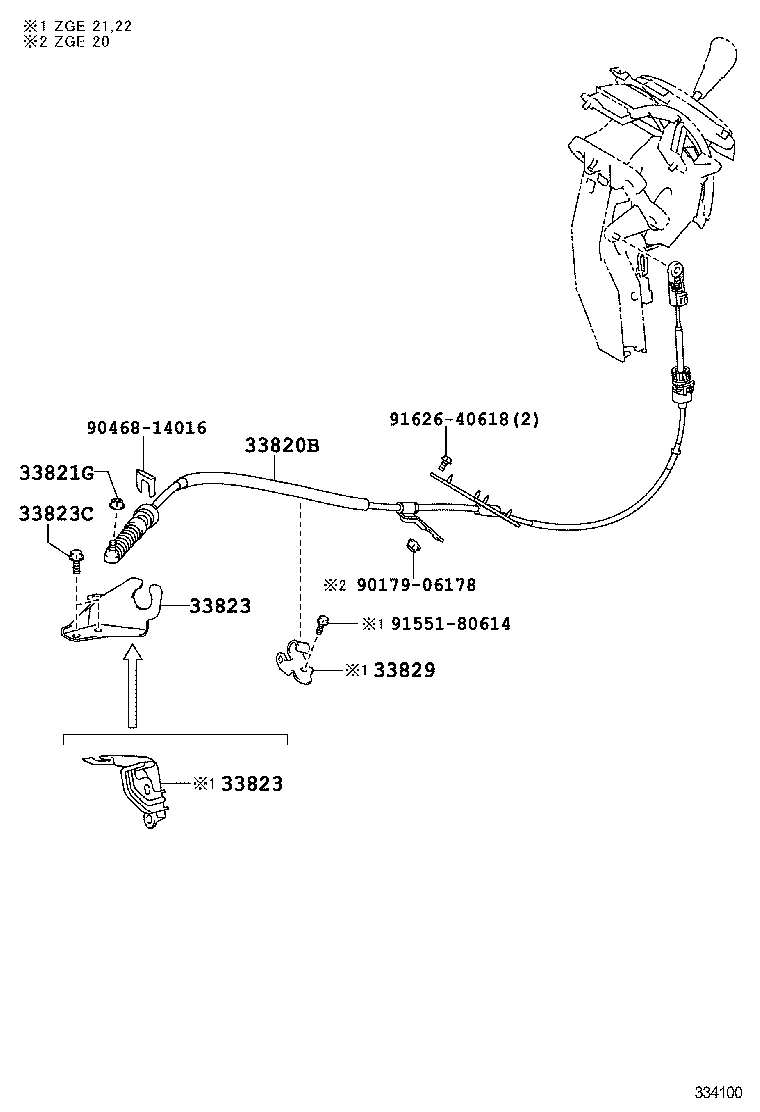

ILLUST NO. 2 OF 2(1006- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-68060 |
ZGE21 |
1 | ||
| 33820-68050 |
ZGE21,22 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ZGE21 |
1 | ||
| 90179-08061 |
ZGE2#..CVFC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12320 |
ZGE21 |
1 | ||
| 33823-12290 |
ZGE21,22 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12320 |
ZGE21 |
1 | ||
| 33823-12290 |
ZGE21,22 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
ZGE2# |
2 | ||
| 91611-B0816 |
ZGE21 |
3 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-20210 |
ZGE21,22 |
1 | ||
| 33829-68030 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91551-80614 | ||||
| 91626-40618 | ||||
ILLUST NO. 2 OF 2(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14016 | ||||
| 91551-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 3513 | ||||

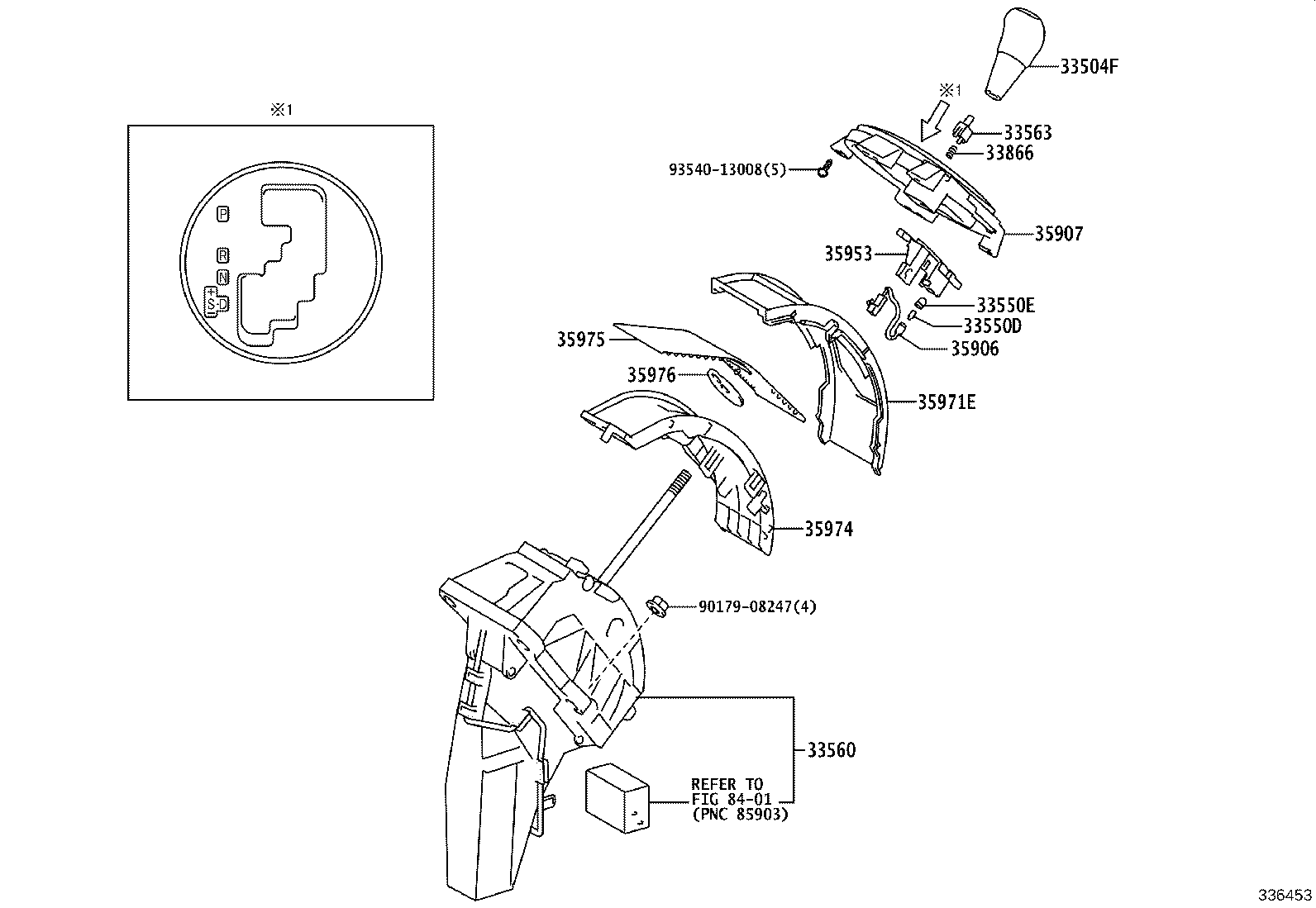

ILLUST NO. 1 OF 2(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08247 | ||||
| 93540-13008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
