ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1006-1204)

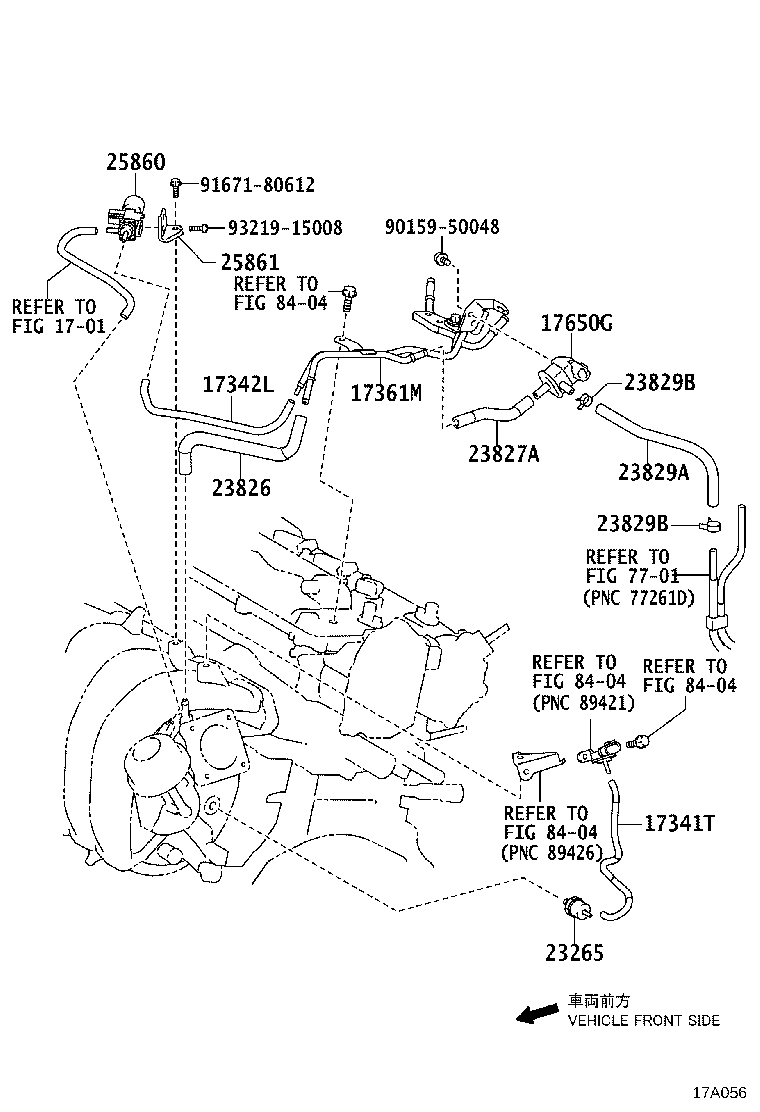

Click highlighted areas on diagram

diagram 1701 17341T 17342L 17361M 17650G 23265 23826 23827A 23829A 23829B 23829B 25860 25861 7701 8404 8404 8404 8404 9015950048 9167180612 9321915008
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
17341-37060

2ZRFAE,3ZRFAE..ZGE2#

 1
17342L - HOSE, AIR, NO.2
17342-37050

2ZRFAE,3ZRFAE..ZGE2#

 1
17361M - TUBE, AIR
17361-37020

2ZRFAE,3ZRFAE..ZGE2#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

2ZRFAE,3ZRFAE..ZGE2#

 1
23265 - FILTER, GAS, NO.1
90917-11022

2ZRFAE,3ZRFAE..ZGE2#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-37050

2ZRFAE,3ZRFAE..ZGE2#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37030

2ZRFAE,3ZRFAE..ZGE2#

 1
23829A - HOSE, FUEL VAPOR FEED
23826-37120

2ZRFAE,3ZRFAE..ZGE2#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFAE,3ZRFAE..ZGE2#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFAE,3ZRFAE..ZGE2#

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12281

2ZRFAE,3ZRFAE..ZGE2#

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
Common parts
90159-50048
91671-80612
93219-15008
Linked diagrams
1701
7701
8404

(0911-1212)

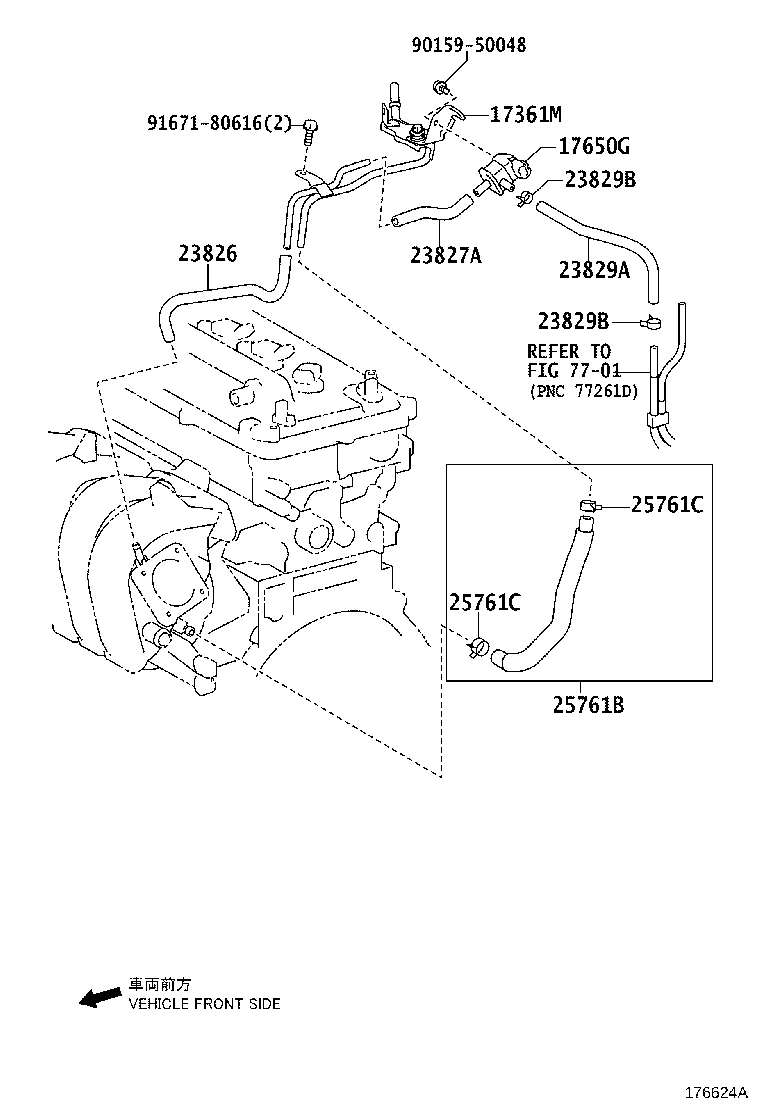

Click highlighted areas on diagram

diagram 17361M 17650G 23826 23827A 23829A 23829B 23829B 25761B 25761C 25761C 7701 9015950048 9167180616
Part # Description Qty Price
Common parts
90159-50048
91671-80616
Linked diagrams
7701
