ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )2ZRFAE,3ZR#..ZGE20,21

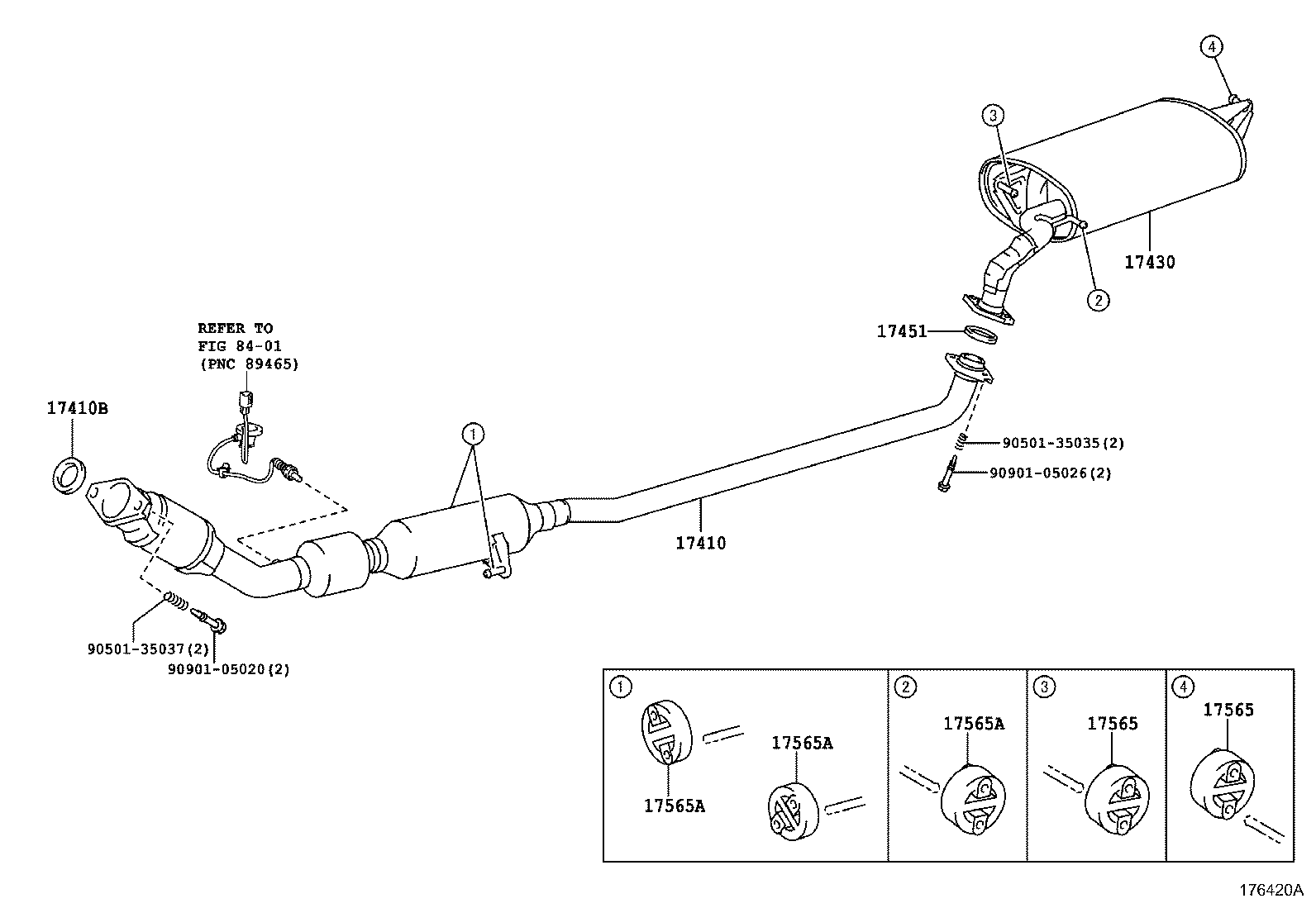

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-37360 |
3ZRFAE..ZGE21 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-37340 |
2ZRFAE,3ZRFAE..ZGE20,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-37010 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFAE,3ZRFAE..ZGE2# |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFAE,3ZRFAE..ZGE2# |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFAE,3ZRFAE..ZGE2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFAE,3ZRFAE..ZGE2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFAE,3ZRFAE..ZGE2# |
3 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
